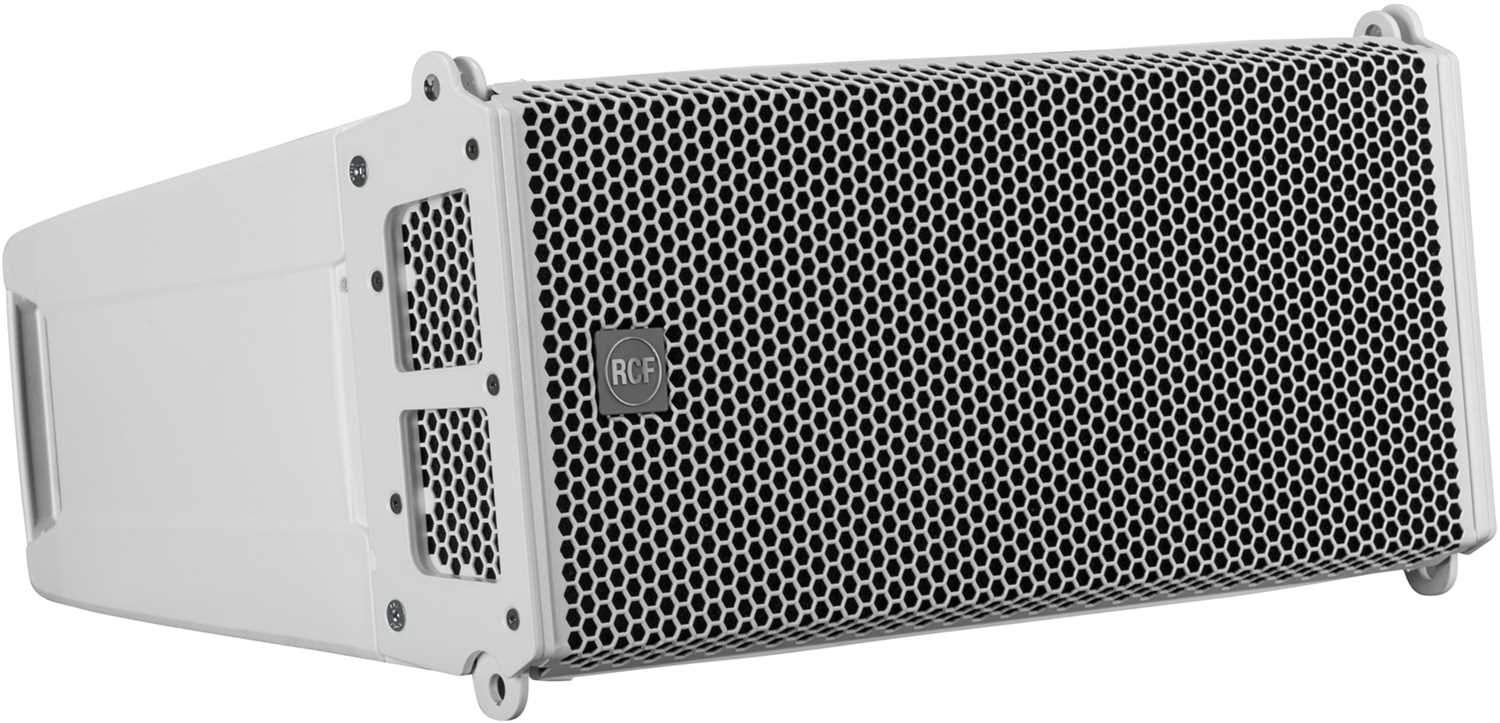

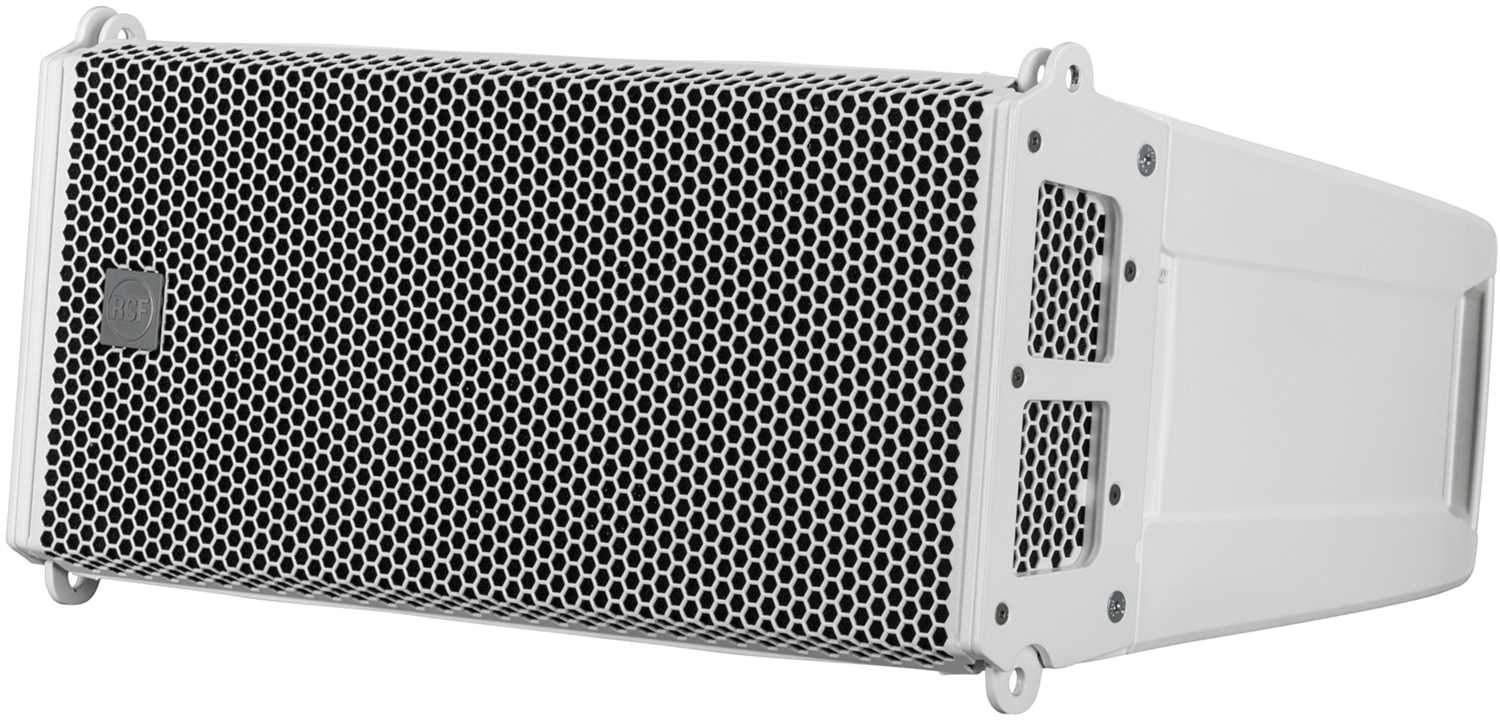

RCF HDL6-A W Powered Line Array Module - White

RCF HDL6-A W White Powerhouse Line Array Module

Unleash exceptional sound with the RCF HDL6-A W! Ideal for those seeking top-notch line array performance and a breeze to set up. This module packs a punch with a 1400 W 2-channel class-D amplifier and a powerful DSP for sound processing. • State-of-the-art RCF transducers deliver outstanding audio quality. • Compact and lightweight for easy handling. • Simple setup for hassle-free use.

Features:

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7' voice coil neodymium compression driver
• 2 x high power neodymium 6.0'woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPhase processing

Specifications:

Acoustical specifications

• Frequency Response: 65 Hz ¡ 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 10°

Transducers

• Compression Driver: 1.0'' neo, 1.75'' v.c
• Woofer: 2 x 6.0'' neo, 2.0'' v.c

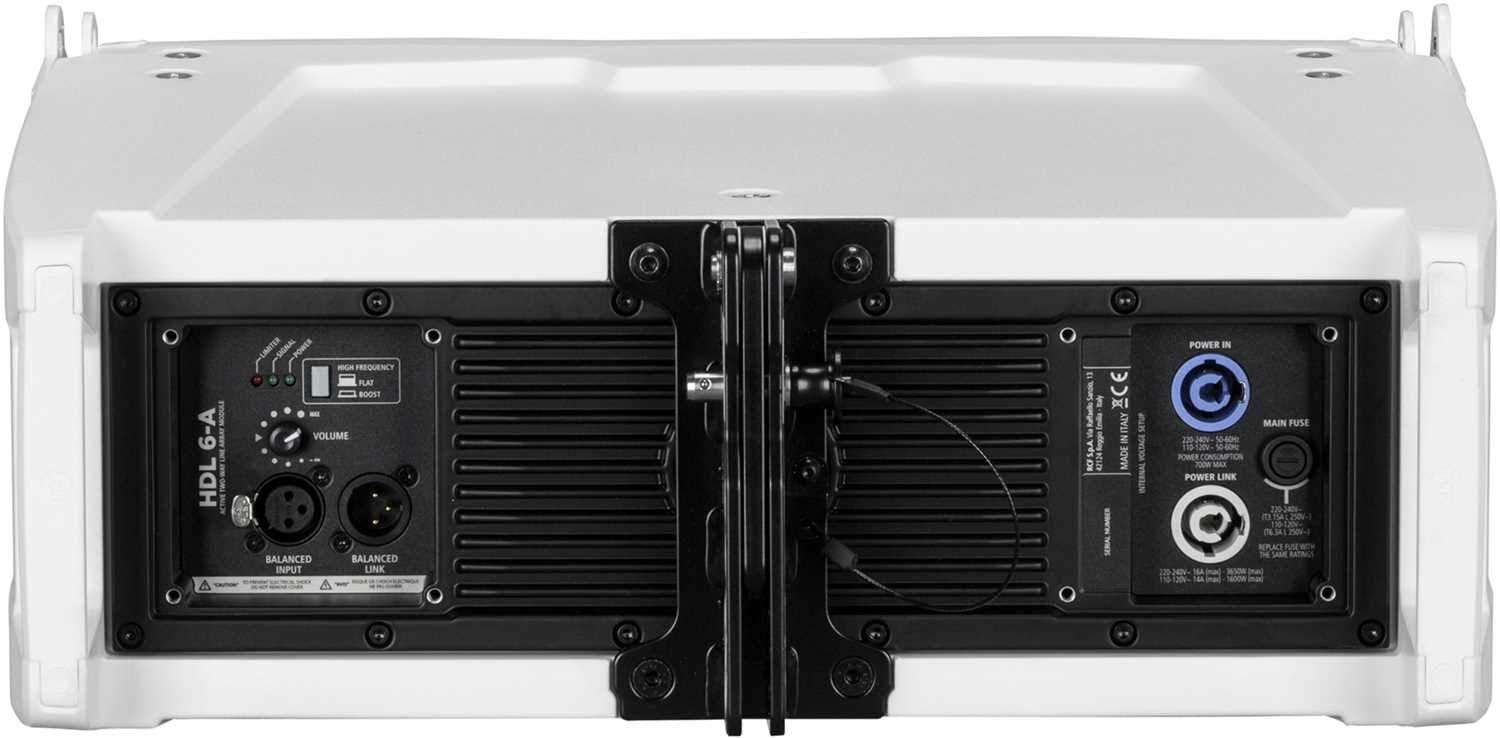

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: +4 dBu

Processor section

• Crossover frequencies: 900 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: HF correction

Power section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon In/Out

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: PP Composite
• Hardware: Array fittings
• Handles: 2 Back
• Grille: Steel
• Color: White

Size

• Height: 237 mm / 9.33 inches
• Width: 470 mm / 18.5 inches
• Depth: 377 mm / 14.84 inches
• Weight: 11.6 kg / 25.57 lbs

The RCF HDL6-A W White Powerhouse Line Array Module is perfect for events, venues, and professionals who demand high-quality sound. With a powerful 1400 W 2-channel class-D amplifier and advanced DSP processing, it delivers exceptional audio performance. It features state-of-the-art RCF transducers for outstanding sound quality. Compact and lightweight, it's easy to handle and set up. The module has a height of 237 mm (9.33 inches), width of 470 mm (18.5 inches), depth of 377 mm (14.84 inches), and weighs 11.6 kg (25.57 lbs). It comes in white, with a PP Composite cabinet, array fittings, 2 back handles, and a steel grille. Suitable for a variety of applications where great sound is essential.
