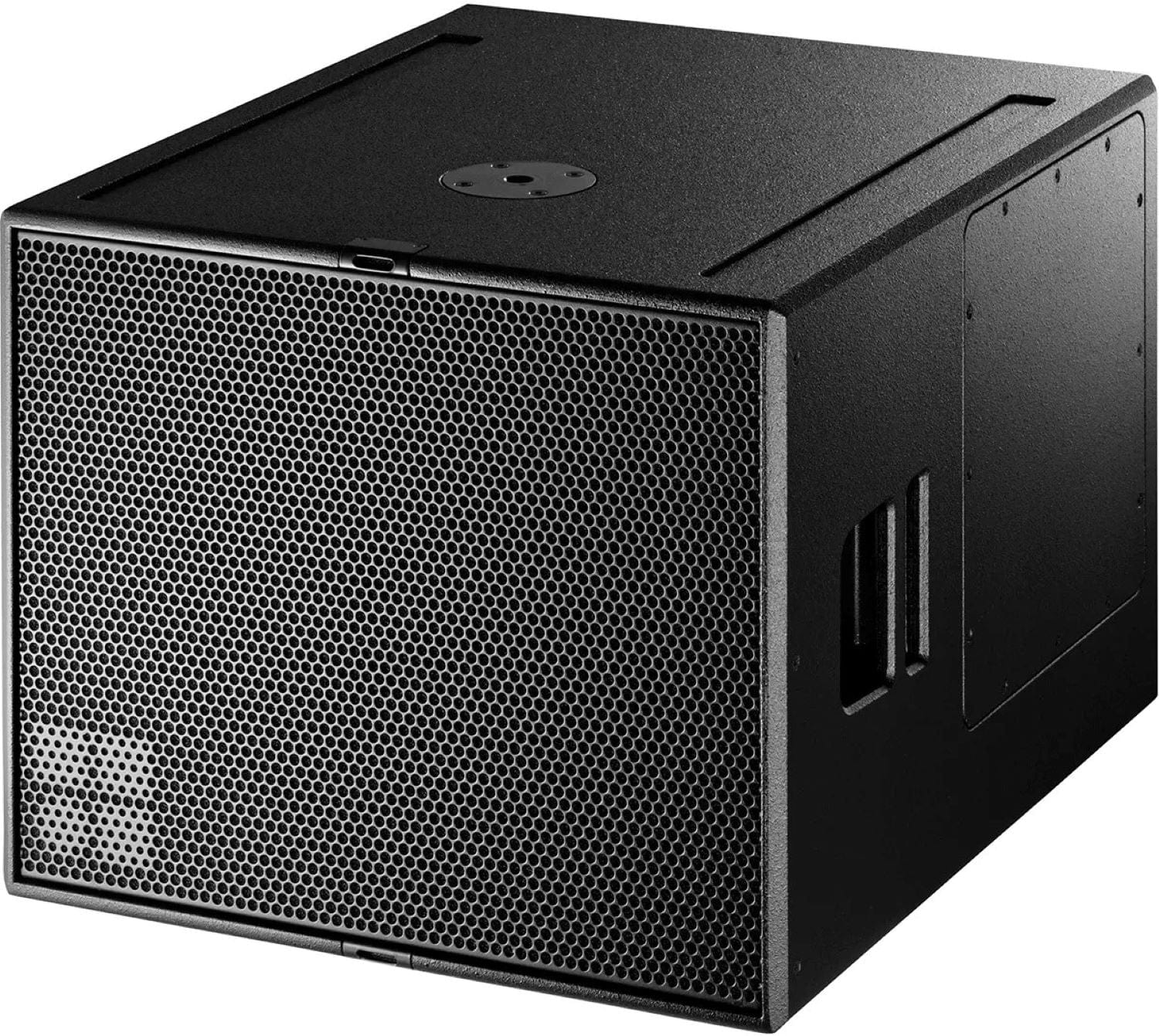

D&B Audiotechnik Z0610.001 B4 15-Inch/12-Inch NL4 Dual Passive Subwoofer
Get ready to experience bass like never before with the B4-SUB! This amazing subwoofer is perfect for those who demand the best in audio quality. Here's why:
- • Cardioid Design: Delivers focused bass and reduces unwanted low-frequency reverberation for a cleaner sound.
- • High SPLmax: Reaches up to 131 dB for a powerful audio punch.
- • Durable Build: Constructed from marine plywood with a weather-resistant finish and handles for easy setup.
The B4-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. It has two long excursion neodymium drivers in an integrated cardioid setup. The 15' driver in bass-reflex design faces forward, and the 12' driver in two chamber bandpass design radiates to the rear. This creates a cardioid dispersion pattern that avoids unwanted energy behind the system, greatly reducing the reverberant field at low frequencies and providing the greatest accuracy of low frequency reproduction. It can only be used in a ground stacked setup.
The B4-SUB cabinet is made of marine plywood, has an impact and weather resistant paint finish, and comes with a pair of handles. An M20 threaded flange in the top panel accepts the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Colour (SC) options.
Features:
- Components 15'/12'
- Dispersion Cardioid
- SPLmax 131 dB
- Weight 44 kg / 97 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 40 - 150 Hz
- Frequency response (-5 dB 100 Hz mode): 40 - 100 Hz
- Max. sound pressure:
- with 10D: 128 dB
- with D20/30D: 131 dB
- with D40/D80/40D: 131 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Cardioid subwoofer
- Nominal impedance: 6 Ω
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Components: 15' / 12' driver
- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 476 x 580 x 700/ 800 mm (18.7 x 22.8 x 27.73 / 31.6')
- Weight: 44 kg / 97 lb
The D&B Audiotechnik Z0610.001 B4 Dual Passive Subwoofer is a must-have for audiophiles and music lovers. It's great for use in live events, concerts, or home theater setups. With dimensions of 476 x 580 x 700/800 mm (18.7 x 22.8 x 27.73 / 31.6') and a weight of 44 kg / 97 lb, it's easy to handle and set up. Enjoy powerful bass and exceptional sound quality with this amazing subwoofer.
