D&B Audiotechnik Z0550.001 T10 High-Performance Loudspeaker with NL4 Connections
• Exceptional Sound Quality: Experience crystal-clear audio with this high-performance loudspeaker. It features a passive 2-way design with two 6.5' drivers and a 1.4' HF compression driver, delivering outstanding sound across a wide frequency range.
• Versatile Usage: The T10 can be used both as a line array for large-scale events and as a high directivity point source loudspeaker for more focused sound projection. Ideal for concerts, conferences, and installations.

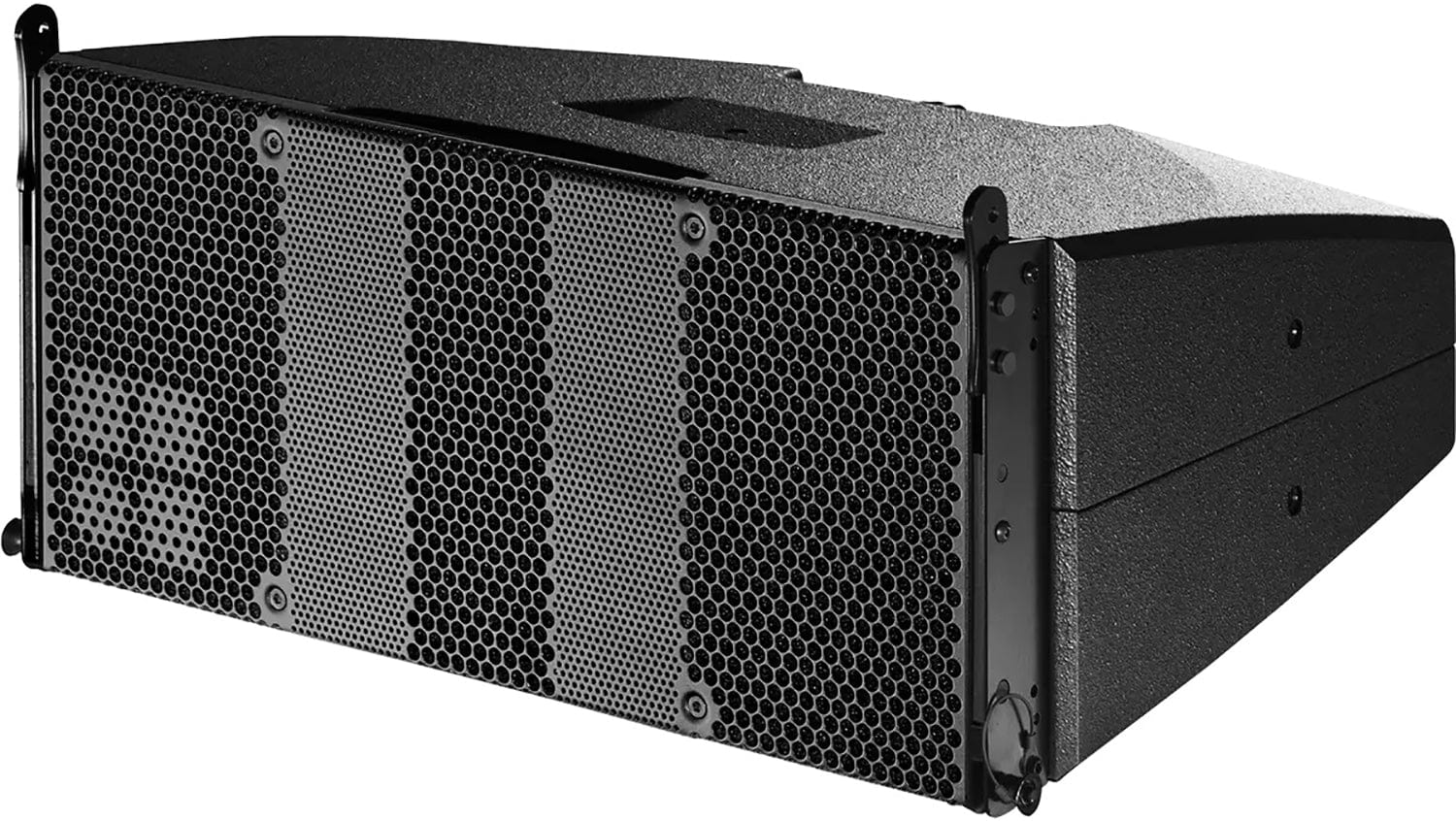

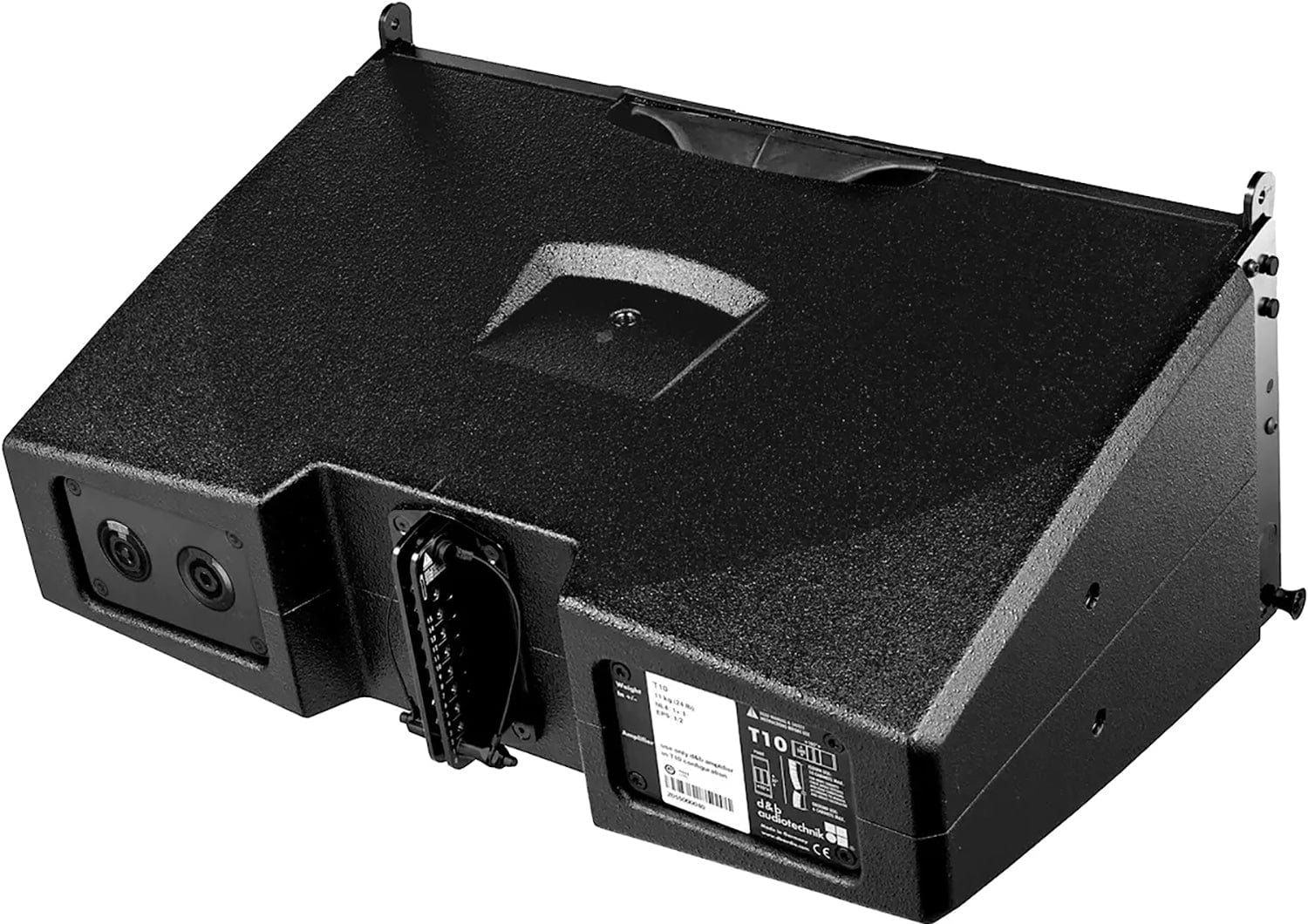

• Durable and Stylish: Constructed from polyurethane integral hard foam, this loudspeaker is built to last. It has integrated line array rigging hardware and an impact resistant finish, while the front is protected by a rigid metal grill. Two NL4 connectors are mounted on the rear panel for easy connectivity.
Specifications:
- System data:
- Frequency response (-5 dB standard): 68 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
- Max. sound pressure:
- with 10D: 129 dB2 / 127 dB3
- with D20/5D/30D: 132 dB2 / 130 dB3
- with D40/D80/40D: 132 dB2 / 130 dB3
- Cabinets per amplifier channel: 4
- Loudspeaker data:

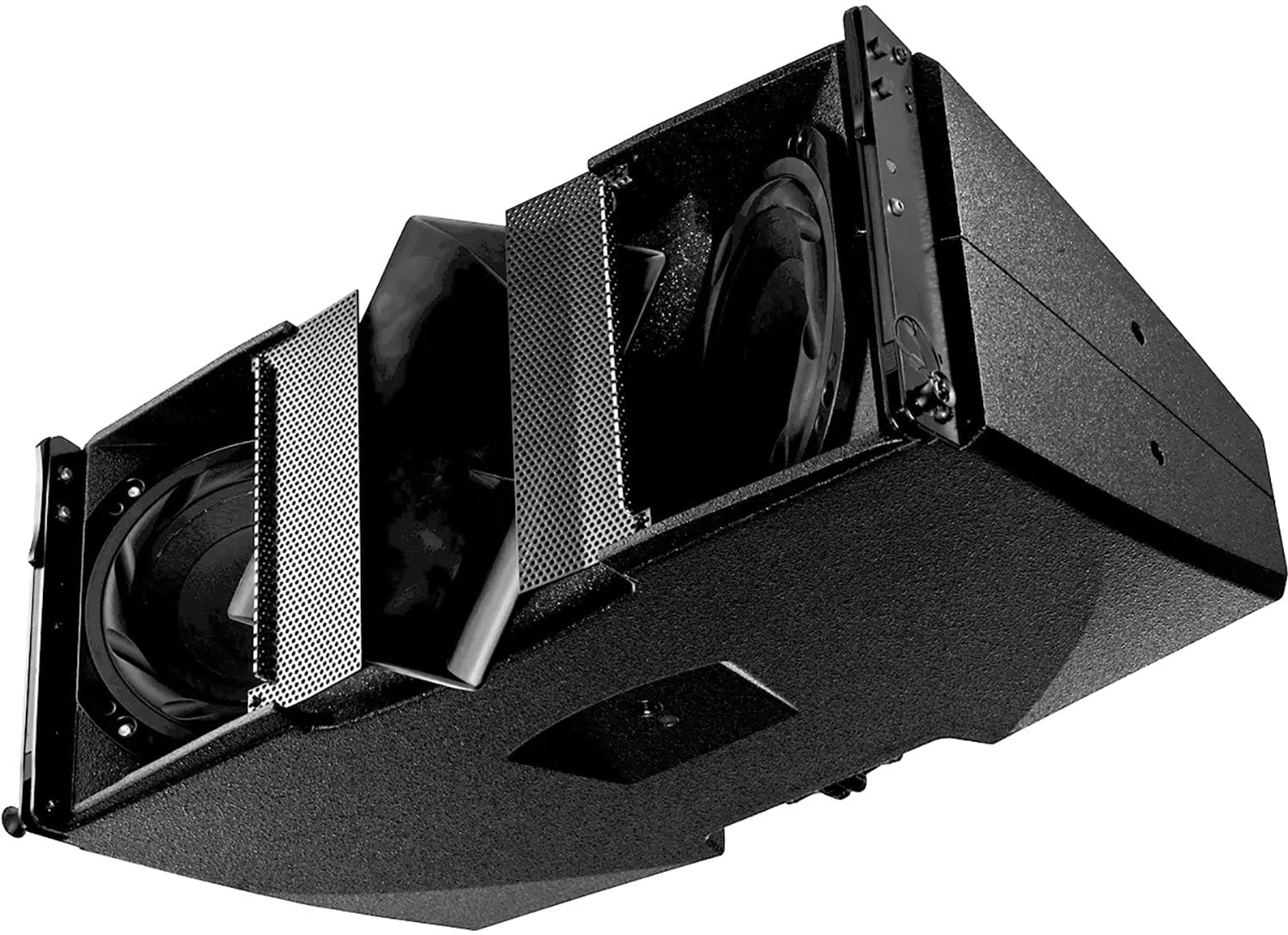

- Configuration: 2-way loudspeaker with rotatable horn for point and line source operation
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 200 /800 W
- Nominal dispersion angle (point source, h x v): 90° x 35°
- Nominal dispersion angle (line source, horizontal): 105°
- Components:
- 2 x 6.5' driver with neodymium magnet
- 1.4' exit compression driver on rotatable waveguide
- passive crossover network
- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 197 x 470 x 300 mm (7.8 x 18.5 x 11.8')
- Weight: 11 kg (24 lb)
This D&B Audiotechnik Z0550.001 T10 loudspeaker is perfect for various audio setups. Whether you're hosting a concert, a conference, or setting up an audio installation, it's a great choice. With dimensions of 197 x 470 x 300 mm and a weight of 11 kg, it's easy to handle and install. It has a frequency response of 68 Hz - 18 kHz (standard) and 120 Hz - 18 kHz (CUT mode). It can handle a maximum sound pressure of 129 dB2 / 127 dB3 with 10D, 132 dB2 / 130 dB3 with D20/5D/30D, and 132 dB2 / 130 dB3 with D40/D80/40D. The nominal impedance is 16 Ω, and it has a power handling capacity of 200 /800 W. It's suitable for both professional audio technicians and event organizers looking for high-quality sound solutions.
