Crown XLC2800 DriveCore-Powered 2-Channel Power Amplifier
The XLC2500 and XLC2800 are two amazing models that feature Crown's proprietary DriveCore Technology. This technology not only shrinks the amplifier's size significantly but also makes it much more energy-efficient without sacrificing performance. Compact, powerful, and cost-effective, the XLC Series offers easy installation, outstanding sound quality, and the rock-solid reliability that Crown products are known for. These amplifiers are a great choice for both cinema and install markets.
Features:
Some important features for cinema applications:
- • Two models with 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms - Great for powering cinema sound systems
- • Compatible with CXM2000 for monitor, fault detection, and crossover functions - Enhance your cinema setup
- • Compatible with Crown Monitor System DSi-8M for monitor function - Keep an eye on your audio
- • Power for 2-ohm, 4-ohm, and 8-ohm outputs, supporting stereo and bridge outputs - Versatile for different speaker setups
- • Support parallel connection of cinema surround speaker - Create a immersive sound experience
- • Indicators provide accurate diagnostics: Power, Signal, Clip, and Fault - Keep track of your amplifier's status
- • Volume control on rear panel of amplifiers - Easy to adjust the sound
- • High performance, light weight - Enjoy great sound without the bulk
- • DriveCore based amplifier – weighs less than 14lbs (6 kgs) - Portable and easy to install
Some important features for install applications:

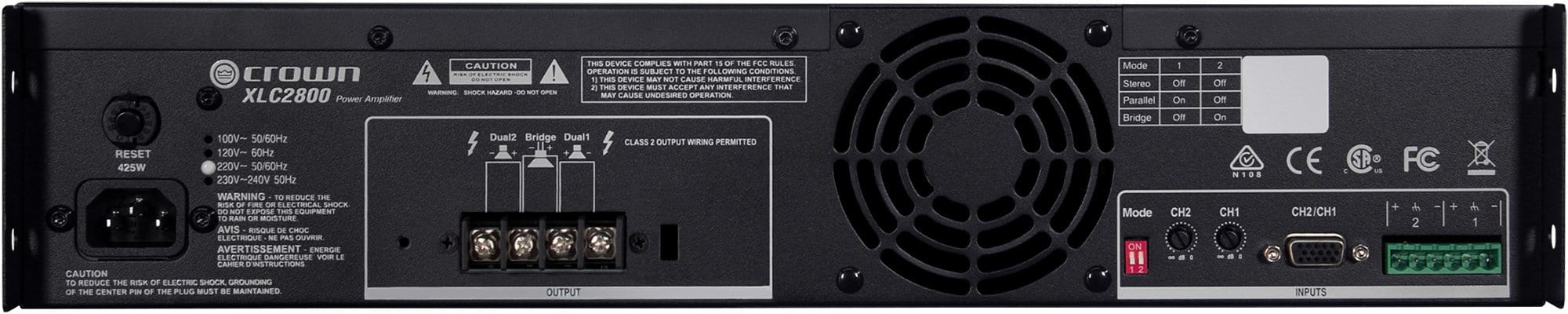

- • Minimal front panel control; block connectors and controls on back of amplifiers - Simple and convenient installation
- • High performance lightweight DriveCore based amplifier for audiophile quality and extremely high reliability - Great for installers and audiophiles
- • Configurable input operation for stereo and parallel and bridge modes - Customize your audio setup
- • Configurable output operation for stereo and bridge modes - Tailor the sound to your needs
Specifications:
- AC Line Voltage and Frequency Configurations Available: (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz - Works with various power sources
- Voltage Gain: 42 - Amplify your sound effectively
- Sensitivity: 1.4V (for full rated power at 4 ohms) - Get the most out of your speakers
- Signal to Noise Ratio: (ref. rated power, 8 ohms, 1 kHz) > 103 dB - Clear and crisp sound
- THD: <0.5% - High-quality audio reproduction
- Damping Factor (8 ohms, 10 Hz to 400 Hz): >200 - Control the sound accurately
- Intermodulation Distortion (from full rated output to -30 dB): <0.3% - Smooth and distortion-free sound
- Frequency Response (at 1W, 20 Hz - 20 kHz): -` dB - Wide range of frequencies
- Crosstalk: >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz) - Minimize interference
- Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced - Compatible with different audio sources
- Load Impedance: 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge - Versatile speaker compatibility
- Dimensions: 19' x 3.5' x 10.4' (48.3cm x 8.9cm x 26.4cm) - Compact size for easy installation
- Weight: 10.4 lbs (4.72 kg) - Lightweight and easy to handle
- Shipping Weight: 13.2 lbs (6 kg) - Convenient for shipping and storage
- IEC Power Connector: 15A - Reliable power connection
The Crown XLC2800 is a 2-channel power amplifier designed for both cinema and install applications. It features Crown's DriveCore Technology, which reduces size and improves energy efficiency without sacrificing performance. Compact and powerful, it offers easy installation and outstanding sound quality. With a weight of 10.4 lbs (4.72 kg) and dimensions of 19' x 3.5' x 10.4' (48.3cm x 8.9cm x 26.4cm), it's suitable for a variety of setups. Ideal for audiophiles and installers looking for a reliable and high-performing amplifier.
