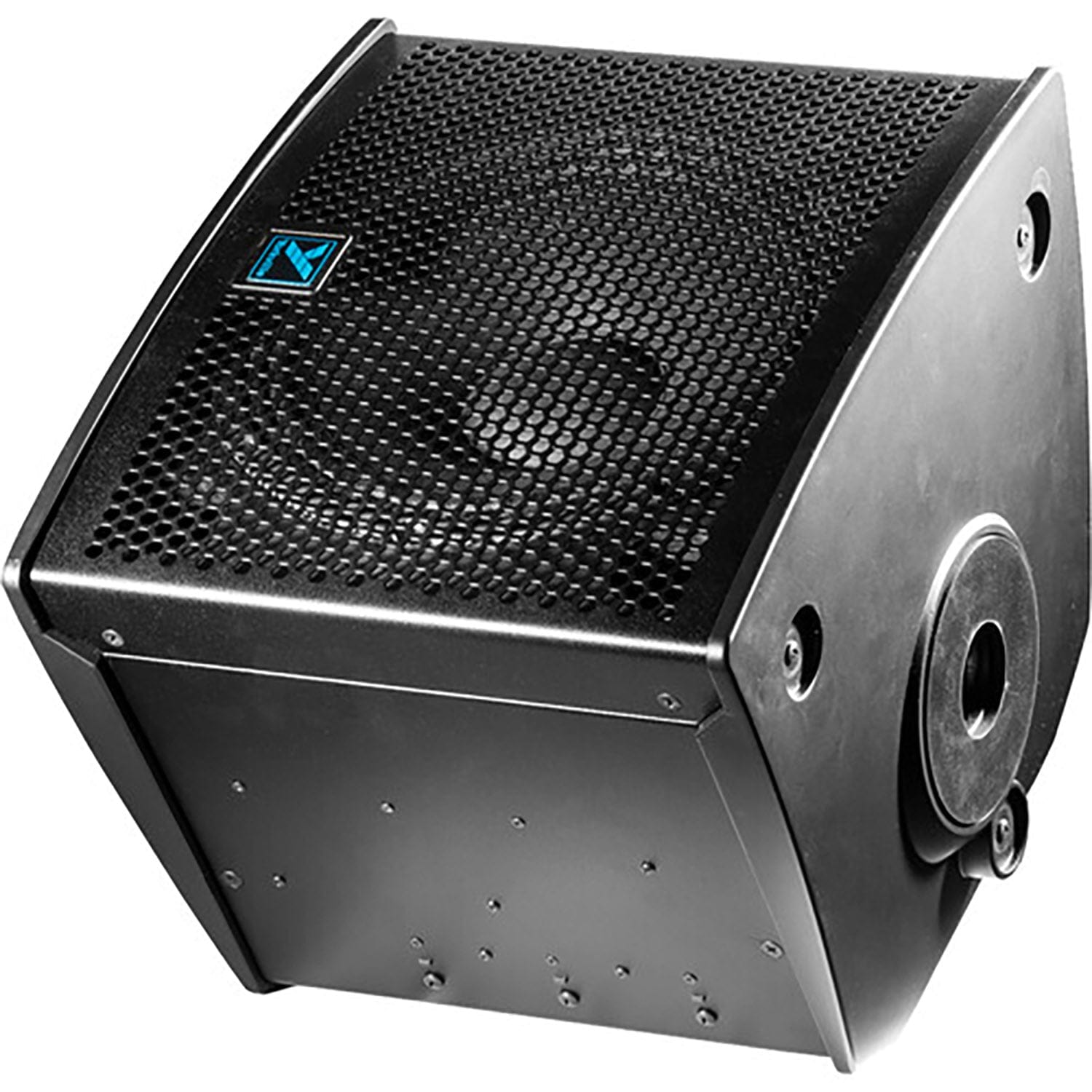

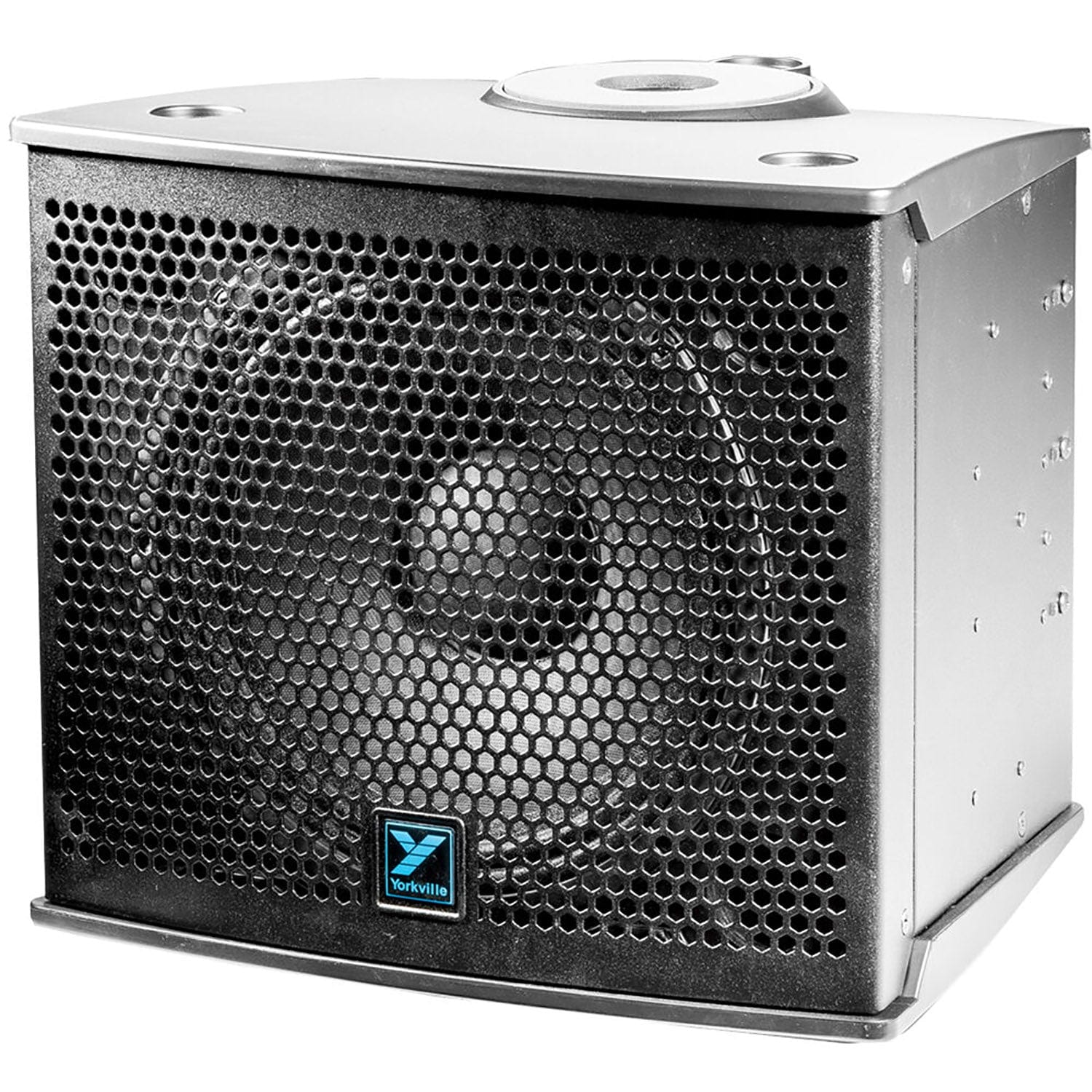

Yorkville NX10C-2 300-Watt Powered 10-Inch Coaxial Woofer with Internal 1-Inch Driver - Your Ultimate Stage Sound Solution
10-inch / 1-inch Coaxial - 500 watts

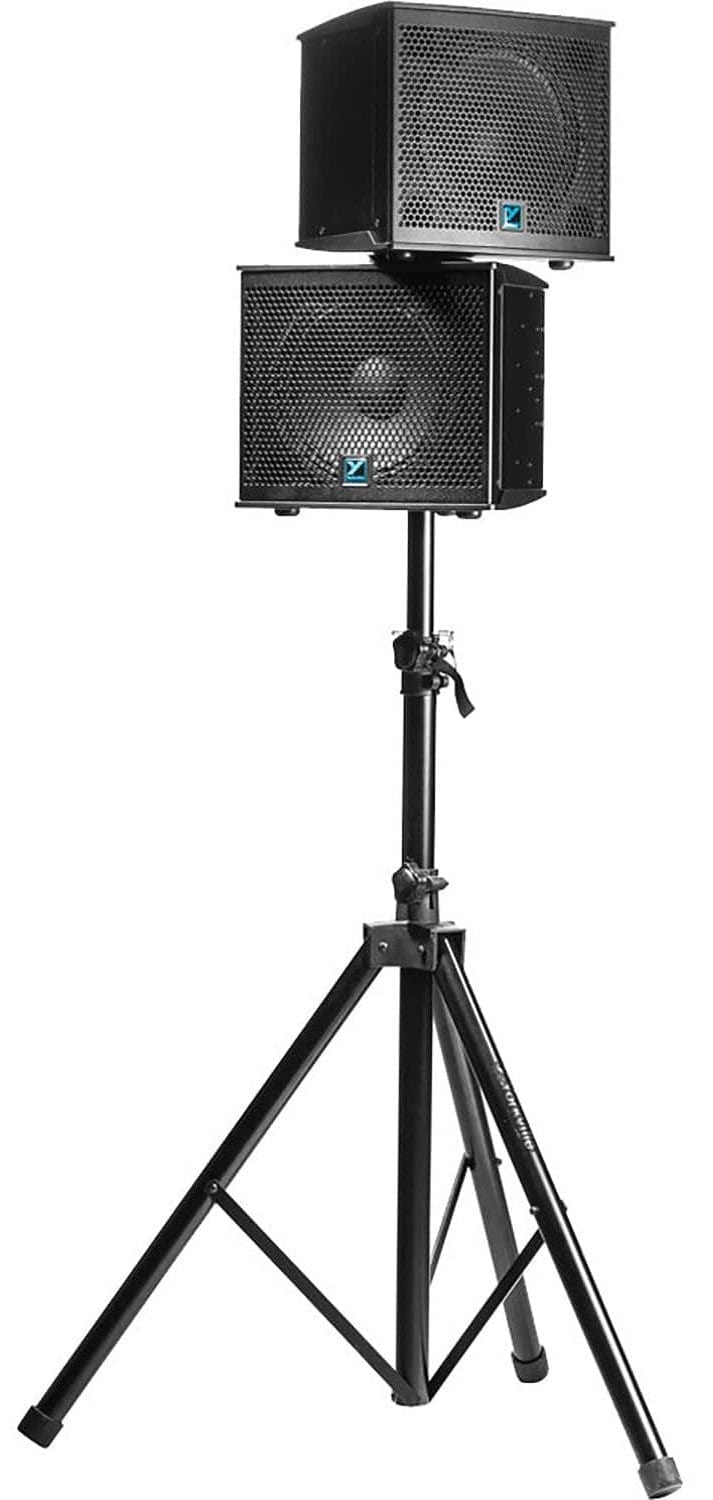

• Compact and Versatile: The NX10C-2 is the most versatile and compact professional PA cabinet ever, with its 12-inch profile and innovative 'through hole' pole mount design. Multiple cabinets can be mounted on a single standard speaker stand in a vertical array for high volume applications, or rotated for wider horizontal coverage. Don't miss out on this space-saving solution!
• Phase Coherent Monitoring: For side-wash monitor applications on tight stages, mount the NX10C-2 under the front of house cabinets to get a fully phase coherent monitor signal. This innovative feature makes it a must-have for any stage setup.

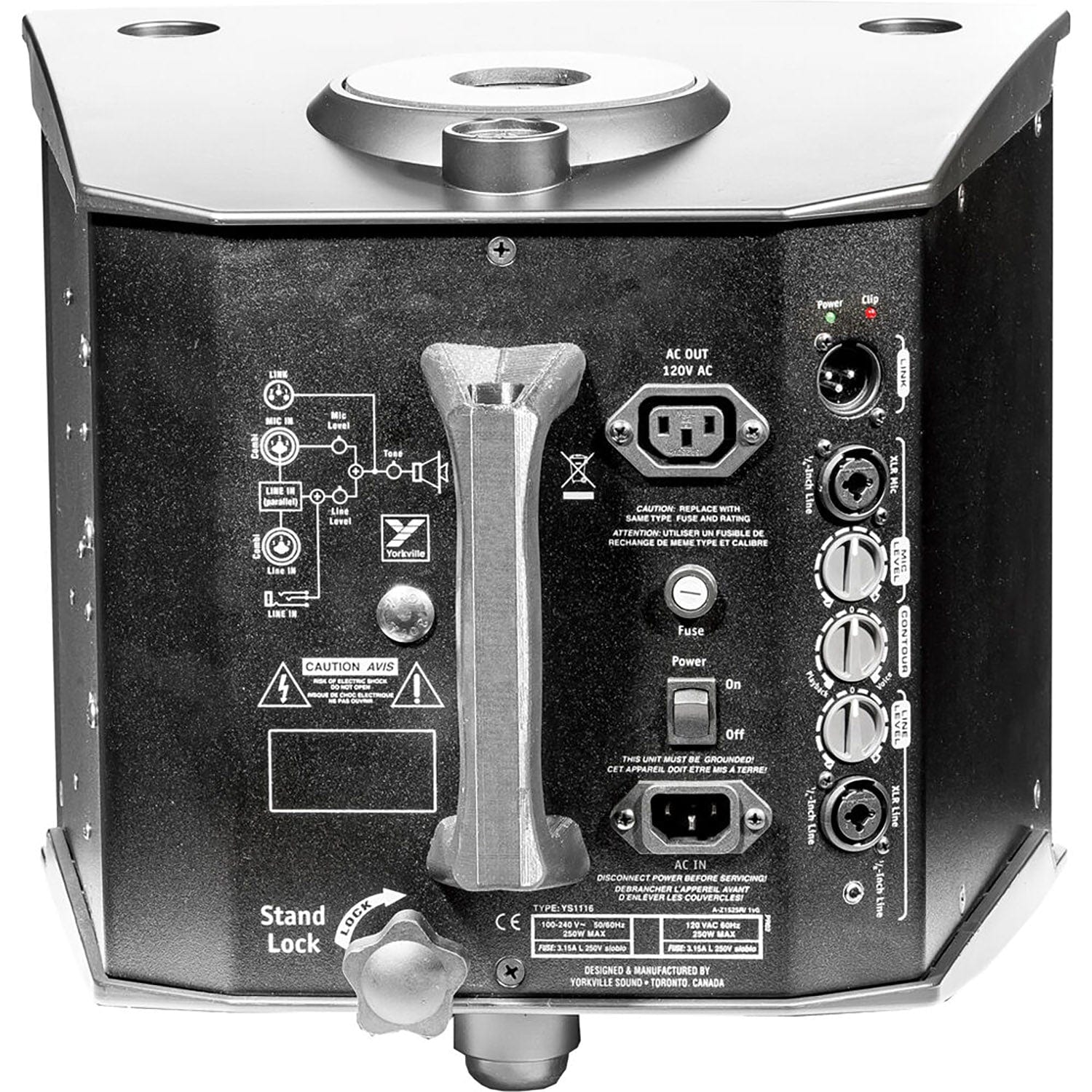

• Customizable and User-Friendly: The innovative custom rear mounted handle doubles as a tilt stand, allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet. Versatile inputs for mic or line level sources, plus an 1/8th-inch TRS jack, let you connect directly to any audio source. Get yours now!
Specifications
- Active or Passive: Active
- Power Rating (Watts): 500 Watts (1200 Watts Peak)
- Biampable: Self Powered
- Max SPL (dB): 127dB Peak (124dB Continuous)
- Frequency Response (Hz +/- 3dB): 80Hz - 20kHz
- Crossover Frequency (Hz): 2500Hz
- Driver Configuration: Coaxial 10-inch/1-inch
- HF Driver(s): 1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film
- HF Dispersion (°H x °V): 60 x 60
- LF Driver(s): 10-inch Ceramic Magnet with a 2.5' voice coil
- HF Amplifier Type: Class A/B
- LF Amplifier Type: 3 Tier Class- H
- Power Cable: Yes
- Power Switch: Yes
- Power Consumption (typ/max): 120 / 310 VA
- Inputs: 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4' inputs are parallel
- Input Sensitivity (Vrms Sine): 1.23 Vrms, +4dBu
- Mixer Controls: EQ (Playback/Bright)
- Level Controls: Line/Mic
- Limiter: Yes
- LED Indicators: Power, Clip
- Feet: Yes

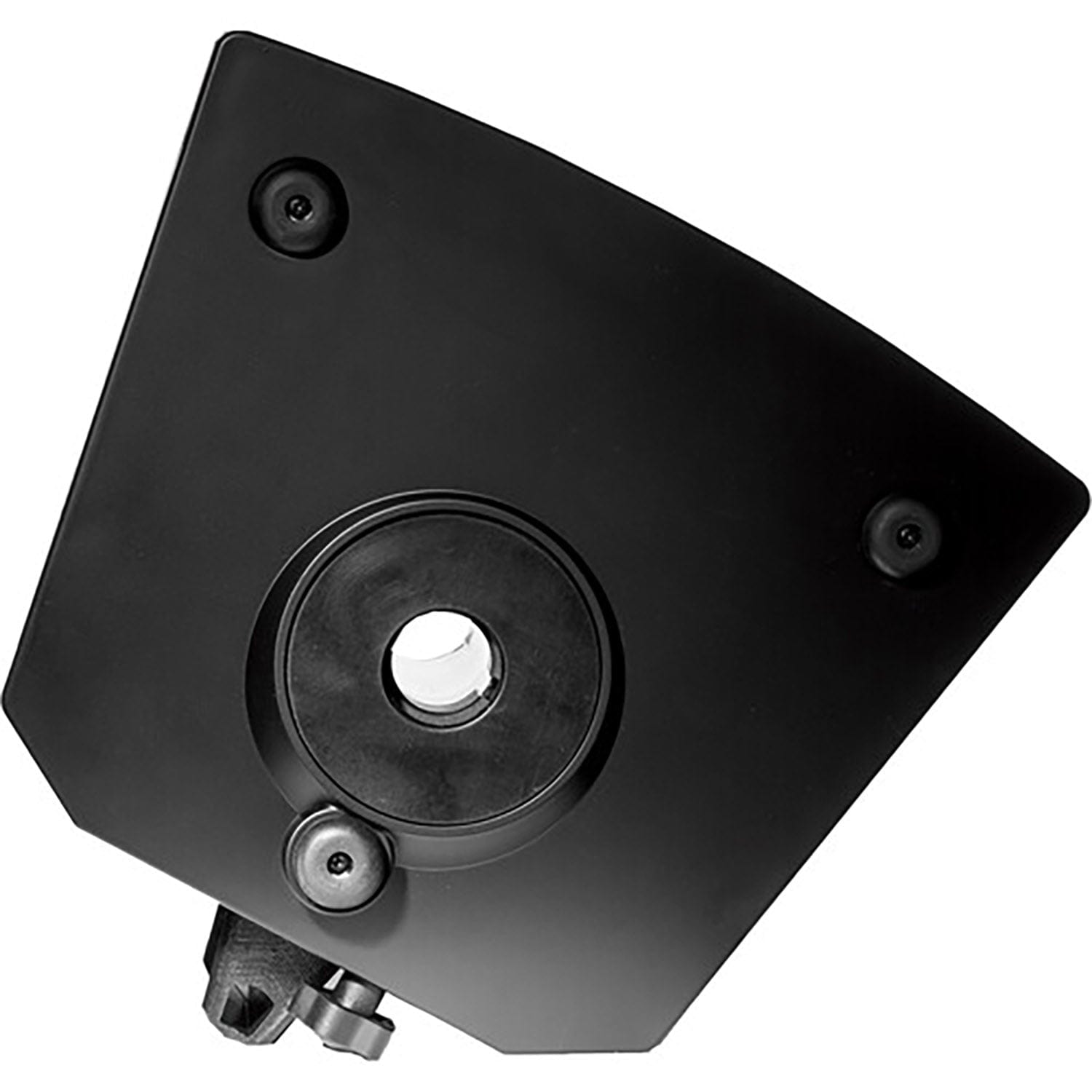

- Pole Mount Adapter (1 3/8'-3.5cm): Pole Through
- Enclosure Materials: Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
- Grille: Perforated Steel
- Dimensions (DWH xbackW, inches): 13 X 13.5 X 12
- Dimensions (DWH xbackW, cm): 33 x 34.3 x 30.5
- Weight (lbs/kg): 25 / 11.3
Specifications subject to change without notice
The Yorkville NX10C-2 is a powerful and versatile speaker system perfect for stage setups. With its compact design, it's ideal for venues where space is limited. The innovative features make it a great choice for sound engineers and performers alike. Measuring 13 X 13.5 X 12 inches (33 x 34.3 x 30.5 cm) and weighing 25 lbs (11.3 kg), it's easy to transport and set up. Whether you're hosting a live event or a small gig, the NX10C-2 will deliver high-quality sound.
