Yamaha Tio1608-D Dante-Enabled Digital Stage Box: Unleash Exceptional Sound

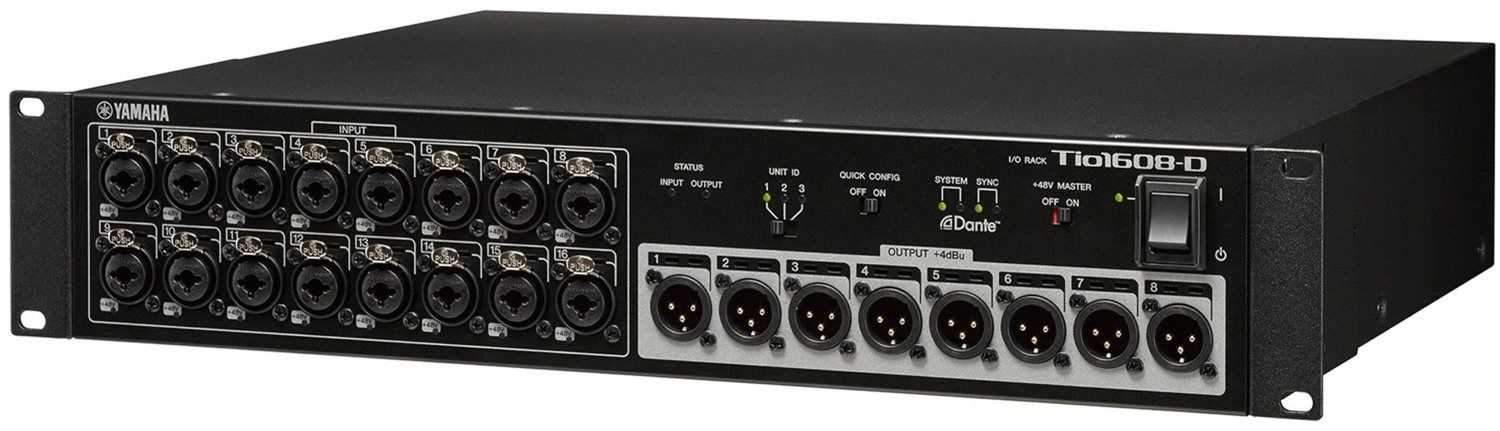

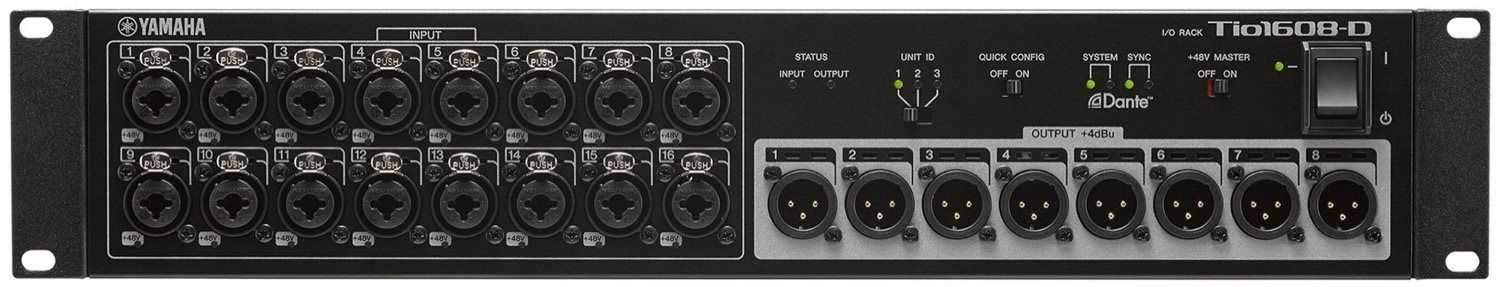

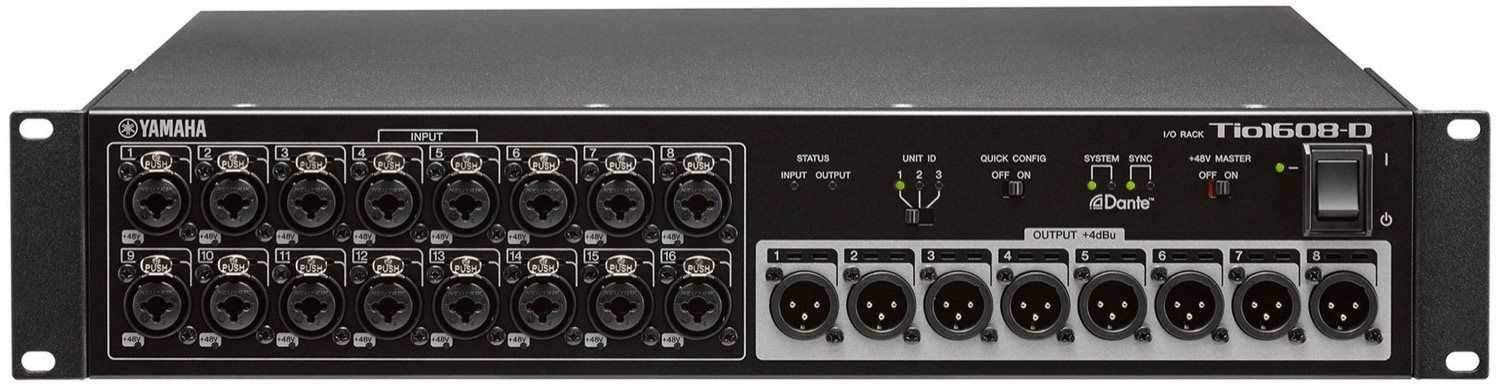

The Tio1608-D is a game-changer! It's a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. Get ready to experience extraordinary natural and musical sound, just like the TF series, with its recallable D-PRE microphone preamplifiers. Connect up to three units with TF series consoles effortlessly for a seamless setup.

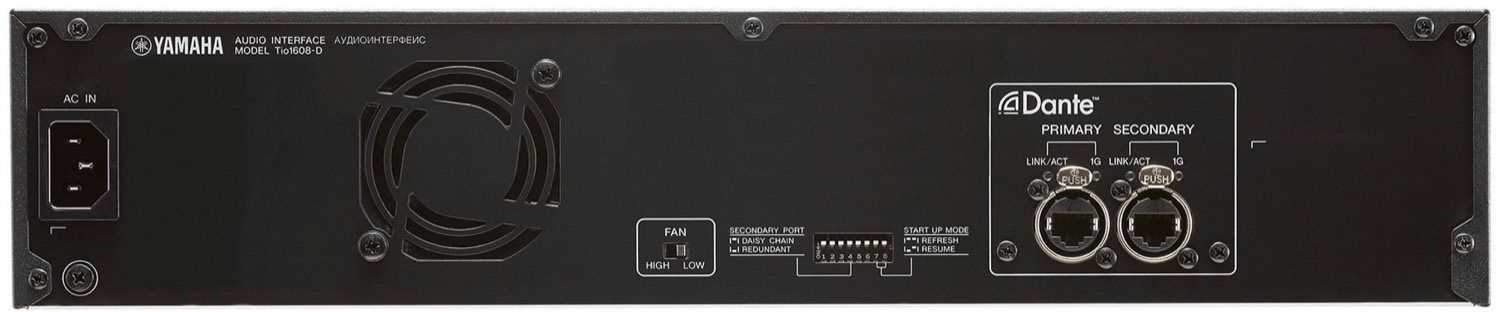

With the Dante Network Audio Protocol, not only TF, but also other Yamaha digital mixing consoles like CL/QL are covered. This boosts system design flexibility big time. Patch via 'Dante Controller' and control Remote HA with 'R Remote' software. Future firmware updates will let you control audio patching and Remote HA from CL/QL too. Note: Remote HA on Tio1608-D works only via the Primary port.
Why choose the Tio1608-D? Because:
- • It's a digital stagebox system with a maximum of 3 units, offering great expandability.
- • The Dante High Reliability Network Audio Protocol ensures top-notch performance.
- • The Fast and Easy QUICK CONFIG Mode makes setup a breeze.
Specifications:
- • Runs at 44.1kHz or 48kHz.
- • Less than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz.
- • Measures W 480mm (18-7/8').
- • Has a height of H 88mm (3-4/8').
- • Depth is D 364mm (14-3/8').
- • Weighs 5.7kg (12.6lbs).
The Yamaha Tio1608-D Dante-Enabled Digital Stage Box is perfect for live performances, recording studios, and events. Musicians, sound engineers, and event organizers will love its features. It has 16 microphone/ line inputs and 8 line outputs. Runs at 44.1kHz or 48kHz. Measures W 480mm (18-7/8'), H 88mm (3-4/8'), D 364mm (14-3/8'), and weighs 5.7kg (12.6lbs). Connects easily with TF series consoles and offers great sound quality with recallable D-PRE microphone preamplifiers.
