Shure ULXD4Q-GV: The Ultimate Quad-Channel Digital Wireless Receiver for High-Level Applications

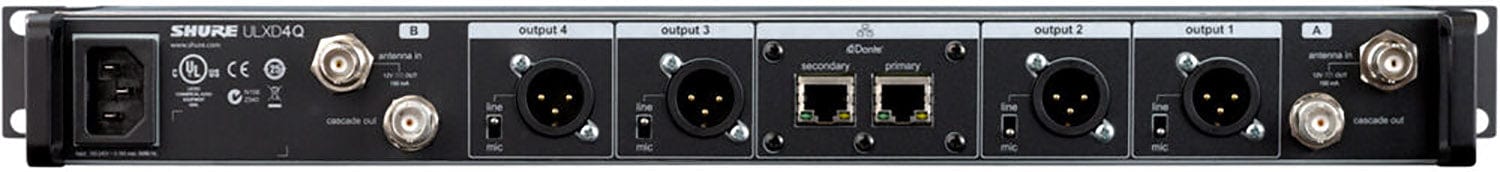

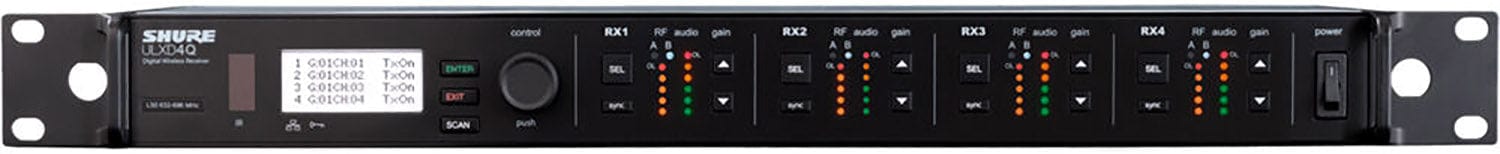

Upgrade your audio setup with the Shure ULXD4Q-GV Quad-Channel Digital Wireless Receiver. This powerful receiver is part of the ULX-D wireless series and offers 4 independent digital receivers in a rugged, single-rack unit with an internal power supply. The GV version features always-on AES-256 encryption, making it perfect for government and high-level executive applications where sensitive audio information is transmitted. With two Ethernet ports for Dante digital audio and RF cascade ports for antenna signal distribution, this receiver is a must-have for large venues and A/V installations.
Features:
- • Ideal for large venues and A/V installations
• 4 digital audio channels in 1 rackspace
• Secure AES-256 encryption for sensitive audio
Specifications:
- • RF channel frequencies: 2560
• Antenna diversity
• RF frequency band: J50A (572-608, 614-616 MHz)
• RF bandwidth: 64 MHz
• Frequency step size: 25 kHz
• Auto-scan RF channel scanning
• Max operating range: 328.1' / 100 m
• Max transmitters per band: 60
• Latency: < 2.9 ms
• Proprietary modulation
• Receiver type: Rackmount
• Mounting options: Rackmount (with included hardware)
• Rackmount size: 1 RU (1/2 rack)
• Antenna: 2 x 1/2 wave external, BNC (rear-mount)
• Antenna bias voltage: 12 to 13 VDC, 150 mA (per antenna)
• Number of audio channels: 4
• Audio I/O: 4 x XLR 3-pin male balanced output
• Gain range: -18 to +42 dB (1 dB steps)
• Pad: 30 dB
• Audio output level: +18 dBV (line level, balanced) on XLR outputs, -12 dBV (mic level) on XLR output
• Phantom power protection: On XLR outputs
• Frequency response: 30 Hz to 20 kHz ±1 dB (dependent on mic)
• Network I/O: 2 x RJ45 (1 Gb/s)
• Network protocols: DHCP, Dante, Manual IP
• Impedance: 100 ohms (balanced) on XLR output
• Approximate RF sensitivity: -98 dBm
• Adjacent channel isolation: >70 dB
• Spurious rejection: >80 dB
• Power requirements: AC input
• AC input power: 100 to 240 VAC, 50 / 60 Hz at 0.32 A
• Display & indicators: 1 x backlit LCD (battery status, channel, group, menu navigation), 2 x multi-segment LED (AF level, output level, peak)
• Housing: Steel
• Operating temperature: 0 to 122°F / -17 to 50°C
• Storage temperature: -20 to 165°F / -28 to 73°C
• Dimensions: 19 x 1.7 x 10.8' / 482 x 44 x 274 mm
• Weight: 7.6 lb / 3.4 kg
- Packaging info:
• Package weight: 11.745 lb
• Box dimensions (LxWxH): 22.9 x 17.5 x 2.7'
The Shure ULXD4Q-GV Quad-Channel Digital Wireless Receiver is perfect for large venues and A/V installations. It's designed for government and high-level executive applications where sensitive audio information needs to be transmitted securely. With 4 digital audio channels in a single 1-rack unit, it's compact and powerful. The receiver has a 44 MHz tuning range, expandable up to 60 channels, and features 2 Ethernet/Dante ports and 2 RF cascade ports. It also offers audio summing and secure AES-256 encryption. The receiver measures 19 x 1.7 x 10.8' / 482 x 44 x 274 mm and weighs 7.6 lb / 3.4 kg. It comes with a package weight of 11.745 lb and box dimensions of 22.9 x 17.5 x 2.7'.
