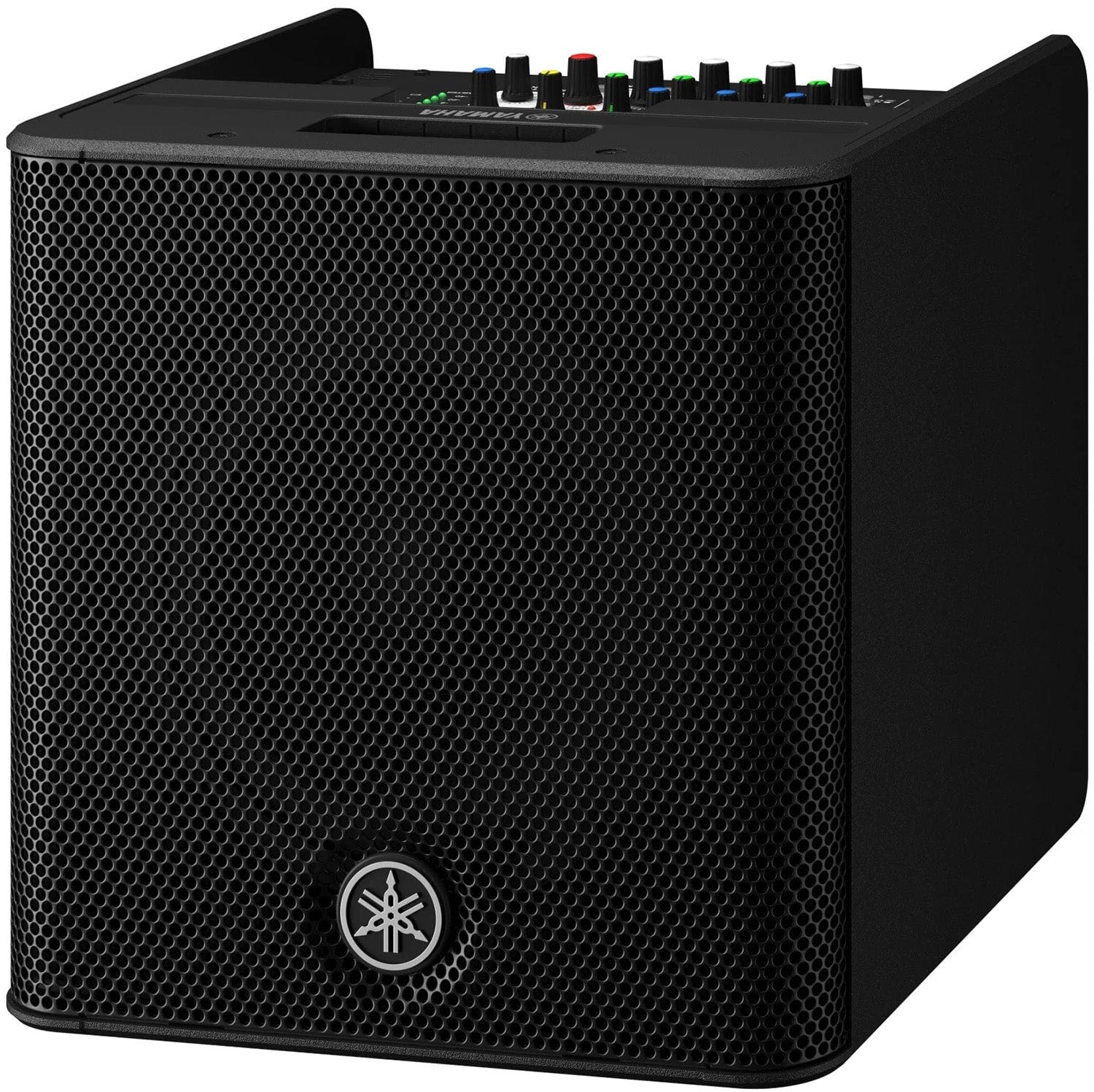

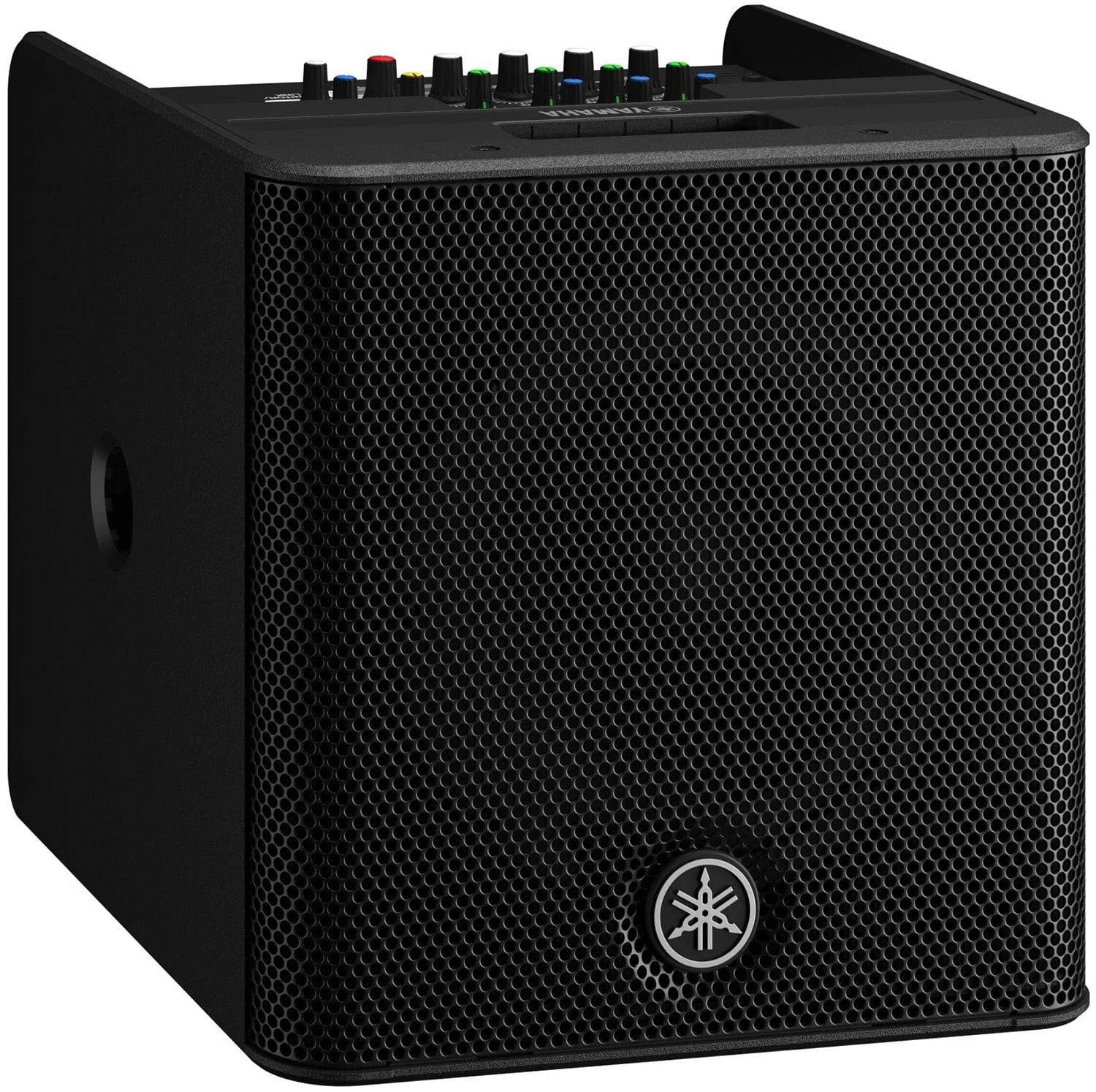

Yamaha STAGEPAS 200BTR: Your Ultimate Portable PA Powerhouse
Take your message anywhere, any way you want! The Yamaha Stagepas 200BTR is a palm-sized, all-in-one battery-powered portable PA that gives you the control, convenience, and power you need. • 180 Watts of onboard power drives an 8' coaxial speaker for rich, full-range audio. • With multiple input options (XLR, 1/4', stereo, mono, Bluetooth, Hi-Z), it's perfect for public speaking, busking, or small combos. • The integrated three-channel mixer offers easy control, and the app gives even more detailed processing options. No sound engineer? No problem! The internal feedback suppressor eliminates microphone feedback. Store scenes in the app for quick setup next time. The cabinet has an integrated multi-angle tilt handle with a 3/8' threaded adapter. It comes with a rechargeable Li-ion battery pack for up to 10 hours of runtime from a 4-hour charge, plus an AC adapter. Portable PA systems like this are in high demand, making it a great choice for musicians and speakers on the go. Increase your coverage and engage your audience without hassle. The Stagepas 200BTR.
Features:
- 180-watt Class-D internal amplifier
- 10-hour runtime Li-ion rechargeable battery pack

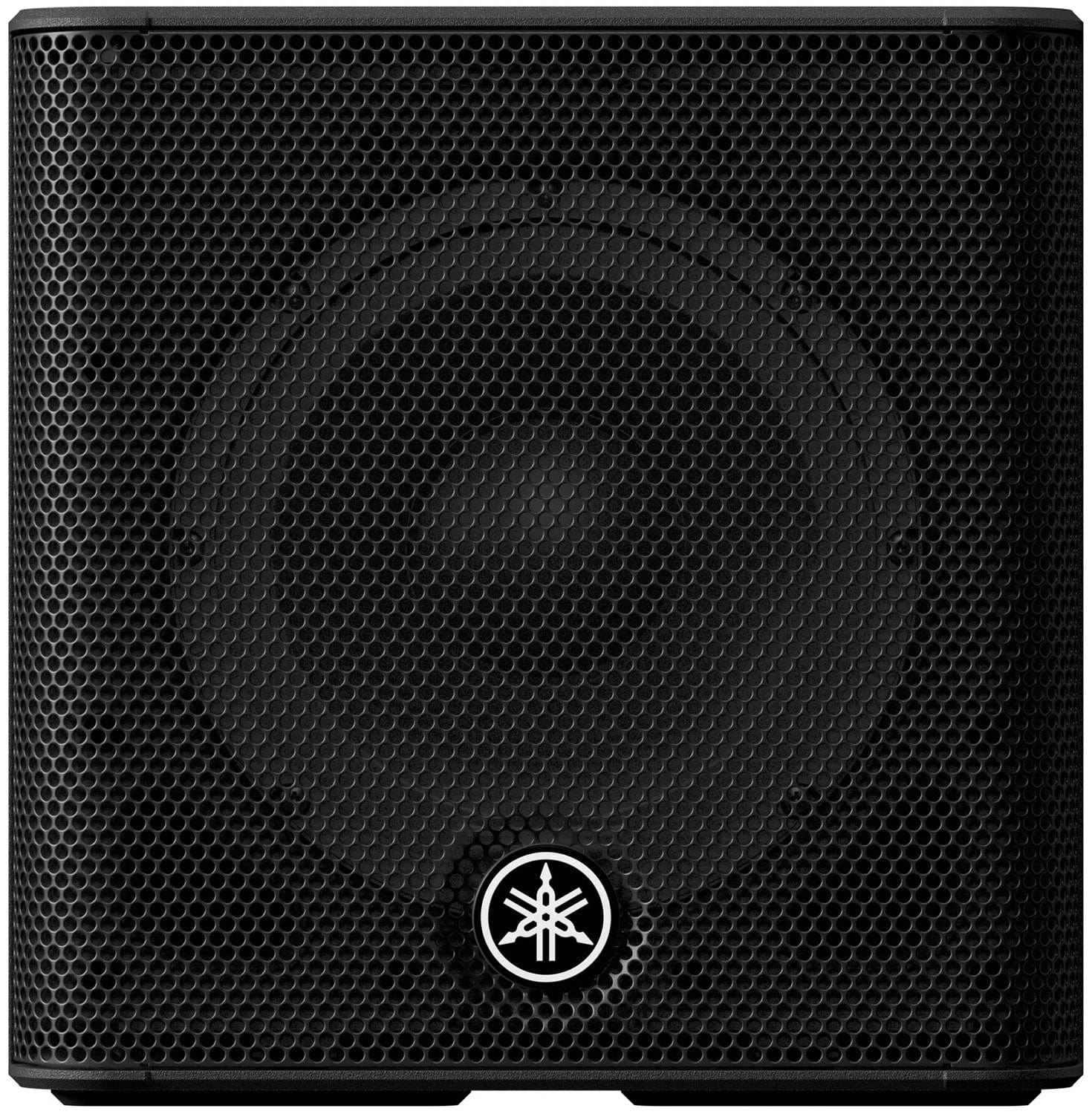

- 8' coaxial speaker
- Internal Yamaha FIR-X crossover filters

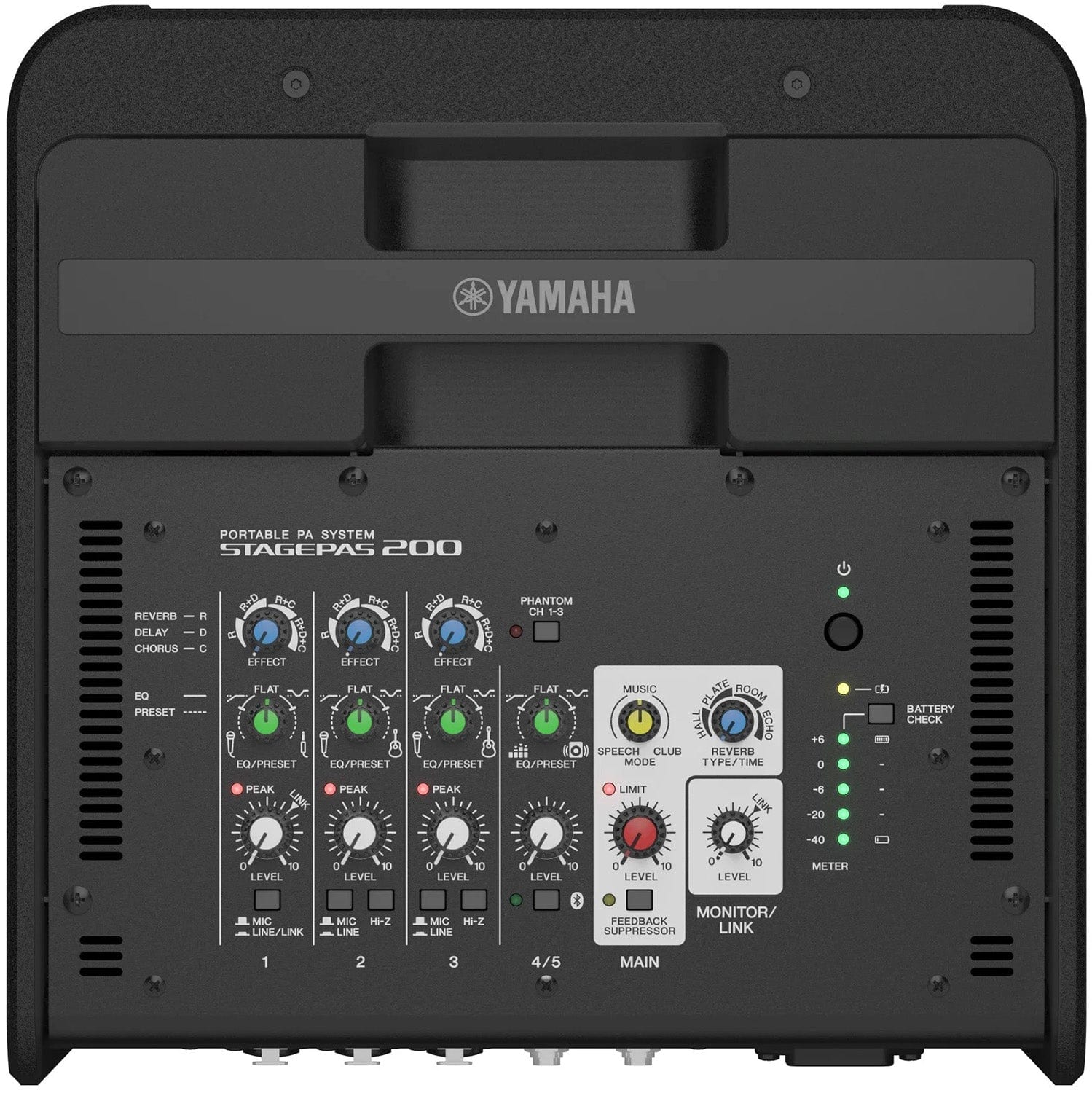

- Three-channel top panel mixer with EQ and effects
- Four SPX digital reverbs
- Instrument-specific EQ presets
- Output compressor with three application-specific Modes
- Microphone simulation
- Ducker function
- 3 XLR-1/4' combo jacks
- 1/4' mono/stereo line input
- 1/4' Balanced/unbalanced line output
- Hi-Z switch for use with guitars
- Phantom power on channels 1-3
- Bluetooth capability
- Compact 12' x 12' enclosure with integrated handle
- Weighs 27 lbs.

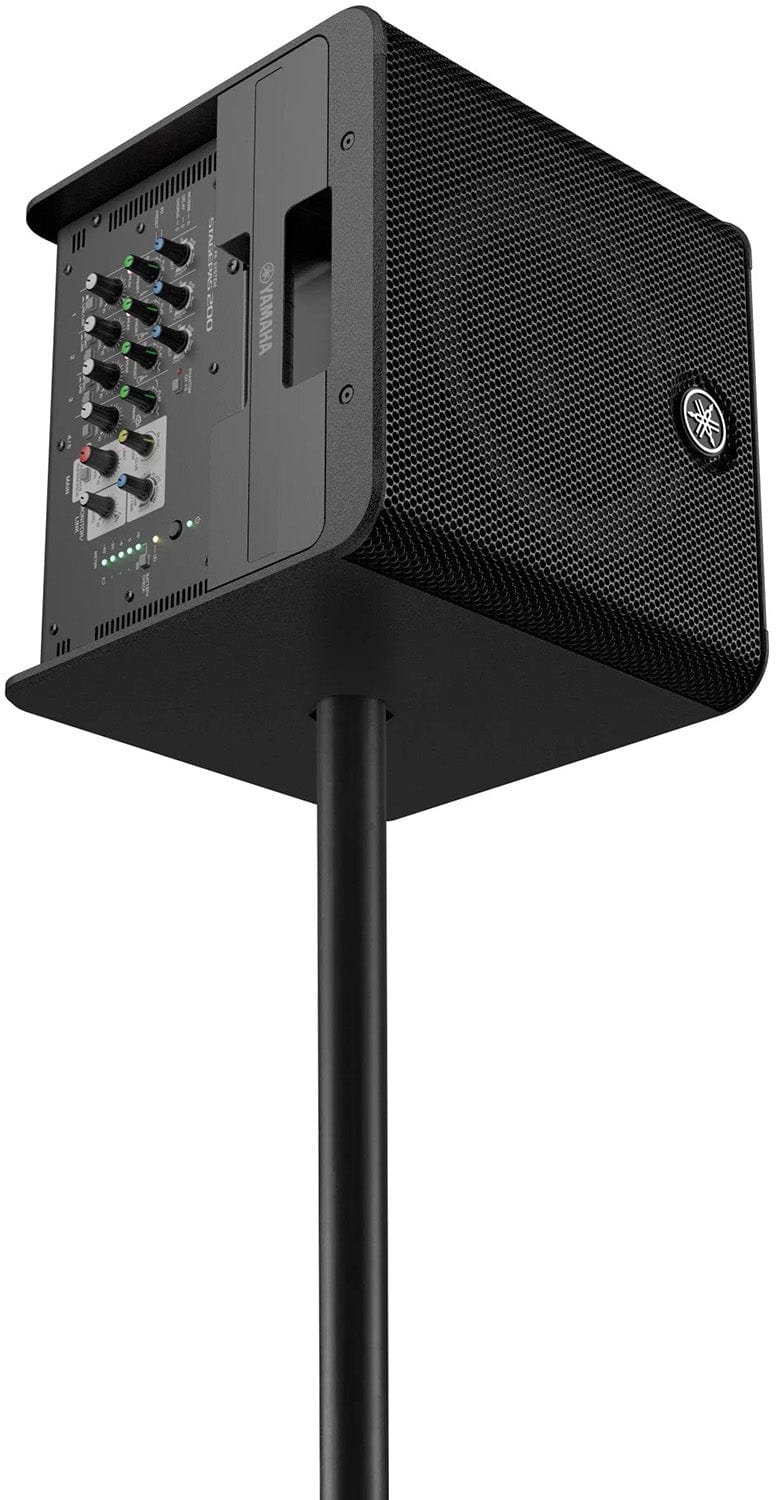

- Mic stand mountable
Specifications:
- Type: 2-way Bi-amp Powered Speaker with mixer
- Mixing capability
- Mixing channels: 5 (Mono x 3 + Stereo x 1)
- Input channel functions: Hi-Z: CH2/3, 1-knob EQ/preset: CH1-3/ST
- Output channel functions: MODE (SPEECH/MUSIC/CLUB)

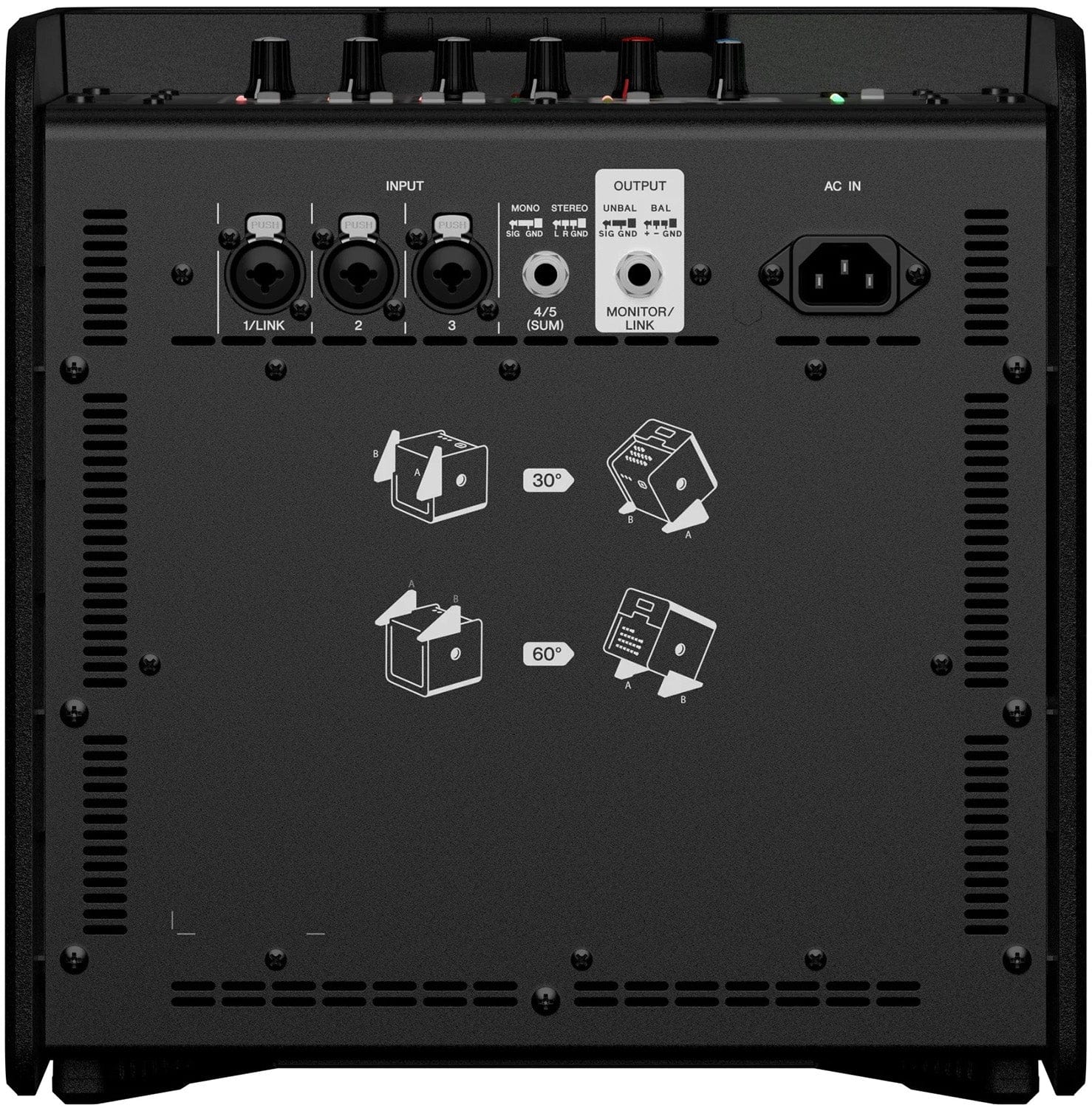

- I/O
- Inputs: Mono x 3 (mic/line) + Stereo/Mono x 1 (line)
- Outputs: Monitor/Link out x 1
- Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
- Control and others: STAGEPAS Controller (iOS/Android app)
- On-board processors: DSP SPX digital reverb (4 program, parameter control), delay, chorus
- General specifications
- Speaker type: Coaxial speaker with compression driver
- Frequency range (-10dB): 60 Hz – 20 kHz
- Coverage area H: 90' x V 90'
- Crossover: 2.0 kHz
- Maximum output level (1m; on axis): 125 dB SPL *1
- Components
- LF: 8' Cone, 2.0' voice coil
- HF: 1' throat compression driver, 1.4' voice coil
- Amplifier: class Class-D
- Power rating Dynamic: 180 W (LF: 150 W, HF: 30 W)
- Cooling: Natural convection (no fan)
- Power consumption: 10 W (Idle), 20 W (1/8 power)
- Power requirements: 100-240 V 50/60 Hz, or 29.6 Vdc
- Battery

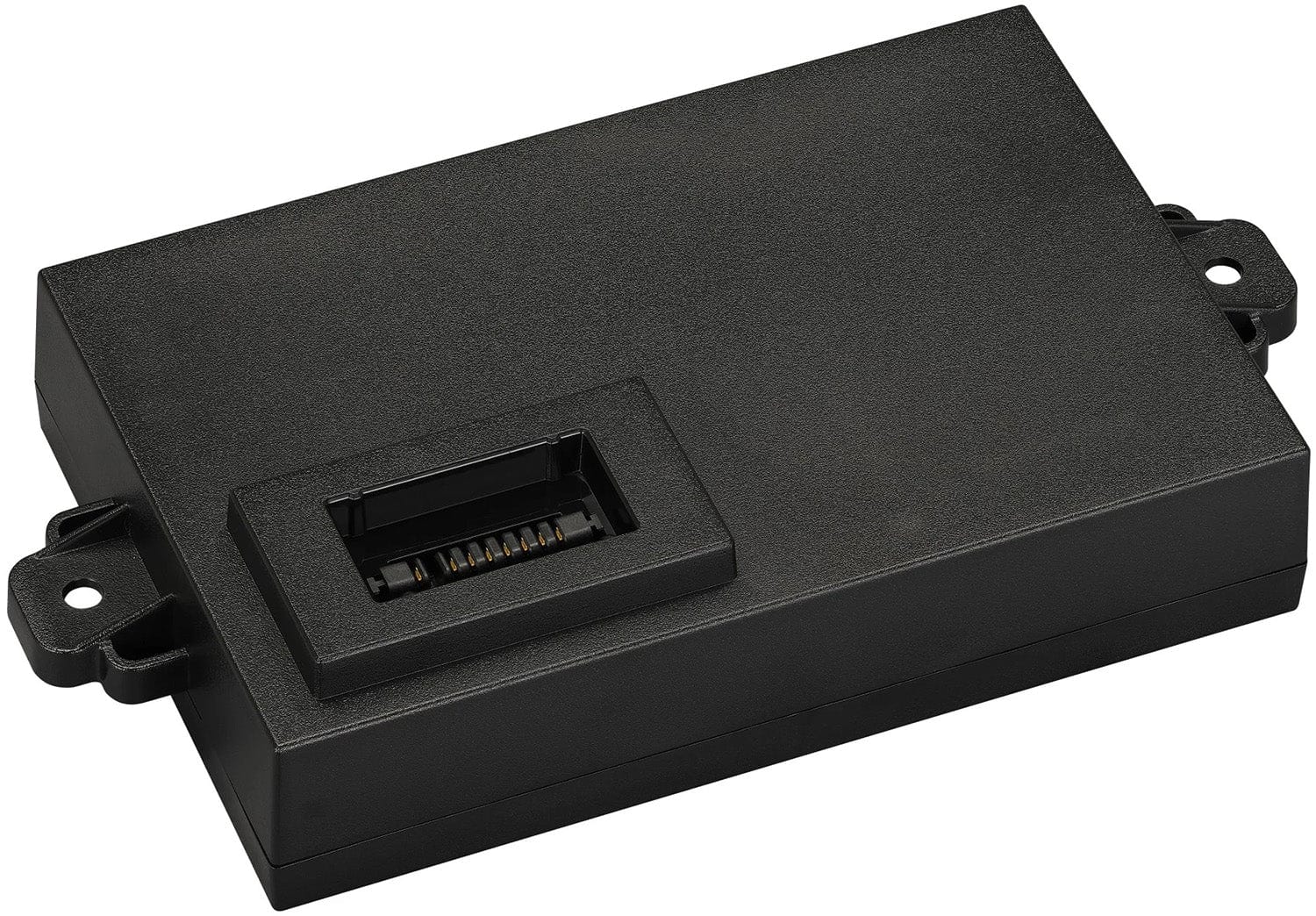

- Type: Rechargeable Lithium-ion battery pack
- Capacity: 79.92 Wh (2700 mAh, 29.6 V)
- Operating Time: Maximum 10 hours, 1/16 power continuous 8 hours
- Charging Time: Approx. 4 hours
- Cabinet material: Plastic (ABS)
- Handle: Top x 1
- Pole socket: 35 mm x 1 (Side)

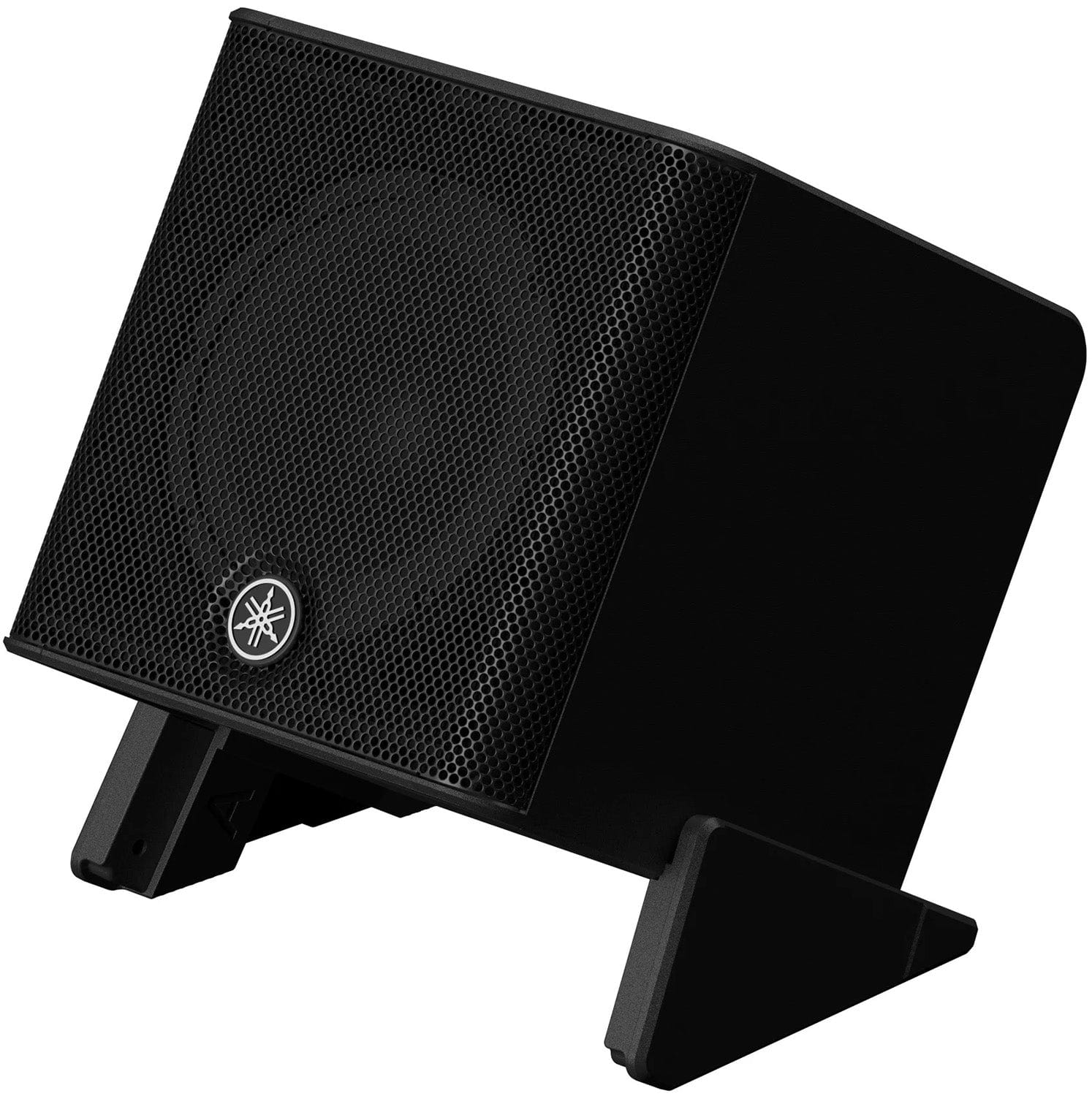

- Floor Monitor Angle: 30° or 60°
- Dimensions (W x H x D): 300 x 308 x 301 mm (11.8' x 12.1' x 11.9')
- Weight: 12.5 kg (27.6 lbs) (Including battery packed together) 12.0 kg (26.5 lbs)
The Yamaha STAGEPAS 200BTR is perfect for musicians, public speakers, and performers on the go. Whether you're busking on the street, giving a presentation, or playing a small gig, this portable PA system has you covered. It features an 8' coaxial speaker, 180 watts of power, and multiple input options including XLR, 1/4', stereo, mono, Bluetooth, and Hi-Z. The integrated three-channel mixer offers easy control, and the app gives even more detailed processing options. With a rechargeable Li-ion battery pack, you can get up to 10 hours of runtime. It weighs 27 lbs and has a compact 12' x 12' enclosure with an integrated handle, making it easy to carry and set up anywhere.
