Yamaha DXS15XLF-DW 1600-Watt 15-Inch Powered Sub With Dante

Yamaha DXS15XLF-DW 1600W 15-Inch Powered Sub with Dante

The Yamaha DXS15XLF-DW is a must-have for any sound engineer looking to enhance their setup. This powerful subwoofer is perfect for use with DZR full-range speakers, delivering extended low frequencies with crystal-clear clarity and maximum SPL of 136dB.

Features:

• • 1600W Class-D amplifier for thunderous bass
• • 96kHz DSP for high-definition sound and low latency
• • Dante I/O (2in/2out) for seamless integration

Specifications:

• • Speaker Type: Powered Subwoofer, bass-reflex
• • Frequency Range (-10dB): 33Hz - 150Hz
• • Dimensions (WxHxD): 17.7' x 23.1' x 23.6'
• • Weight: 40.0kg (88.2lbs)

Power Rating

• • Dynamic: 1600W
• • Burst (20ms): 1300W
• • Continuous: 1200W

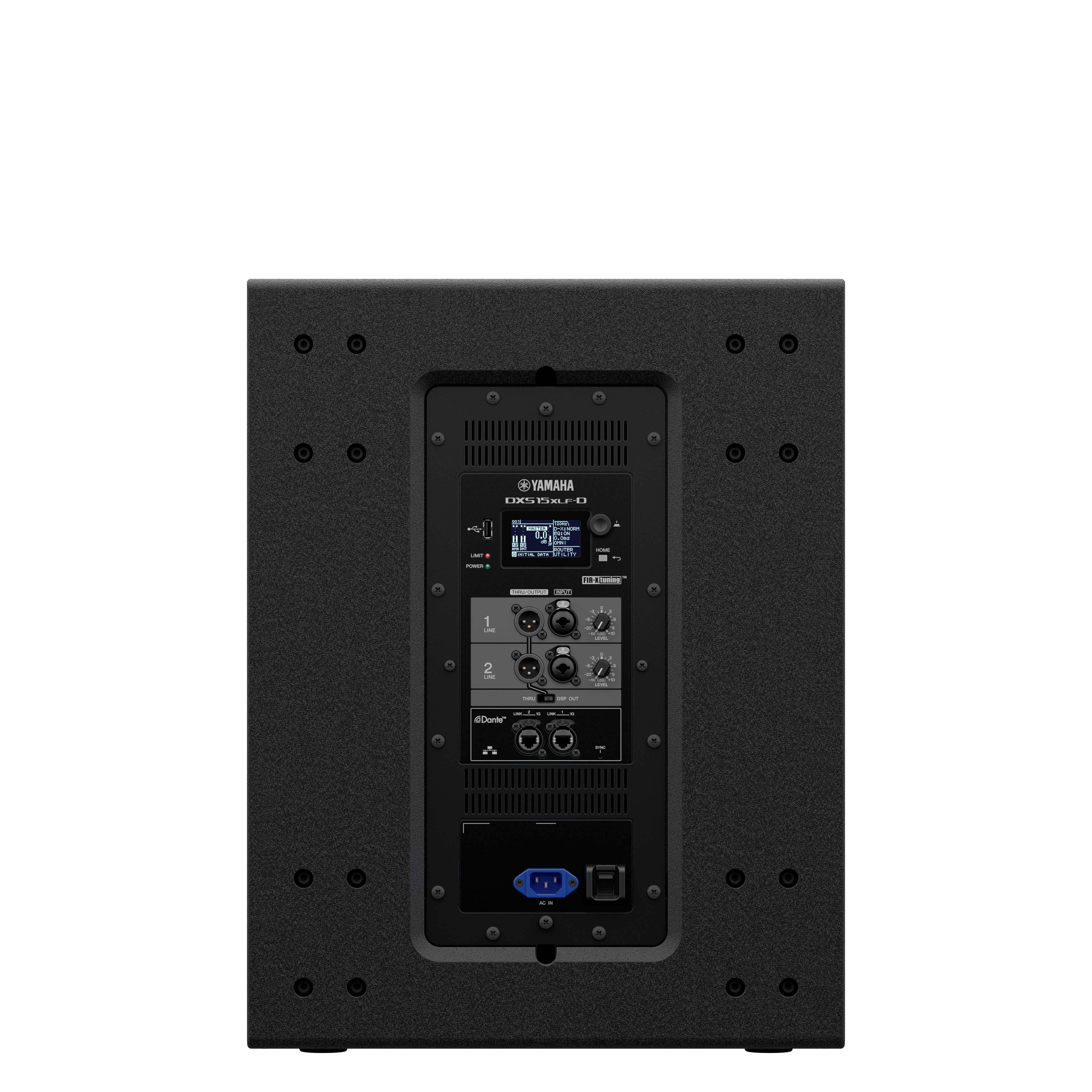

I/O Connectors

• • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
• • AC: IEC AC inlet x1 (V-Lock)
• • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load

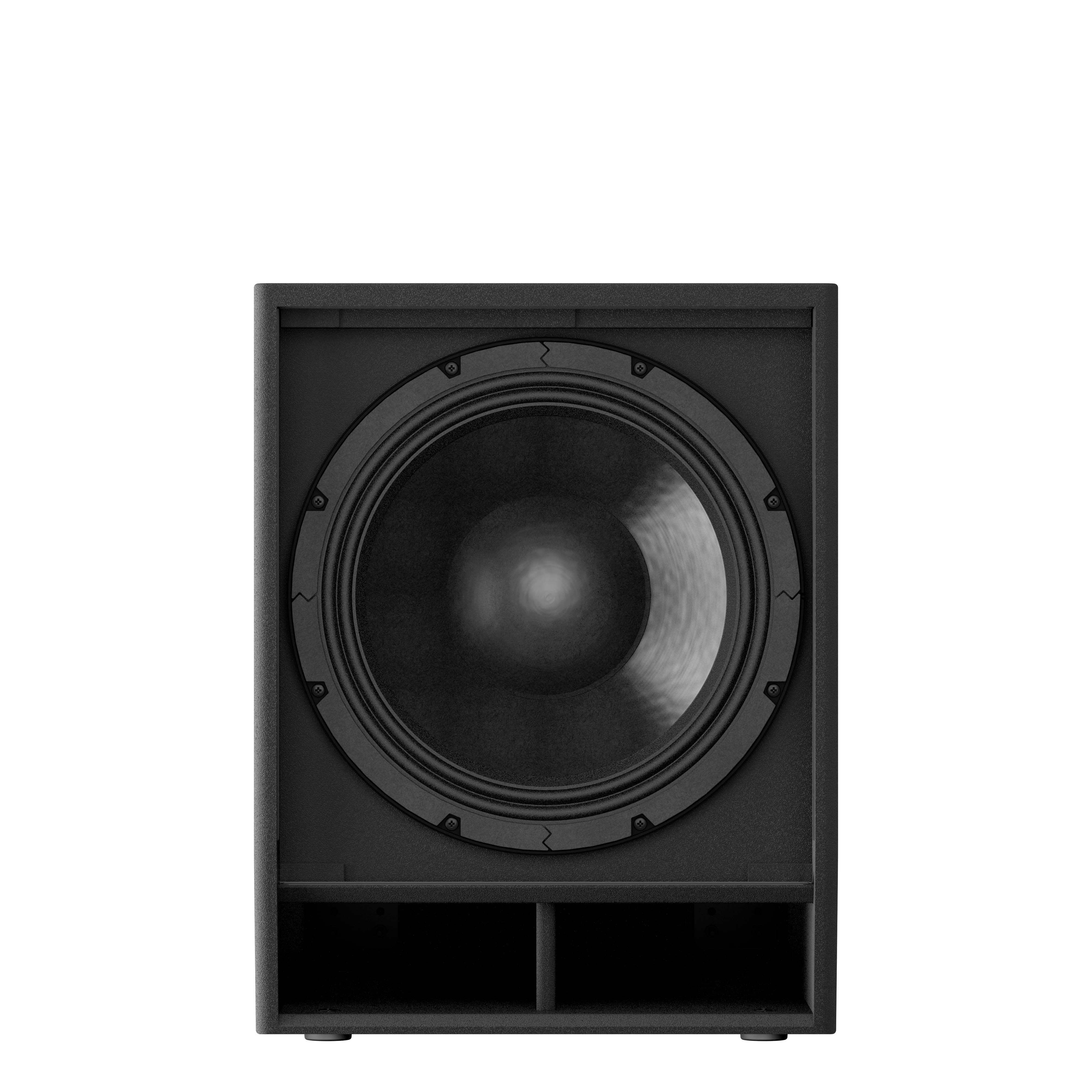

The Yamaha DXS15XLF-DW is a 15-inch powered subwoofer designed for sound engineers. It features a 4-inch voice coil, a 1600W Class-D amplifier, and 96kHz DSP for high-definition sound. With Dante I/O (2in/2out), it's easy to integrate into your setup. Ideal for use with DZR full-range speakers, it produces a maximum SPL of 136dB with superb clarity and power. The lightweight yet durable plywood cabinet has a premium grade Polyurea coating. Dimensions are 17.7' x 23.1' x 23.6' and it weighs 40.0kg (88.2lbs).
