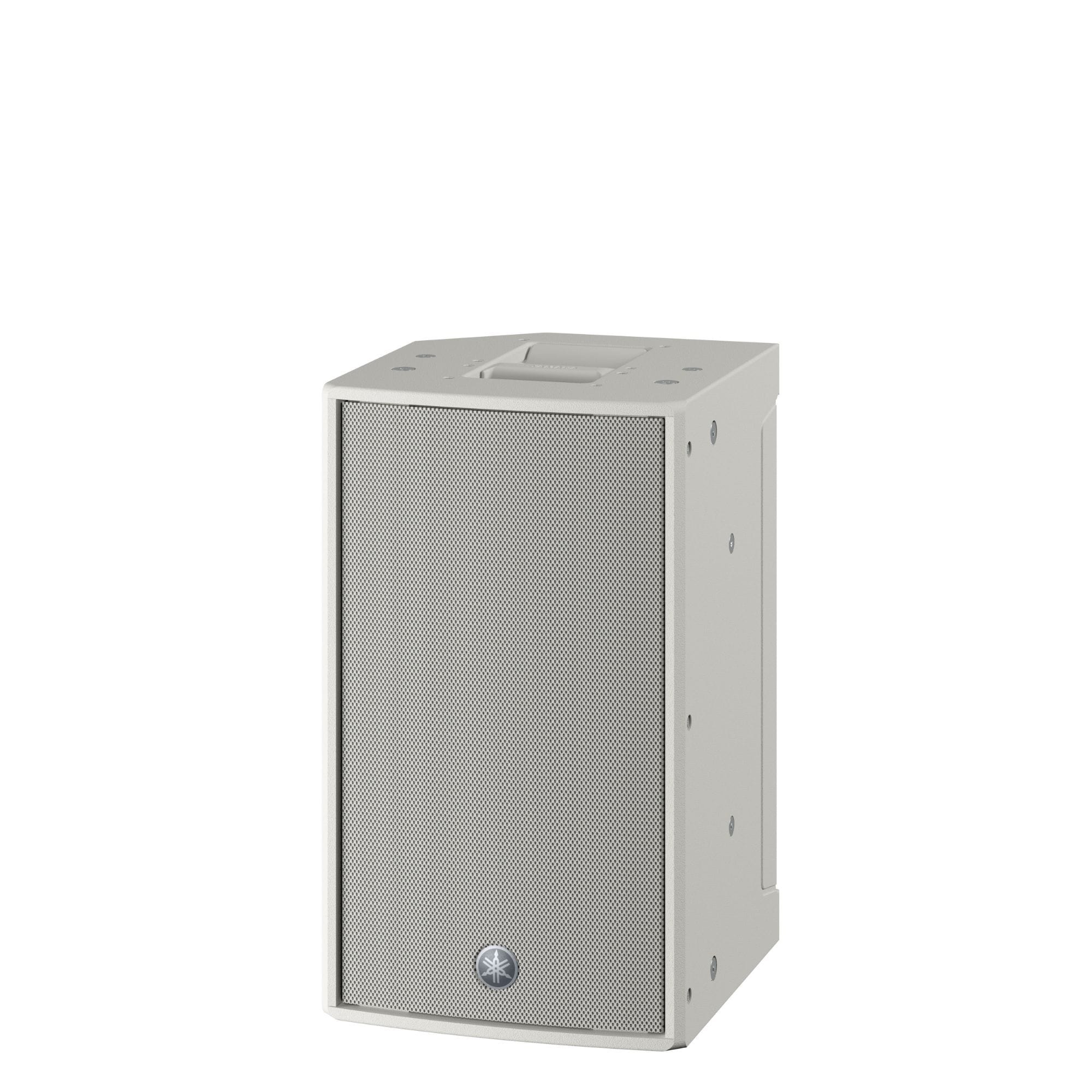

Yamaha CZR10 700-Watt 10-Inch High-Performance Passive Loudspeaker in White
The Yamaha CZR10 is a must-have for all audio enthusiasts! It's a 2-way loudspeaker that packs a punch with high power handling and outstanding sonic performance. Its portable, lightweight, yet rugged design makes it perfect for a variety of live performance and installed sound environments.
Key Features:
- • 2-way design with a 2” HF and a 10' LF for balanced sound
- • Yamaha's Wide Dispersion CD Waveguide Horn for enhanced coverage
- • High power 700W(PGM) handling and Bi-amp capable for versatility
Technical Specifications:
- • Speaker Type: 2-way Speaker, Bass-reflex
- • Frequency Range (-10dB): Passive: 43 Hz - 20 kHz
- • Coverage Area: H90 x V60 Rotatable Constant Directivity Horn
- • Floor Monitor Angle: 50°
- • Components LF: 10' Cone, 3' Voice Coil, Neodymium magnet
- • Components HF: 2' Voice Coil, 1' Throat Compression Driver, Titanium diaphragm, Neodymium magnet
- • Crossover: 2.5 kHz
- • I/O Connectors: SpeakON NL4MP x 2 (Parallel)
- • Handle: Aluminium die-cast, Top x1, Side x1
- • Pole Socket: ¦µ35 mm x2 (0° or -7°)
- • Rigging: M10 x 8, M8 x 2
- • Dimensions (WxHxD): 12.4' x 21.1' x 13.6'
- • Weight: 14.0 kg (30.9 lbs)
Nominal Impedance
- Passive: 8Ω, Bi-amp - LF: 8Ω, HF: 16Ω
Power Rating
- NOISE: Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
- PGM: Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
- PEAK: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W
SPL
- Sensitivity (1W; 1m on axis): Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
- Peak (Calculated): Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
The Yamaha CZR10 is a 700-Watt 10-Inch passive loudspeaker designed for a wide range of audio needs. Whether you're a live band performing at an outdoor festival or a DJ in a club, this speaker delivers crystal clear, high-quality sound. Its lightweight yet durable plywood cabinet with a premium graded Polyurea coating makes it easy to transport and set up. With dimensions of 12.4' x 21.1' x 13.6' and a weight of 14.0 kg (30.9 lbs), it's the perfect choice for any mobile audio setup.
