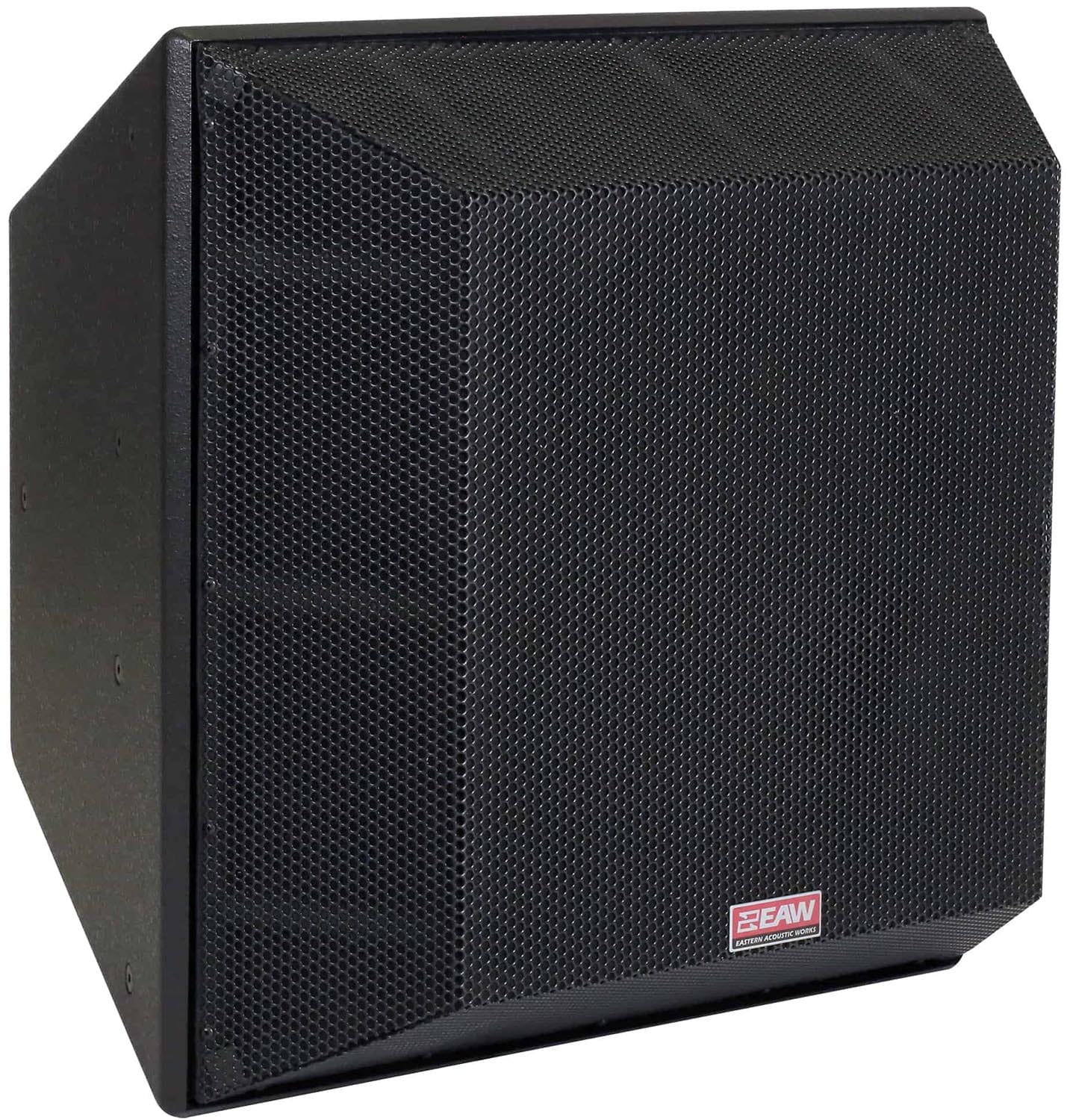

EAW QX544i 3-Way Trapezoidal Enclosure Speaker - The Powerhouse for Stunning Sound
Upgrade your audio experience with the new QX Series! It's a game-changer for a wide range of permanently installed applications.
• High Output: Delivers an incredible sound that's perfect for long throws in arenas and stadiums, or high-energy spots like live music venues and dance clubs.
• Broadband Pattern Control: Tames tough acoustical environments, whether it's a cathedral or a highly reverberant public space.
• Exceptional Fidelity: Pleases even the most critical listeners in concert halls and performing arts centers.
The QX544i in black features an ultra-efficient mid/high compression driver with a 45° (h) x 45° (v) constant directivity horn. Four Phase Aligned 12-in low frequency transducers, arranged as vertical and horizontal pairs, work together to extend pattern control deep into the low frequency range.
With four low frequency transducers surrounding the coaxial mid/high compression driver symmetrically in both planes, the sound across the full frequency spectrum seems to come from a single point in space. This design ensures an idealized summation of the three frequency sections, getting rid of anomalies found in other designs. This ideal coherence applies in both the horizontal and vertical planes throughout the coverage area.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55hz – 20khz
- Max SPL: 147 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in compression driver
- Nominal Beamwidth:
- Horizontal: 45
- Vertical: 45
- Power Handling:
- LF: 2000W @ 2ohms (single amp), 1000W @ 4ohms (2x pairs)
- Passive MF/HF: 175W @ 8ohms
- Connections: Barrier Strip
- Color: Black
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
The EAW QX544i 3-Way Trapezoidal Enclosure Speaker is a must-have for various audio setups. It's great for arenas, stadiums, live music venues, dance clubs, concert halls, and performing arts centers. This speaker is designed to meet the needs of professionals and audiophiles alike. With dimensions of Height: 28 in (710 mm), Width: 28 in (710 mm), and Depth: 23.8 in (605 mm), and weighing 149 lbs (68 kg), it's a substantial yet manageable addition to your audio system.
