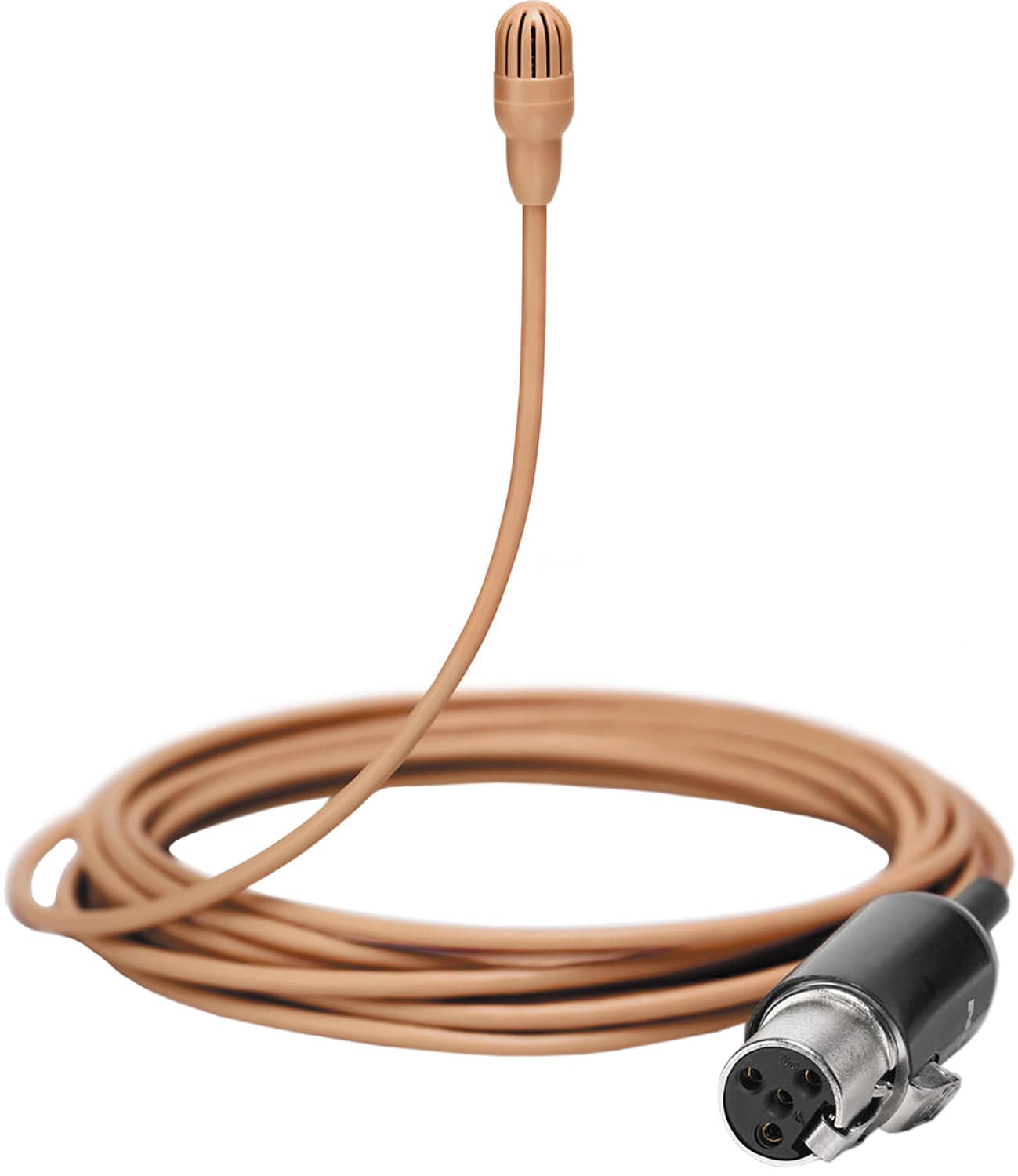

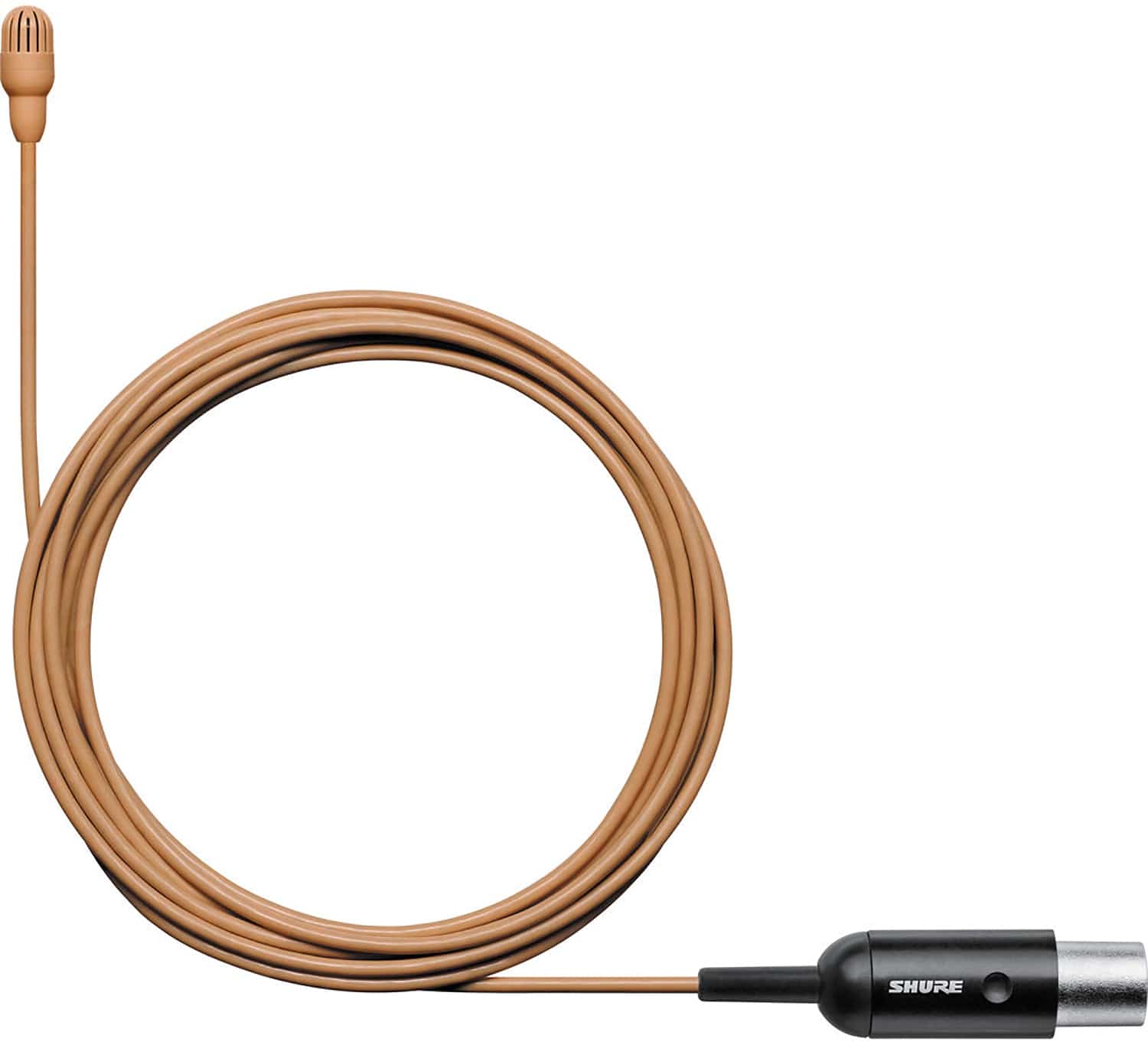

Shure TL46C/O-MTQG Cocoa TwinPlex Subminiature Omnidirectional Lavalier Microphone with MTQG Plug
The Shure TL46C/O-MTQG is a game-changer! It offers:
- • Unbeatable signal-to-noise ratio for crystal-clear audio
- • Superior natural sound quality that captivates listeners
- • High sensitivity output for enhanced performance
Ideal for dialogue and medium SPL applications, this microphone features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with both LEMO and TA4F (TQG) connector options. It's the perfect choice when you need your message to stand out.
Features:
- The TL46 is great for theater, film, broadcast, and live TV applications when more output (8 - 10dB) is needed
- With twice the surface area of other subminiature mics, it gives pristine, natural response and a strong low-frequency response thanks to its dual-diaphragm design
- Improved off-axis consistency ensures accurate sound reproduction no matter where the vocal source is or how it moves
- Best-in-class low self-noise and dynamic range for cleaner audio production
- Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs with an invisible superhydrophobic nanoscopic coating
- Paintable 1.6 mm cable that won't get affected by memory effect or kinks
- Dual redundant ground in cable acts as a secondary shield for long-lasting use
- Sound signature: Natural
- Sensitivity: High (8 - 10db increased output)
- Colors: Cocoa
- Connectors: MTQG/TA4F
- Accessories: Available separately
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -37.0 dBV(14.1 mV) at 1 kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.1 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 13.5 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
The Shure TL46C/O-MTQG is a subminiature omnidirectional lavalier microphone. It's great for theater, film, broadcast, and live TV applications. It has a 1.67 m cable, weighs 12.0 g, and has a microphone length of 13.5 mm and diameter of 5.6 mm. It offers high sensitivity output, superior natural sound quality, and an unbeatable signal-to-noise ratio.
