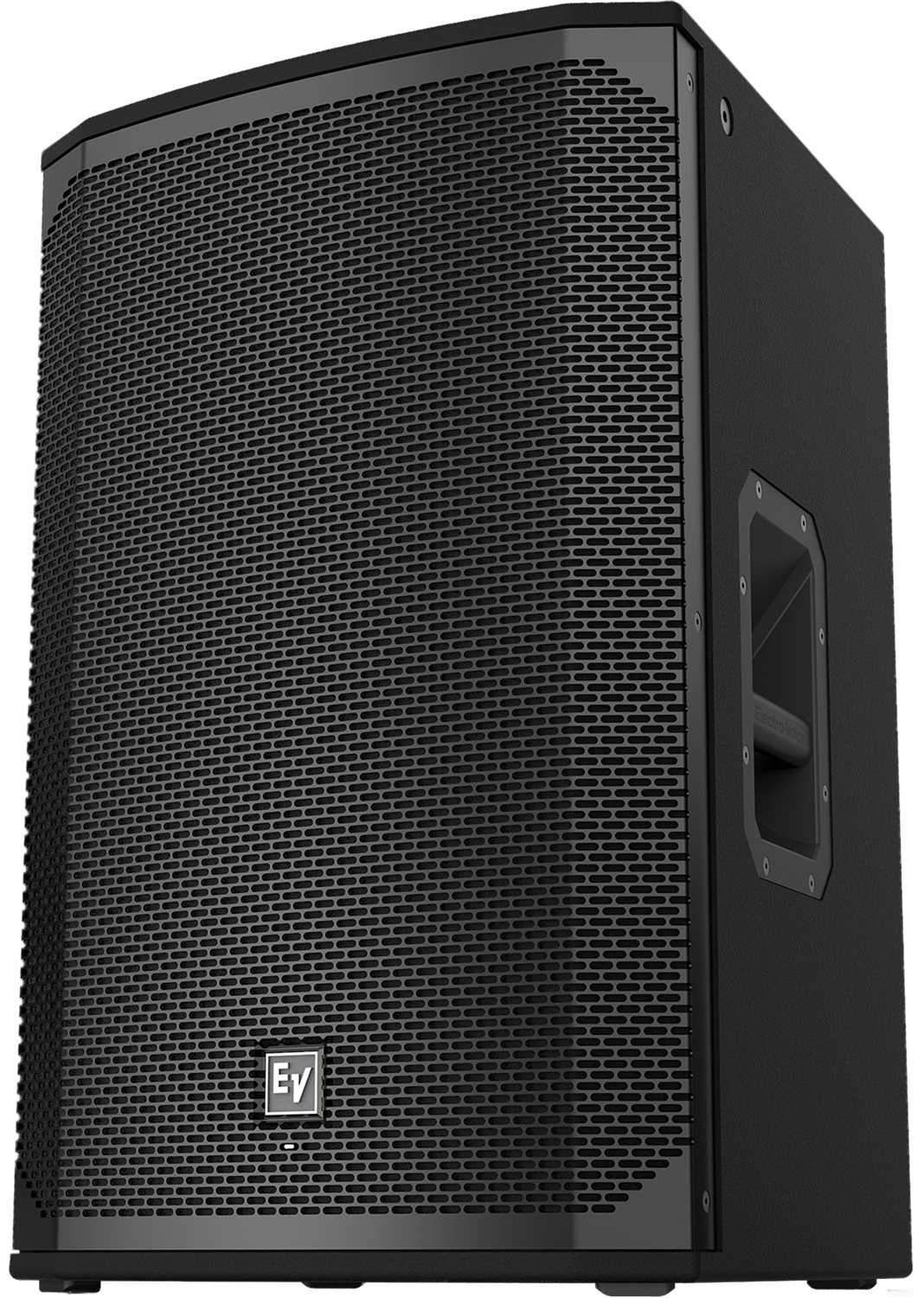

Electro-Voice EKX-15 Passive 15-in PA Speaker

Electro-Voice EKX-15: The Ultimate 15-inch Passive PA Speaker for Stunning Sound

Features:

• Powerful Performance: 1600 W (peak) and 132 dB peak SPL, delivering exceptional sound quality.
• Precise Coverage: EV-patented Signal Synchronized Transducers (SST) waveguide design for consistent and accurate sound projection.
• Durable and Lightweight: 15-mm wood enclosure with internal bracing and a tough EVCoat finish.

Specifications:

• Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB Full Space Measurement
• Connector Type: Dual NL4
• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 60°
• Crossover Frequency: 1.6 k Hz
• Enclosure Material: 15 mm, plywood with EVCoat
• Frequency Response (-10 dB): 50 Hz - 20 k Hz Full Space Measurement
• Frequency Response (-3 dB): 75 Hz - 18 k Hz Full Space Measurement
• Grill: 18 AWG steel with powdercoat
• HF Transducer: DH-1M 1-inch titanium compression driver
• LF Transducer: EVS-15M 381 mm (15 in)
• Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
• Minimum Impedance: 7.2 Ohm
• Nominal Impedance: 8 Ohm
• Power Handling (Continuous/Peak): 400 W/1600 W
• Recommended High-Pass Frequency: 50 Hz

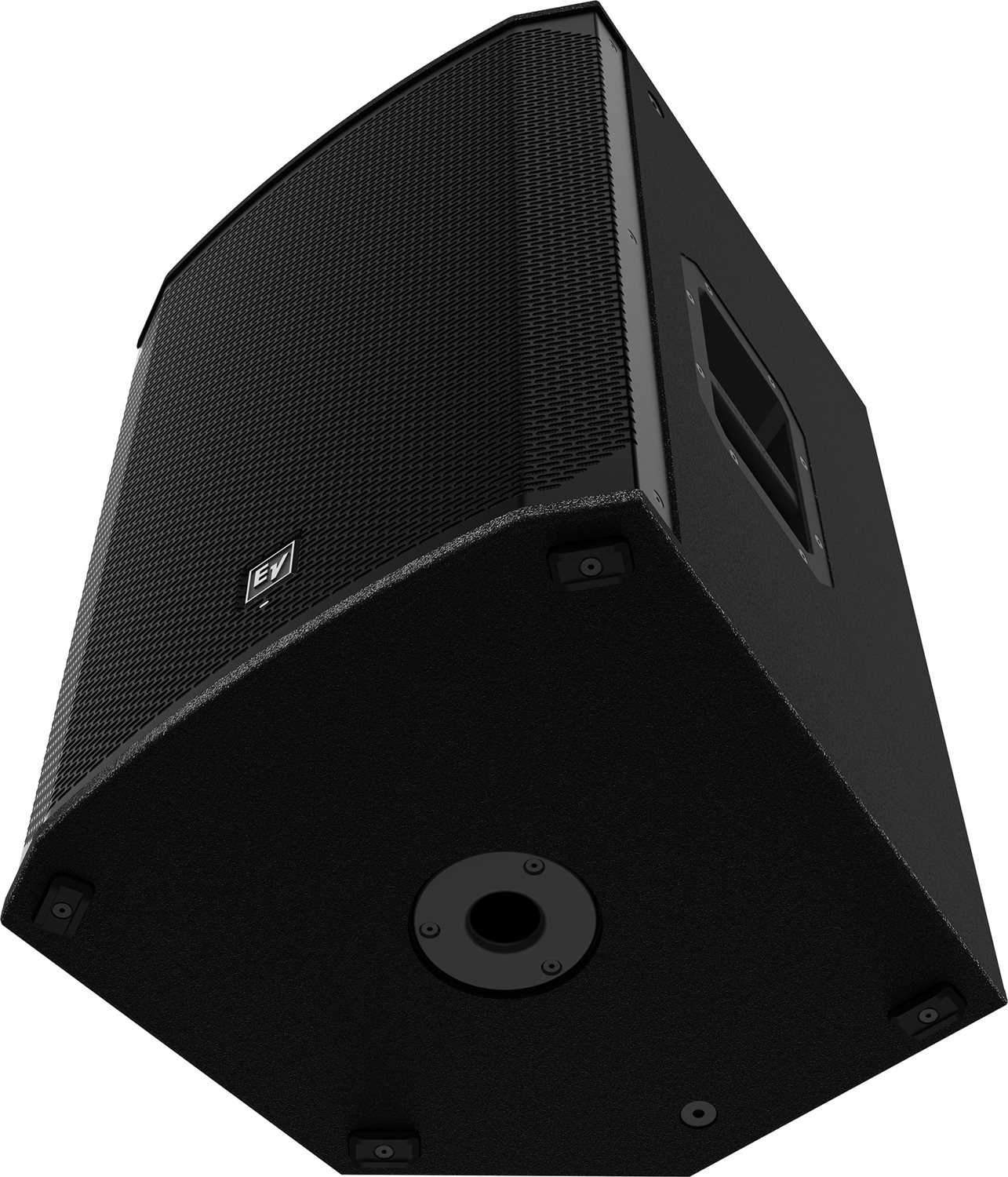

• Suspension: (8) M10 threaded mounting points
• Height: 16RU 685 mm (26.97')
• Width: 432 mm (17.01')
• Depth: 429 mm (16.89')
• Weight: 23.2 kg (51.15 lbs.)

The Electro-Voice EKX-15 passive 15-inch PA speaker is perfect for mid-size stages. With its lightweight and compact design, it's easy to set up and transport. Musicians, DJs, and event organizers will love its powerful sound and precise coverage. Technical specs include an axial sensitivity of 96 dB at 1 W @ 1 m, a 90° x 60° coverage pattern, and a weight of 23.2 kg.
