Shure QLXD4-J50A Digital Wireless Receiver - The Ultimate in Crystal-Clear Sound
Get ready to experience audio like never before with the Shure QLXD4-J50A Digital Wireless Receiver. This half-rack receiver delivers transparent 24-bit digital audio quality and efficient RF spectrum usage, making it perfect for presentation spaces, music venues, and houses of worship. With professional features and streamlined setup, you'll be up and running in no time.
- • Crystal-clear 24-bit digital audio
- • Efficient RF spectrum usage
- • Streamlined setup and operation
The QLXD4-J50A offers a range of features designed to enhance your audio experience. Automatic scanning quickly finds open frequencies, while one-touch sync deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers, and Wireless Workbench software integration allows for remote control of receiver settings from a PC or Mac.
- • Automatic scanning for open frequencies
- • One-touch sync to transmitters
- • Ethernet networking for multiple receivers
With its high-contrast LCD menu and controls, detachable wave antennas, and durable steel construction, the QLXD4-J50A is both functional and stylish. It also offers up to 60 dB of adjustable audio gain, AES 256-bit encryption for secure wireless transmission, and compatibility with Shure Wireless Workbench 6 control software.

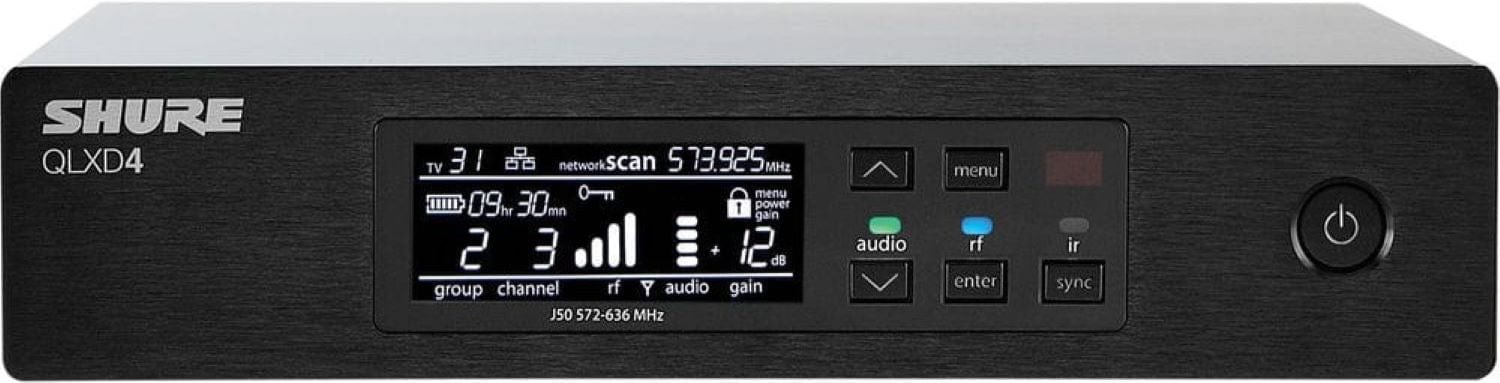

- • High-contrast LCD menu and controls
- • Detachable wave antennas
- • Durable steel construction
Product Specifications
- General Specs
- Dimensions: 41 x 197 x 151 mm, H x W x D
- Weight: 777 g, without antennas
- Housing: Steel
- Power requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
- RF Input
- Spurious Rejection: > 80 dB, typical
- Connector Type: BNC
- Impedance: 50 Ω
- Audio Output
- Gain Adjustment Range: -18 to +42 dB in 1 dB steps
- Configuration: 1/4' (6.35 mm): Impedance balanced (Tip = audio, Ring = no audio, Sleeve = ground) / XLR: Balanced (1 = ground, 2 = audio +, 3 = audio )
- Impedance: 1/4' (6.35 mm): 100 Ω (50 Ω Unbalanced) / XLR: 100 Ω
- Full Scale Output: 1/4' (6.35 mm): +12 dBV / XLR: LINE setting = +18 dBV, MIC setting = 12 dBV
- Mic/Line Switch: 30 dB pad
- Phantom Power: Protection 1/4' (6.35 mm): Yes / XLR: Yes
- Networking
- Network Interface: Single Port Ethernet 10/100 Mbps
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Ethernet Cable Length: 100 m
The Shure QLXD4-J50A Digital Wireless Receiver is a must-have for anyone looking for crystal-clear audio in a variety of settings. Whether you're hosting a presentation, performing at a music venue, or leading a service at a house of worship, this receiver delivers professional-grade sound. With its compact size and lightweight design, it's easy to set up and transport. The receiver measures 41 x 197 x 151 mm and weighs 777 g without antennas. It's housed in durable steel and powered by a 12 V DC external power supply. The QLXD4-J50A offers a range of features to enhance your audio experience, including automatic scanning for open frequencies, one-touch sync to transmitters, and Ethernet networking for multiple receivers. It also offers up to 60 dB of adjustable audio gain, AES 256-bit encryption for secure wireless transmission, and compatibility with Shure Wireless Workbench 6 control software. Whether you're a professional audio engineer or a casual user, the Shure QLXD4-J50A Digital Wireless Receiver is the perfect choice for crystal-clear sound.
