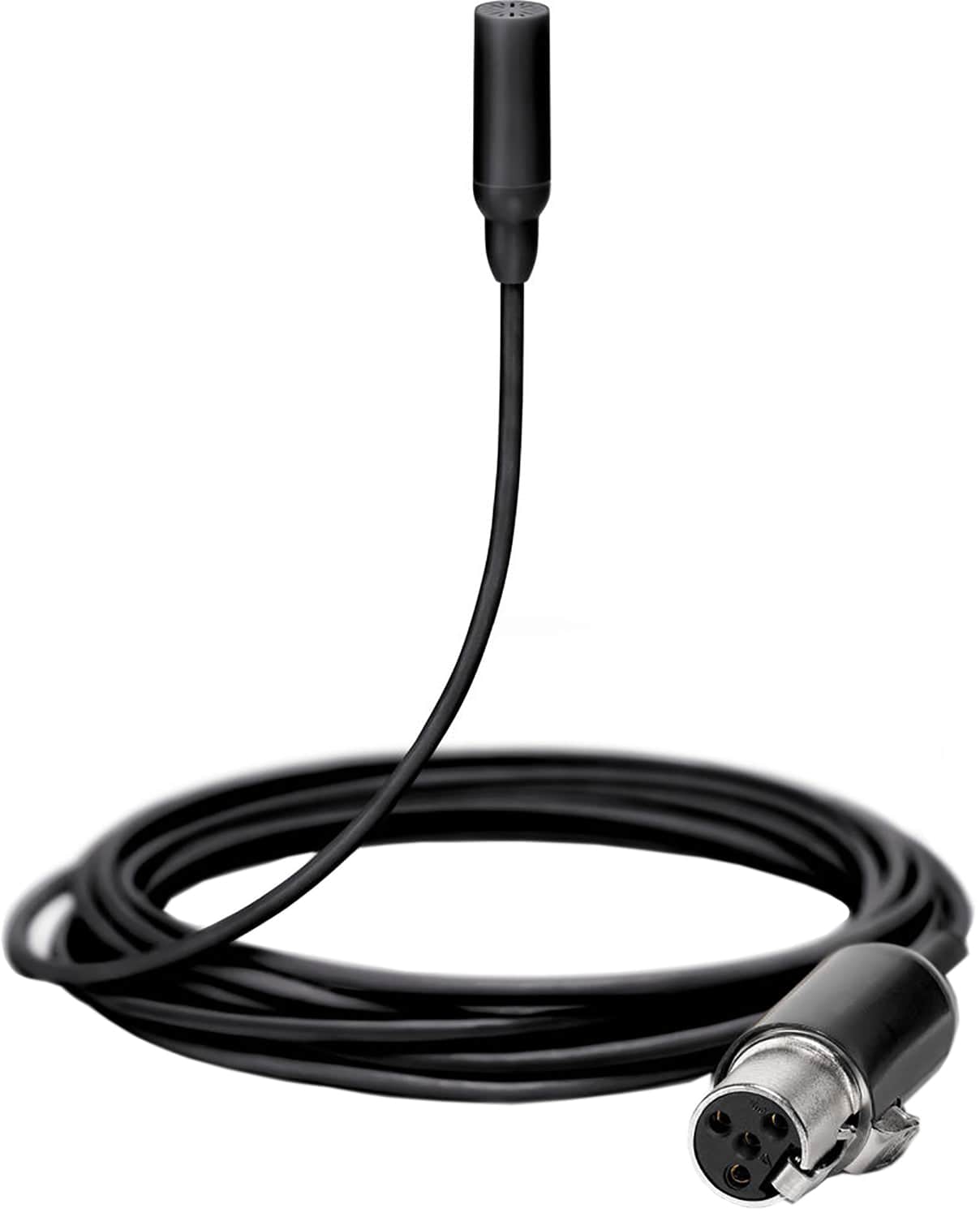

Shure TL48B/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone - MTQG with Accessories - Black
The TwinPlex TL48 is a must-have for anyone involved in film and TV audio! • Tailored response for speech: Ideal for capturing clear dialogue in film and TV projects. • Easy concealment: Can be hidden in a costume or worn against the skin without affecting sound quality. • Extensive accessories: Ensures quick, easy, and secure mounting.
Features:
- With a paintable, fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
- Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal source position or movement
- Best-in-class low self-noise and dynamic range for cleaner audio production
- Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
- Paintable 1.6 mm cable that is immune to memory effect and kinks
- Dual redundant ground in cable serves as secondary shield for longevity
- Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
- Sensitivity: Low
- Colors: Black
- Connectors: MTQG/TA4F

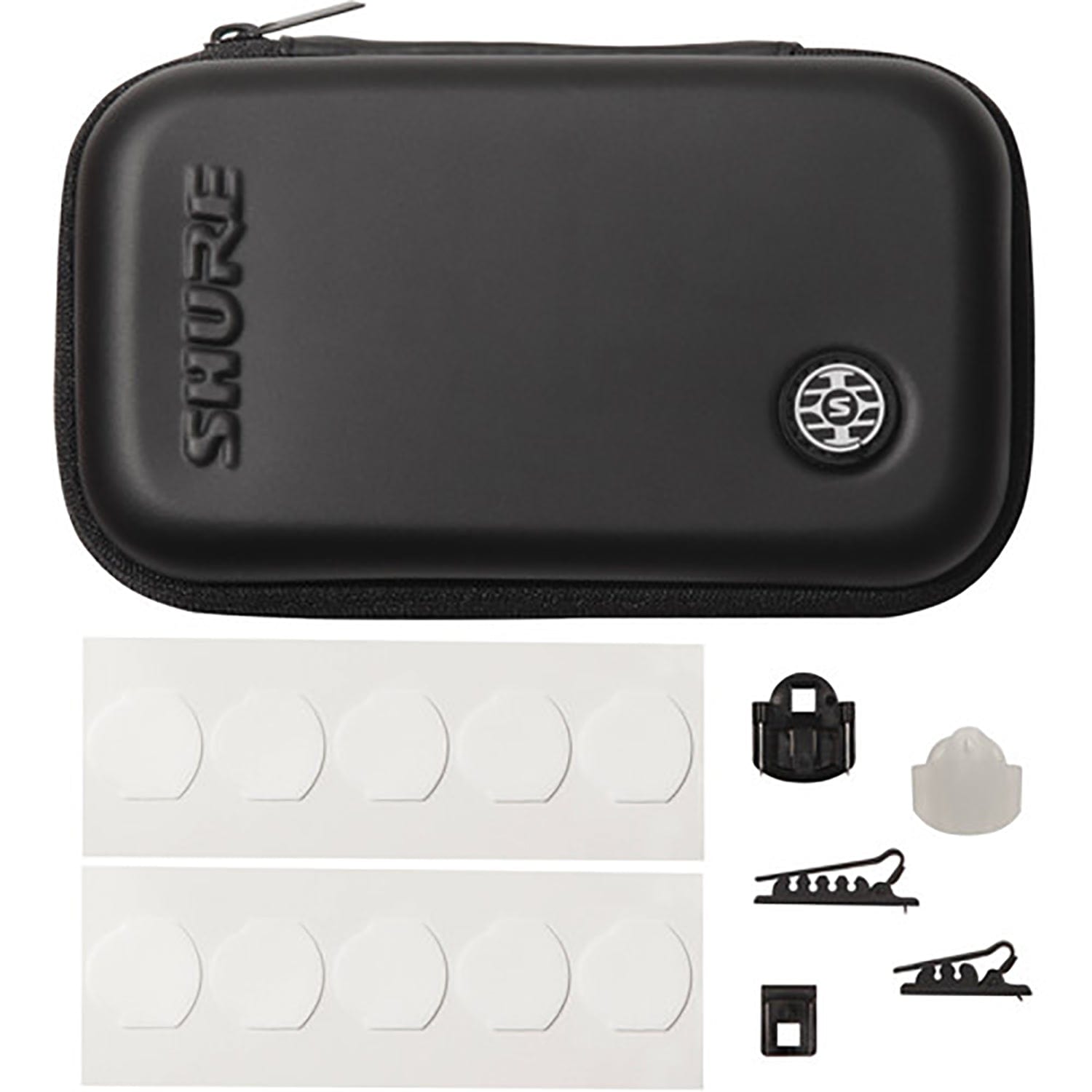

- Accessories: Available with accessories
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 ¦ÌA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to positive voltage with respect to ground
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 19 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
This Shure TL48B/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone is perfect for those in the film and TV industry. It's great for capturing clear dialogue during filming. The microphone is easy to hide, whether it's in a costume or against the skin under wardrobe. With its accessories, mounting is quick and simple. The cable is 1.6 mm in diameter and 66 in. (1.67 m) long. The microphone itself is 19 mm long and 5.6 mm in diameter, weighing just 12.0 g (0.42 oz.) with the cable.
