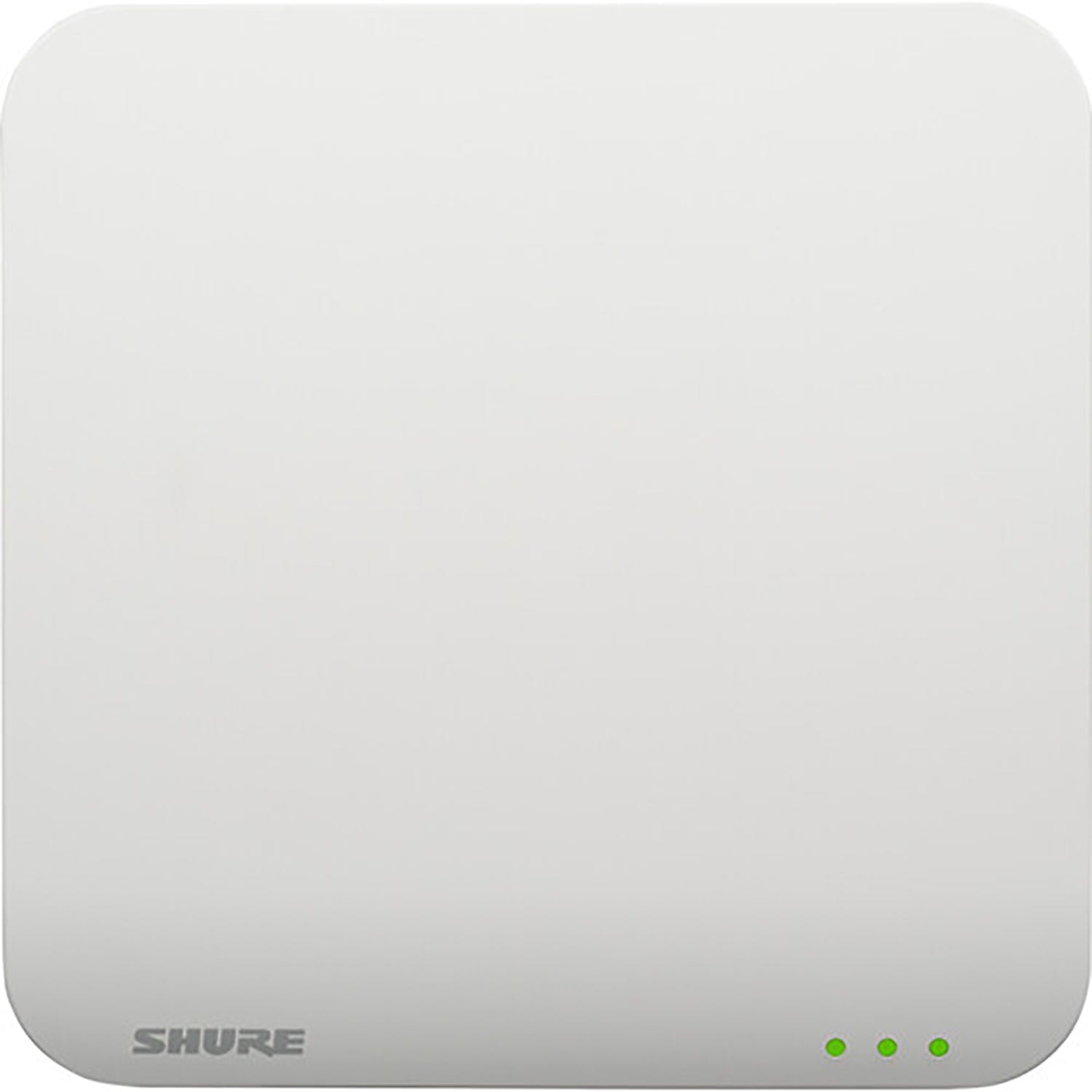

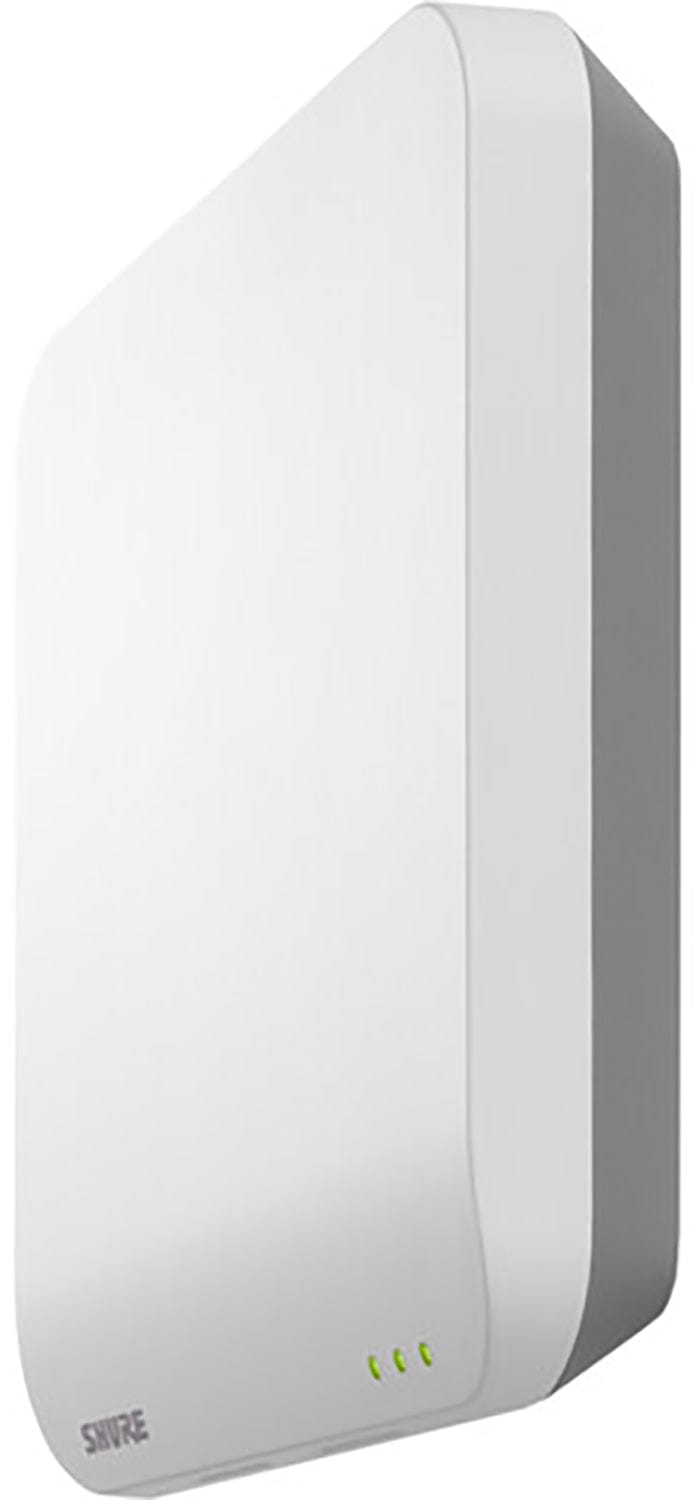

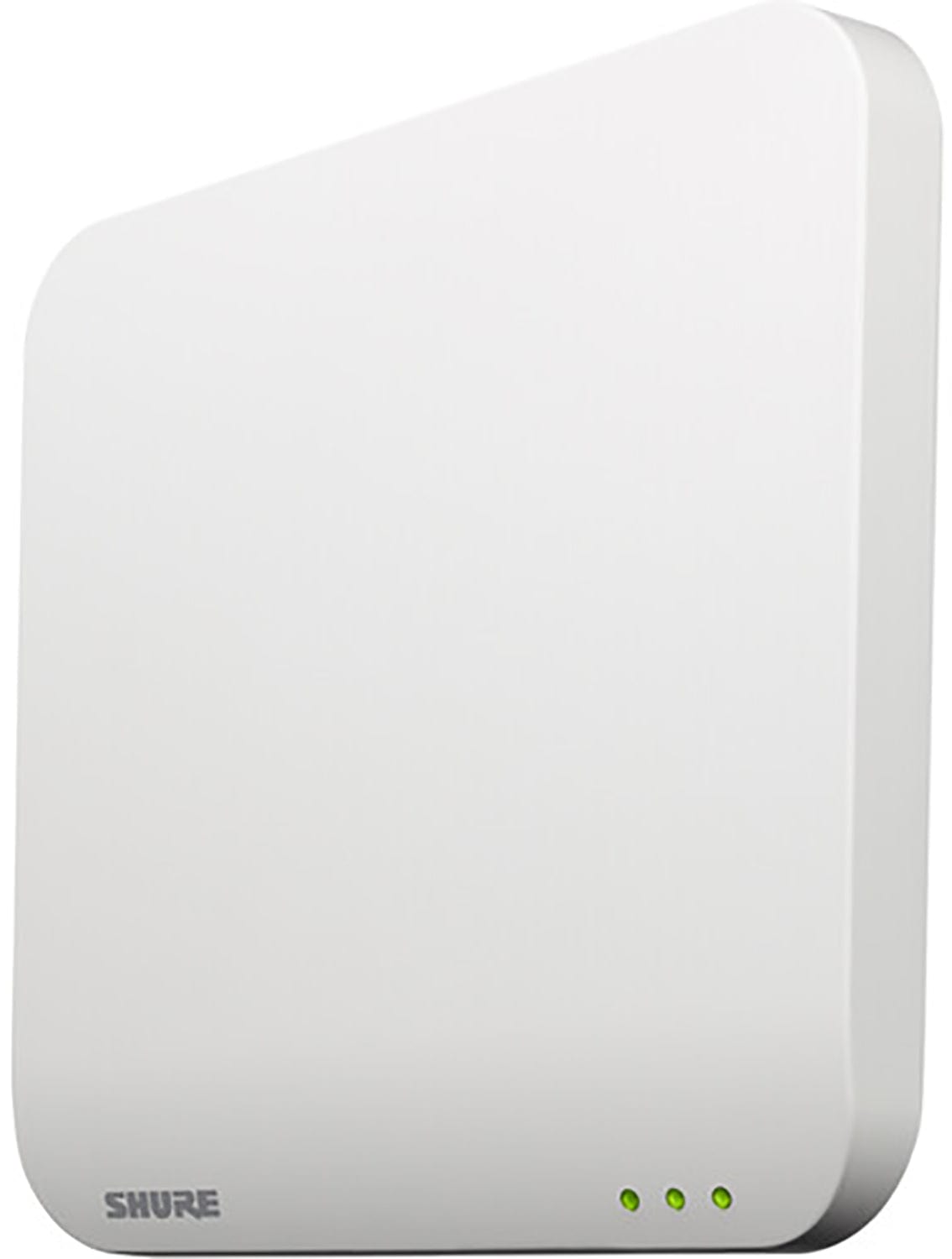

Shure MXWAPT2 Z10 Band Access Point Transceiver - Your Ultimate Wireless Solution
Discover the MXWAPT2, a 2-channel wireless access point that seamlessly integrates with Microflex Wireless microphone systems. Revolutionize your audio experience with its automated frequency coordination, ensuring crystal-clear frequencies for your wireless microphones. Enjoy two-way wireless transmission of encrypted audio and control signals, all while simplifying installation with power (via PoE) and Dante digital networked audio supplied over a single Ethernet cable. The included mounting plate and paintable cover allow for discreet placement in boardrooms and conference rooms, perfect for maintaining a professional and unobtrusive look.
Features:
- • Sleek Design: Lightweight and discreet, with a paintable cover to blend seamlessly into any AV environment
- • Easy Setup: Comes with a wall/ceiling mounting plate and connects via a single Ethernet cable (PoE compatible)
- • Plenum Rated: Meets strict fire safety standards for installation above drop ceiling tiles
- • Scalable Configurations: Choose from 2, 4, or 8 channel models to suit your needs, and combine multiple units for even more flexibility
- • Bi-Directional Wireless: Provides return channel audio and enables real-time remote control of all wireless microphone settings
- • Automated Frequency Coordination: Scans the spectrum, coordinates clean frequency assignments, and avoids interference
- • Dante Digital Networked Audio: Transports low latency digital audio over Cat5e cable to any Dante-equipped device
- • Encrypted Wireless: AES 256-bit encryption for secure transmission
- • Selectable Output Power: Optimize spectrum usage with adjustable wireless output power
- • Diagnostic LEDs: Easily monitor system activity and status
- • DECT Technology: Offers over 80 audio channels per system
- • High Density Mode: Maximize channel count for your specific needs
Specifications:
- Network Interface: RJ45 Gigabit Ethernet, Dante digital audio
- Plenum Rating: UL 2043
- Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W
- Antenna Type: Internal, Spatial Diversity, Circular Polarization
- Housing: Molded Plastic, Cast Zinc
- Dimensions: 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.), H x W x D (without mounting plate or cover)
- Weight: APT8 856 g (1.9 lbs), APT4 845 g (1.9 lbs), APT2 845 g (1.9 lbs), Paintable Cover 85 g (0.2 lbs), Mounting Bracket 68 g (0.15 lbs)
The Shure MXWAPT2 Z10 Band Access Point Transceiver is designed for boardrooms and conference rooms. Ideal for professionals seeking high-quality wireless audio solutions. It has a compact size of 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.) and weighs around 845 - 856 g (1.9 lbs) depending on the model, with a paintable cover weighing 85 g (0.2 lbs) and mounting bracket 68 g (0.15 lbs).
