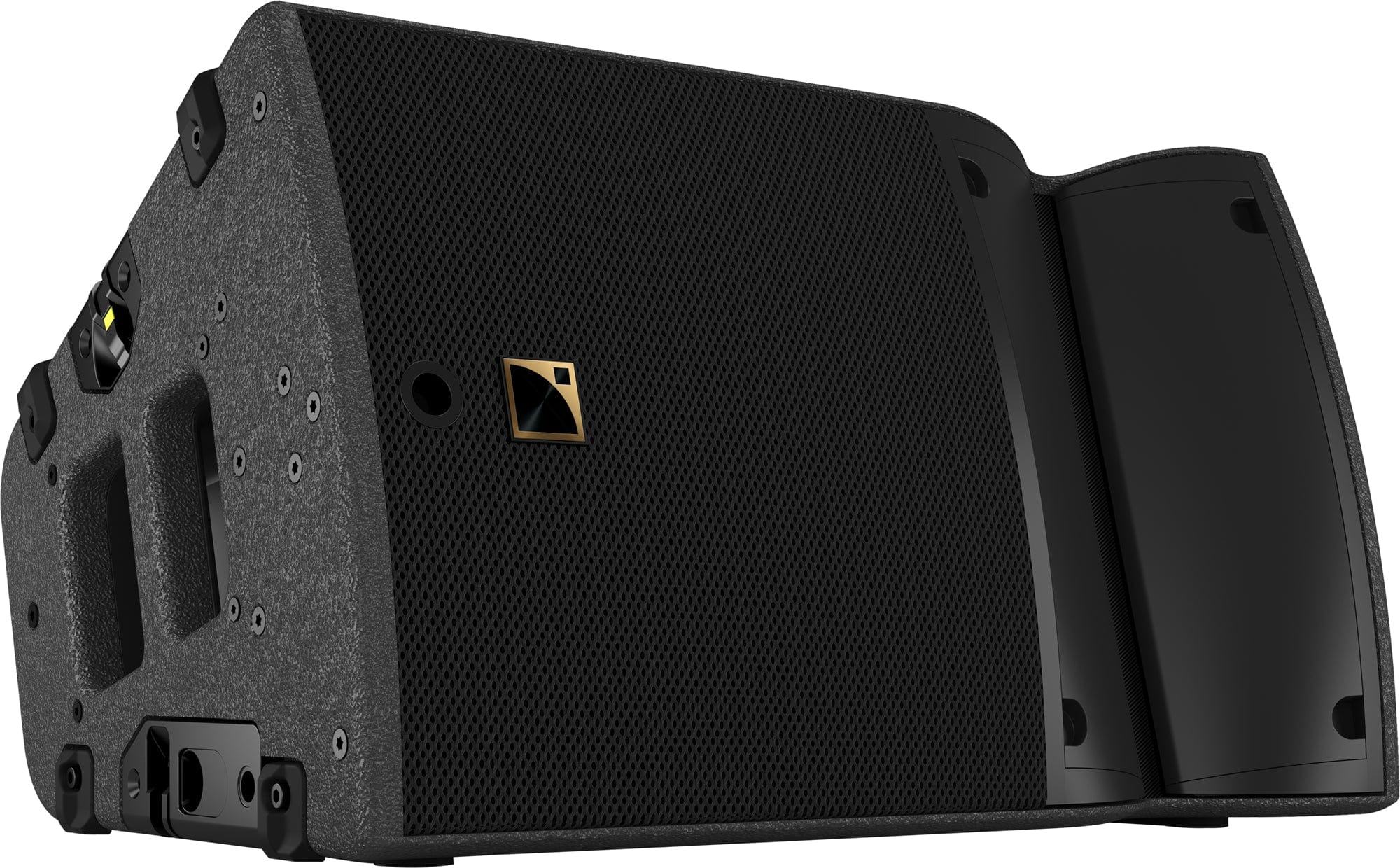

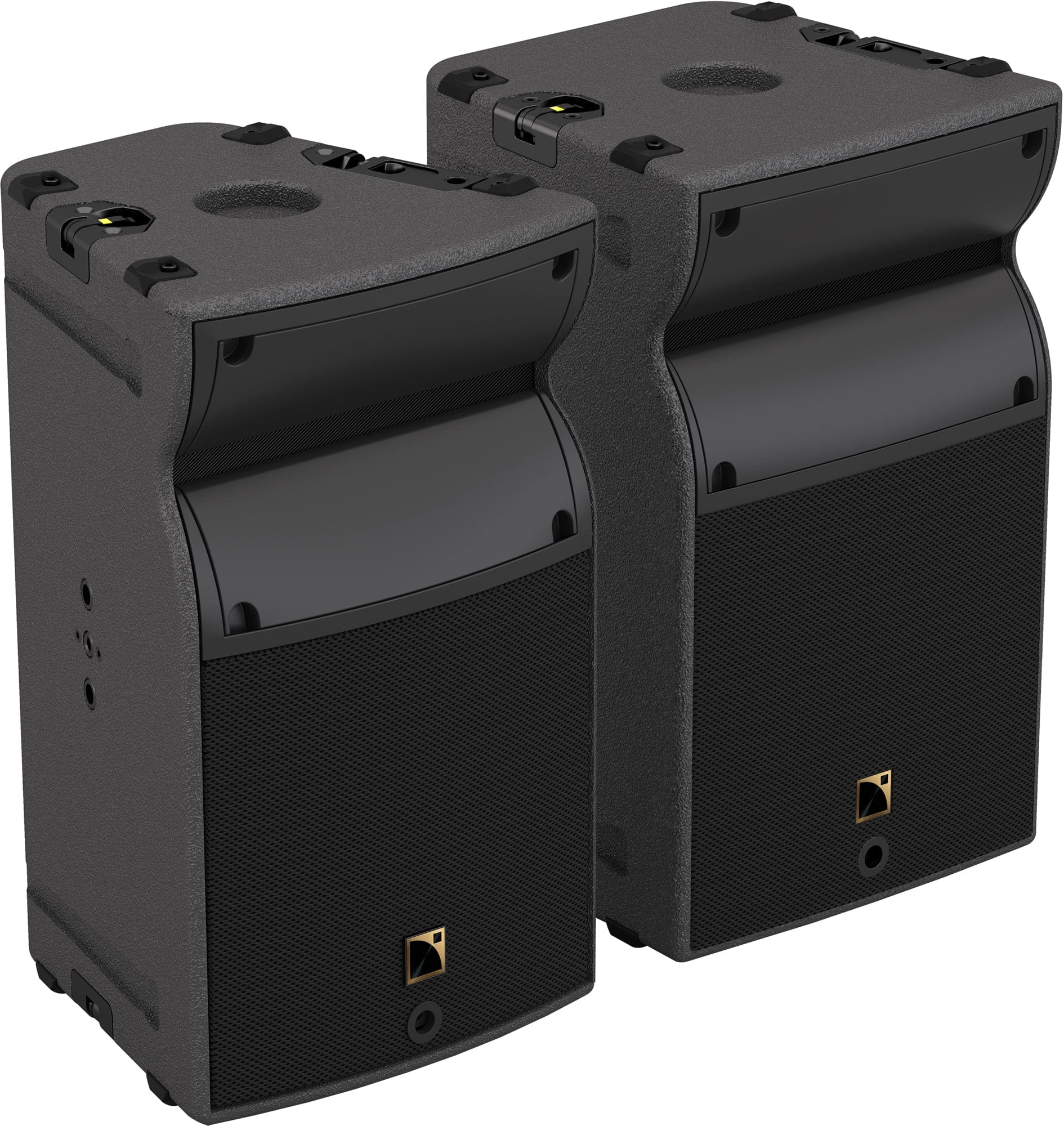

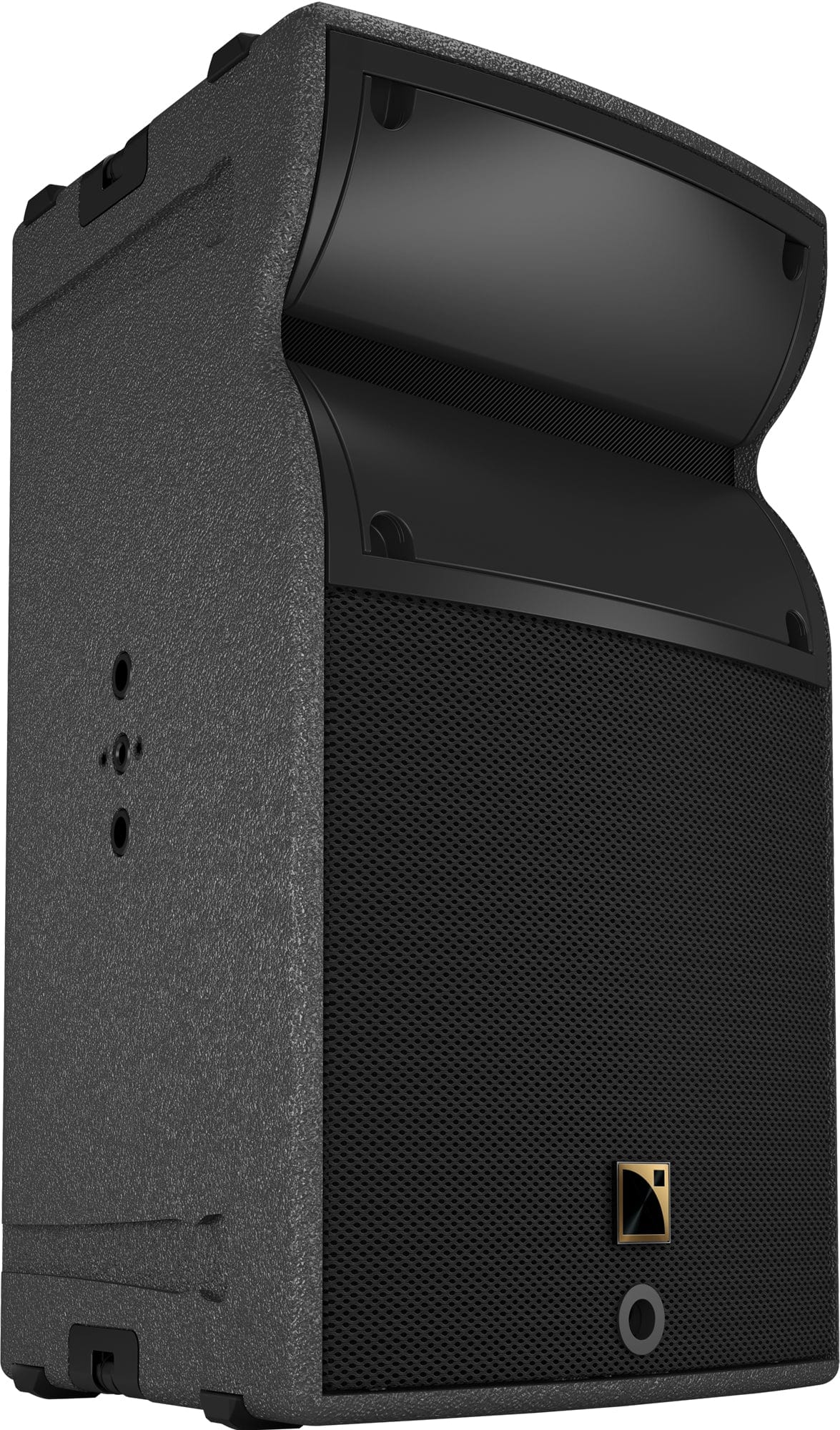

L-Acoustics A10 Wide: The Ultimate 2-Way Passive Speaker for Unbeatable Sound
Get ready to experience outstanding sound quality with the L-Acoustics A10 Wide! This medium throw loudspeaker is perfect for production applications. Here's why you should choose it:
- Exceptional Deployment Flexibility: As part of the multifunctional A10 family, this passive 10-inch enclosure offers remarkable flexibility without sacrificing performance.
- Compact Array with Expansive Coverage: The 30° enclosure of A10 Wide enables a compact array that can be deployed radially, providing wide coverage while maintaining sightlines.
- Highly Scalable Solution: Whether it's a small event or a large concert, A10 Wide delivers concert-level performance. It can also be used as fills or delays in a larger L-Acoustics setup.
The A10 Wide is a must-have for any sound engineer or event organizer looking for top-notch audio quality. Don't miss out on this amazing product!
Specifications:
- Description: 2-way passive constant curvature WST 30°, amplified by LA4X / LA8 / LA12X
- Usable bandwidth (-10 dB): 67 Hz - 20 kHz (A10)
- Maximum SPL: 137 dB (A10)
- Nominal directivity:
- Enclosure: 30°
- Panflex: 70° / 110° symmetric or 90° asymmetric
- Transducers:
- LF: 1 x 10'' neodymium cone driver
- HF: 1 x 2.5'' diaphragm neodymium compression driver
- Acoustical load:
- LF: Bass-reflex, L-Vents
- HF: DOSC waveguide, Panflex
- Nominal impedance: 8 Ω
- Connectors:
- IN: 1 x 4-point speakON
- LINK: 1 x 4-point speakON
- Rigging and handling:
- Flush-fitting two-point rigging system
- 1 handle, 8 corner stops and 2 ground runners
- Safety: 1 DIN580-compatible M8 insert
- Weight (net): 20 kg / 44 lb
- Cabinet: Premium grade Baltic beech and birch plywood
- Front:
- Coated steel grill
- Acoustically neutral 3D fabric
- Rigging components: High grade steel with anti-corrosion coating
- Finish: Dark grey brown Pantone 426 C
- IP: IP55
The L-Acoustics A10 Wide is a medium throw loudspeaker designed for production applications. It's suitable for sound engineers and event organizers. Here are its details: Usable bandwidth (-10 dB) is 67 Hz - 20 kHz (A10), maximum SPL is 137 dB (A10). The weight (net) is 20 kg / 44 lb. It has a 30° enclosure and offers various directivity options with Panflex. It comes with specific transducer, acoustical load, impedance, connector, rigging and handling features, safety insert, cabinet material, front design, rigging components, finish, and IP rating.
