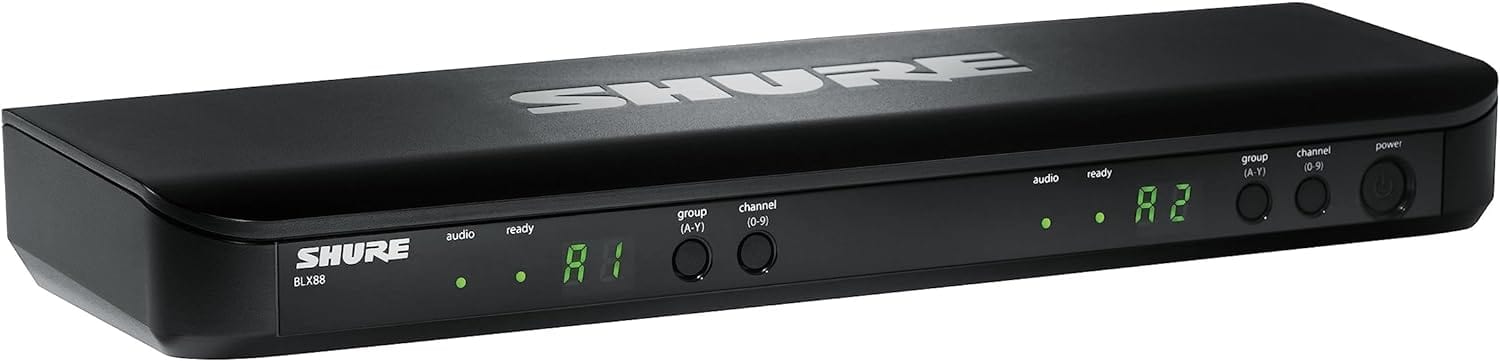

Shure BLX88 Dual Wireless Receiver for BLX Wireless System - H11 Band

Shure BLX88 Dual Wireless Receiver - H11 Band: The Ultimate Wireless Solution

Upgrade your audio experience with the Shure BLX88 Dual Wireless Receiver! This receiver offers improved linearity and frequency response, along with group and channel scan for easy setup. • Advanced Microprocessor Control: Enjoy precise performance with microprocessor-controlled internal antenna diversity. • QuickScan Function: One touch to locate the best open frequency. • Color-Coded Audio Indicator: Stay informed with green for normal audio levels and red for excessive levels.

Features:

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open frequency
• Balanced XLR and Unbalanced 1/4' audio outputs
• Two color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)

Specifications:

• System:
  • Number of RF Channel Frequencies: 123
  • Diversity: Antenna Diversity
  • RF Frequency Band: H11(572-596 MHz))
  • RF Bandwidth: 24 MHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 300' / 91.4 m
  • Max Transmitters per Band: 12
• Receiver:
  • Receiver Type: Tabletop
  • Antenna: 2 x Internal, Fixed
  • Number of Audio Channels: 2

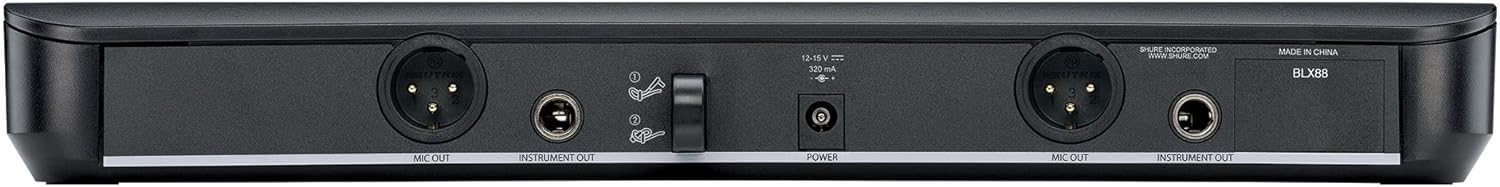

  • Audio I/O:
    • 2 x XLR 3-Pin Male Balanced Output
    • 2 x 1/4' TS Female Unbalanced Output
  • Audio Output Level:
    • XLR Outputs: -27 dBV (Mic Level)
    • 1/4' Outputs: -13 dBV (Instrument Level)
  • Frequency Response: 50 Hz to 15 kHz
  • Impedance:
    • XLR Outputs: 200 Ohms
    • 1/4' Outputs: 50 Ohms
  • Approximate RF Sensitivity: -105 dBm
  • Adjacent Channel Isolation: >50 dB
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)

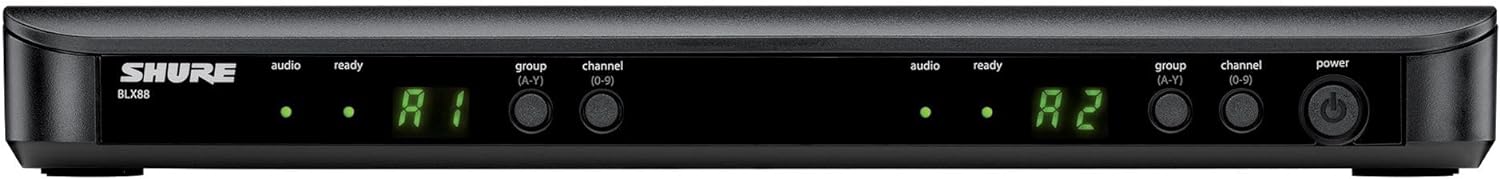

  • Display & Indicators:
    • 1 x Multi-Segment LED (Channel, Group)
    • 2 x LED (AF Level, Sync)
  • Housing: ABS
  • Operating Temperature: 0 to 135°F / -17 to 57°C
  • Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
  • Weight: 15.1 oz / 429 g
• Packaging Info:
  • Package Weight: 3.85 lb
  • Box Dimensions (LxWxH): 19.1 x 16.2 x 3.6'

The Shure BLX88 Dual Wireless Receiver is perfect for musicians, presenters, and event organizers seeking a reliable wireless audio solution. With its user-friendly features and excellent performance, it's easy to set up and use. • Operating Temperature: 0 to 135°F / -17 to 57°C • Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm • Weight: 15.1 oz / 429 g
