D&B Audiotechnik Z0707.001 Y8 Loudspeaker with NL4 Connections

D&B Audiotechnik Z0707.001 Y8 High-Performance Loudspeaker with NL4 Connections

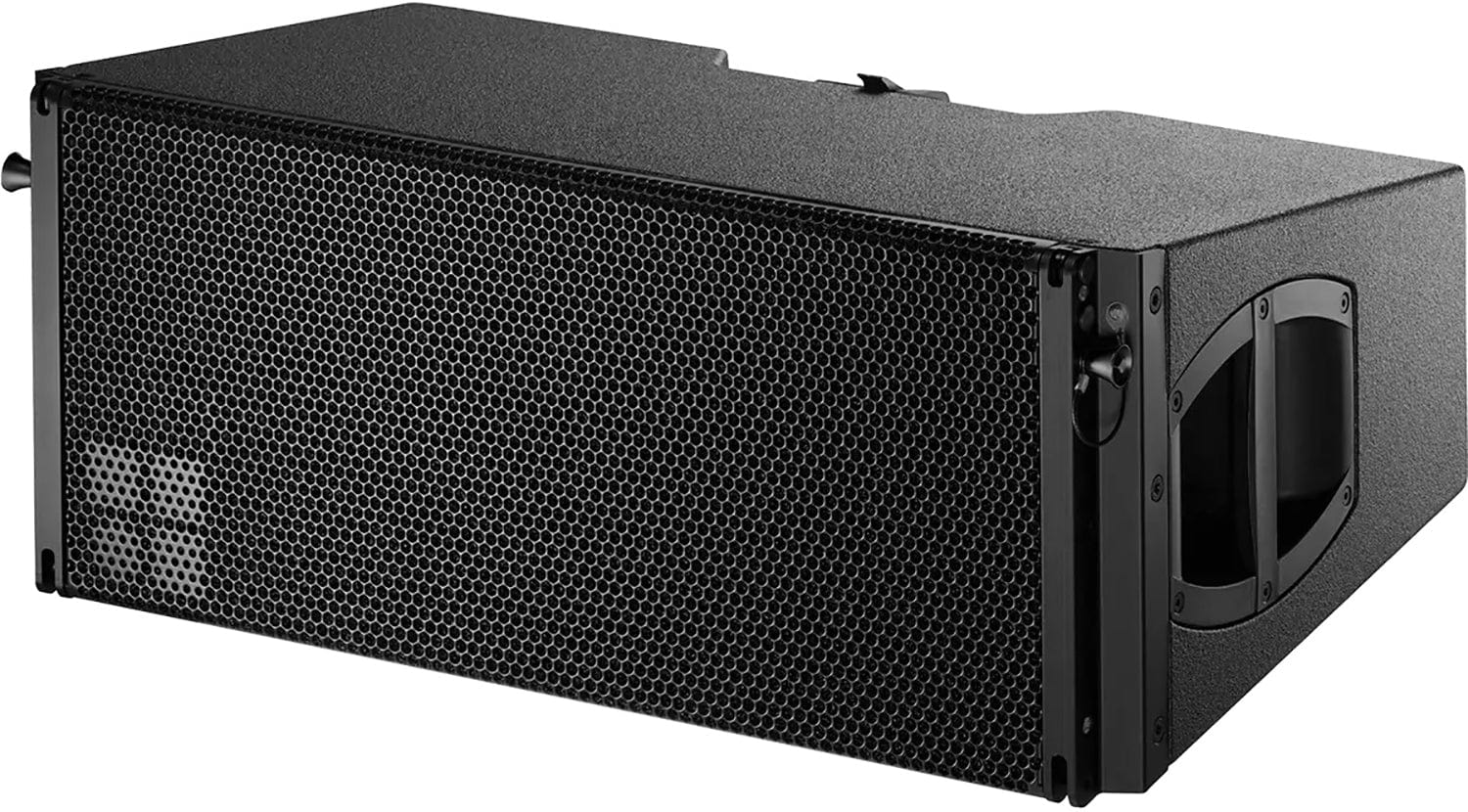

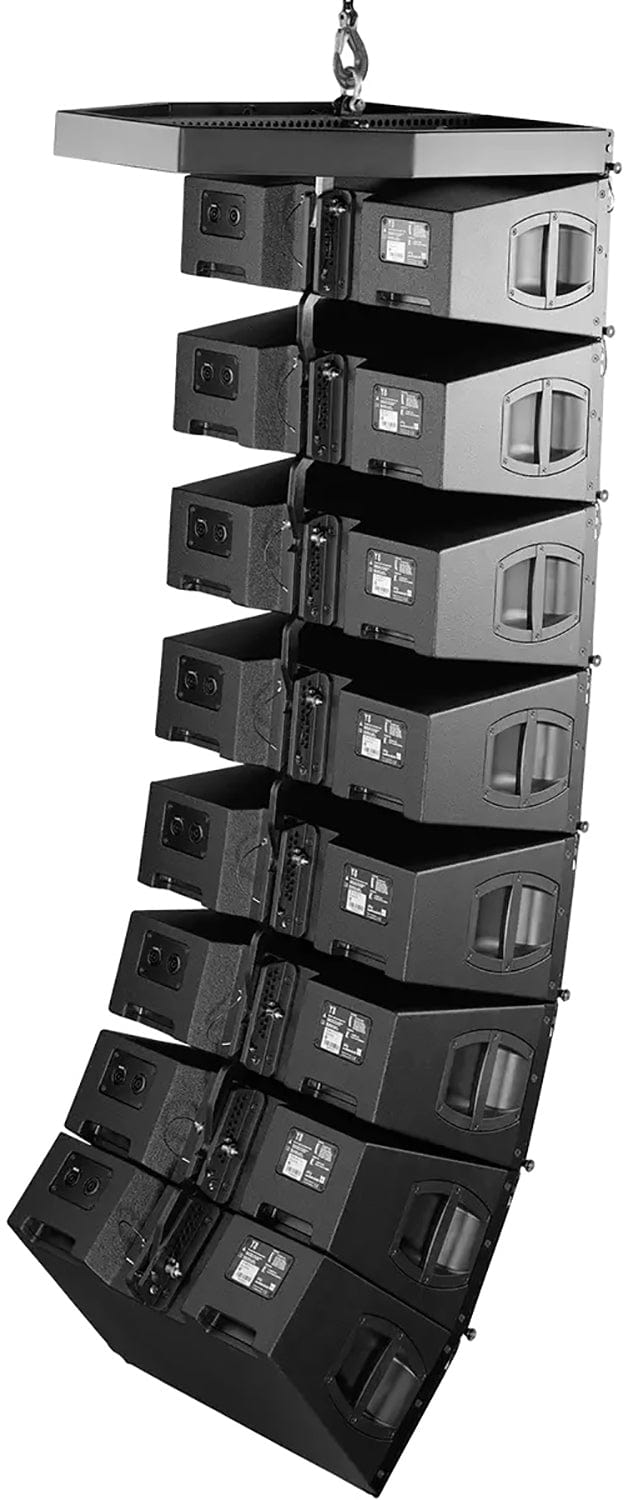

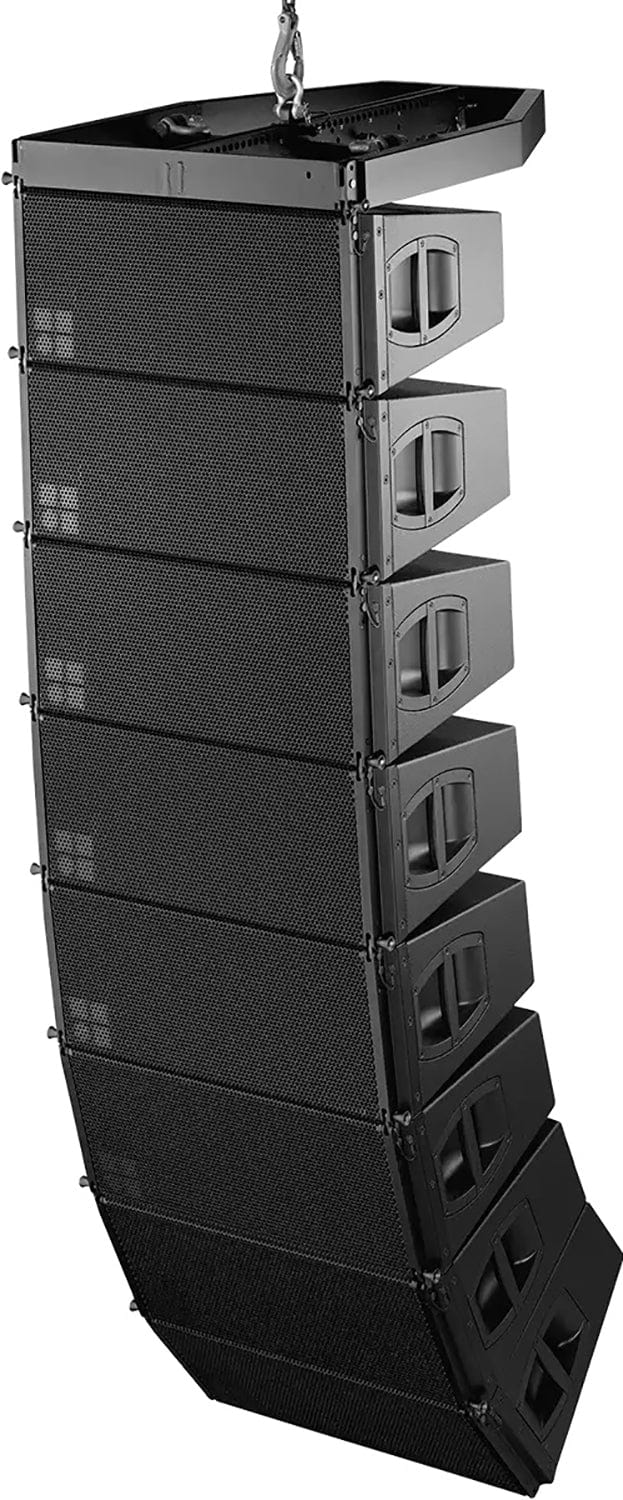

Experience exceptional sound quality with the D&B Audiotechnik Z0707.001 Y8 loudspeaker! • Compact and designed for vertical columns. • High-performance 2-way passive design for powerful sound. • Sophisticated horn geometry and advanced bass-reflex port design for full bandwidth capabilities. This loudspeaker is perfect for events, concerts, and installations. Its 80° horizontal directivity controlled down to 500 Hz ensures precise sound projection. With a frequency response of 54 Hz - 19 kHz (-5 dB standard) and up to 139 dB max sound pressure, it delivers outstanding audio performance. The mechanical and acoustical design allows for vertical arrays of up to twenty four loudspeakers with vertical splay angles from 0° to 14° with a 1° resolution. It can be used in columns of purely Y8 loudspeakers or combined with Y12 and/or Y-SUB cabinets. The loudspeaker cabinet is made of marine plywood with an impact and weather protected PCP finish. The front is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel has a handle and two additional recessed grips at the rear. Three point rigging hardware is integrated. Dimensions: 257 x 630 x 375 mm (10 x 24.8 x 14.8'), Weight: 20 kg (44 lb). Connectivity is via 2 x NL4. Ideal for sound engineers, event organizers, and anyone seeking top-notch audio solutions.

Specifications:

• System data:
  • Frequency response (-5 dB standard): 54 Hz - 19 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 19 kHz
  • Max. sound pressure:
    • with 10D: 134 dB
    • with D20/30D: 137 dB
    • with D40/D80/40D: 139 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 2-way passive line array loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (horizontal): 80°
  • Splay angle settings: 0° - 14° (1° increment)
  • Components:
    • 2 x 8' driver with neodymium magnet
    • 1.4' exit compression driver
    • passive crossover network
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 257 x 630 x 375 mm (10 x 24.8 x 14.8')
  • Weight: 20 kg (44 lb)

This D&B Audiotechnik Z0707.001 Y8 loudspeaker is great for events, concerts, and installations. It's suitable for sound engineers, event organizers, and those looking for excellent audio. With dimensions of 257 x 630 x 375 mm (10 x 24.8 x 14.8') and a weight of 20 kg (44 lb), it's easy to handle. Connect via 2 x NL4. Enjoy its high-performance sound in various setups.
