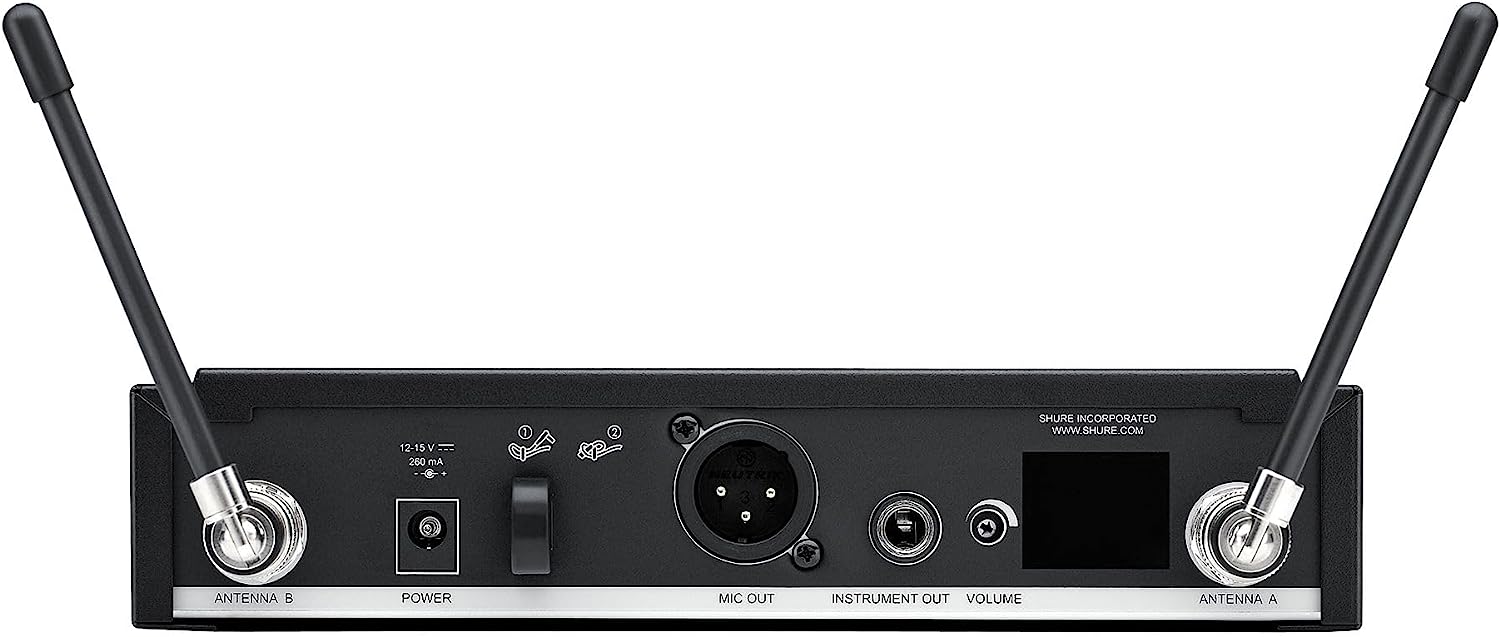

Shure BLX4R Wireless Receiver for BLX-R Wireless System - H10 Band

Shure BLX4R H10 Band Wireless Receiver - Your Ultimate Audio Solution

Upgrade your audio setup with this amazing rack mount analog wireless receiver! It offers improved linearity and frequency response, along with group and channel scan for effortless setup. • One-touch QuickScan to instantly find the best open frequency. • Adjustable output levels for customized audio. • Two-color audio status indicator LED for easy monitoring.

Features:

• One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
• Up to 12 compatible systems per frequency band (region-dependent)
• XLR and ” output connectors
• Two-color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)
• Adjustable output level
• Removable antennas for quick antenna distribution
• LC Display with detailed RF and audio metering
• Rack mount kit included

Specifications:

• System:
  • Number of RF Channel Frequencies: 123
  • Diversity: Antenna Diversity
  • RF Frequency Band: H10 (542-572 MHz)
  • RF Bandwidth: 24 MHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 300' / 91.4 m (Line of Sight)
  • Max Transmitters per Band: 12
• Receiver:
  • Receiver Type: Rackmount
  • Mounting Options: Rackmount (with Included Hardware)
  • Rackmount Size: 1 RU (1/2 Rack)
  • Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
  • Number of Audio Channels: 1
  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4' TS Female Unbalanced Output
  • Audio Output Level:
    • XLR Outputs: -27 dBV (Mic Level)
    • 1/4' Outputs: -13 dBV (Instrument Level)
  • Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
  • Impedance:
    • XLR Outputs: 200 Ohms
    • 1/4' Outputs: 50 Ohms
  • Approximate RF Sensitivity: -105 dBm
  • Adjacent Channel Isolation: >50 dB
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
  • Display & Indicators:
    • 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
    • 1 x LED (Transmitter Battery Status)
  • Housing: Steel
  • Operating Temperature: 0 to 135°F / -17 to 57°C
  • Dimensions: 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
  • Weight: 35.2 oz / 998 g
• Packaging Info:
  • Package Weight: 6.4 lb
  • Box Dimensions (LxWxH): 18.4 x 14.7 x 3.8'

This Shure BLX4R wireless receiver is perfect for audio professionals and enthusiasts looking to enhance their sound systems. It's a rack mount receiver that offers great features for easy setup and reliable performance. Ideal for use in live events, recording studios, or any situation where wireless audio is needed. With a rackmount size of 1 RU (1/2 Rack), it's compact and easy to install. The receiver weighs 35.2 oz / 998 g (without mounting hardware, antennas) and has dimensions of 7.8 x 2 x 6.4' / 198 x 50 x 163 mm. It operates in the temperature range of 0 to 135°F / -17 to 57°C.
