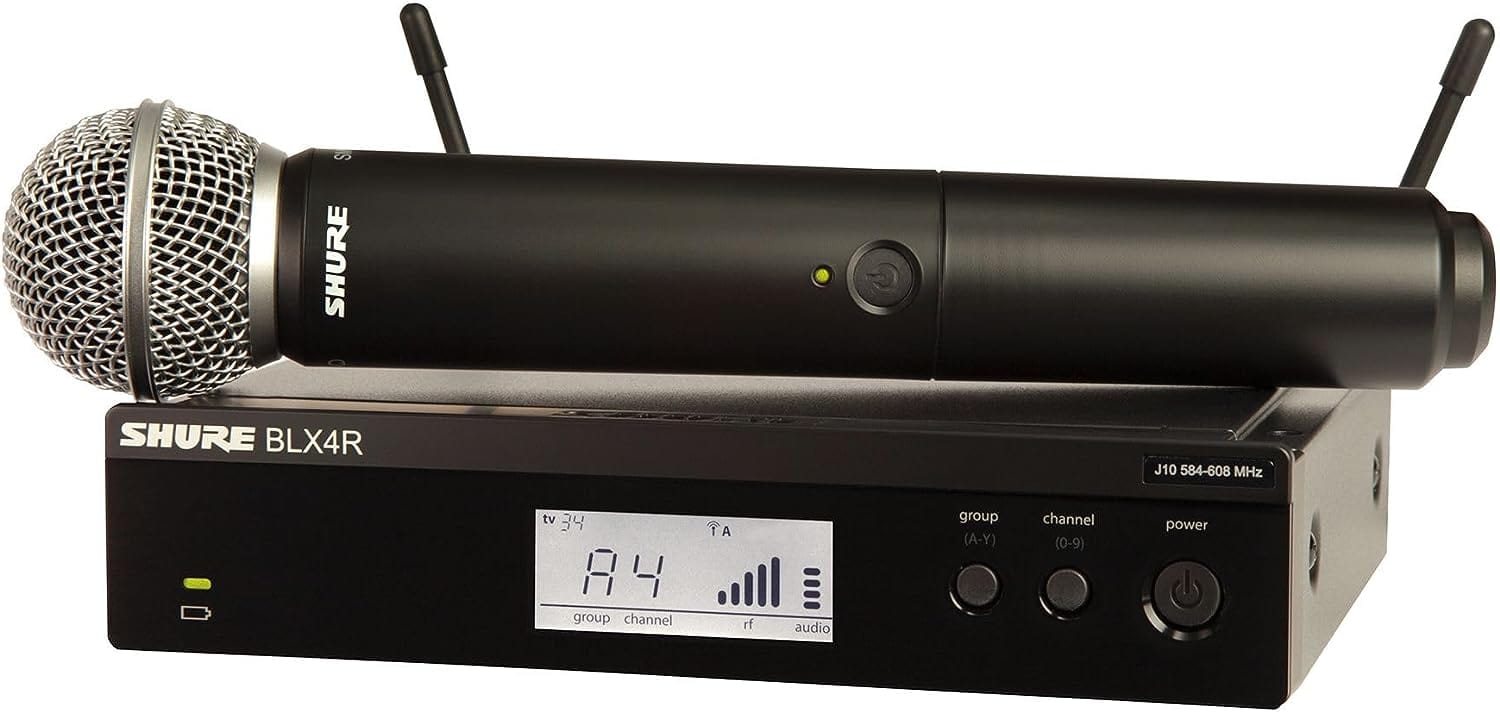

Shure BLX24R Wireless Rack-mount Vocal System with SM58 - The Ultimate Solution for Stunning Live Performances

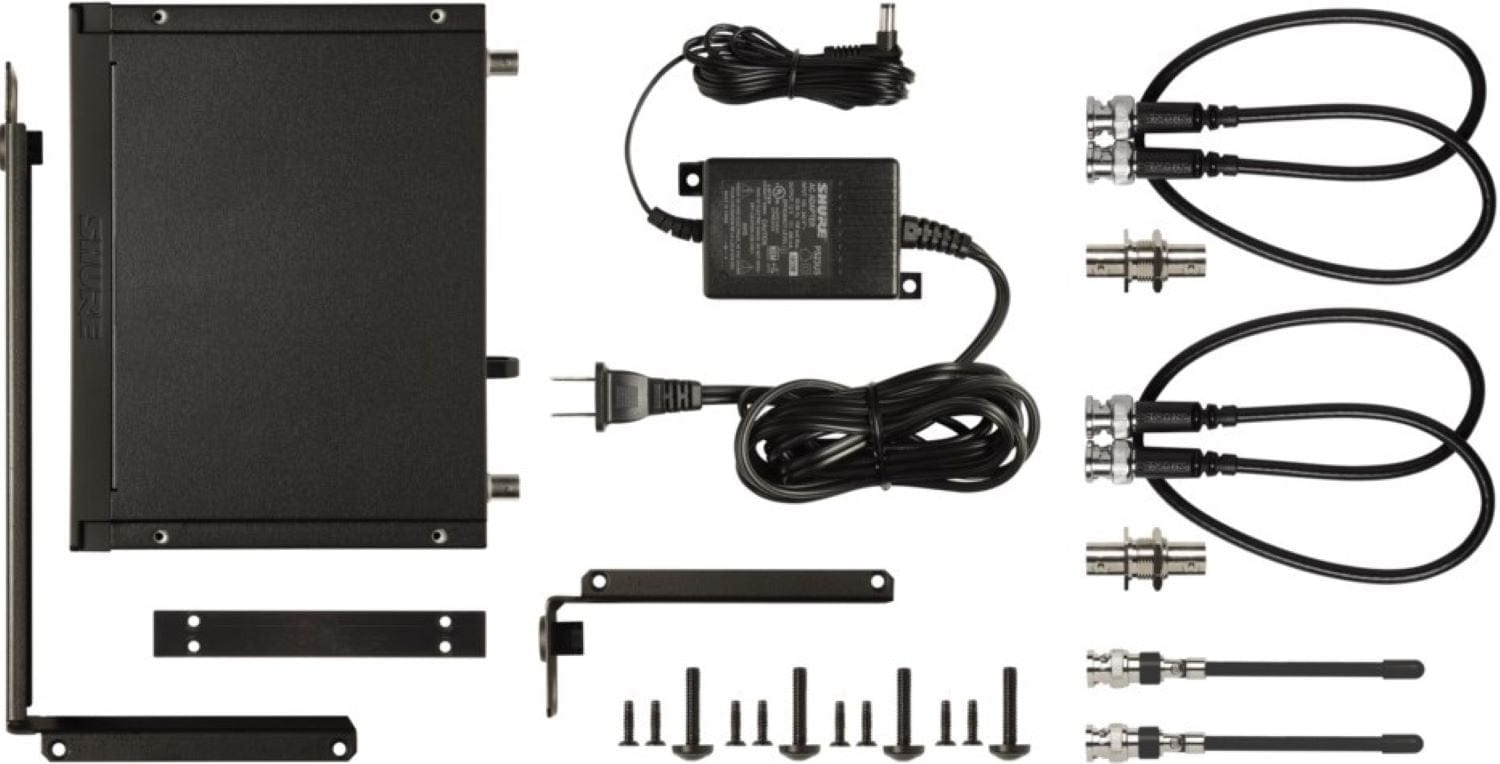

Get ready to take your live performances to the next level with the Shure BLX24R Wireless Rack-mount Vocal System. This system combines professional-quality sound with simple setup and up to 14 hours of battery life, so you can deliver legendary audio performance right out of the box. The system includes a BLX4R half-rack single-channel receiver, a legendary SM58 handheld transmitter, a microphone clip, a power supply, 2 AA batteries, a rackmount kit, 2 1/4 wave antennas, and a user guide.
Key Features:
- • Superior Audio - Perform with confidence knowing you have crystal-clear sound
- • Reliable Signal - Extend your range with a strong, stable signal
- • Easy Setup – Own the stage with a quick and hassle-free setup
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11 (572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA

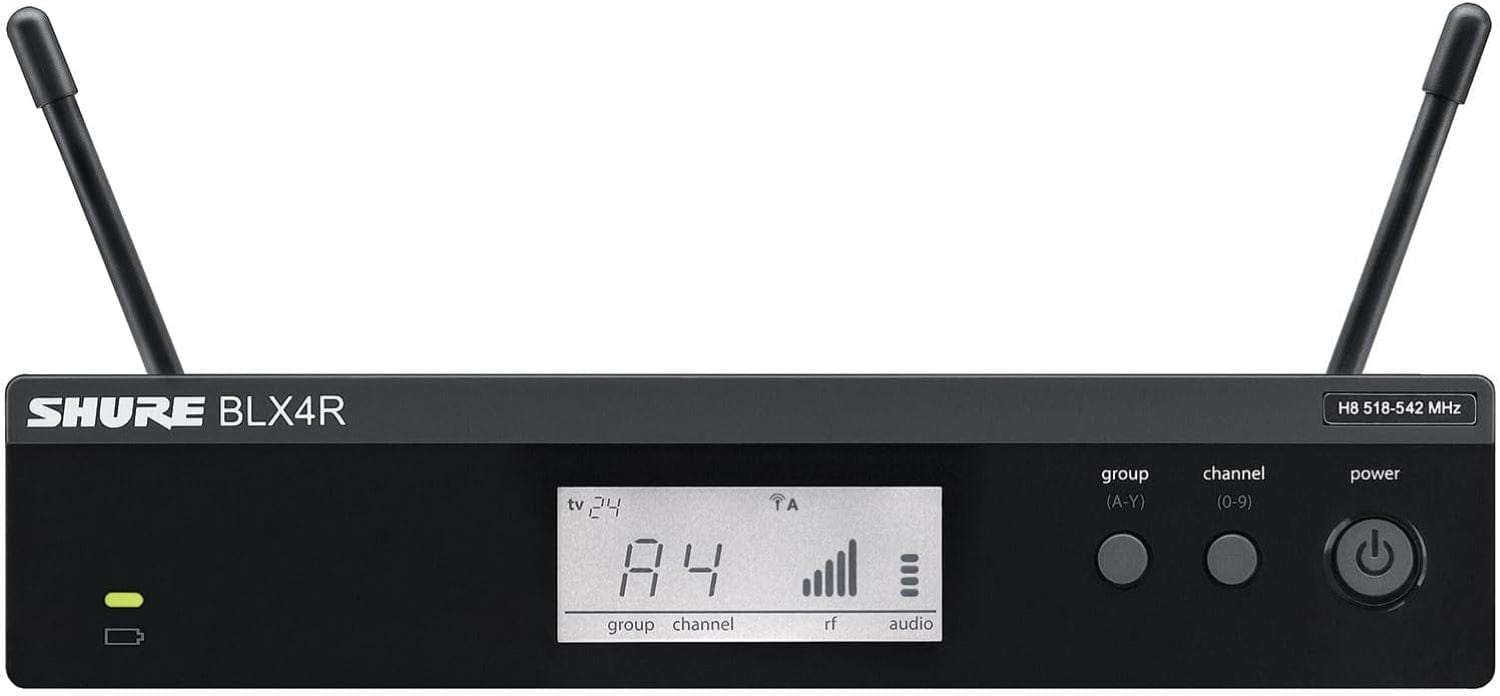

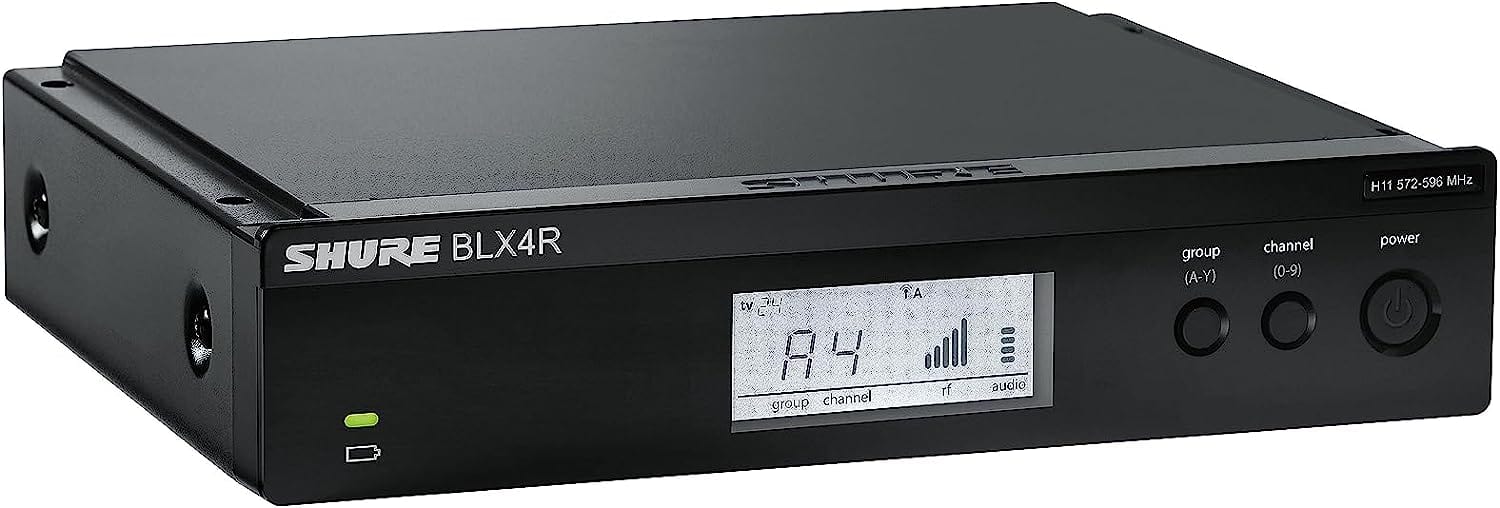

- Receiver:
- Receiver Type: Tabletop
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1

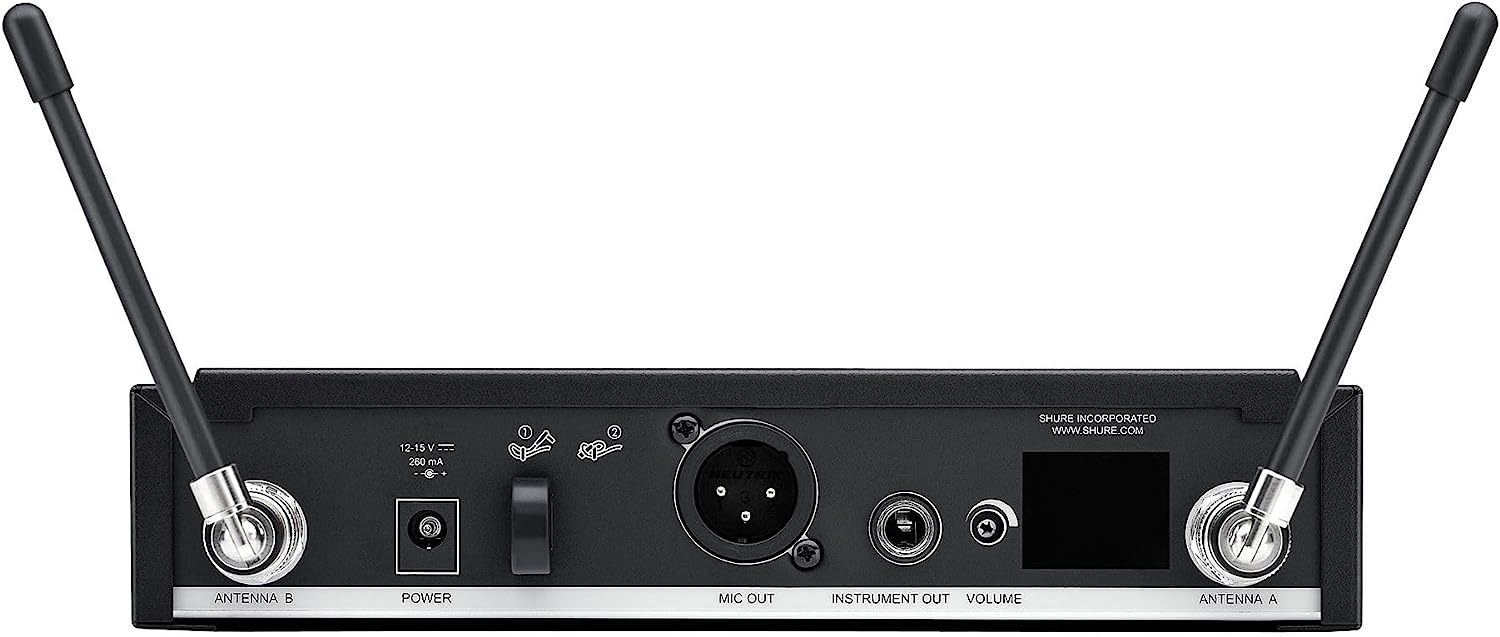

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -20.5 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4' Outputs: 50 Ohms
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Dimensions: 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g

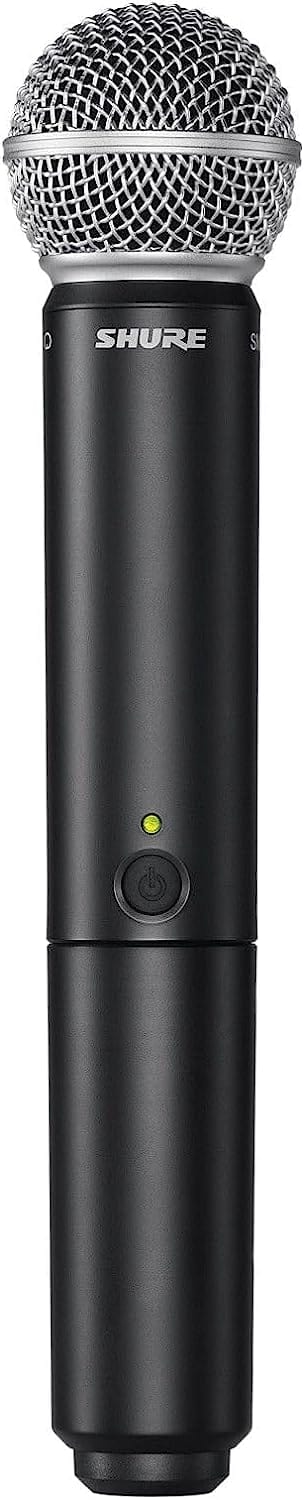

- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 10 mW
- Audio I/O: None
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -20 to -10 dB
- Sync Method: Manual
- Antenna: 1 x Internal (Handheld)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 7.7 oz / 218 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Color: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 15 kHz
- Sensitivity: -54.5 dBV/Pa
- Packaging Info:
- Package Weight: 6.895 lb
- Box Dimensions (LxWxH): 18.3 x 14.9 x 3.8'
The Shure BLX24R Wireless Rack-mount Vocal System is perfect for live performers who want professional-quality sound without the hassle. This system is easy to set up and has up to 14 hours of battery life, so you can focus on delivering a great performance. The system includes a BLX4R half-rack single-channel receiver, a legendary SM58 handheld transmitter, a microphone clip, a power supply, 2 AA batteries, a rackmount kit, 2 1/4 wave antennas, and a user guide. The receiver is tabletop and rackmountable, with a 1 RU size and 2 detachable 1/4 wave external antennas. The transmitter is handheld, with a 10 mW RF output power and a 2 AA battery type. The microphone is a handheld capsule with a cardioid polar pattern and a frequency range of 50 Hz to 15 kHz. The system has a max operating range of 300' / 91.4 m (Line of Sight) and a max transmitters per band of 12. The system dimensions are 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without Mounting Hardware, Antennas) and weighs 35.2 oz / 998 g. The package weight is 6.895 lb and the box dimensions are 18.3 x 14.9 x 3.8'.
