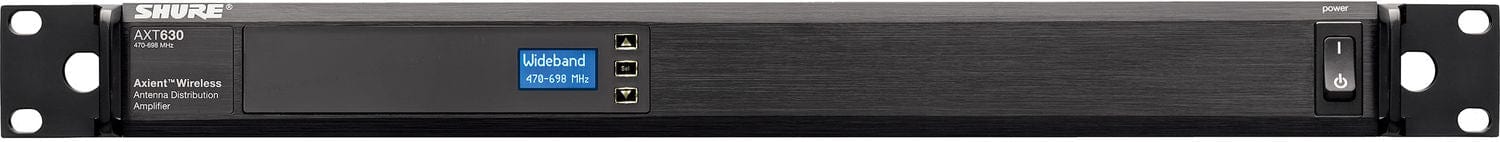

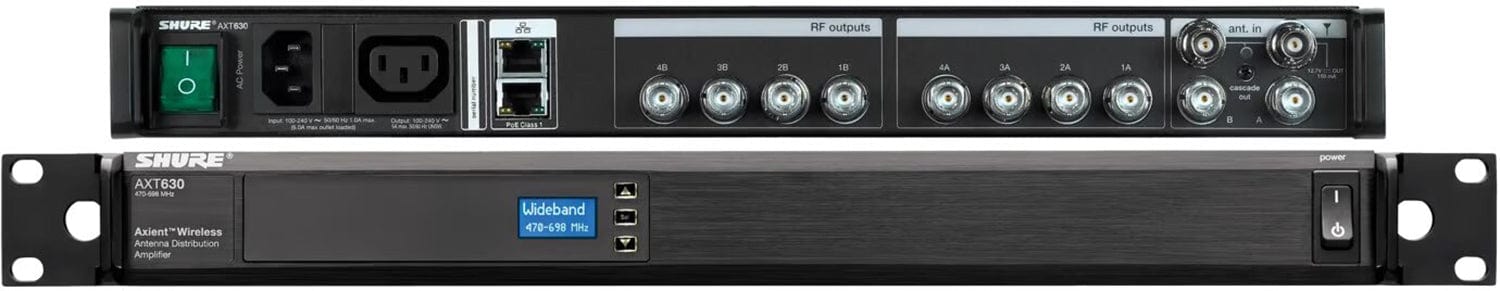

Shure Axient Antenna Distribution System - AXT630US: Your Signal Optimization Powerhouse
The AXT630US Axient Antenna Distribution System is a must-have for seamless signal management. • Protects from out-of-band signals with selectable filters, reducing RF noise. • Distributes filtered signal to receivers via four BNC output pairs. • Connects wideband devices like the Axient Spectrum Manager through an unfiltered RF cascade port. Network via Ethernet for WWB6 control of filtering, power, and attenuation.
Features:
- RF Optimization:
- Ultra-linear amp handles high signals without distortion.
- Selectable filters safeguard against out-of-band interference.
- Filter ranges match Axient transmitters.
- Wideband option covers multiple bands.
- Adjustable attenuation for optimal signal-to-noise.
- Connectivity:
- Front panel and WWB6 control for easy setup.

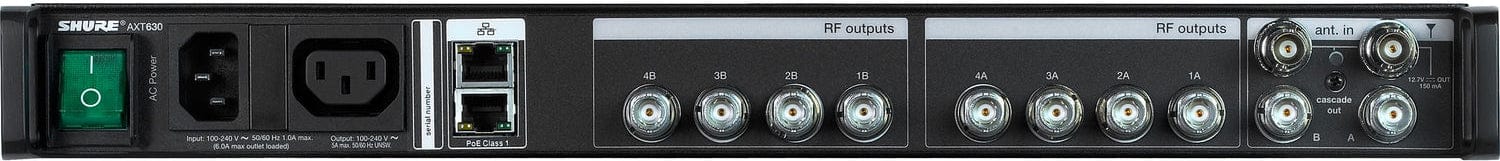

- Four BNC antenna output pairs.
- Unfiltered port with gain for wideband devices.
- Ethernet networking with PoE ports.
- IEC ports for daisy-chaining power.
Specifications:
- Dimensions (H x W x D): 44 mm x 483 mm x 366 mm (1.7 in. x 19.0 in. x 14.4 in.)
- Weight: 4.6 kg (10.1 lbs)
- Housing: Steel; Extruded aluminum
- Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
- Power Requirements: 100 to 240 V AC, 50-60 Hz
- Current Drain: 1.0 A RMS (referenced at 120 V AC)
- RF Input:
- Connector Type: BNC
- Configuration: Unbalanced, active
- Band Filters
- Wideband: 470–698 MHz
- Band G1: 470–530 MHz
- Band H4: 518–578 MHz
- Band J5: 578–638 MHz
- Band L3: 638–698 MHz
- Impedance: 50 Ω
- Bias Voltage: 12 V DC, 150 mA (300 mA maximum)
- RF Frequency Range: 470–698 MHz
- Distribution Output:
- Connector Type: BNC (4 pairs)
- Configuration: Unbalanced, active
- Impedance: 50 Ω
- Gain Adjustment Range:
- Cascade Enabled: -15 dB to 0 dB (In 1 dB steps)
- Cascade Disabled: -12 dB to +3 dB (In 1 dB steps)
- Output Intercept Point: >25 dBm, typical
- Cascade Output:
- Connector Type: BNC (1 pair)
- Configuration: Unbalanced, wideband
- Impedance: 50 Ω
- Insertion Loss:
The Shure Axient Antenna Distribution System - AXT630US is designed for professionals in the audio and event industries who need reliable signal distribution. With dimensions of 44 mm x 483 mm x 366 mm (1.7 in. x 19.0 in. x 14.4 in.) and a weight of 4.6 kg (10.1 lbs), it's easy to install and transport. It operates in temperatures from -18°C (0°F) to 63°C (145°F) and can be stored between -29°C (-20°F) and 74°C (165°F). Ideal for optimizing signal quality in venues like concert halls, conference centers, and theaters.
