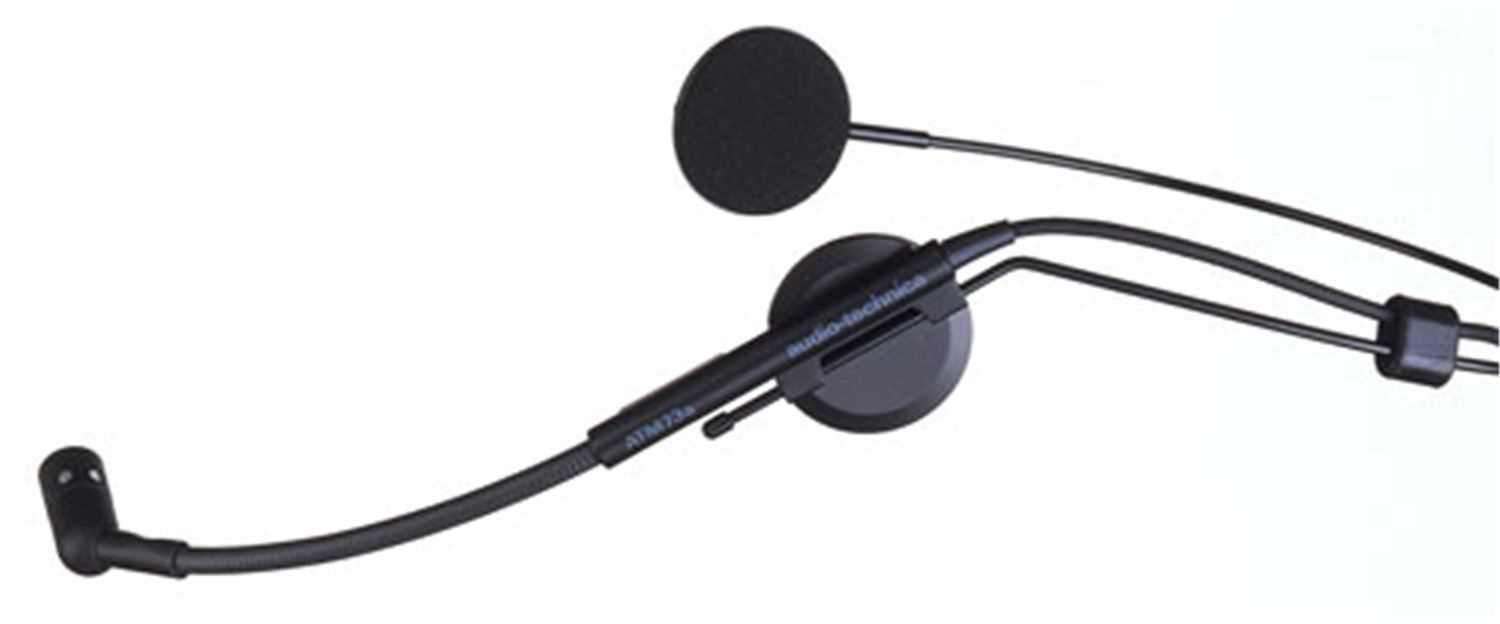

Cardioid Condenser Headworn Microphone Terminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters. 55' (1.4 m) cable. Includes windscreens
Features:
- Ideal for hands-free operation during performances, making it perfect for drummers, keyboard players, or anyone on the go
- Comfortable headband design that sits unobtrusively, with side-of-mouth pickup for clear sound
- Cardioid polar pattern for better isolation of the sound you want, blocking out unwanted noise
Specifications:
- ELEMENT: Fixed-charge back plate, permanently polarized condenser
- POLAR PATTERN: Cardioid
- FREQUENCY RESPONSE: 40-15,000 Hz
- LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
- OPEN CIRCUIT SENSITIVITY: PHANTOM -55 dB (1.7 mV) re 1V at 1 Pa -BATTERY: 56 dB (1.5 mV) re 1V at 1 Pa
- IMPEDANCE: PHANTOM 200 ohms -BATTERY: 270 ohms
- MAXIMUM INPUT SOUND LEVEL: PHANTOM 146 dB SPL, 1 kHz at 1% T.H.D.- BATTERY: 132 dB SPL, 1 kHz at 1% T.H.D.
- DYNAMIC RANGE (typical) -PHANTOM 111 dB, 1 kHz at Max SPL- BATTERY 97 dB, 1 kHz at Max SPL
- SIGNAL-TO-NOISE RATIO: 59 dB, 1 kHz at 1 Pa
- PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
- BATTERY TYPE: 1.5V AA/UM3
- BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
- SWITCH Off, on-flat, on-roll-off
- WEIGHT (MICROPHONE): 1.1 oz (31 g)
- WEIGHT (POWER MODULE): 4.9 oz (139 g)
- DIMENSIONS (MICROPHONE): 0.39' (10.0 mm) diameter
- DIMENSIONS (POWER MODULE): 3.31' (84.0 mm) H x 2.48' (63.0 mm) W x 0.87' (22.0 mm) D
- DIMENSIONS (HEADSET): 6.49' (165.0 mm) nominal at widest point, 2.64' (67.0 mm) flexible boom
- OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type
- CABLE: 4.6` (1.4 m) long (permanently attached to microphone), 0.10' (2.6 mm) diameter, 2-conductor shielded cable with TA3F-type connector
This Audio Technica ATM73CW headword mic is perfect for drummers, keyboard players, or anyone who needs hands-free operation. It has a comfortable headband design and a cardioid polar pattern for clear sound. The microphone weighs 1.1 oz (31 g) and the power module weighs 4.9 oz (139 g). The dimensions of the microphone are 0.39' (10.0 mm) in diameter, and the dimensions of the power module are 3.31' (84.0 mm) H x 2.48' (63.0 mm) W x 0.87' (22.0 mm) D. The headset is 6.49' (165.0 mm) nominal at the widest point and has a 2.64' (67.0 mm) flexible boom. The cable is 4.6` (1.4 m) long and is permanently attached to the microphone.
