Sennheiser XSW 1-CI1 Wireless Instrument Mic: Rock Your Sound
Unleash your musical potential! The Sennheiser XSW 1-CI1 Wireless Instrument Mic Set offers a seamless wireless experience for guitarists and bassists. With up to 10 compatible channels in a stable UHF band, enjoy solid wireless transmission.
Features:
- • Compact bodypack transmitter and robust instrument cable for easy setup
- • Automatic frequency management and synchronization via remote channel for hassle-free operation
- • Selectable UHF frequencies within a large bandwidth for interference-free performance
Specifications:
System (XSW 1-Cl1) - Modulation: wideband FM
- Frequency ranges: Multiple frequency bands available
- Switching bandwidth: up to 24 MHz
- Signal-to-noise ratio: 103 dBA
- THD: 0.9%
- Temperature range operation: 0°C to +40°C; storage: –20°C to +70°C

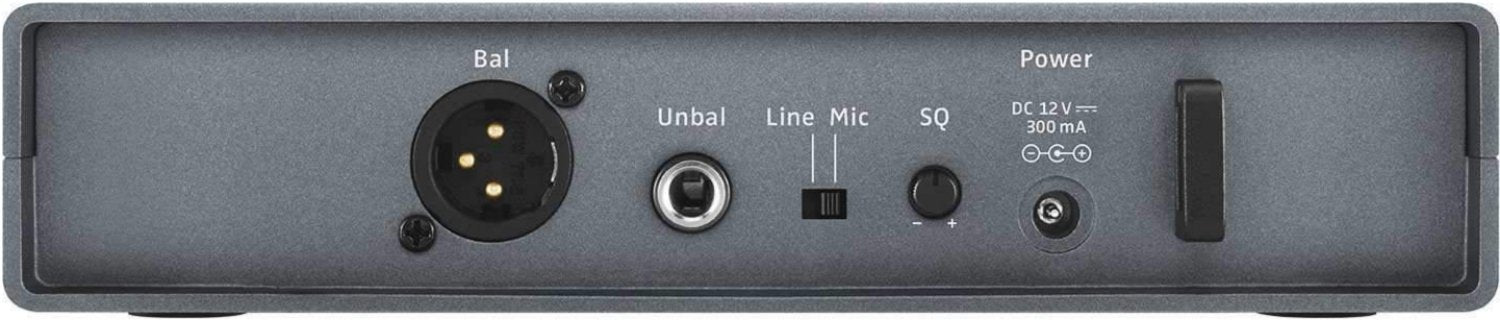

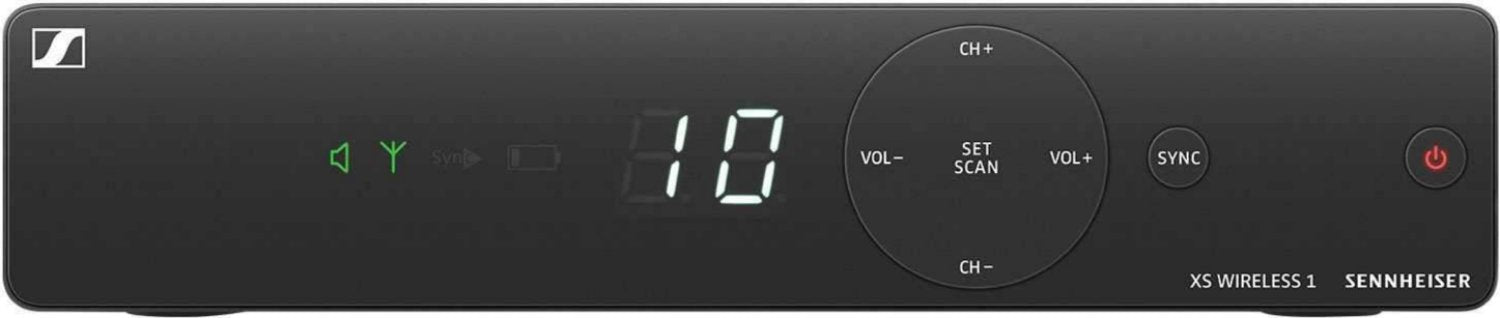

Receiver (EM-XSW 1) - Receiver principle: double superheterodyne
- Diversity principle: antenna switching diversity via internal antennas
- Sensitivity (at peak deviation): < 3 V at 52 dB(A)rms S/N
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4' (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Power supply: 12V DC nom. / 300 mA
- Squelch: adjustable from 3 dB V to 28 dB V (combined with pilot tone)
- Line/mic level: 20 dB, switchable
- Housing material: rugged ABS housing
- Dimensions: approximately 200 mm x 42 mm x 127 mm (WxHxD)
- Weight: approximately 340g
Bodypack transmitter (SK-XSW) - RF output power: 10 mW
- AF frequency: response line: 50-16,000 Hz; mic: 50-16,000 Hz
- Audio input: 3.5 mm jack socket
- Max. input voltage (mic/line) at 3% THD: typ. 1.V rms Mic / typ. 2.6V rms line at -30 dB gain
- Power supply: 2 AA batteries, 1.5V
- Operating time: approximately 10 hours
- Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Housing material: rugged ABS housing
- Dimensions: approximately 71 mm x 96 mm x 28 mm (WxHxD)
- Weight: approximately 95g

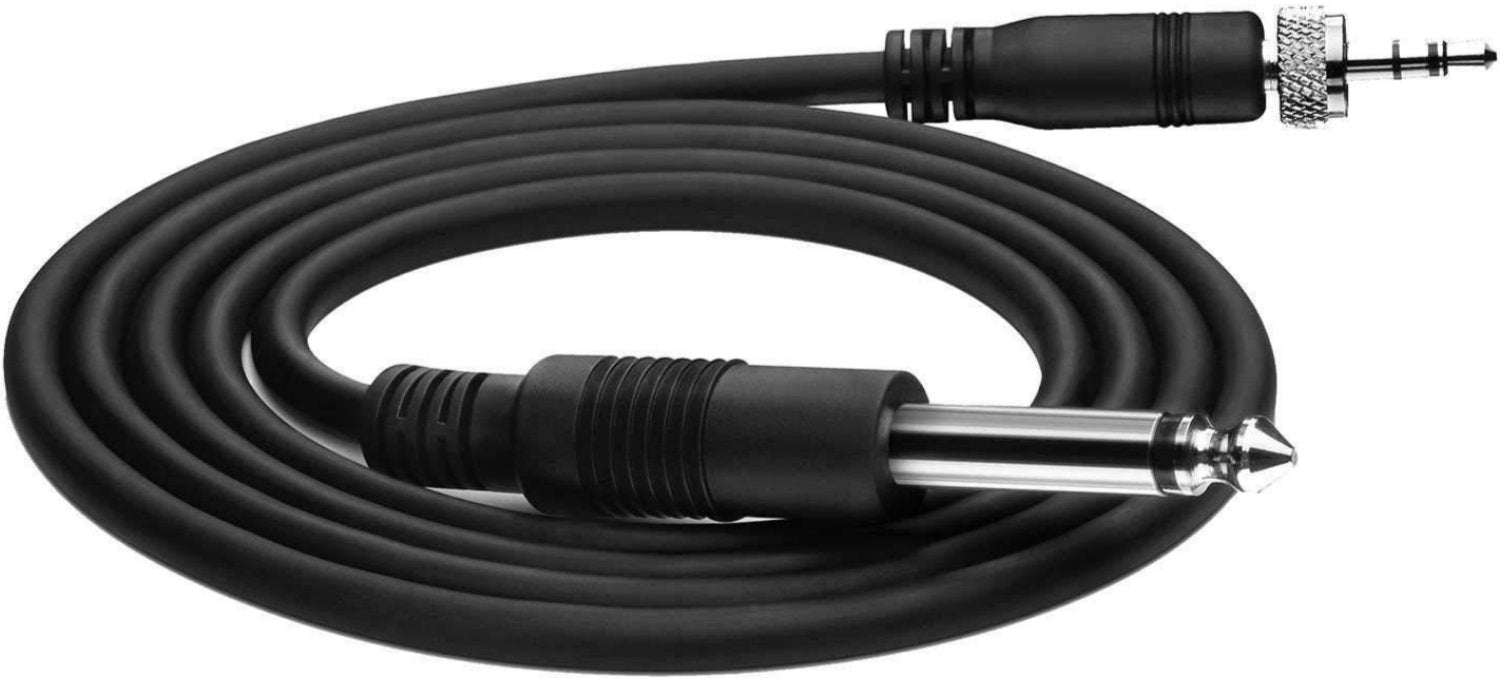

This Sennheiser XSW 1-CI1 Wireless Instrument Mic Set is perfect for guitarists and bassists looking to enhance their live sound. It features a compact bodypack transmitter and a robust instrument cable for easy setup. The receiver has an intuitive design for quick set-up and hassle-free handling. With selectable UHF frequencies within a large bandwidth, you can enjoy interference-free performance. The set includes an EM-XSW 1 receiver, SK-XSW bodypack transmitter, Cl1 instrument cable, NT 12-5 CW power supply, and 2 AA batteries. The receiver has dimensions of approximately 200 mm x 42 mm x 127 mm (WxHxD) and weighs around 340g. The bodypack transmitter measures approximately 71 mm x 96 mm x 28 mm (WxHxD) and weighs about 95g.
