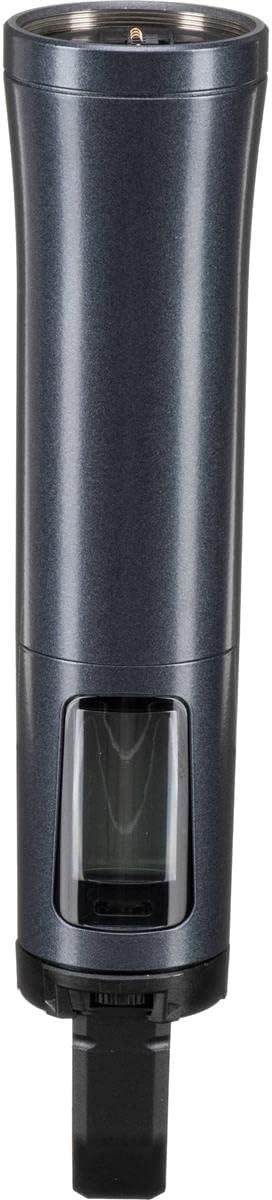

Sennheiser SKM 100 G4 Evolution Wireless Handheld Transmitter A1

Sennheiser SKM 100 G4 Handheld Transmitter - A1

Powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems. Experience seamless performance with these amazing features:

• • Effortless infrared wireless synchronization between transmitter and receiver
• • Fast frequency allocation for up to 12 receivers
• • Up to 20 compatible channels

What's in the box

• SKM 100 G4 handheld transmitter

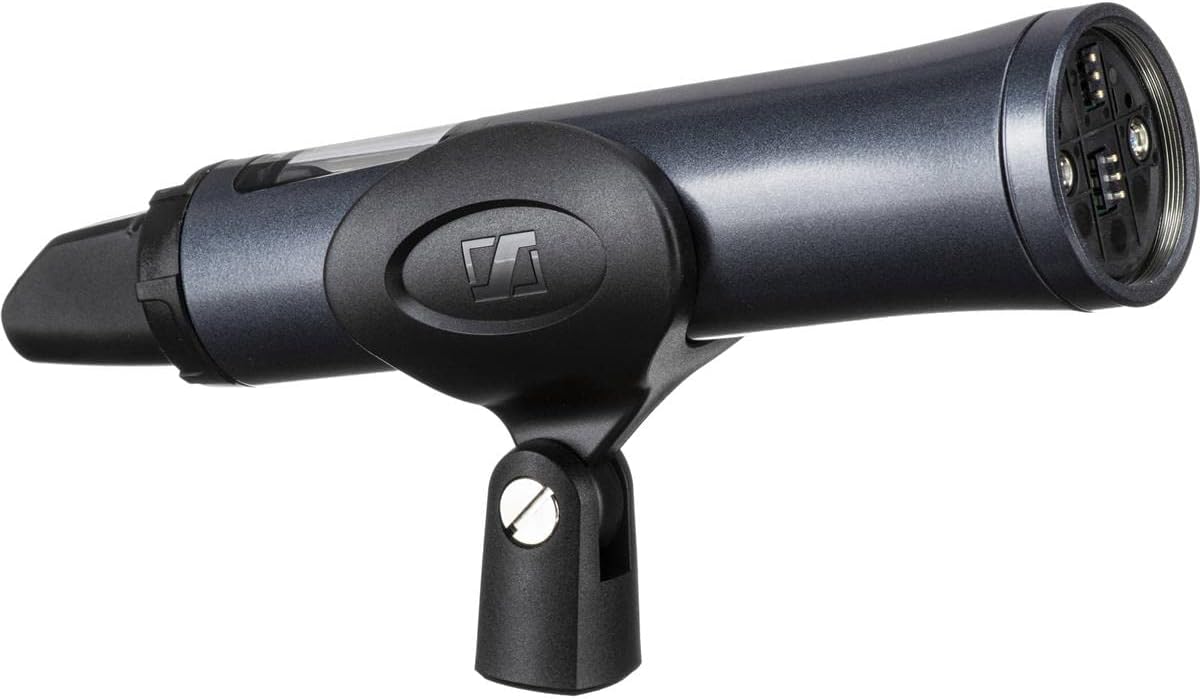

• MZQ 1 microphone clamp
• 2 AA batteries
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Frequency range: A1: 470 - 516 MHz
• Dimensions: Approx. 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: (incl. batteries) approx. 450 g
• Signal-to-noise ratio: 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 A
• Input impedance: 40 k
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

This Sennheiser SKM 100 G4 Evolution Wireless Handheld Transmitter is perfect for performers, presenters, and event organizers. With its lightweight aluminum housing (approx. 50 x 265 mm, weighs approx. 450 g incl. batteries), it's easy to carry and use. It offers features like effortless infrared wireless synchronization, fast frequency allocation for up to 12 receivers, and up to 20 compatible channels. Ideal for live events, stage performances, and presentations, it ensures reliable and high-quality wireless communication within a transmission range of up to 100 meters / 300 feet.
