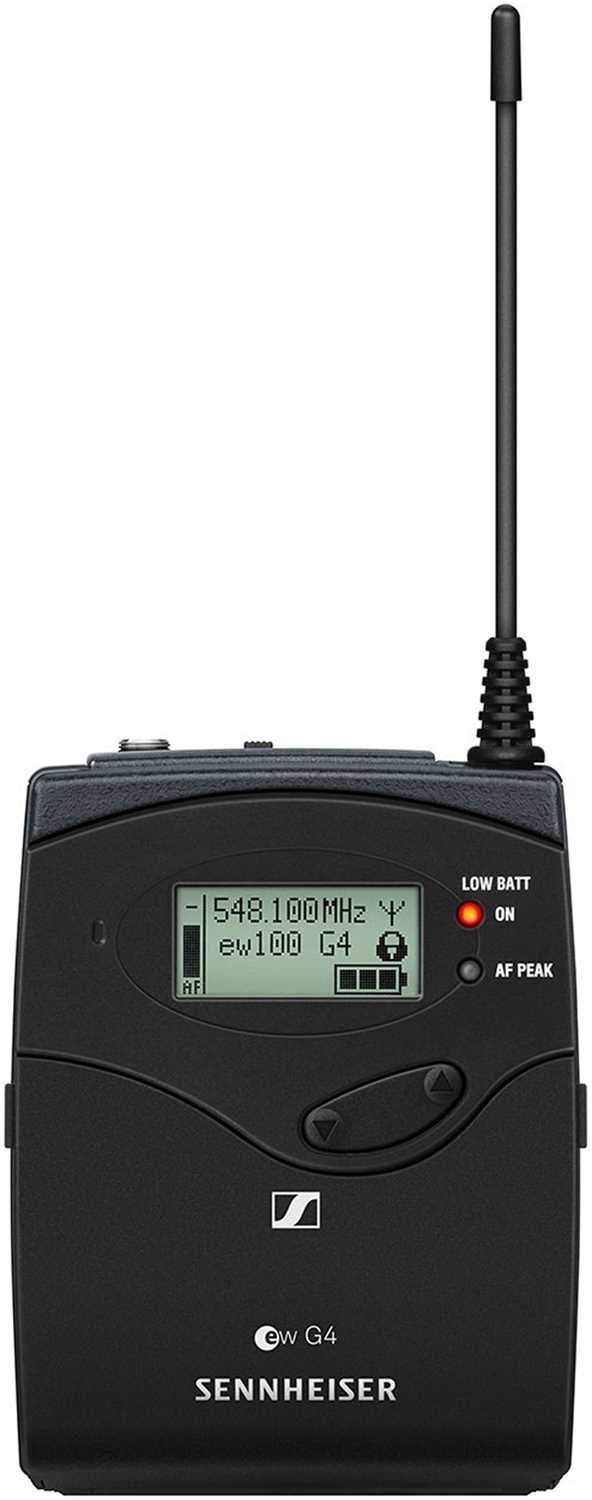

Sennheiser SK 100 G4 ew Bodypack Transmitter - Your Stage Essential
Get ready to rock the stage with this robust bodypack transmitter!
Designed for daily stage use, it's part of the amazing evolution wireless G4 100 G4 systems.
What's in the box
- SK 100 G4 bodypack transmitter
- 2 AA batteries
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Rock-solid bodypack for stage use daily
- • Effortless infrared wireless sync between transmitter & receiver
- • Fast frequency allocation for 12 receivers via new link
- • Up to 20 compatible channels
- • Up to 42 MHz bandwidth with 1680 selectable frequencies in stable UHF
- • Transmission Range: up to 100 meters / 300 feet
- • High RF output power (up to 30 mW) depending on country regs
Specifications:
- Frequency range: G: 566 - 608 MHz
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Signal-to-noise ratio: 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 A
- Input impedance: 40 k, unbalanced / 1 M
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response: Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
This Sennheiser SK 100 G4 Evolution Wireless Bodypack Transmitter is a must-have for performers. It's robust and designed for daily stage use. With dimensions of approximately 82 x 64 x 24 mm and weighing around 160 grams (including batteries), it's easy to carry. The transmitter offers features like easy infrared wireless synchronization between the transmitter and receiver, fast frequency allocation for up to 12 receivers via new linking functionality, and up to 20 compatible channels. It also has a transmission range of up to 100 meters (300 feet) and high RF output power (up to 30 mW depending on country regulations). Ideal for musicians, singers, and anyone on stage who needs reliable wireless transmission.
