D&B Audiotechnik Z0785.000 KSL-SUB: The Ultimate Cardioid Subwoofer
The KSL-SUB is a cardioid subwoofer that's perfect for enhancing your KSL System. It's a must-have for audiophiles and professionals alike. Here's why:
- • Exceptional bass performance: With a frequency response of 36 Hz to 105 Hz (33 Hz to 75 Hz in INFRA mode), it delivers powerful, accurate low frequencies.
- • Cardioid design: Reduces unwanted energy behind the system, providing a more focused sound and less room reverberation.
- • Versatile setup: Can be flown (KSL-SUB) or ground stacked (KSL-GSUB), and can be used with KSL8 and KSL12 cabinets.

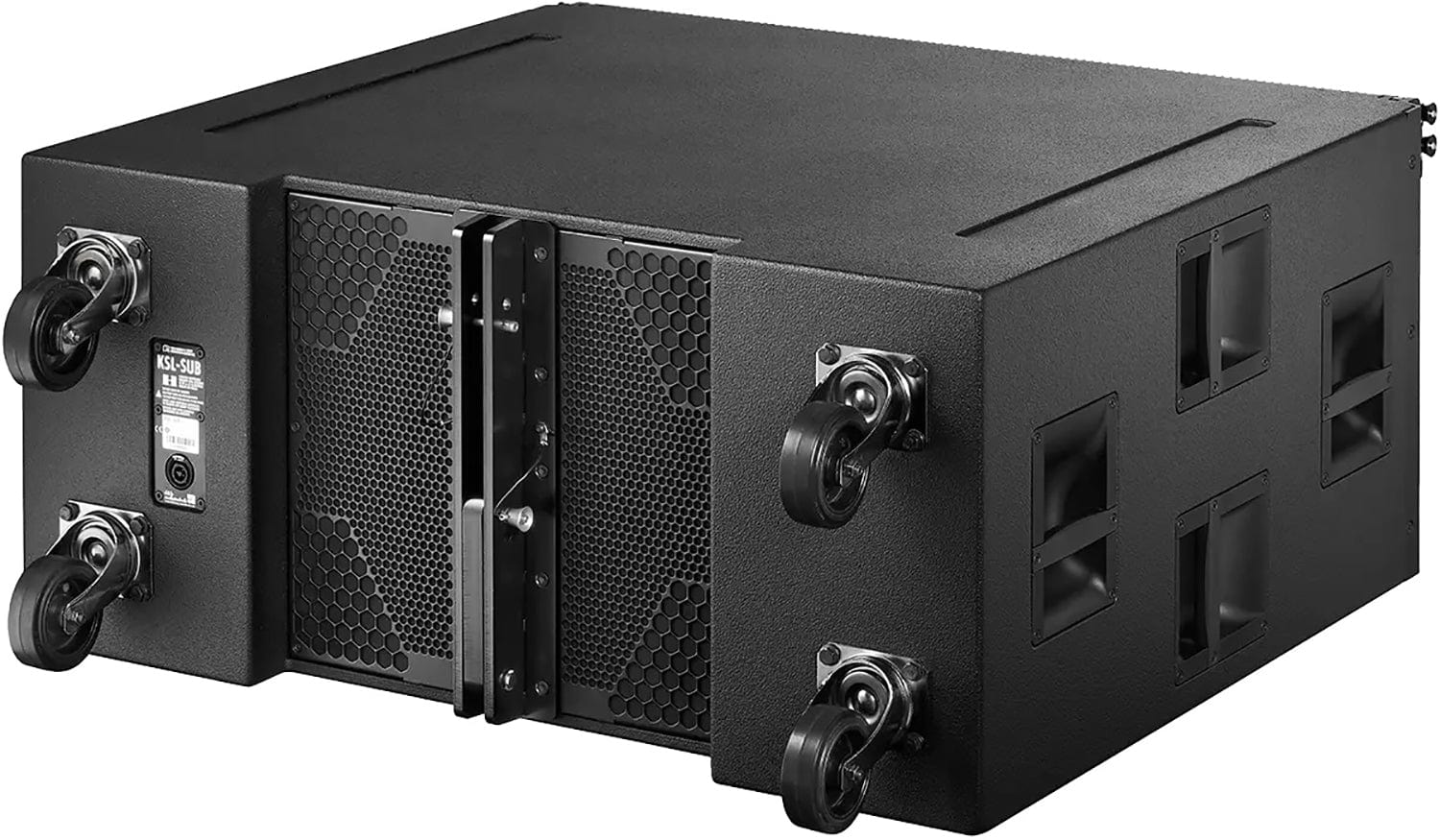

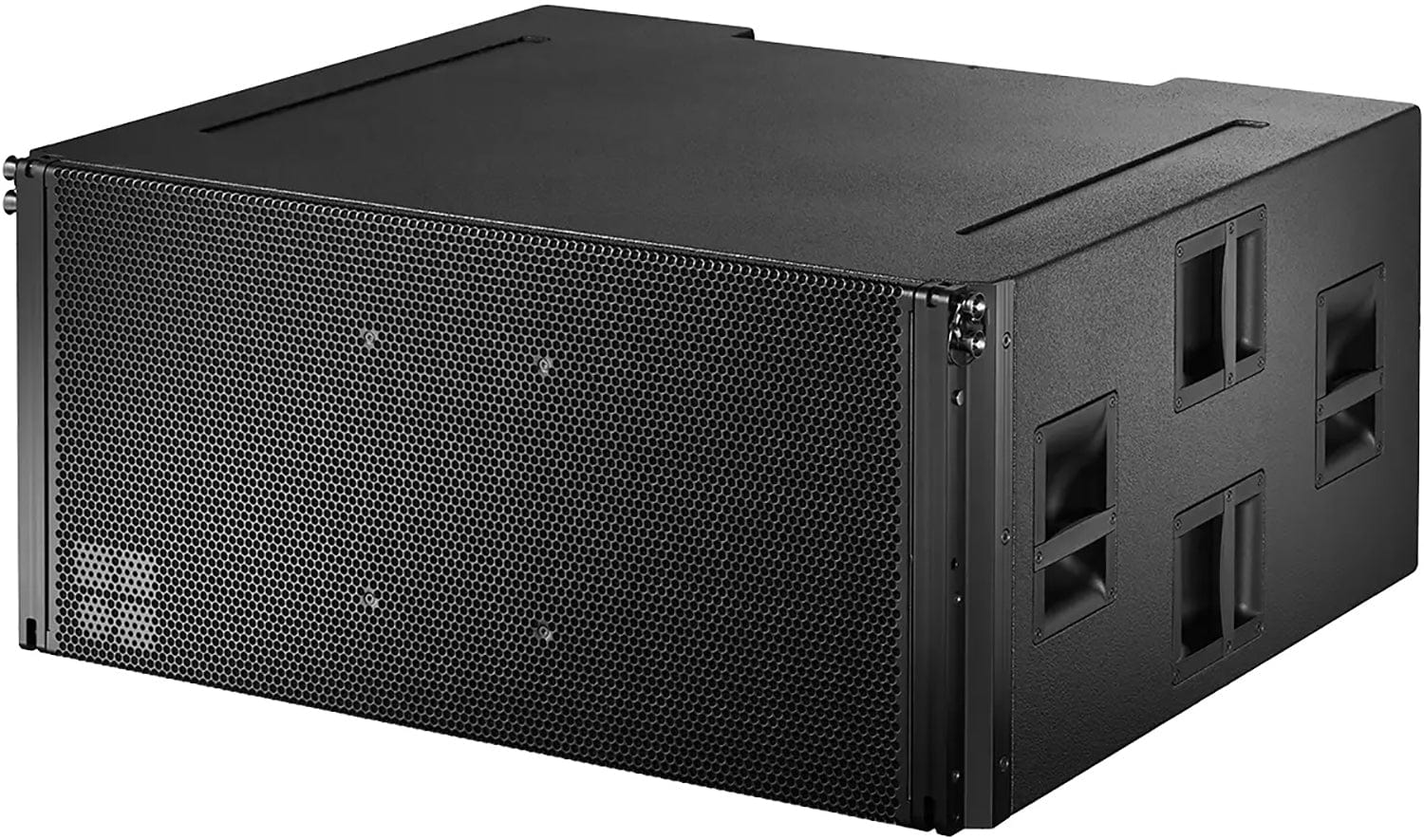

The KSL-SUB cabinet is an actively driven, 2-way bass-reflex design with three long excursion neodymium 15-inch drivers. Two drivers face forward, while one radiates to the rear. The front and rear drivers operate in independent bass reflex chambers and are driven from separate amplifier channels. It also features front and rear rigging strands for easy installation. The cabinets are made of marine plywood and have an impact and weather-protected PCP finish, with rigid metal grills on the front and rear.
Features:
- INFRA mode frequency range from 33 Hz to 75 Hz
- Cardioid output pattern rejects the transmission of energy towards the rear
- Up to sixteen KSL-SUB cabinets can be flown in a vertical column
- Exceptional efficiency and system headroom
- Efficient cabling system and amplifier rack assemblies
Specifications:
- System data:
- Frequency response (-5 dB standard): 36 Hz - 105 Hz
- Frequency response (–5 dB INFRA mode): 33 Hz - 75 Hz
- Max. sound pressure1 with D40/D80/40D: 139 dB
- Cabinets per D40/D80/40D: 2
- Loudspeaker data:
- Nominal impedance front/rear: 4/8 ohms
- Power handling capacity front (RMS/peak 10 ms): 900/3500 W
- Power handling capacity rear (RMS/peak 10 ms): 500/2000 W
- Components: 3 x 15' driver
- Connections: 1 x NLT4 F
- Dimensions / weight:
- Dimensions (H x W x D): 450 x 1000 x 9002 / 1020 mm (17.7 x 39.4 x 35.42 / 40.2')
- Weight: 82 kg (181 lb)
The D&B Audiotechnik Z0785.000 KSL-SUB is a cardioid subwoofer designed for the KSL System. It can be used to enhance the bass in various settings, whether it's for a live event, a club, or a studio. This subwoofer is suitable for audiophiles and professionals who demand high-quality sound. With dimensions of 450 x 1000 x 9002 / 1020 mm (17.7 x 39.4 x 35.42 / 40.2') and a weight of 82 kg (181 lb), it's relatively easy to handle and install. The frequency response ranges from 36 Hz to 105 Hz (33 Hz to 75 Hz in INFRA mode), providing a wide range of low frequencies for a rich audio experience.
