Sennheiser EW-DX SK / SKM-S BASE SET (R1-9) Digital Wireless Base Set

Sennheiser EW-DX Digital Wireless Base Set: Your Ultimate Audio Solution

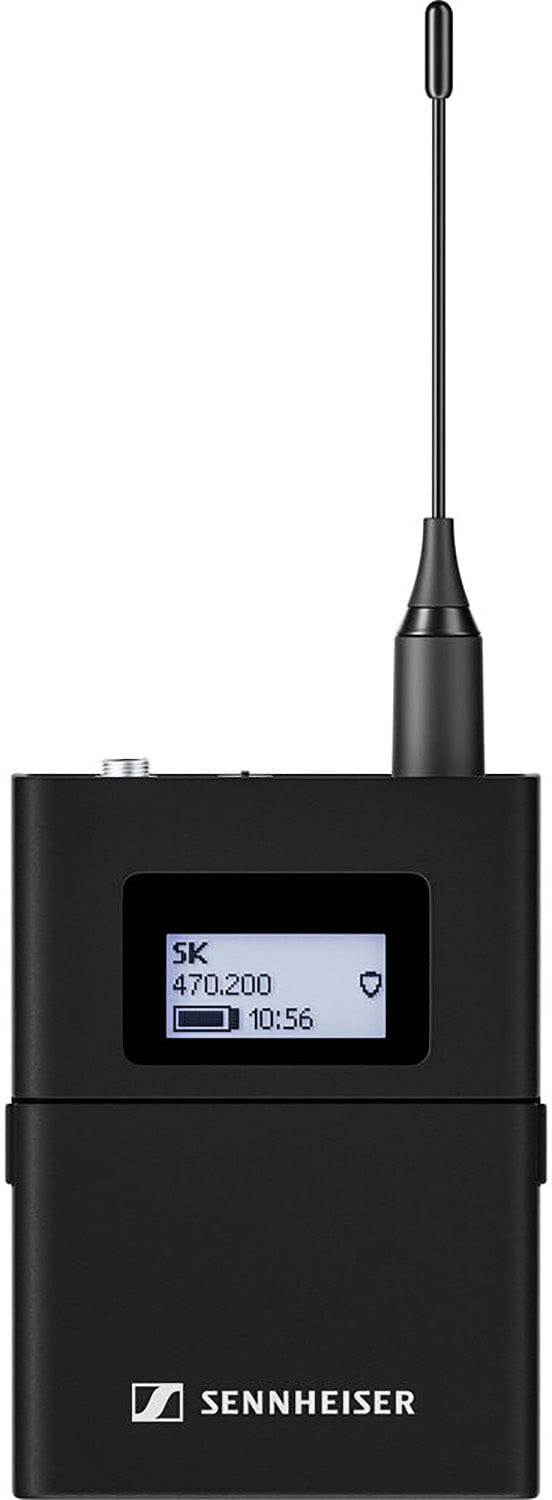

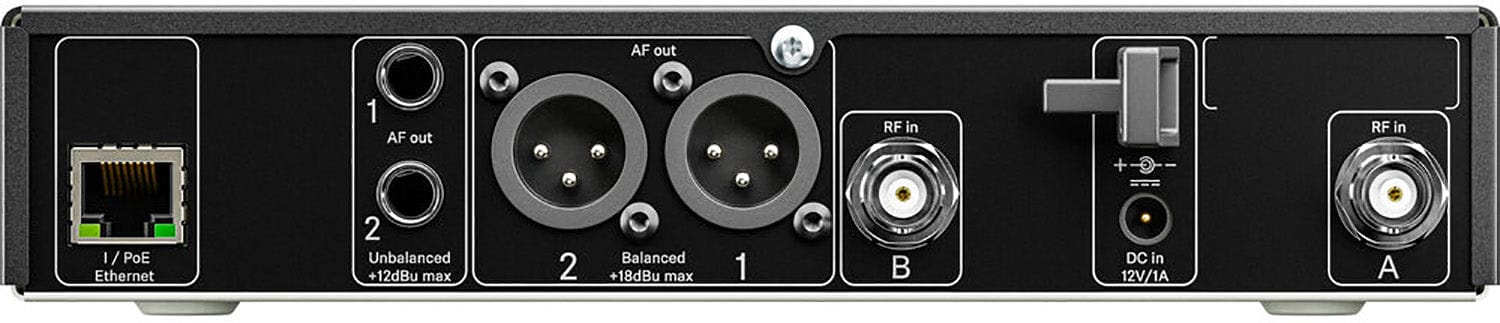

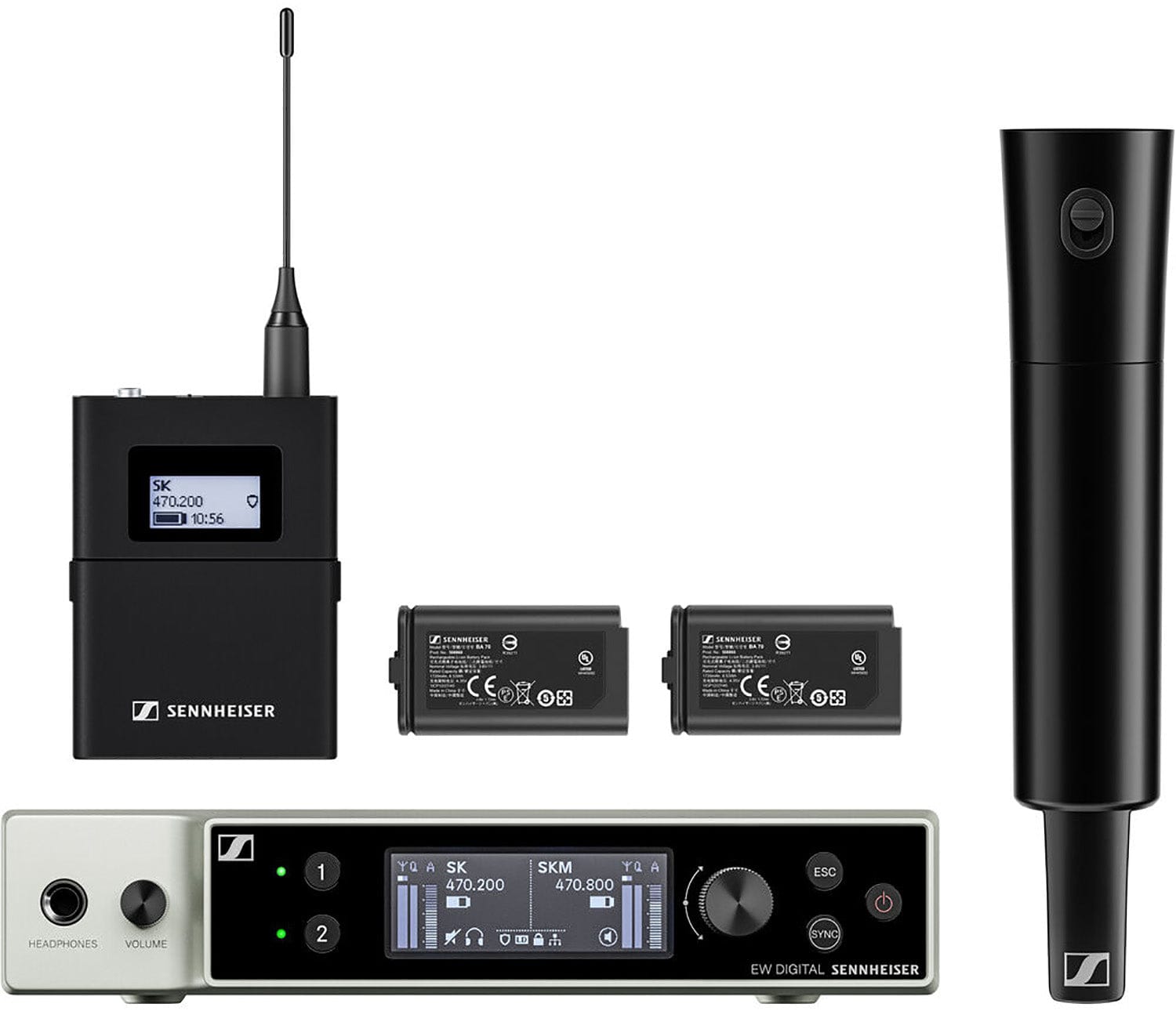

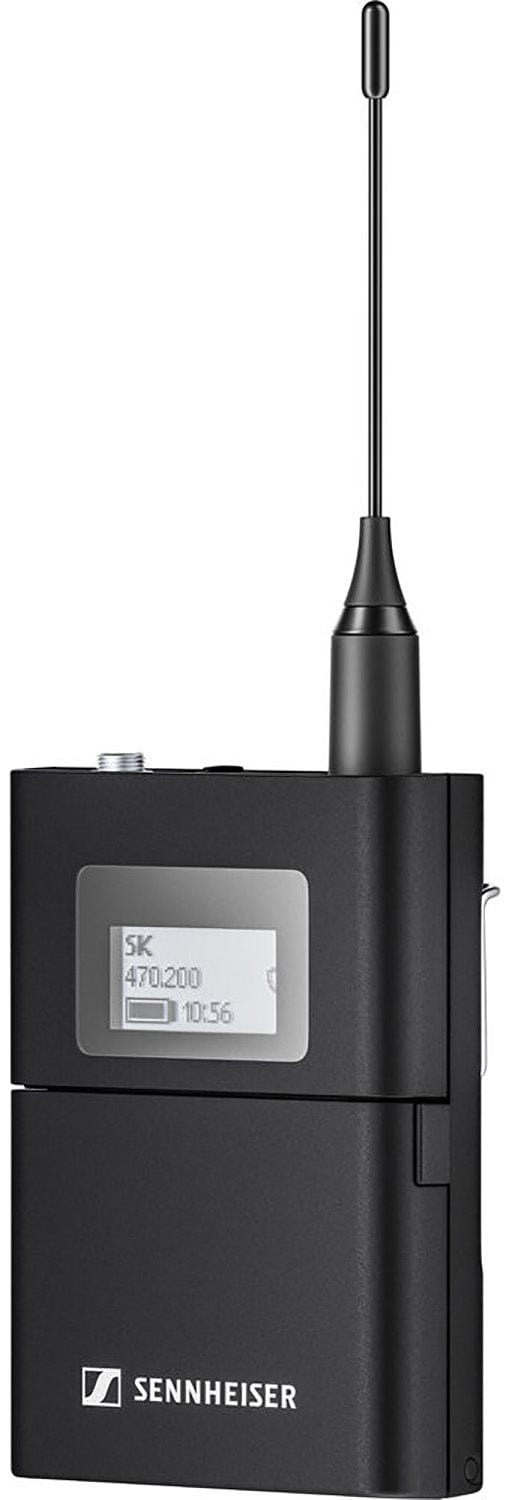

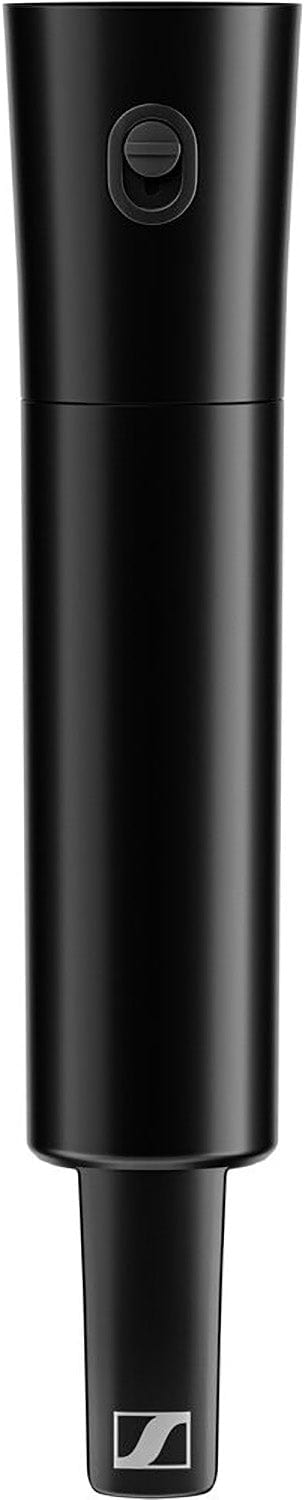

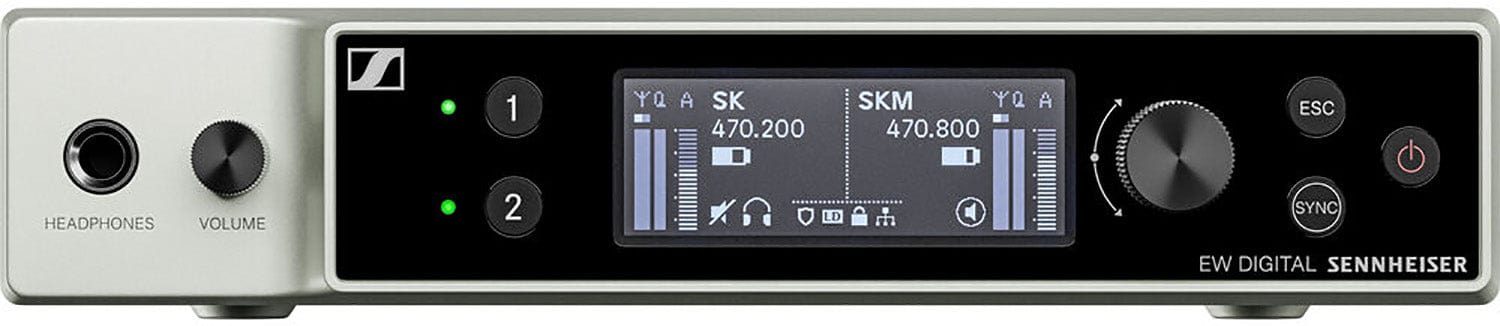

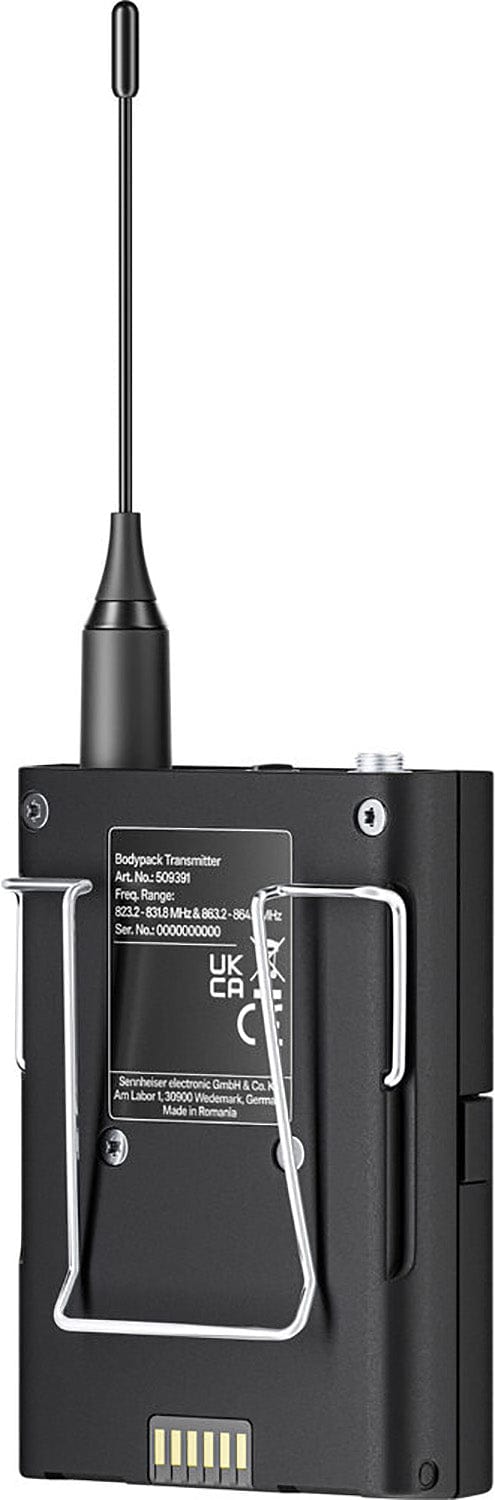

Get ready to revolutionize your audio experience with the Sennheiser EW-DX Digital Wireless Base Set. This set includes 1 x EW-DX SKM-S (handheld with mute switch), 1 x EW-DX SK (wireless bodypack transmitter), 1 x EW-DX EM 2 rackmount receiver (2 channels), and 2 x BA 70 rechargeable batteries. Microphone capsules are sold separately.

• Simplifies professional workflow with advanced digital UHF system
• Features like AutoScan and equidistant channel spacing make frequency deployment a breeze
• Network-enabled for remote control via Sennheiser Control Cockpit and other systems

The Sennheiser EW-DX Digital Wireless Base Set is perfect for classrooms, corporate campuses, and live productions. It's designed to integrate seamlessly and adapt to your environment. With features like in-device charging, 12-hour battery operation, and up to 88 MHz switching bandwidth, it's the ultimate tool for the job. Choose the capsule that best meets your needs and enjoy a world of audio possibilities.

Features:

• 134 dB input dynamic range - thanks to proprietary Sennheiser Performance Audio Codec (SePAC), no need to set gain on wireless transmitters
• AutoScan-feature quickly scans environment and deploys frequencies with equidistant channel spacing - no RF knowledge needed
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
• Remote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
• Secure transmission of confidential content using AES 256 encryption

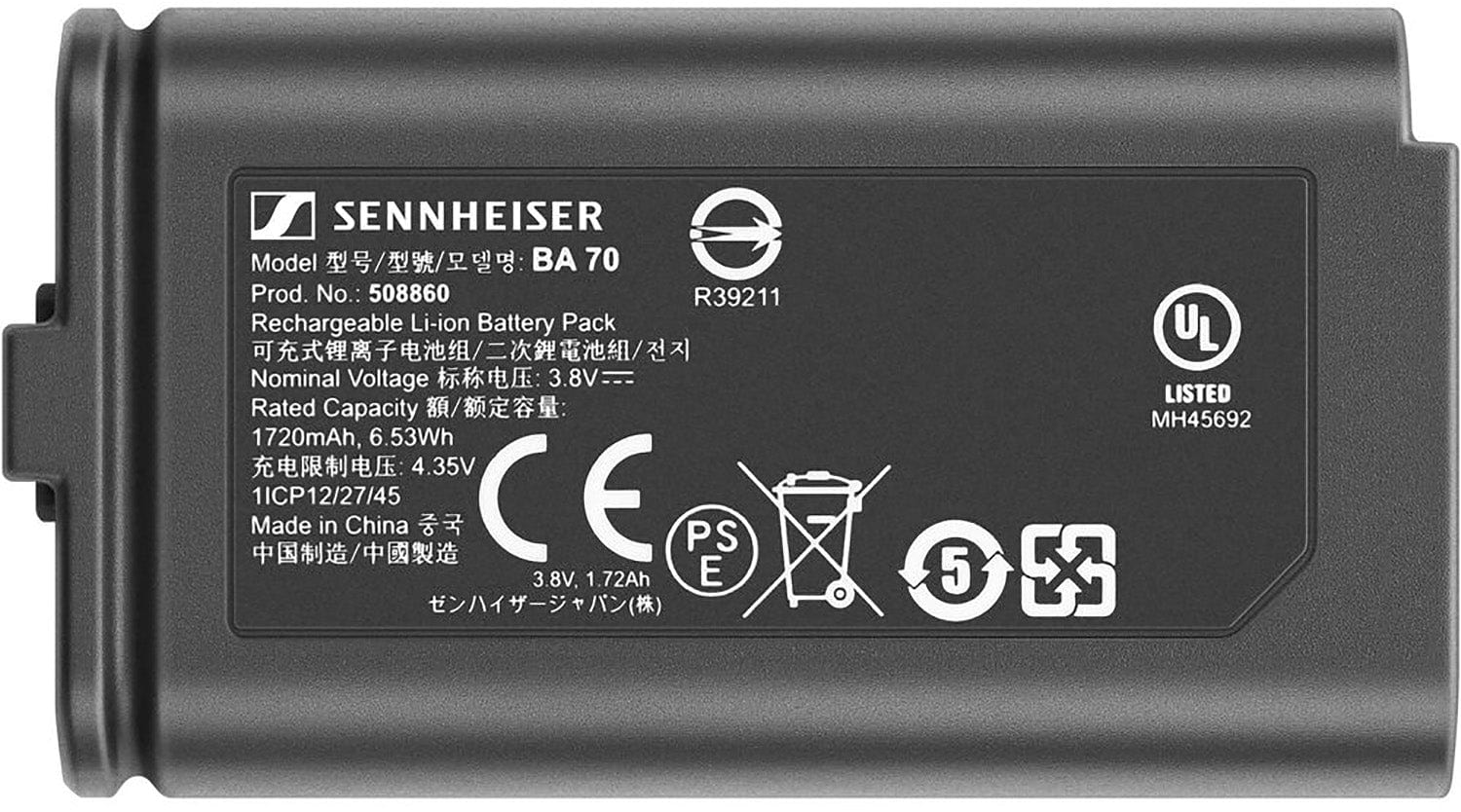

• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
• Function buttons - control all transmitter settings directly from handheld and bodypack, including button lock function
• Persistent E-Ink display for 'always on' information - parameters visible on screen even when taking out batteries
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Up to 88 MHz switching bandwidth
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Digital audio trim

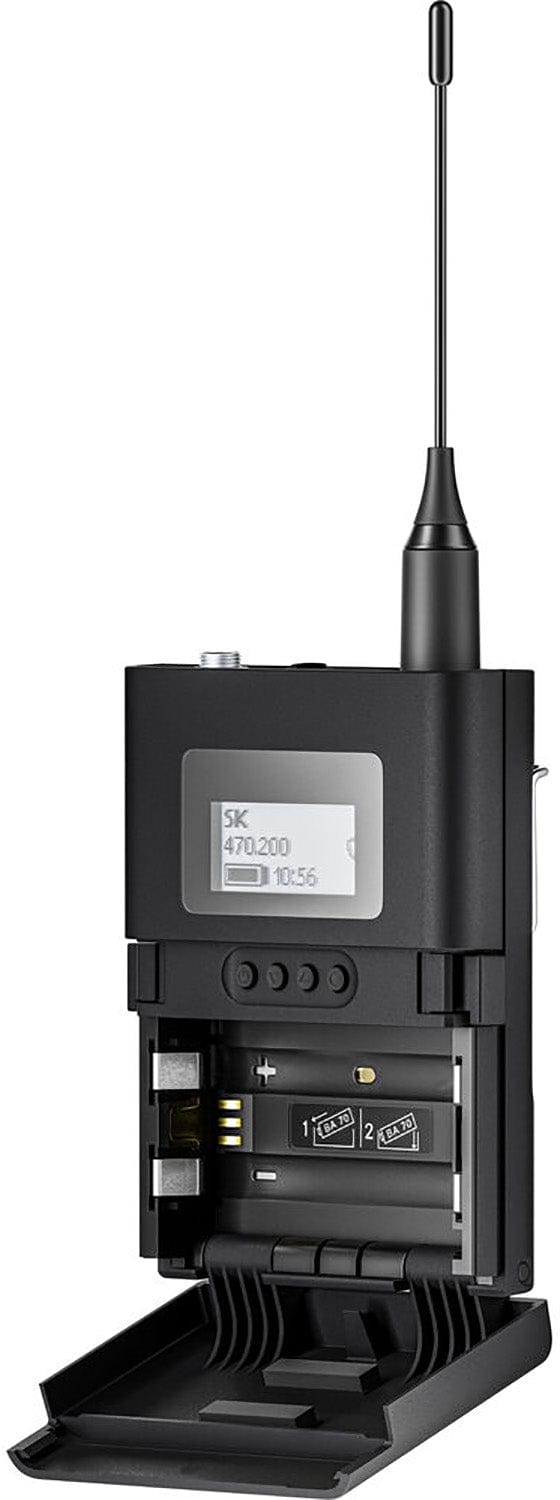

• Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection (sold separately)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Worldwide usage (specific frequencies subject to local RF regulations)

Specifications:

• Product:
  • Total Harmonic Distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Frequency Specifications:
  • Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Acoustic Properties:
  • Dynamic Range: 134 dB
• Ambient Conditions:
  • Operating Relative Humidity: 5 - 95 % (non-condensing)
  • Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Electrical Properties:
  • Input Voltage: 2.0 - 4.35 V
• Dimensions:
  • Dimensions: 212 x 44 x 189 mm
  • Height (mm): 73
  • Length (mm): 405
  • Master Carton Height (mm): 258
  • Master Carton Length (mm): 420
  • Master Carton Weight (g): 661.558
  • Master Carton Width (mm): 435
  • Weight (g): approx. 1000 g (2.2 lbs) (without antennas and power supply)
  • Width (mm): 350
  • Package Depth: 350
  • Package Height: 73
  • Package Weight: 3140
  • Package Width: 405

The Sennheiser EW-DX Digital Wireless Base Set is a must-have for professionals in classrooms, corporate campuses, and live productions. It includes a handheld and bodypack transmitter, a 2-channel receiver, and rechargeable batteries. The set simplifies your workflow with advanced digital technology. It features AutoScan for easy frequency deployment and network connectivity for remote control. With a 134 dB dynamic range and up to 12 hours of battery life, it's perfect for all-day use. The set is compact, weighing approximately 1000 g (2.2 lbs) without antennas and power supply, and has dimensions of 212 x 44 x 189 mm. It operates in a temperature range of -10 °C - +55 °C (14 °F - 131 °F) and relative humidity of 5 - 95 % (non-condensing).
