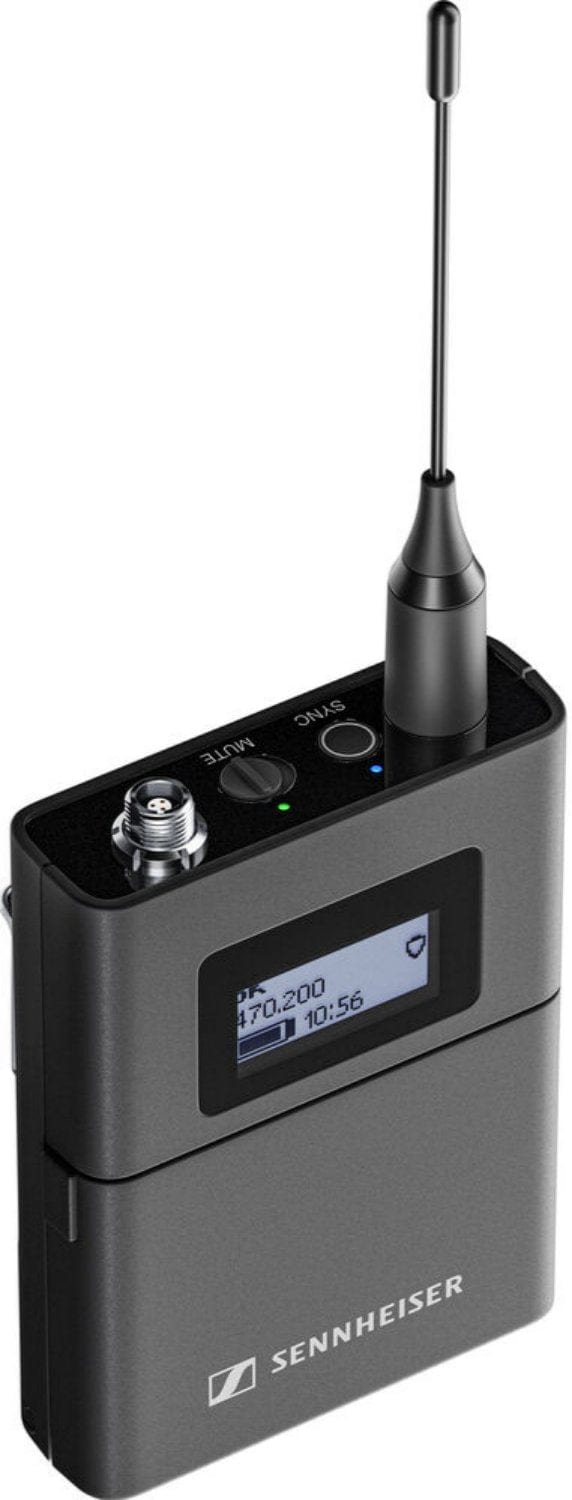

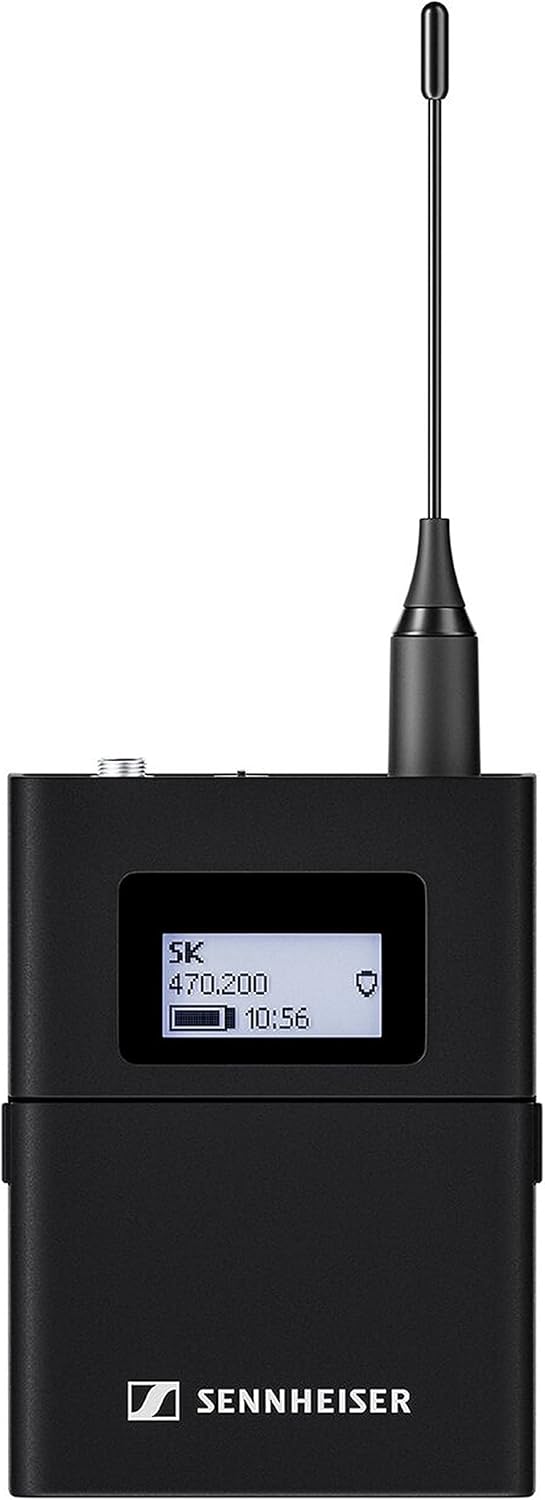

Sennheiser EW-DX SK 3-Pin Bodypack Transmitter - Your Wireless Audio Powerhouse
• Unleash crystal-clear sound with a digital wireless bodypack transmitter featuring a 3-pin locking connector, compatible with Evolution Wireless Digital systems.
• Experience durability with a rugged metal housing, ensuring reliable performance in any situation.
• Enjoy up to 12 hours of runtime and convenient in-device charging with charging contacts. This transmitter works seamlessly with a wide range of Sennheiser lavalier and headset microphones.
Sennheiser EW-DX simplifies professional workflows. Its advanced features like AutoScan for frequency deployment and remote monitoring via apps make it perfect for classrooms, corporate campuses, and live performances. With technologies like SePAC, it offers a 134 dB input dynamic range, 10 mW fixed RF power for up to 100 m/328 ft range, and much more.
Features:
- 134 dB input dynamic range - thanks to Sennheiser's SePAC codec, no gain setting needed
- 10 mW fixed RF power for up to 100 m/328 ft of range
- Charging contacts for in-device charging with CHG 70N charger (sold separately)
- Persistent E-Ink display for 'always on' information
- Up to 12 hours of operation time with rechargeable lithium-ion battery BA 70 (sold separately)
- Function buttons for direct control of all transmitter settings
- Programmable mute switch - RF mute, AF mute, or disabled
- Digital audio trim
- Test tone generator
- Switchable LED configuration (On/Off)
- Switchable low cut (Off, 30, 60, 80, 100, 120 Hz)
- Instrument input with cable emulation
- Versatile charging options: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (2023 availability)
- Compatible with Sennheiser 3-pin locking connector lavalier and headset microphones
- Metal housing for durability
- Worldwide usage (frequency subject to local RF regulations)
- Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Be aware of feature restrictions linked to respective series.
Specifications:
- System:
- Audio Link Frequency Range: 470.2 - 550 MHz
- Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB)
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative Humidity: 5 - 95 % (non-condensing)
- EW-DX SK (Bodypack Transmitter):
- Input Voltage: 2.0 - 4.35 V
- Input Current: < 300 mA

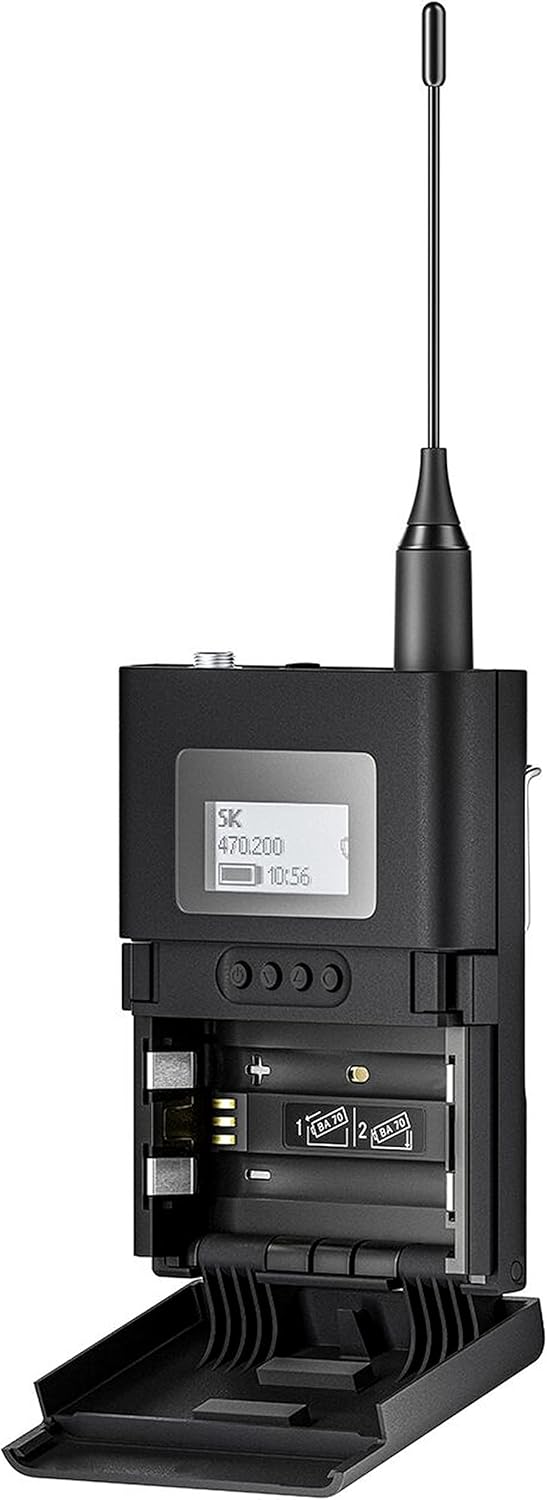

- Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHz
- Transmit Power (Radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP), LD mode: 10 mW ERP, BLE: max. 10 mW EIRP
- Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5' x 3.35' x 0.79')
- Weight (without batteries): Approx. 115-120 g (0.26-0.27 lbs)
This Sennheiser EW-DX SK 3-Pin Bodypack Transmitter is perfect for professionals in classrooms, corporate campuses, and live performance productions. It has a rugged metal housing for durability. The dimensions without antenna are 63.5 x 85 x 20 mm (2.5' x 3.35' x 0.79') and weighs approx. 115 - 120 g (0.26 - 0.27 lbs) without batteries. It offers a digital wireless solution with a 3-pin locking connector, great for use with Sennheiser lavalier and headset microphones.
