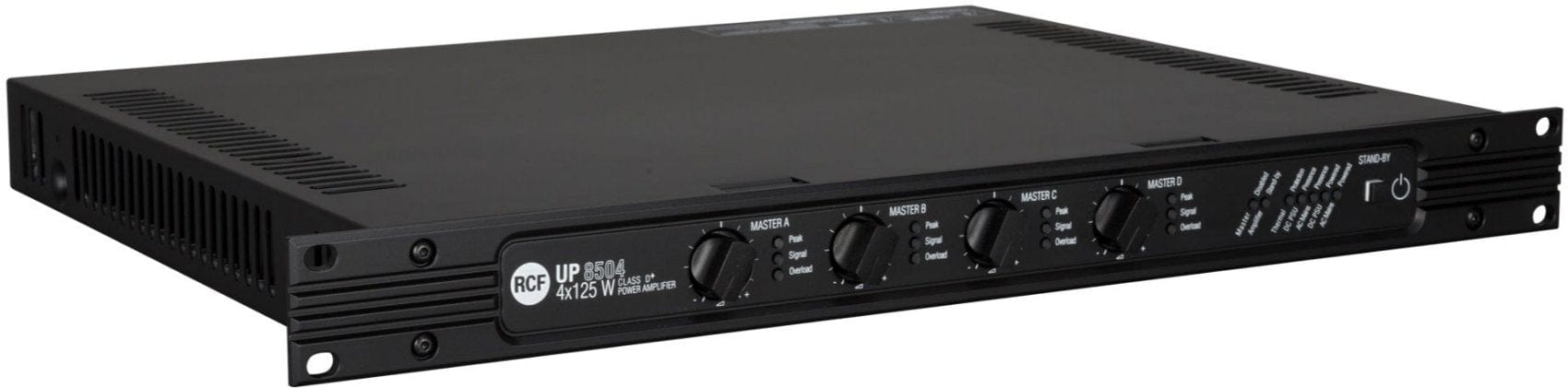

RCF UP-8504 Power Amplifier - 4x 125 Watt - Class D (70V/ 4 Ohm/ 2 Inputs Per Channel)

RCF UP-8504 High-Powered Digital Amplifier - Your Sound Solution for Every Venue

The RCF UP-8504 is a game-changer in sound amplification! With 4 x 125W of power, it delivers crystal-clear audio for any space. Here's why it's a must-have:

• • Digital technology for top-notch sound quality
• • Dual power options - AC and DC for ultimate flexibility
• • Ideal for restaurants, shops, hotels, and more

Features:

• 4 x 125 W power amplifier
• 2 inputs per channel
• Dual AC and DC power supply
• Priority circuit
• No output lines tranformers
• Status LEDs on front panel

Specifications:

• Amplifier:
  • Amplifier Class: D
  • Number of channels: 4
  • Power output (@ 100V): 500W RMS
  • Frequency Response (-3dB): 40Hz - 16kHz
  • Signal/noise rate (”A” weighted) >86dB
  • Crosstalk
  • Distortion (THD+N) @ 1kHz nominal power:
• Input section:
  • Total number of inputs: 8
  • Balanced: 8
  • Mono: 4
  • Stereo: 4
  • Line inputs: 8
  • Line connectors: Euroblock
  • General Purpose Inputs (GPI): 6
• Output section:
  • Power output connectors: Euroblock
  • General Purpose Outputs (GPO): 1
  • Controls Configuration: DIP switch, Front panel
  • Priority: Yes
• Protections:
  • Cooling: Forced
  • Short circuit: Yes
  • Thermal: Yes
  • DC: Yes
  • Fuses: Yes
• Power requirement:
  • Operating voltage: 220-240/115V~ 50/60Hz
  • Voltage selection: Internal
  • DC power: Yes
  • DC power value: 48V
  • Power consumption: 800W
  • Standard compliance EN54-16 certified: Yes
  • CE marking: Yes
  • CPR number: 1438-CPR-0241
• Physical specifications:
  • Cabinet/Case Material: Metal
  • Color: Black
  • Rack mounting: 19', 1U
  • Size:
    • Height: 44mm / 1.73 inches
    • Width: 482mm / 18.98 inches
    • Depth: 375mm / 14.76 inches
    • Weight: 5.4kg / 11.9lbs
• Shipping information:

  • Package Height: 170mm / 6.69 inches
  • Package Width: 575mm / 22.64 inches
  • Package Depth: 480mm / 18.9 inches
  • Package Weight: 7.4kg / 16.31lbs

The RCF UP-8504 is perfect for various venues like restaurants, shops, supermarkets, hotels, offices, department stores, and industrial systems. It's designed for those seeking a reliable and high-quality sound solution. Measuring 482mm wide, 375mm deep, and 44mm high (18.98 inches x 14.76 inches x 1.73 inches) and weighing 5.4kg (11.9lbs), it's compact and easy to install. With its 4 x 125W power, 2 inputs per channel, and dual AC/DC power supply, it's a great choice for enhancing audio in any space.
