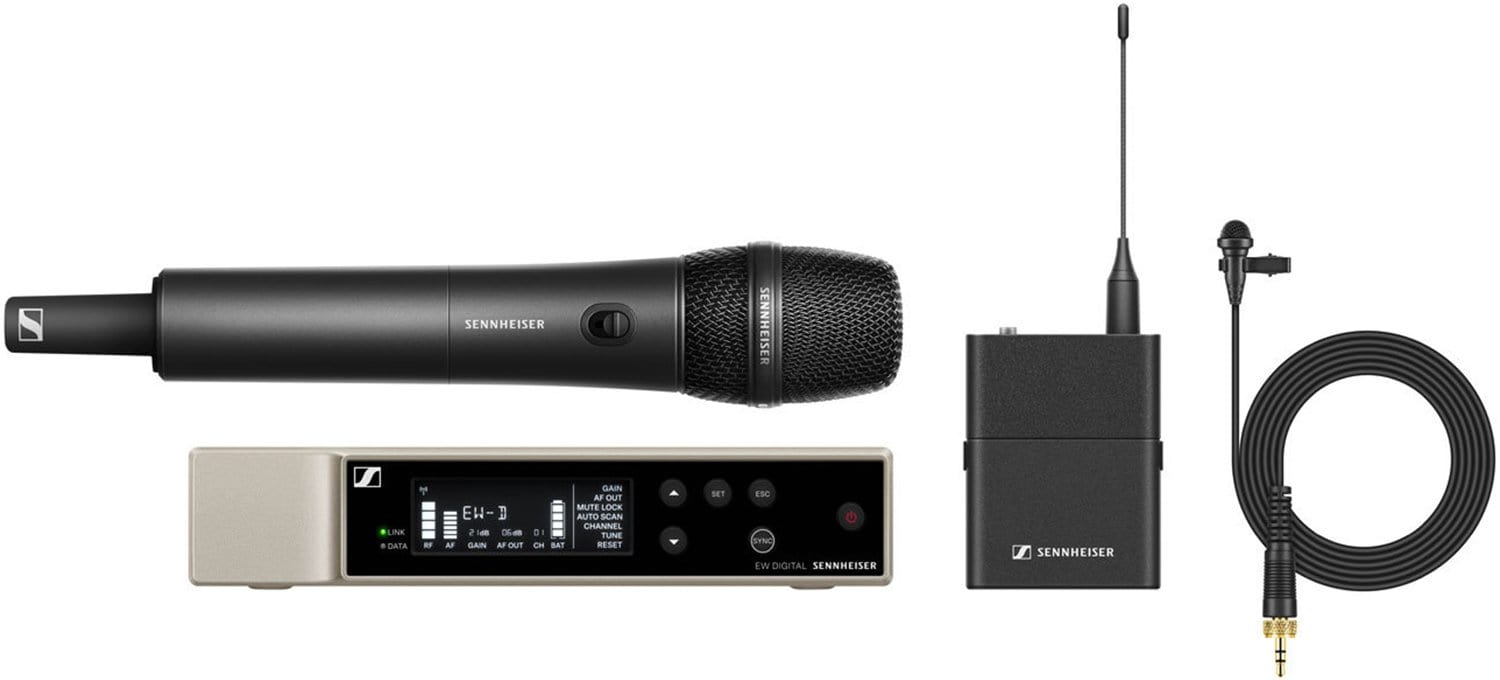

Sennheiser EW-D ME2/835-S Digital Combo Set R1
Get ready to rock the stage or captivate your audience with this all - in - one digital wireless combo. It's perfect for singers, speakers, and presenters. With the EW - D Smart Assist App, seamless pairing and management are just a tap away.
• Dynamic Range: This Evolution Wireless Digital system offers more dynamic range than any other on the market, securing a reliable signal in seconds. It has 56 MHz of tuning bandwidth and can scale up to 90 channels.
• Bluetooth Low Energy Control: The Sennheiser Smart Assist app gives you full control at your fingertips. Enjoy fast automated setup, mobile access to settings, and remote monitoring from your Android or iOS device.
• Equidistant Tuning Grid: Features an equidistant tuning grid like the flagship systems. Quality components eliminate intermodulation, making frequency coordination a breeze for both beginners and pros.
Evolution Wireless Digital in the UHF spectrum enhances range, reliability, and scalability. Auto scan for quick connections, 134 dB audio input dynamic range for detailed sound, 2,240 selectable frequencies for fine - tuning, and a Lithium - Ion battery pack (sold separately) for up to 12 hours of operation (up to 8 hours with 2x AA batteries).
Specifications:
- Frequency range: 520 - 576 MHz
- THD, total harmonic distortion: ≤ - 60 dB for 1 kHz @ - 3 dBfs input level
- Operating temperature: - 10 °C - +55 °C (14 °F - 131 °F)
- Operating relative humidity: 5 - 95 % (non - condensing)
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

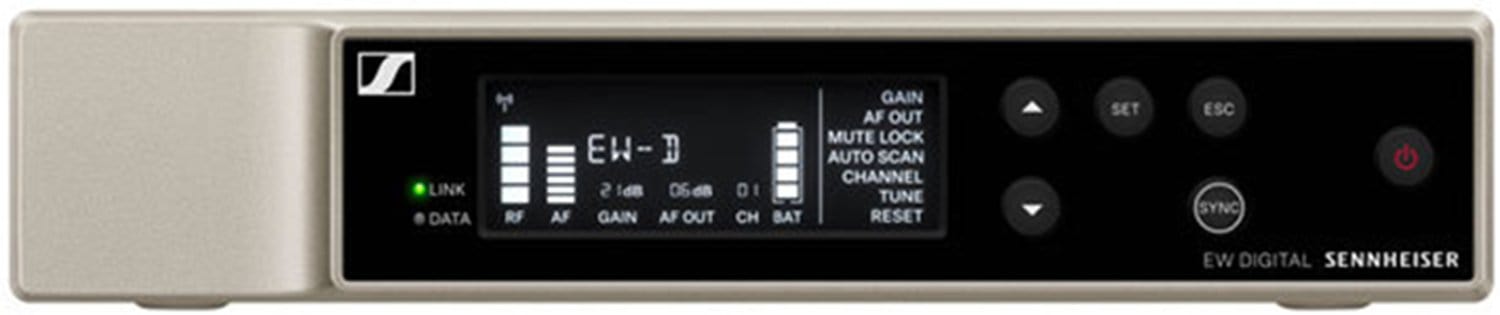

- EW - D EM:
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (without antennas and power supply)
- Current consumption: ≤ 300 mA
- Input voltage range: 11 - 13 V
- Audio output level: 18 dBu max.
- Transmission power: BLE: max. 10 mW EIRP

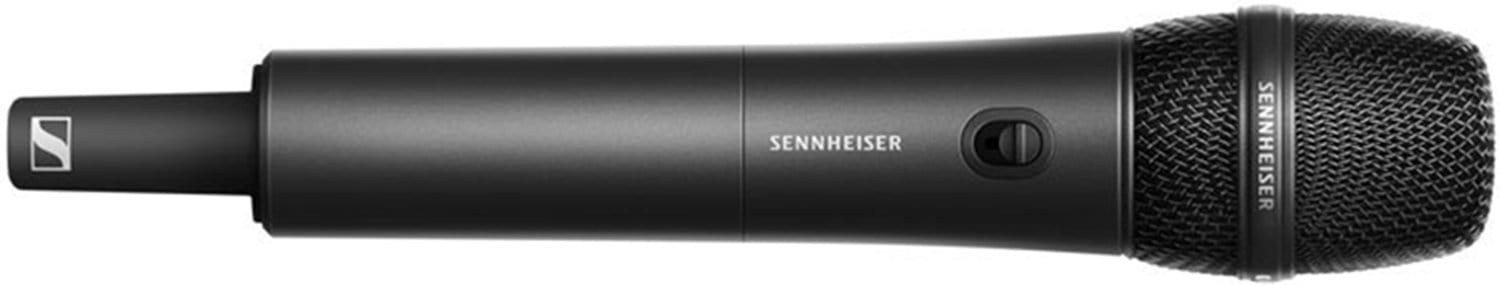

- EW - D SKM - S:
- Dimensions:
- 50 x 268 mm (incl. MMD 835 microphone module)
- 40 x 200 mm (without microphone module)
- Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
- Current consumption: < 300 mA
- Input voltage range: 2.0 - 4.35 V
- Transmission power:
- Audio link: 10 mW
- ERP (Range Y1 - 3: 12 mW ERP)
- BLE: max. 10 mW EIRP
- Weight:
- approx. 304 g (incl. MMD 835 microphone module)
- approx. 195 g (without microphone module)
- MMD 835:
- Dimensions: 405 x 350 x 73 mm
- Sound pressure level (SPL): 154 dB
- Transducer principle: dynamic
- Weight: 3.1 kg
- Pick - up pattern: cardioid
- Sensitivity: 2.1 mV/Pa

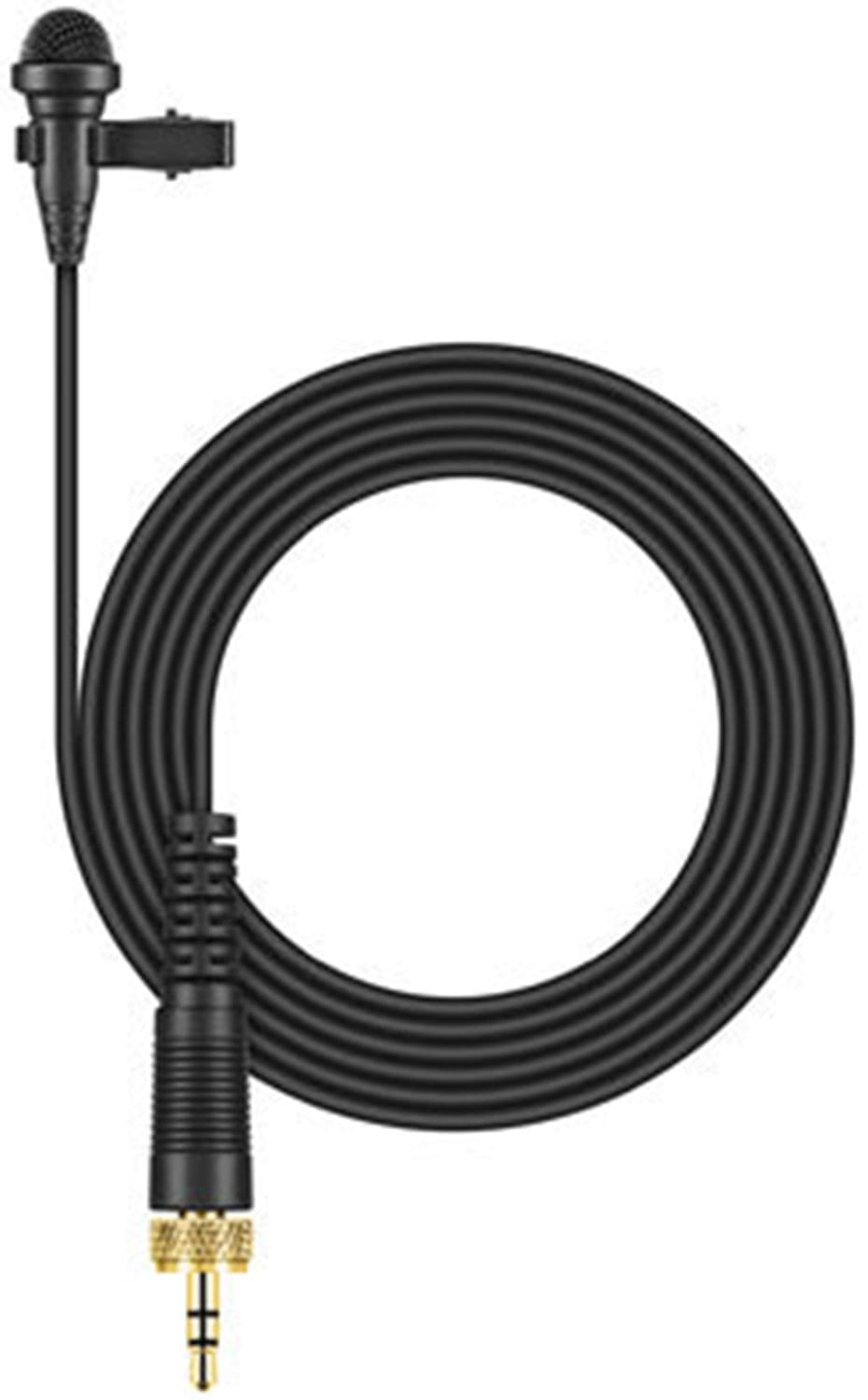

- ME 2 :
- Cable length: approx. 1.60 m
- Connector: 3.5 mm jack
- Frequency response: 50 to 18,000 Hz
- Max. sound pressure level: 130 dB
- Transducer principle: pre - polarized condensor microphone
- Pick - up pattern: omni - directional
- Sensitivity in free field, no load (1kHz): 17 mV/Pa
- Equivalent noise level: 32 dB
- Power supply: 7.5 V
This Sennheiser EW - D ME2/835 - S Digital Wireless Combo is great for stage performances, public speaking, and presentations. It's designed for singers, speakers, and presenters. The receiver has dimensions of 212 x 44 x 189 mm and weighs about 1000 g (without antennas and power supply). The handheld transmitter (EW - D SKM - S) with the MMD 835 microphone module is 50 x 268 mm and weighs approximately 304 g, without the module it's 40 x 200 mm and weighs about 195 g. The clip - on microphone (ME 2) has a cable length of about 1.60 m.
