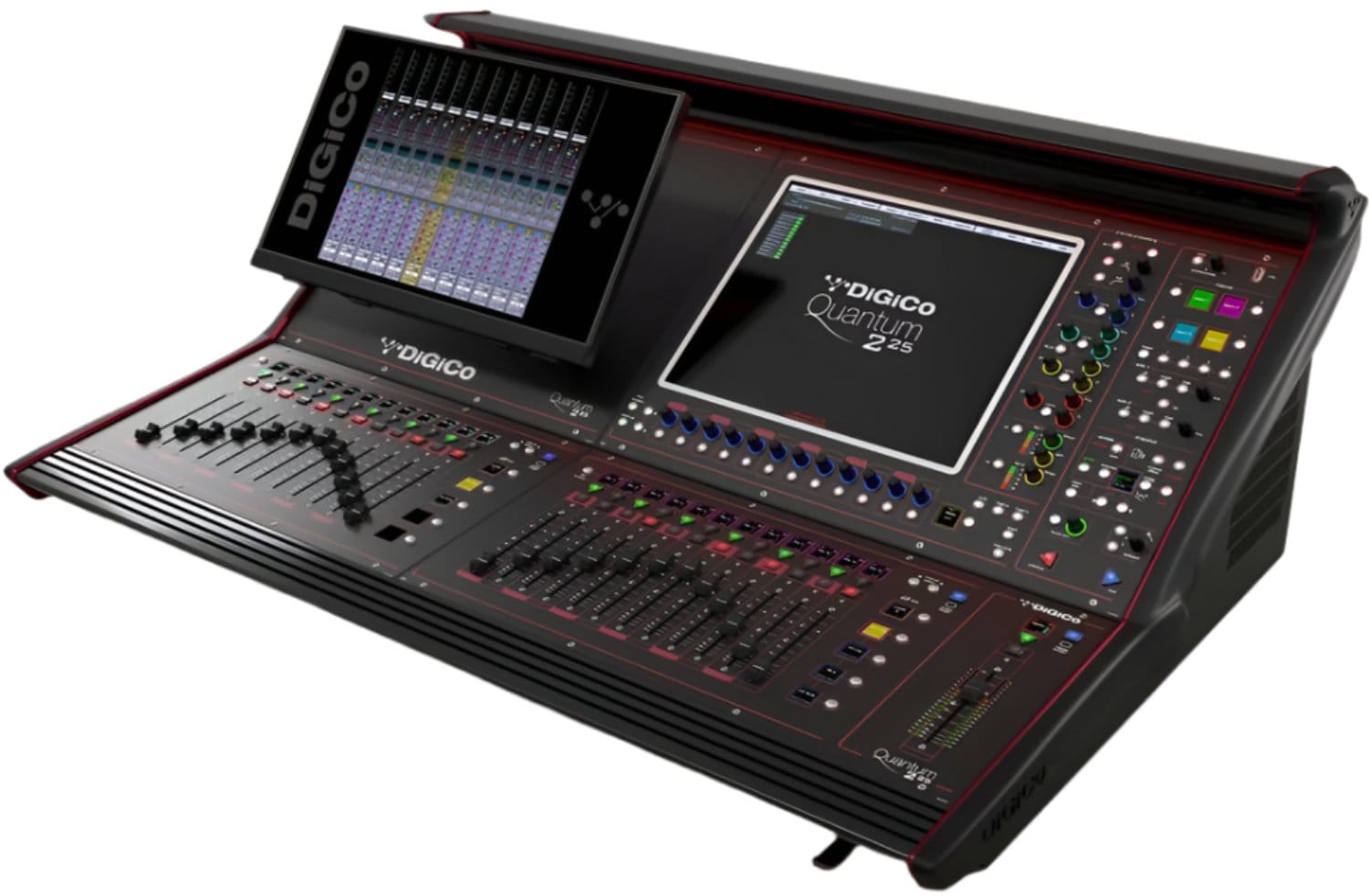

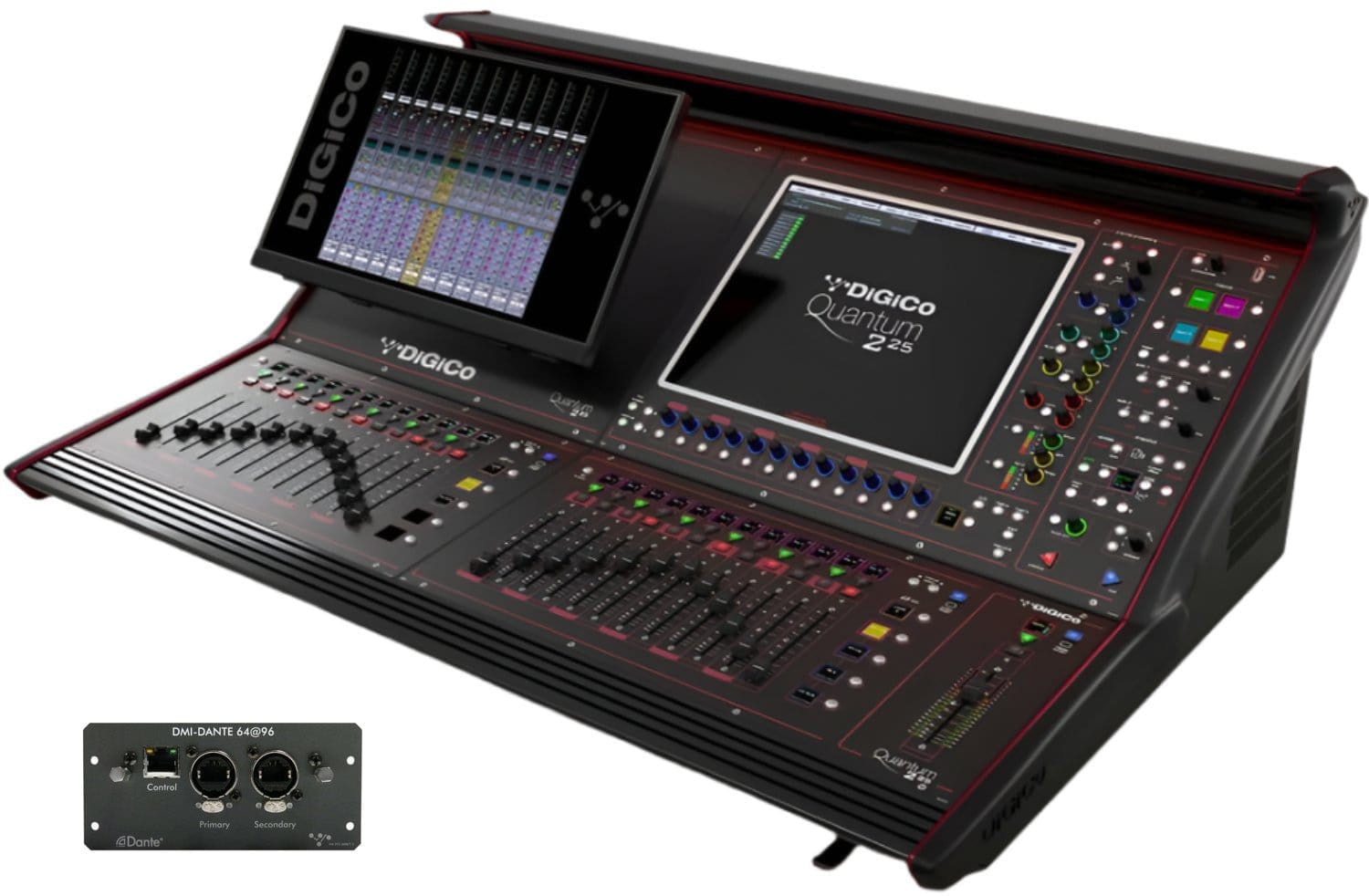

DiGiCo Quantum 225 Digital Mixing Console with DANTE2 Card - The Ultimate Mixing Powerhouse
Upgrade your mixing experience with the Quantum 225! Building on the success of the Quantum 338, this compact and robust console packs the power of Quantum into a smaller footprint. With all the new design features from 2020 and three large-scale seventh generation FPGAs, it continues the unrivaled Quantum legacy. Get ready to revolutionize your workflow with this ultimate tool set.
Key Features:
- • 72 Input channels for comprehensive audio capture
- • 36 Aux/Sub-Group busses for versatile signal routing
- • 12 x 12 Matrix for complex mixing scenarios
Why Choose the Quantum 225?
- • Unmatched processing power for seamless mixing
- • Bold innovation for cutting-edge audio solutions
- • All Quantum features in a compact package
Technical Specifications:
- • Amplifier channels: 12
- • System rack empty with/without dolly board: 53.0 kg (116.9 lb) / 42.0 kg (92.6 lb)
- • Payload (max. weight allowed to be loaded): 70.7 kg (155.9 lb)
- • Shipping weight: 158 kg (350 lb)
- • Balanced line level input / AES3: 4 / 2 XLR f (Neutrik)
- • Balanced line level out / AES3: 4 / 2 XLR m (Neutrik)
- • Amplifier outputs: 3 x 2 NL8 (Neutrik speakON)
- • Ethernet connections: 2 x 2 RJ45 (Neutrik etherCON), primary and secondary
- • Network switches: Managed GB switches, Layer-3, 10-port, pre-configured for OMENO/Dante
- • Mains power inlet (EU): CEE 32A-3phase-230/400V
- • Mains power inlet (US): NEMA L21-30, 208 VAC
- • Ambient temperature limits: +5°C to +40°C (40°F to 105°F)
- • Color: Black
- • Dimensions (W x H x D) without dolly board: 600 x 558 x 655 mm
- • Dimensions (W x H x D) with dolly board: 600 x 718 x 655 mm
Expansion Card Included:

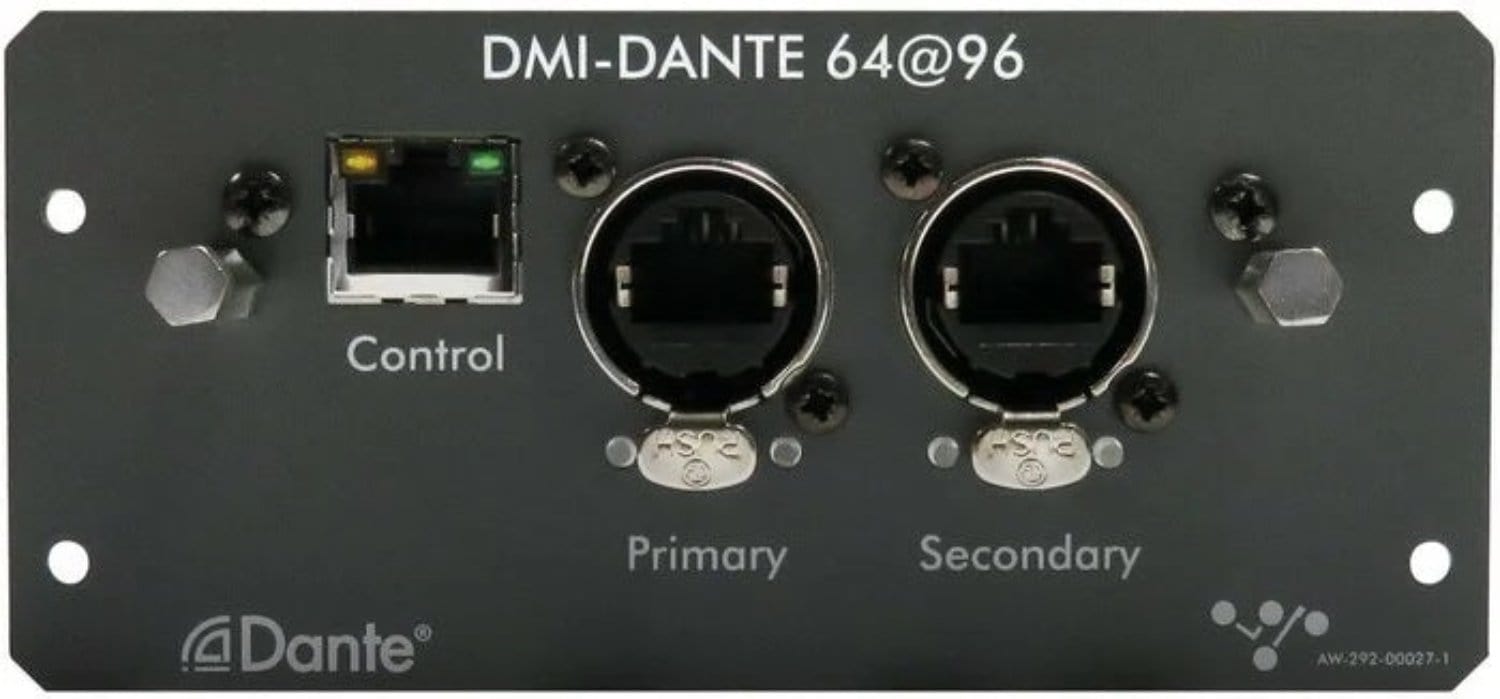

*DiGiCo MOD-DMI-DANTE2 64-Channel I/O 96 kilohertz Dante Expansion Card with 2x EtherCON Connectors
DMI-DANTE64@96
This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz, making it perfect for seamless audio over IP connections.
Audio over IP is becoming increasingly popular for its ability to work over a standard IP network and be sent over pre-installed infrastructure. Developed by Audinate in 2006, Dante offers uncompressed, low latency, multi-channel digital audio over IP, making it a top choice for professionals.
The DiGiCo DMI-DANTE64@96 allows 64 channels in and 64 channels out at both 48kHz and 96kHz. It features a Primary and a Secondary port, both Ethercon ports, and an RJ45 Control port. With two modes that can be changed in Dante Controller, it offers flexibility for different setups.
Main Features of the Expansion Card
- • 2 EtherCON Ports for reliable connections
- • 1 RJ45 Port for additional control
- • Switched mode for easy port configuration
- • Redundant mode for enhanced reliability
- • AES67 Compatible for seamless integration
- • Inbuilt SRC between 48kHz and 96kHz for smooth audio processing
- • Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4 for versatility
The DiGiCo Quantum 225 Digital Mixing Console with DANTE2 Card is designed for professional audio engineers and live event technicians. Its compact size makes it perfect for use in various touring and event scenarios. With dimensions of 600 x 558 x 655 mm without the dolly board and 600 x 718 x 655 mm with the dolly board, it's easy to transport and set up. The system rack empty weighs 53.0 kg (116.9 lb) without the dolly board and 42.0 kg (92.6 lb) with it, while the payload can reach 70.7 kg (155.9 lb). Shipping weight is 158 kg (350 lb). It offers 72 input channels, 36 Aux/Sub-Group busses, and a 12 x 12 Matrix, along with other great features to enhance your audio mixing experience.
