Sennheiser EM-XSW-1 Dual-A Wireless Receiver Set
Discover the Sennheiser EM-XSW-1 Dual-A Wireless Receiver Set, a game-changer for singers and presenters! This 2-channel wireless system is designed with ease of use in mind, offering a seamless experience like no other.
Features:
- • Exceptional Live Sound: Enjoy top-notch audio quality with Sennheiser's renowned evolution microphone capsules.
- • Effortless Setup: Benefit from automatic frequency management and synchronization via remote channel, along with selectable UHF frequencies within a large bandwidth.
- • Integrated Antennas: Say goodbye to external antenna hassles with built-in antennas for a sleek and convenient design.
Specifications:
System
- Frequency range: Multiple options including 548-572 MHz, 614–638 MHz, etc.
- Dimensions: 48 x L 180 mm
- Connector: XLR-3
- Frequency response: 55 - 16,000 Hz
- THD, total harmonic distortion: 0.9%
- Transducer principle: dynamic
- Weight: 330 g (0.73 lbs)
- Pick-up pattern: cardioid
- Nominal impedance: 300 (at 1 kHz)
- Min. terminating impedance: 1 k
- Storage temperature: –20°C to +70°C
- Operating temperature: 0°C to +40°C
- Signal-to-noise ratio: 103 dBA
- Switching bandwidth: Up to 24 MHz
- Modulation: Wideband FM
- Frequency: 80 factory presets (8 banks of 10 channels each)
- Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
- Synchronization: Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
- Temperature Range: 0 °C... +40 °C (+32 °F... +104 °F)
- Frequency range: 548-572 MHz
- Frequency response: Multiple options including 766-790 MHz, 794-804 MHz, etc.

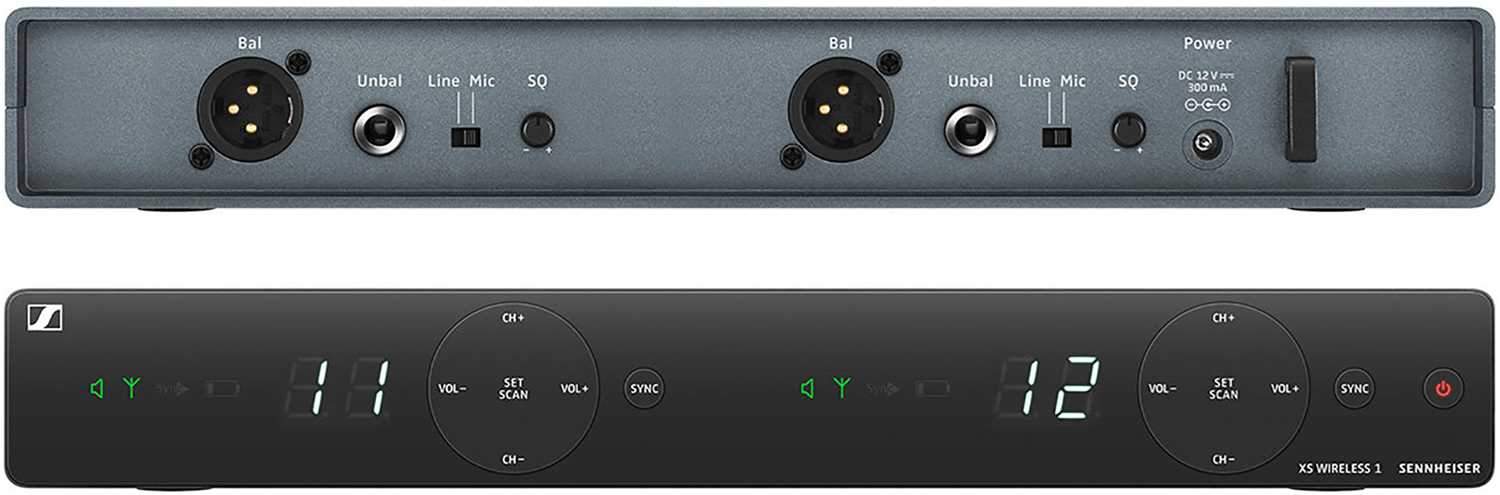

EM-XSW 1 Dual
- Dimensions: approx. 320 x 126.5 x 42 mm
- Weight: approx. 620 g
- Power supply: 12 V DC nom. / 300 mA
- Output voltage: (at peak deviation, 1 kHz AF) 1/4' (6.3 mm) socket (unbalanced): +6 dBu
- Housing: Rugged ABS housing
- Sensitivity: < 3 V at 52 dB(A) rms S/N (at peak deviation)
- Squelch: Adjustable from 3 dB V to 28 dB V
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Audio adjustment range: 45 dB, adjustable in 5 dB steps
- Line / Mic level: 20 dB, switchable
- Receiver Principle: Double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas
The Sennheiser EM-XSW-1 Dual-A 2-Channel Wireless Receiver Set is perfect for singers and presenters. Its sleek dual-channel receiver with built-in antennas offers an easy-to-use experience. Dimensions are 48 x L 180 mm and it weighs 330 g (0.73 lbs). It has excellent live sound, automatic frequency management, and integrated antennas for a great performance.
