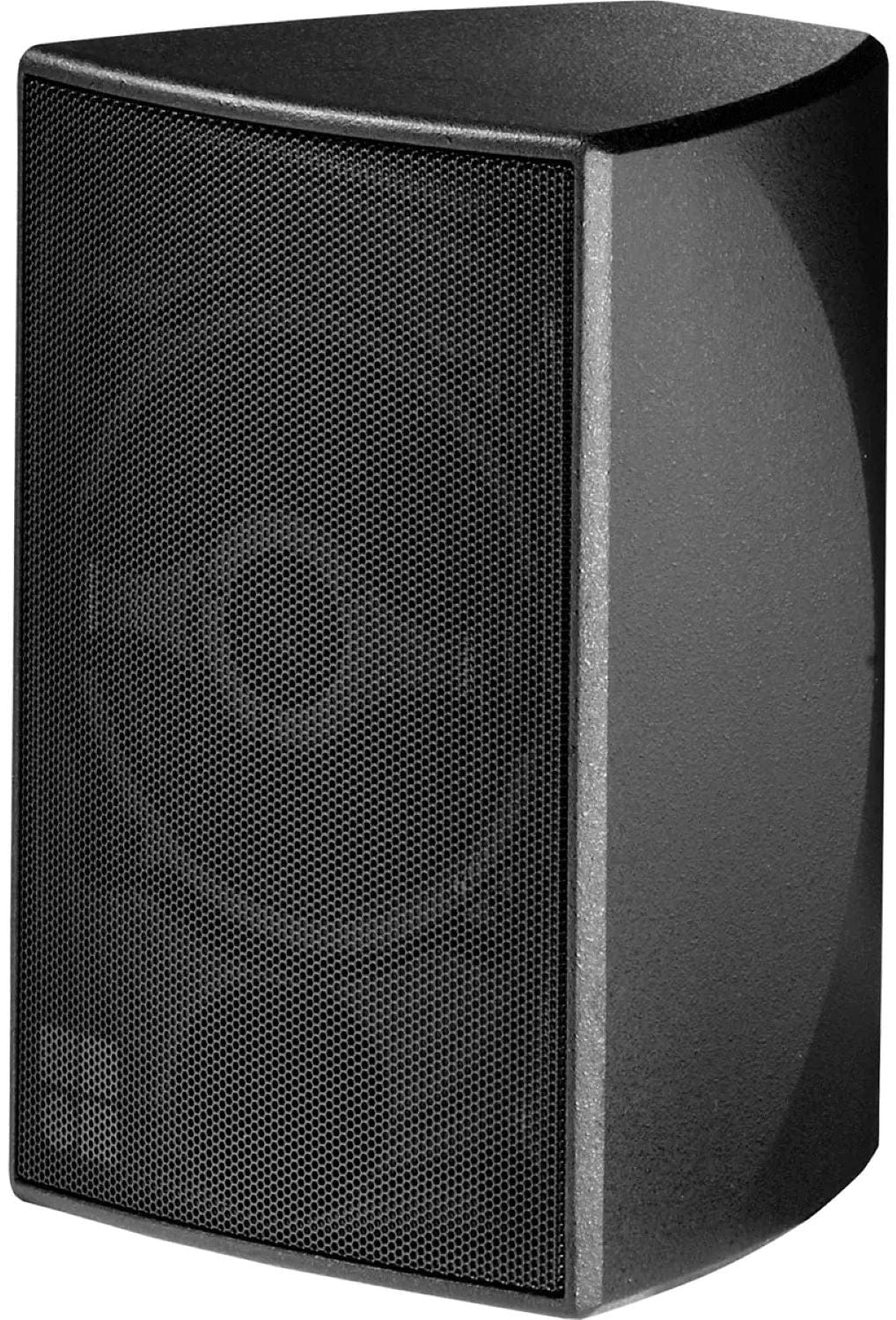

D&B Audiotechnik Z0450.000 E5 5-Inch NL4 Passive Loudspeaker
Get ready to experience outstanding sound with the E5! This lightweight 2-way passive loudspeaker combines a ferrite LF driver and a coaxially mounted wide dispersion dome tweeter. • Wide Symmetrical Dispersion: Enjoy a broad 100° conical dispersion pattern in both horizontal and vertical planes, perfect for various setups. • Versatile Mounting: The cabinet can be mounted in any attitude, making it adaptable for different scenarios. • Compact and Durable: The highly compact bass-reflex enclosure is injection moulded with an impact resistant black paint finish, and it's weather protected for outdoor use as standard (Special Colour option available). Ideal for mobile near field applications such as speech and music reinforcement in theatres, conferences, industrial presentations, broadcast studios, and as surround sound, delay, and fill systems. Can be used stand-alone or paired with different subwoofers from the E-Series.
Features:
- Components 5″/1″
- Dispersion 100° conical
- SPLmax 117 dB
- Weight 2.7 kg / 6.0 lb
Specifications:
- System data:
- Frequency response (–5 dB standard mode): 85 Hz – 20 kHz
- Frequency response (–5 dB CUT mode): 130 Hz – 20 kHz
- Max. sound pressure (1 m, free field) with D6: 116 dB
- Max. sound pressure (1 m, free field) with D12: 117 dB, (SPLmax peak, pink noise test signal with crest factor 4)
- Input level (100 dB-SPL/1 m): –6 dBu
- Loudspeaker data:
- Nominal impedance: 16 ohms
- Power handling capacity (RMS/peak 10 ms): 60/400 W
- Nominal dispersion angle (hor. x vert.): 100° conical
- Components: 5¡° driver with ferrite magnet
- 1” dome driver, coaxially mounted
- Passive crossover network
- Connections: 2 x NL4
- 1 x two pole push terminal (PT – up to 6 mm2/AWG 10)
- Pin assignments: NL4: 1+ / 1–
- Push terminal: Red: (+) / Black: (–)
- Weight: 2.7 kg (6.0 lb)
The D&B Audiotechnik Z0450.000 E5 is a 5-inch passive loudspeaker. It's great for mobile near field use. Ideal for those in theatres, conferences, industrial presentations, and broadcast studios. Its features include a 100° conical dispersion pattern, and it weighs 2.7 kg (6.0 lb). It can be used stand-alone or with E-Series subwoofers. The cabinet is weather protected and has a compact bass-reflex design.
