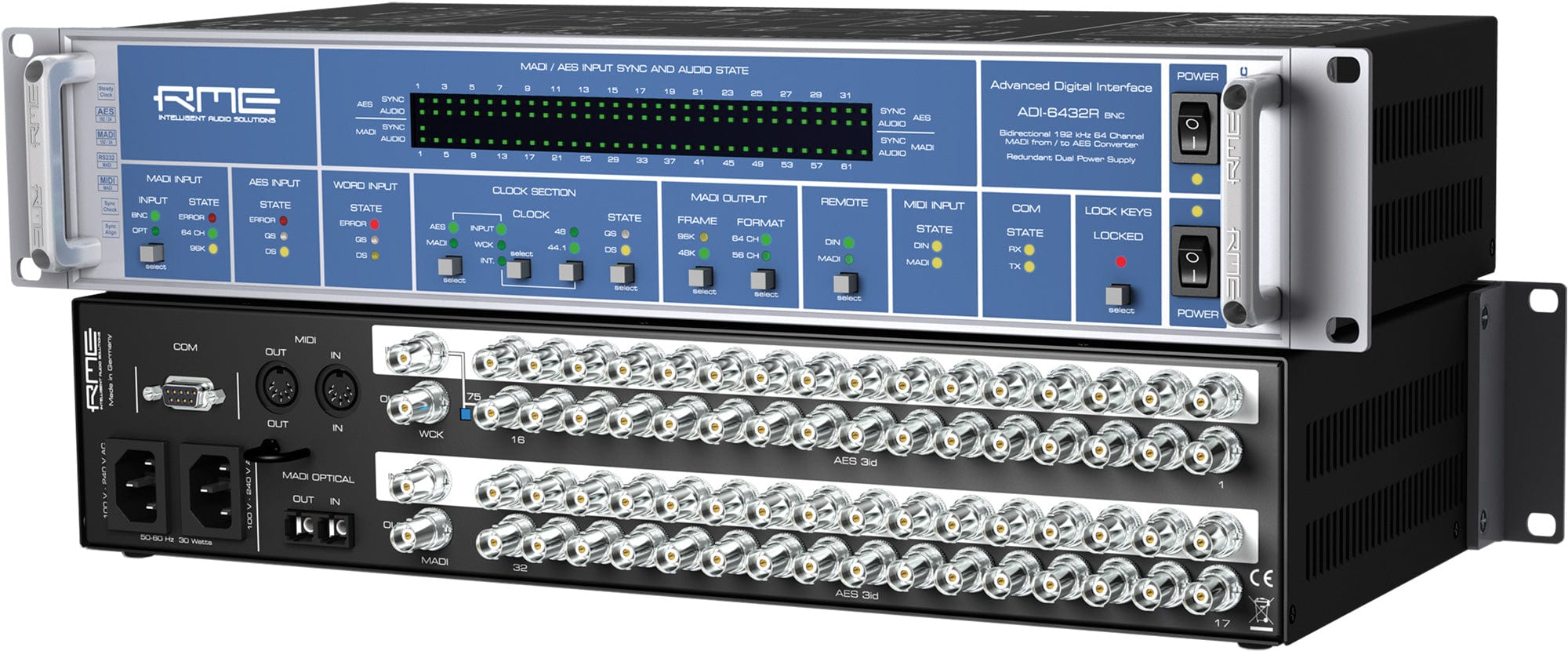

RME ADI6432 R BNC Multi-Mode 24-Bit / 192 Kilohertz 2x64-Channel MADI to AES Converter

RME ADI6432R BNC Multi-Mode 24-Bit/192KHz 2x64-Channel MADI to AES Converter

The RME ADI-6432R BNC is a must-have for broadcasters! It offers easy integration and fail-safe operation with industry standard BNC connectors and dual redundant power supplies. With 64 channels of I/O, it's perfect for those who need AES-3id connections. • High-Quality Conversion: Convert between MADI and AES with ease, supporting up to 192 kHz at 24 bits. • Intelligent Clock Control: RME's SteadyClock ensures top-notch clock quality, and SyncCheck and AutoSync technology make handling clocks a breeze. • Versatile Connectivity: Transfer MIDI and RS232 data invisibly across MADI, and connect to various MADI interfaces. This converter is a game-changer for audio professionals. Whether you're using it as a digital multicore or an AES-3id frontend, it delivers exceptional performance. Don't miss out on this amazing product!

Features:

• RME's SteadyClock lets the ADI-6432R Converter use MADI without an additional word clock connection, and ensures efficient clock quality in every situation. Due to highly efficient jitter reduction, any clock signal - even AES and word - can be improved and refreshed, and subsequently be used as reference clock at the unit's outputs. It has ICC (Intelligent Clock Control).
• The SyncCheck and AutoSync technology has been incorporated into the Intelligent Clock Control of the Hammerfall DSP system. HDSP is a digital I/O-system that is capable of measuring and displaying the frequency of all clock sources. Based on validity and current sample rate, the system decides which clock source should be used, fully automated and performed in hardware. With this, the HDSP system offers ease at handling the present clocks, despite having a lot of digital inputs, plus strong support when configuring the clock setup. It will retain the last valid sample frequency in case of a loss of the input signal.
• 16 MIDI channels can be transferred invisibly across MADI, at the full count of 64 audio channels. The same applies to RS232. Be it 9600, 19200, or 115200 Baud, thanks to a 9-pin COM port, the ADI-6432R Converter can be used as an extender for serial cables, with no effect on the audio functionality.Additionally, the device can be fully remote controlled and configured via MIDI, and all status displays can be queried through MIDI. Each ADI-6432R Converter can be given a separate ID, allowing separate remote controllability of various devices with only a single MIDI channel.
• The ADI-6432R Converter is compatible with any MADI interface from other companies, like Sony, Merging, Lawo, Euphonix, Stagetec, J¨¹nger, Audio Service, AMS, and others.
• The unit also includes lots of typical RME features such as support up to 192 kHz with MADI and AES, status displays for MADI and AES, SteadyClock for maximum jitter reduction and clock regeneration, complete remote controllability via MIDI, transfer of MIDI data via MADI, transfer of RS232 data via MADI, and a redundant power supply.

Specifications:

• RME ADI-6432R BNC Specs:
  • Form Factor: Rackmount
  • Number of Channels: 64
  • Conversion Formats: AES3, MADI (Coaxial), MADI (Optical)

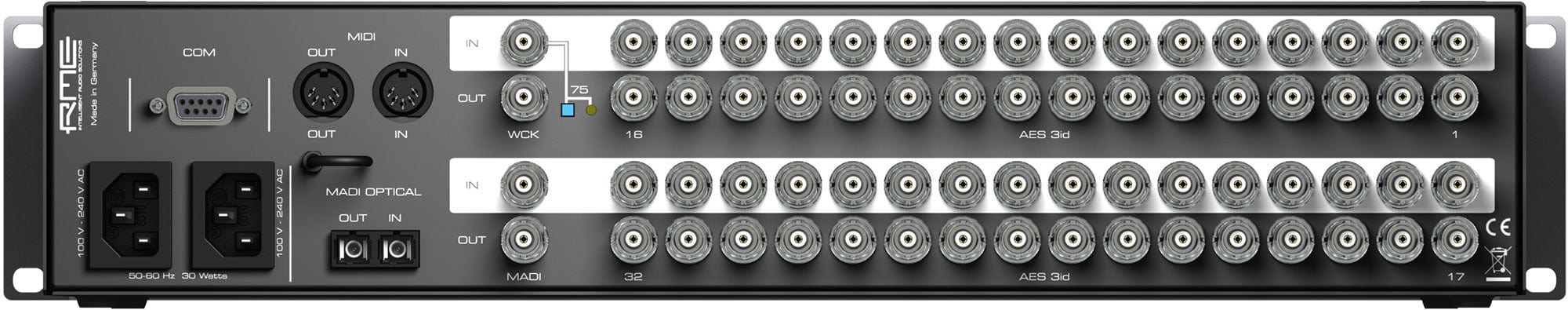

• Connectivity:
  • Digital Audio I/O:
    • 1 x BNC Coaxial MADI Input
    • 1 x BNC Coaxial MADI Output
    • 1 x SC-Plug Optical MADI Input
    • 1 x SC-Plug Optical MADI Output
    • 32 x BNC Coaxial AES-3id Input
    • 32 x BNC Coaxial AES-3id Output
  • Sync I/O:
    • 1 x BNC Word Clock Input
    • 1 x BNC Word Clock Output
  • MIDI I/O:
    • 1 x DIN 5-Pin Input
    • 1 x DIN 5-Pin Output
  • Other I/O: 1 x DE-9/DB-9 RS-232 Input
• Performance:
  • Impedance: BNC AES-3id: 75 Ohms
• Digital Audio:
  • Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
    • MADI: 32 to 192 kHz
    • AES3: 28 to 200 kHz
  • Sync Sources: AES3, Internal, MADI, Word Clock
  • Clocking:
    • Internal:
      • Jitter: < 1 ns
    • Word Clock:
      • Lock Range: 27 to 200 kHz
      • Jitter: < 2 ns
    • AES:
      • Jitter: < 2 ns
    • External:
      • Jitter Suppression: > 30 dB (2.4 kHz)
• Power:
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Power Consumption:
    • 20 W
    • 20 W
• Physical:
  • Rackmount Size: 2 RU
  • Dimensions: 19 x 7.8 x 3.4' / 483 x 200 x 88 mm

The RME ADI6432R BNC is a 2 RU rackmount converter. It's perfect for broadcast and professional users who need AES-3id connections. With 64 channels of I/O, it offers high-quality conversion between MADI and AES, supporting up to 192 kHz at 24 bits. It has features like SteadyClock for great clock quality, SyncCheck and AutoSync technology, and can transfer MIDI and RS232 data across MADI. Connectivity includes BNC coaxial and optical MADI inputs/outputs, 32 BNC coaxial AES-3id inputs/outputs, Sync I/O, MIDI I/O, and an RS-232 input. It has a 75 Ohm impedance for BNC AES-3id, and various sample rate options. The AC input power is 100 to 240 VAC, 50/60 Hz, and it consumes 20 W. Dimensions are 19 x 7.8 x 3.4' / 483 x 200 x 88 mm.
