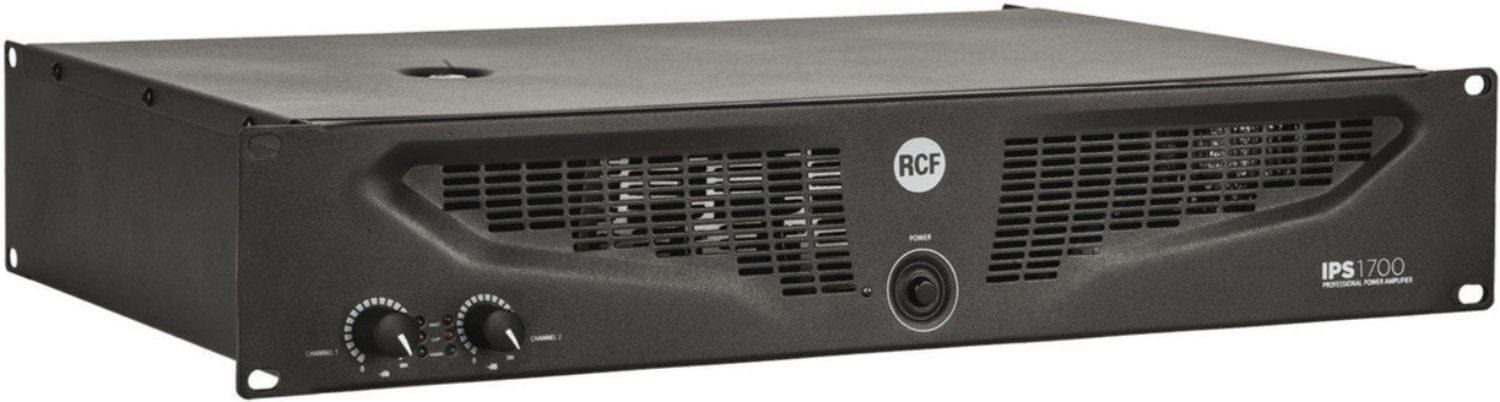

RCF IPS 700 Class AB 2-Channel 300W Powerhouse Amplifier
The IPS 700 is part of the PS Series, a range of professional two-way amplifiers that blend high performance with the latest power amplification technologies. These amplifiers offer an excellent power-to-cost ratio, delivering the durability and sound quality of traditional Class AB and Class H designs in a compact, lightweight 2-rack unit space.
This powerhouse amplifier provides up to 2 x 300 W RMS at 4 Ω (or 600 W RMS bridged at 8 Ω), while weighing only 10.1 kg. It comes with independent gain dials, signal-clip and fault LEDs, stereo XLR input, output link, an input sensitivity switch (1.4 V to 0.775 V), and a mono-stereo-bridge switch. Additionally, it has Powercon outputs and offers protection against shorts and open circuits. The high-efficiency heat sinks and high-speed DC fans ensure reliable operation even under extreme heat conditions.
Features:
- • Compact 2-unit 19' rack for easy transportation
- • Fast response and low distortion for crystal-clear sound
- • Effortlessly configure in stereo / mono / bridge modes
- • Extensive protective circuits for high reliability and safety
- • Front panel signal / clip / protect LED indicators

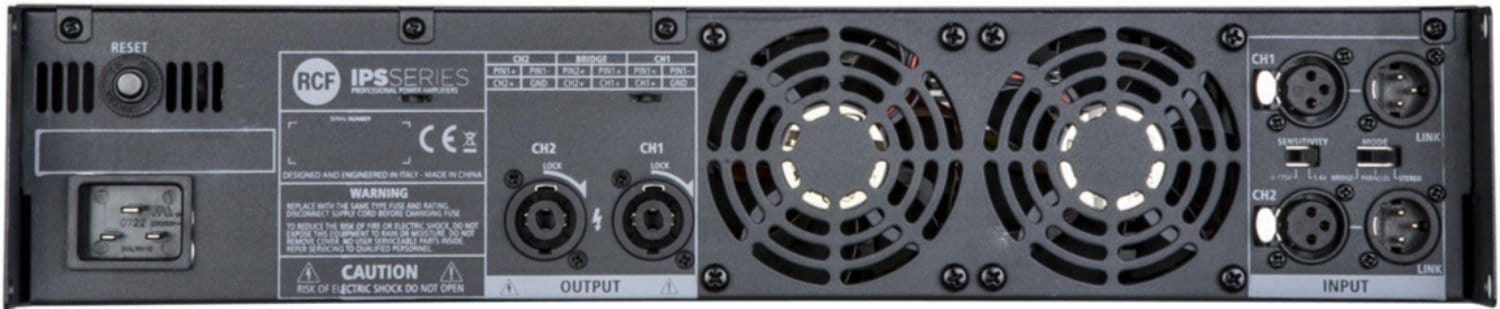

- • XLR input connectors for seamless integration
- • SPEAKON NL4 output connectors for powerful sound
Specifications:
- Amplifier specifications
- Number of channels: 2
- Power Output per Channel (@ 4 OHM): 300W RMS
- Power Output per Channel (@ 8 OHM): 150W RMS
- Power Output (Bridged @ 8 OHM): 600W RMS
- Frequency Response (-3DB): 20Hz – 20kHz
- Signal/Noise Rate (“A” Weighted): >100 dB
- Crosstalk (@ 1kHz): <75 dB
- Distortion (THD+N) @ 1 kHz Nominal Power: <0.5 %
- Input section
- Balanced: 2
- Line Connectors: XLR
- Line Inputs: 2
- Mono: 2
- Total Number of Inputs: 2
- Output section
- Signal Output Number: 2
- Signal Output Connectors: XLR
- Power Output Connectors: Speakon Controls
- Configuration: DIP switch, Front panel
- Protections
- Cooling: Forced
- Short Circuit: Yes
- Thermal: Yes
- DC Delay: Yes
- Fuses: Yes
- VHF: Yes
- Power requirement
- Operating Voltage: 220-240/115V~ 50/60Hz
- Power Consumption: 350W Standard compliance
- CE Marking: Yes
- Physical specifications
- Cabinet/Case Material: Metal
- Color: Black
- Rack Mounting: 19', 2U
- Dimensions (DxHxW): 10.4x3.46x18.98' (255x88x482mm)
- Weight: 20.72 lbs (9.4 kg)
- Shipping
- Package Dimensions (DxHxW): 22.44x5.91x22.83' (570x150x580mm)
- Package Weight: 22.49 lbs (10.2 kg)
The RCF IPS 700 Class AB 2-Channel 300W Powerhouse Amplifier is perfect for professional audio setups. Ideal for sound engineers and event organizers, it delivers top-notch performance. With a compact 2-rack unit design, it's easy to transport. Weighing only 10.1 kg, it won't weigh you down. It provides 2 x 300 W RMS at 4 Ω (or 600 W RMS bridged at 8 Ω), ensuring powerful sound. Configure it in stereo, mono, or bridge modes as needed. Its features like independent gain dials and protective circuits make it a reliable choice for any audio installation.
