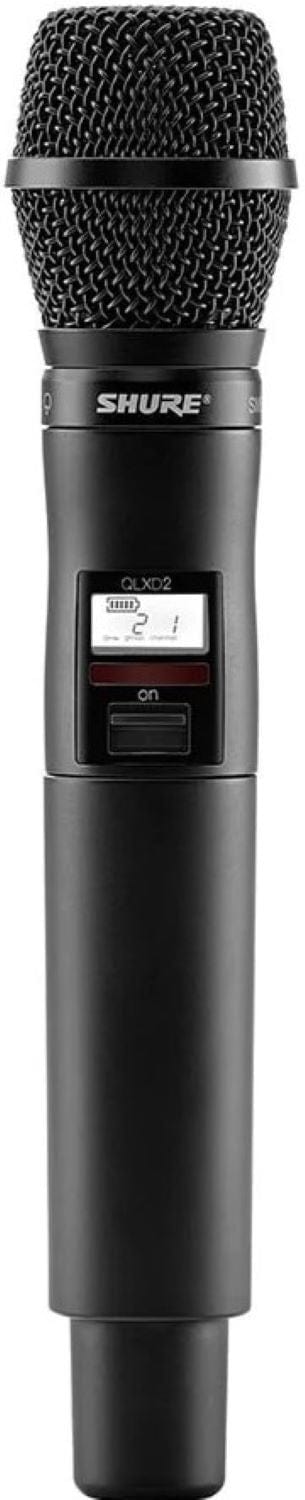

Shure QLXD2/SM87 Handheld Transmitter - The Ultimate Vocal Performance Solution in J50A Band
The Shure QLXD2/SM87 is a game-changer for vocalists and presenters! This digital handheld wireless microphone transmitter pairs seamlessly with QLX-D receivers. It's equipped with the SM87A supercardioid condenser capsule, delivering a smooth frequency response even at extreme sound pressure levels.
Key Features:
- • Compatible with QLX-D Receivers: Effortlessly connect for a reliable performance.
- • SM87A Supercardioid Condenser Mic: Superior sound quality with reduced background noise.
- • 1760 Selectable Frequencies: Ensure interference-free operation.
With its interchangeable capsule design, adjustable gain control, and secure AES-256 encryption, this transmitter offers unparalleled flexibility and peace of mind. The backlit LCD makes it easy to monitor your settings, while the networked intelligent charging keeps you powered up. And with 9-hour AA batteries, you can perform all day long.
Specifications:
- RF Frequency Band: J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 330' / 100.6 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: No
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 30 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1x 1/4 Wave
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2 x 10.1' / 51 x 256 mm
- Weight: 12.2 oz / 347 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Condenser
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: 140.5 dB SPL
- Sensitivity: -52.5 dBV/Pa
- Dynamic Range: 116.5 dB
The Shure QLXD2/SM87 Handheld Transmitter is perfect for vocal performers and presenters. Whether you're on stage, at a conference, or hosting an event, this transmitter delivers exceptional sound quality. With its compact size (2 x 10.1' / 51 x 256 mm) and lightweight design (12.2 oz / 347 g without batteries), it's easy to carry and use. The J50A band ensures reliable performance within a specific frequency range. Enjoy up to 9 hours of battery life with 2 included AA batteries, or use a replaceable Shure SB900A battery for extended power.
