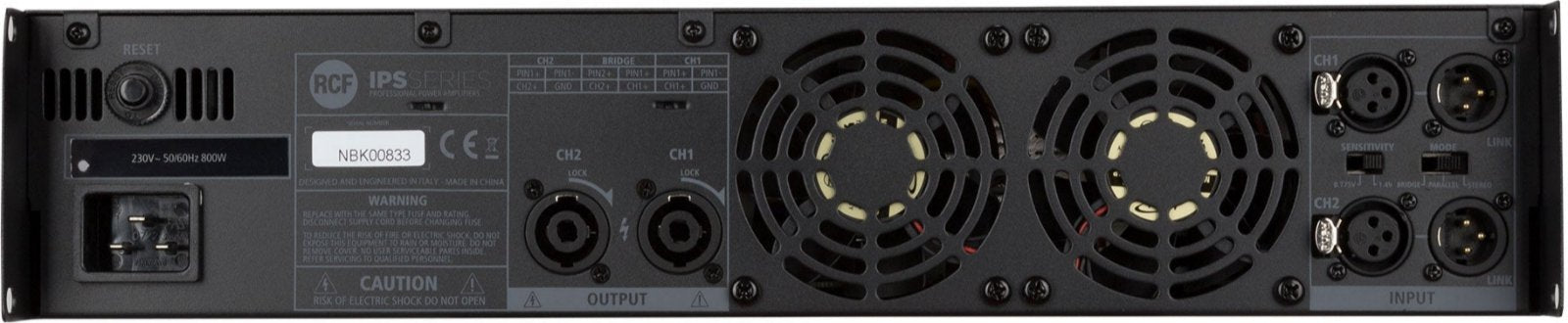

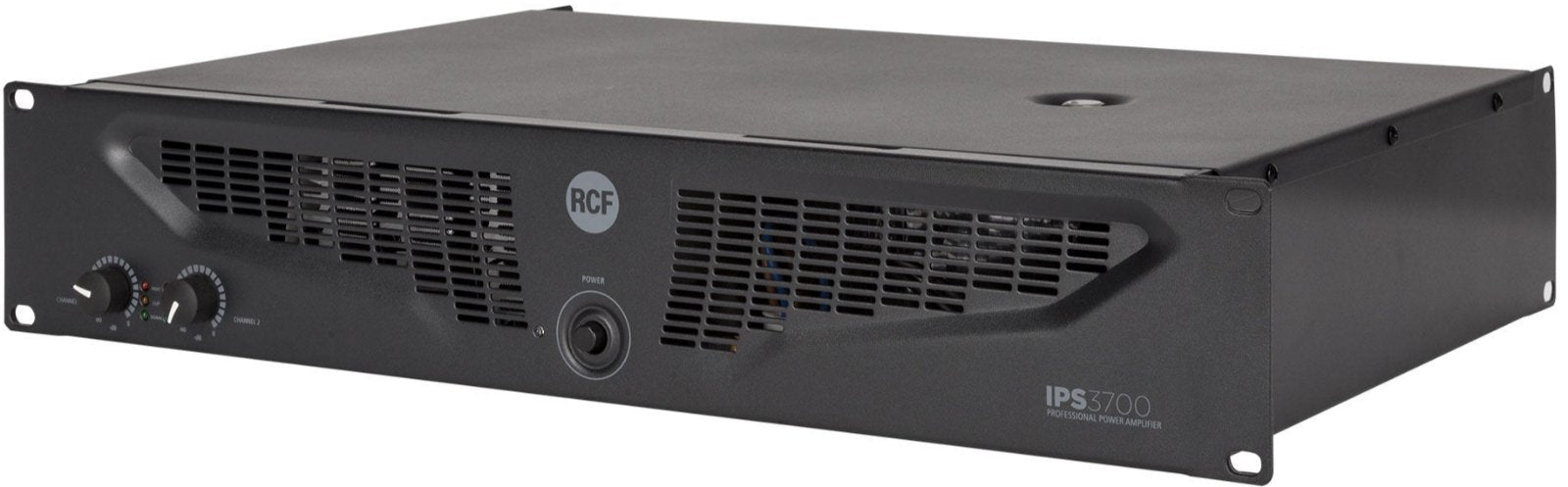

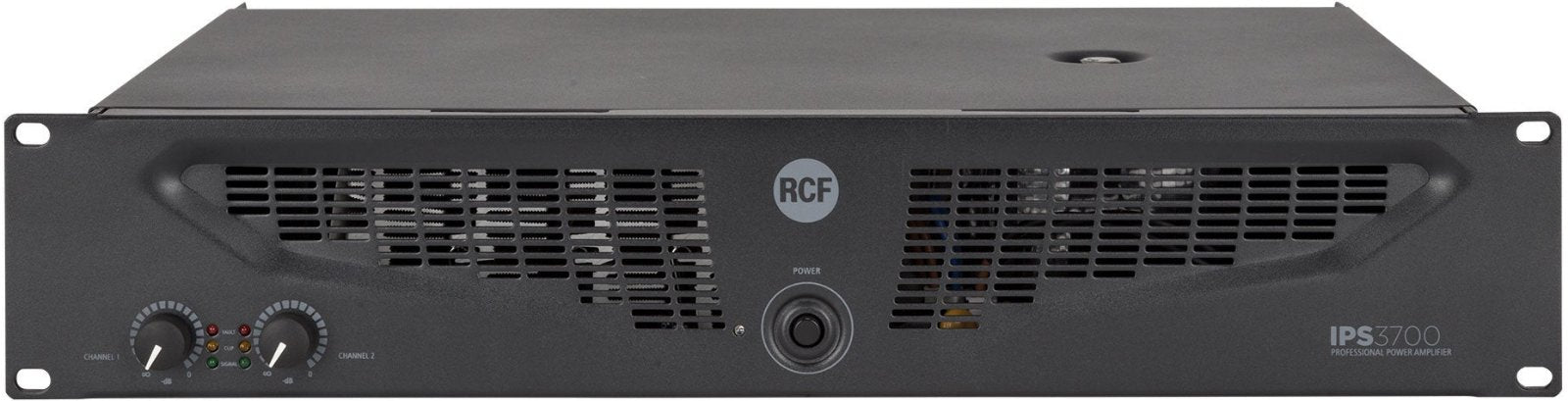

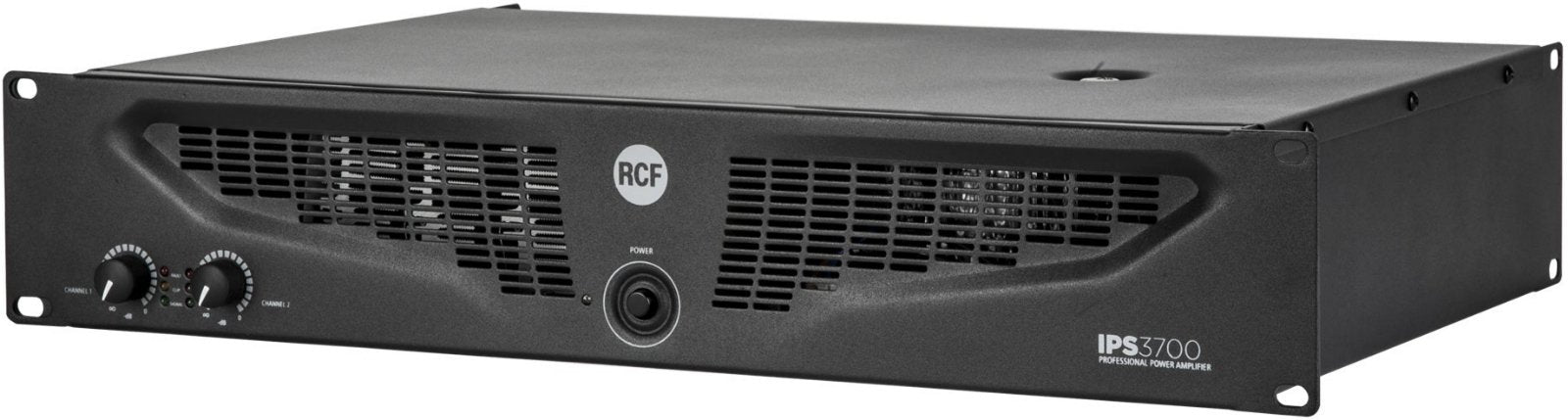

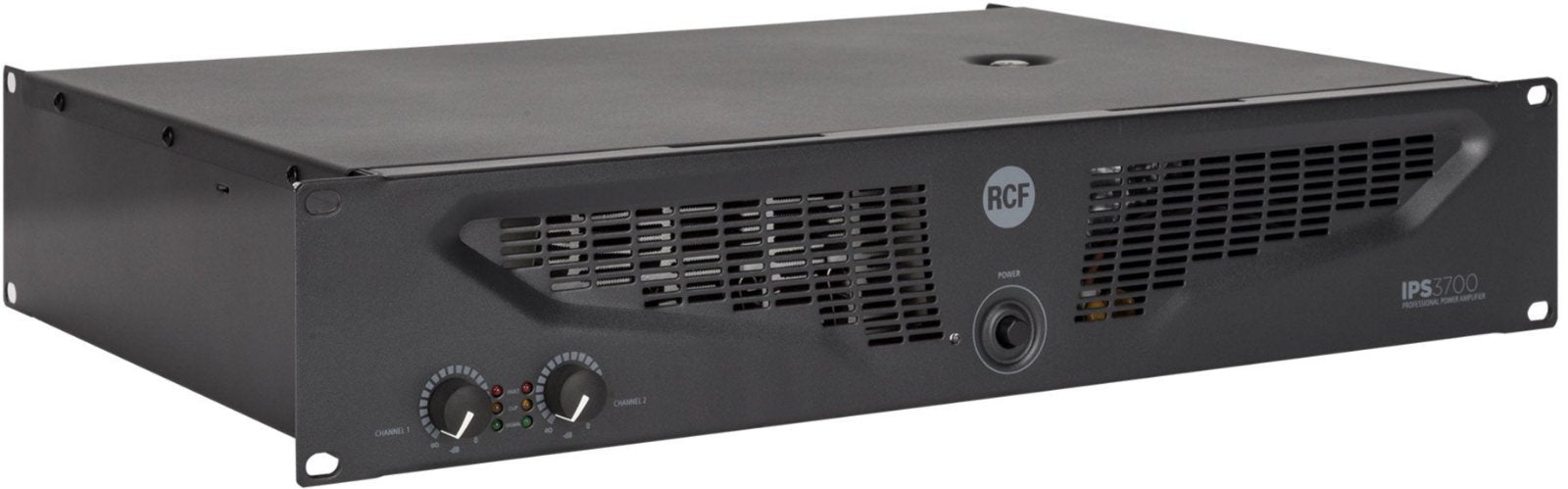

RCF IPS 3700 Class H 2-Channel Powerhouse - 2x 1500 Watt
The IPS Series is a range of two-way professional amplifiers that combines high quality performance and reliability with the latest power amplifications technologies. This high value power-to-cost designs offer, in compact lightweight 2 rack unit space, the sound quality and the durability of traditional class AB and class H designs with the innovation of the latest power devices available. The IPS 3700 is a 2 channel power amplifier that delivers up to 2 x 1500 W RMS @ 4 Ohm (3000 W RMS bridged @ 8 Ohm), weighing just 19.5 kg. It features independent gain dials, signal – clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono – stereo – bridge switch, powercon outputs. Moreover, it is protected against shorts and open circuits. Thanks to its high efficiency heat sinks and high speed DC fans, the IPS 3700 can withstand the hardest heat conditions ensuring great reliability.
Features:
- • Compact 2U Rack: Easy transportation
- • High Performance: Fast response and low distortion
- • Versatile Configuration: Easy to configure in stereo / mono / bridge modes
Specifications:
- Amplifier Specifications:
- Frequency Response (-3dB): 20 Hz – 20000 Hz
- Crosstalk: <75 dB
- Distortion (THD+N) @ 1 kHz nominal power: <0.5 %
- Input Section:
- Total Number of Inputs: 2
- Balanced: 2
- Mono: 2
- Line Inputs: 2
- Line Connectors: XLR
- Output Section:
- Signal Output Number: 2
- Signal Output Connectors: XLR
- Power Output Connectors: Speakon NL4
- Configuration and Control:
- Configuration: DIP switch, Front panel
- Protections:
- Cooling: Forced
- Short Circuit: Yes
- Thermal: Yes
- DC: Yes
- Fuses: Yes
- VHF (Very High Frequencies): Yes
- Power Requirement:
- Operating Voltage: 220-240/115 V~ 50/60Hz
- Power Consumption (MAX): 700 W
- Physical Specifications:
- Cabinet/Case Material: Metal
- Color: Black
- Rack Mounting: 19', 2U
- Size:
- Height: 88 mm / 3.46 inches
- Width: 482 mm / 18.98 inches
- Depth: 255 mm / 10.04 inches
- Weight: 16.55 kg / 36.49 lbs
- Shipping Information:
- Package Height: 150 mm / 5.91 inches
- Package Width: 580 mm / 22.83 inches
- Package Depth: 570 mm / 22.44 inches
- Package Weight: 18.75 kg / 41.34 lbs
The RCF IPS 3700 Class H 2-Channel Power Amplifier is perfect for professional sound setups. It's great for venues like clubs, theaters, and auditoriums. Targeted at sound engineers and event organizers, this amplifier offers high power output. It delivers up to 2 x 1500 W RMS @ 4 Ohm (3000 W RMS bridged @ 8 Ohm) and weighs just 19.5 kg. Its compact size of 88 mm height, 482 mm width, and 255 mm depth makes it easy to install in 19' 2U rack spaces. With features like independent gain dials and multiple input/output options, it provides great flexibility for your sound system setup.
