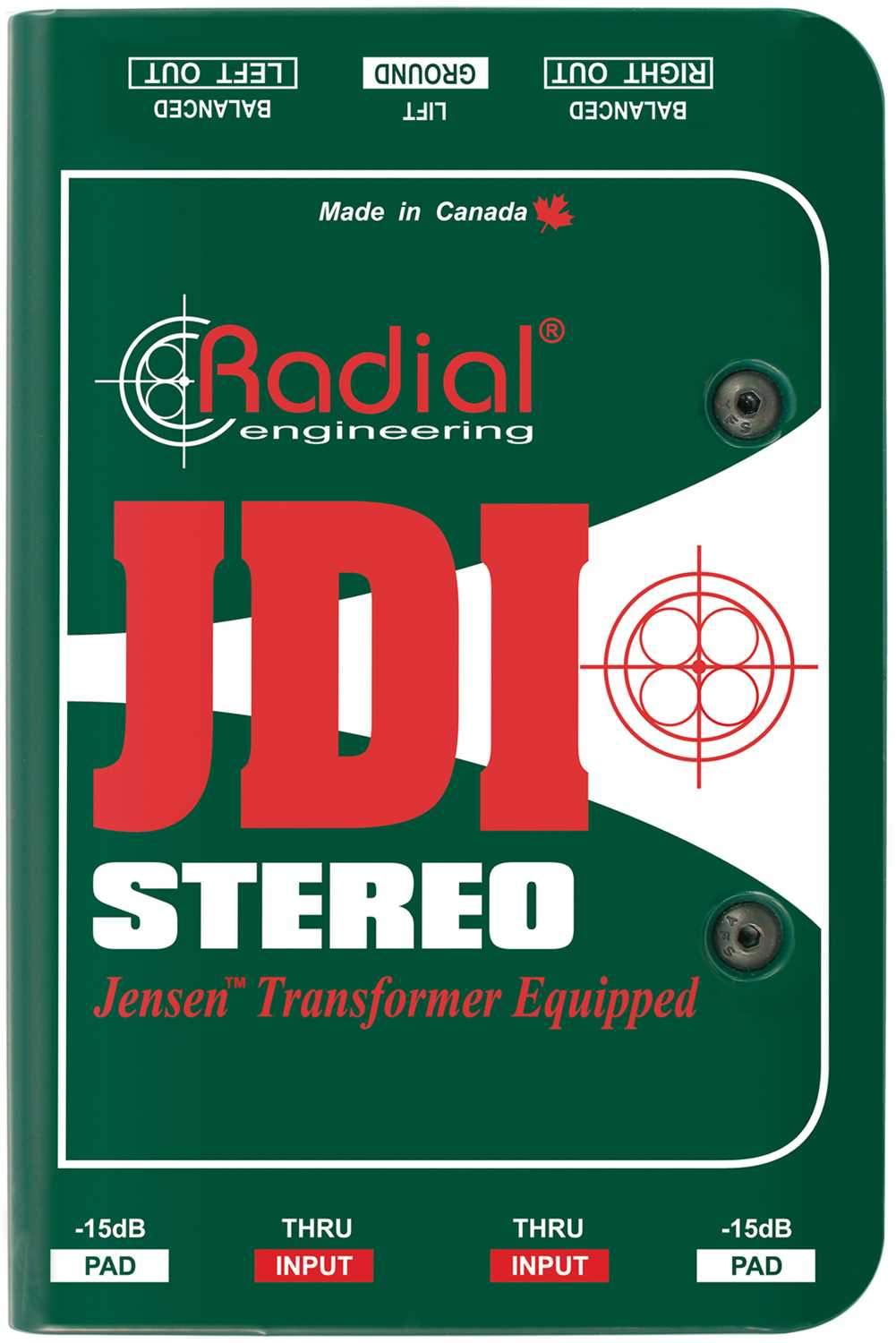

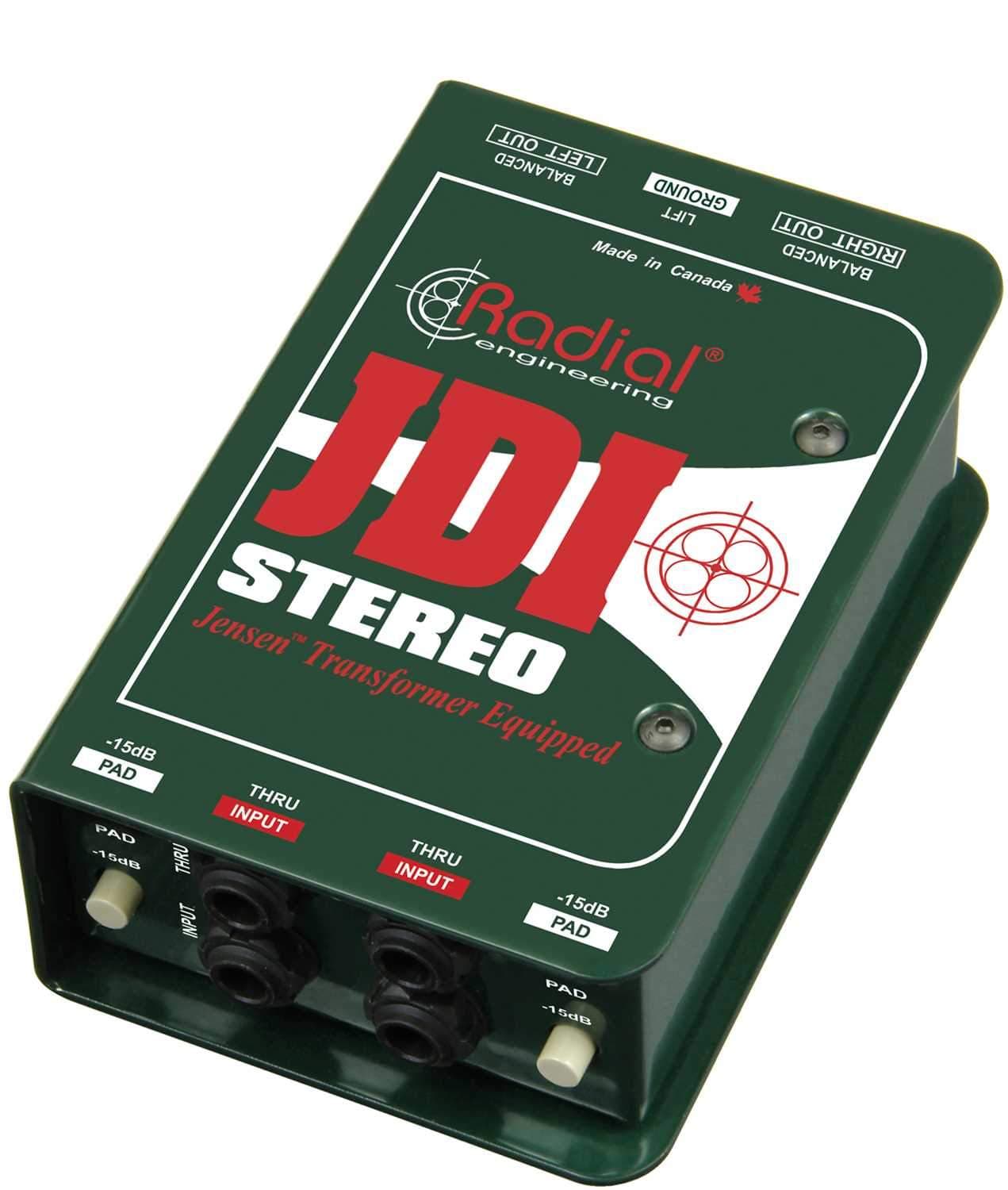

Radial JDI Stereo: Unleash Pure Sound in Your Music Setup
Experience unparalleled sonic clarity with the world's finest stereo direct box.
• Pure Instrument Sound: Delivers the natural, pure sound of any stereo instrument without distortion. Its passive two-channel design with Jensen JT-DB-EPC audio transformers offers a smooth, warm Bessel curve, like vintage gear. Zero phase deviation from 10Hz to 40kHz ensures no artifacts.
• Eliminates Ground Loops: Thanks to its no-power passive design, it performs high-to-low impedance conversion and signal balancing over a magnetic bridge, rejecting stray DC voltage and eliminating hum and buzz.
• Versatile Applications: Ideal for musicians. Connect two basses, acoustic guitars, or a stereo laptop with a controller keyboard to the PA system or amps. The Thru connectors let you feed two channels on your amp. The -5dB pad adjusts for active basses and high output keyboards.
Features:
- Jensen transformer equipped passive DI
- Eliminates hum and buzz from ground loops
- Virtually zero phase & harmonic distortion
- Exceptional signal handling and noise rejection
- Compact stereo format for twice the performance

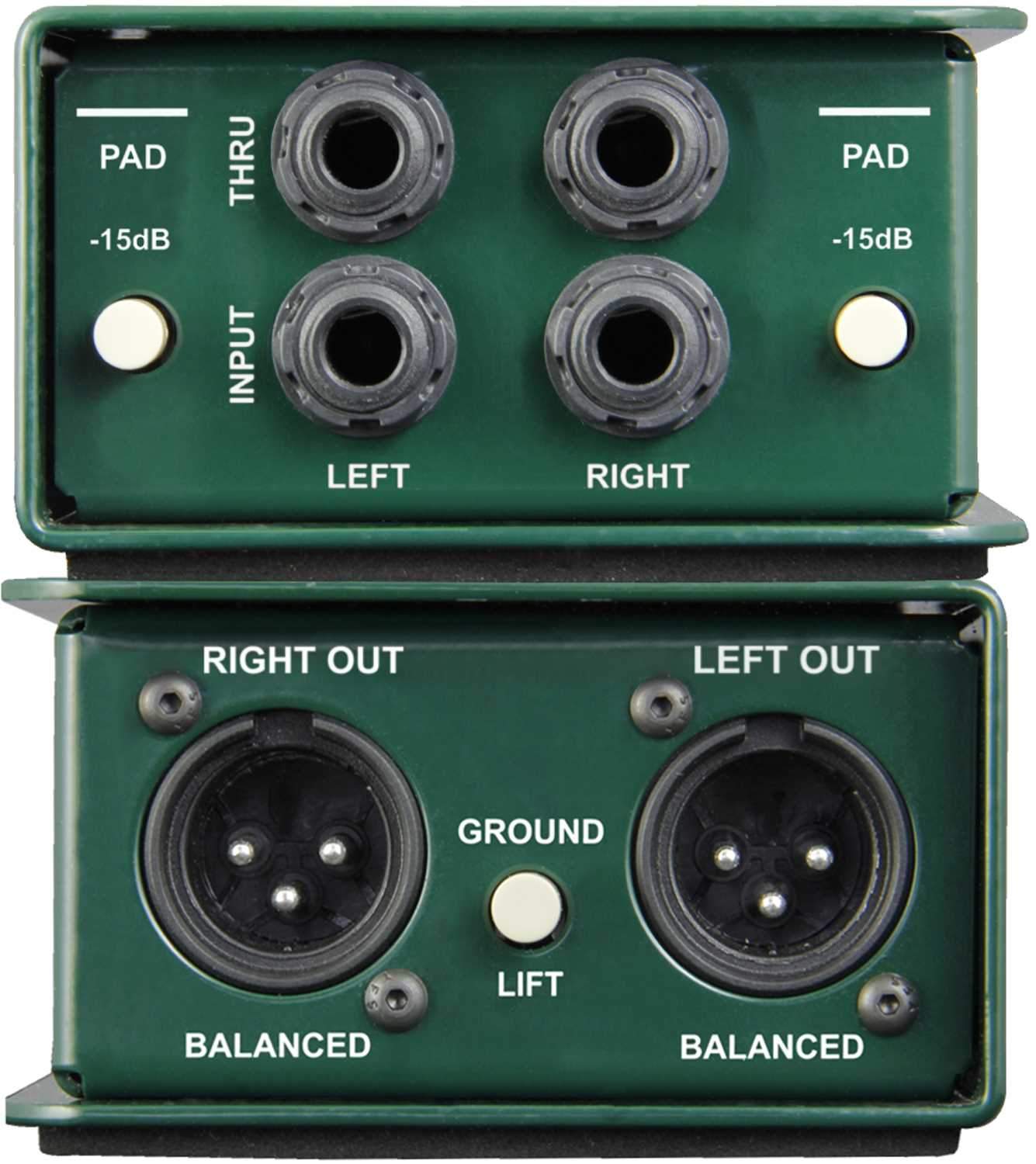

- Thru
Thru-put from the JDI Stereo to the amp. Hi impedance will not load instrument down. - Inputs Left & Right
Unbalanced 1/4' input jacks used to connect instruments to the JDI Stereo. - -5dB Pad
Reduces the input sensitivity for active basses and high output keyboards. - XLR Out

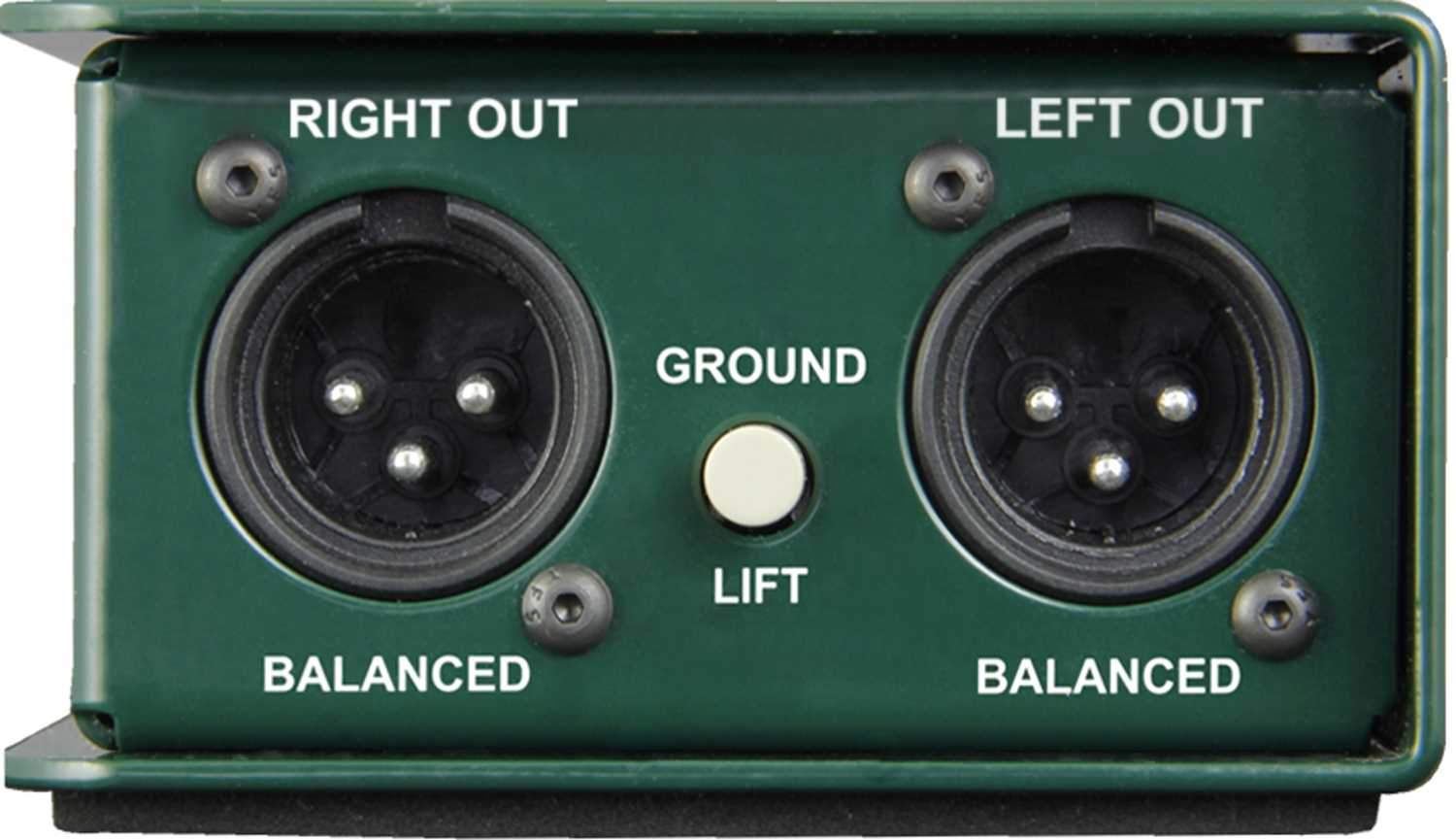

Balanced 150 mic-level output wired to the AES standard with pin-1 ground, pin-2 (+) and pin-3 (-). - Ground
Disconnects pin-1 at XLR output to reduce hum and buzz caused by ground loops. - No Slip Pad
Provides electrical & mechanical isolation and keeps the JDI Stereo from sliding around. - Powder Coat
Durable finish keeps your JDI Stereo looking great for years. - Mil-Spec PCB
Full ground plane for noise-free performance, double sided for durability. - Jensen Tranformers
Nickel core for the best signal transfer and MuMetal shield for protection against EMI. - Metal Switches
Rated at over 20,000 cycles for added durability and years of use. - Metal Switches
Rated at over 20,000 cycles for added durability and years of use. - Warranty:Radial 3-year, transferable
Specifications:
- Audio circuit type: Passive, transformer based
- Transformer: Jensen JT-DBE
- Number of channels:Two channels (dual mono)
- Frequency response:20Hz ~ 20KHz (± 0.2dB)
- Dynamic range: 135dB
- Total harmonic distortion:0.05% from 20Hz ~ 20kHz @-10dB
- Phase Deviation: 0.3° @ 100Hz; 3° @ 20Hz
- Input Impedance: 140k Ohms, unbalanced
- Output Impedance: 150 Ohms, balanced
- Maximum Input: +21dB @ 20Hz ~ 20kHz
- Features
- Input pad, Ground lift
- Input Connectors: Unbalanced 1/4'
- Output Connectors:XLR out, 1/4' thru
- General
- Construction:14 gauge steel chassis & outer shell
- Size (L x W x D):5' x 3.3' x 1.8' (127mm x 84.1mm x 45.5mm)
- Weight:1.55 lbs (703 grams)
- Shipping size (L x W x D):6.5' x 4' x 3' (165mm x 102mm x 76mm)
- Shipping weight:1.92 lbs (870.9 grams)
- Power:Passive, no power required
- Conditions:For use in dry locations only between 5°C and 40°C
The Radial JDI Stereo is a great choice for musicians looking to enhance their sound setup. It's perfect for connecting two basses, acoustic guitars, or a stereo laptop with a controller keyboard to the PA system or amps. With a compact size of 5' x 3.3' x 1.8' (127mm x 84.1mm x 45.5mm) and weighing 1.55 lbs (703 grams), it's easy to use and transport. Its passive design means no power required, making it convenient for any setup.
