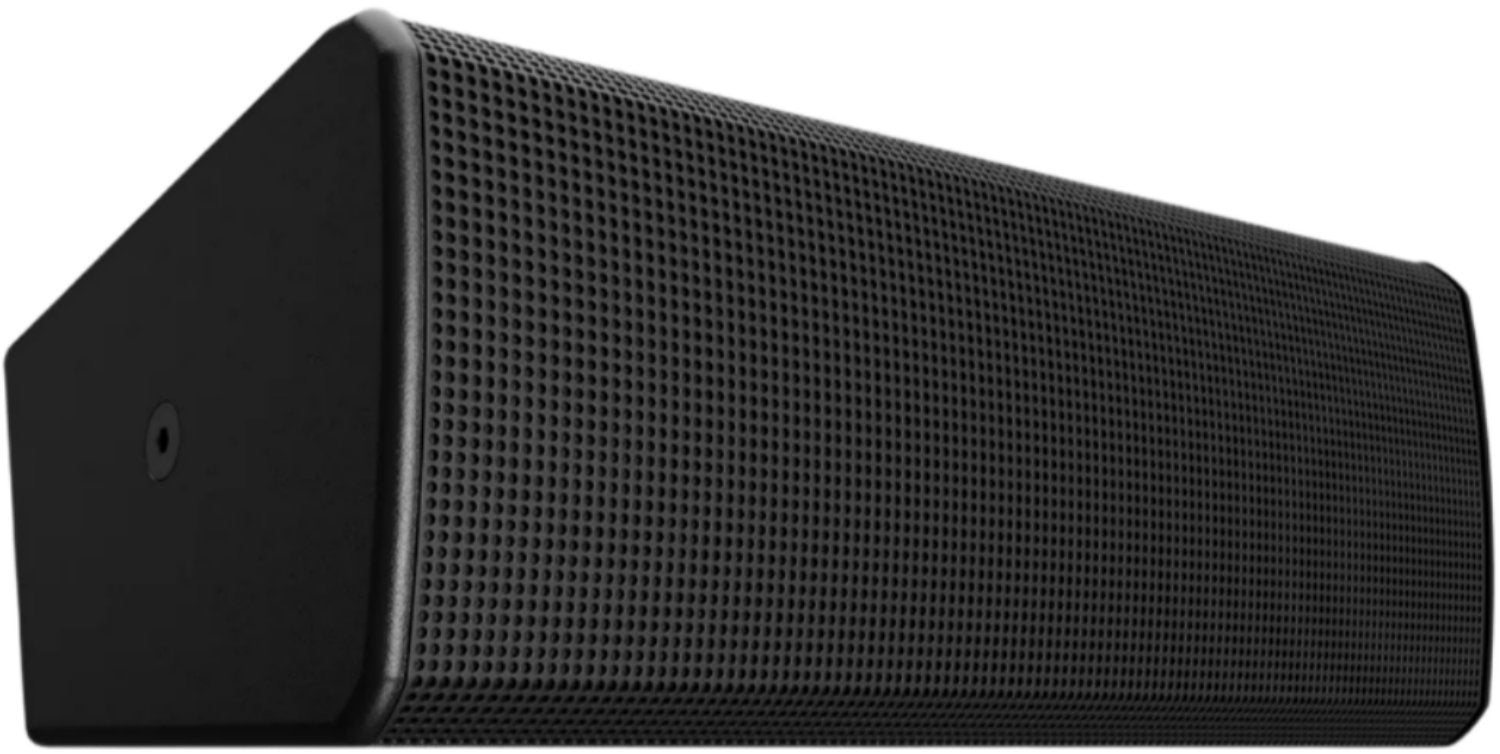

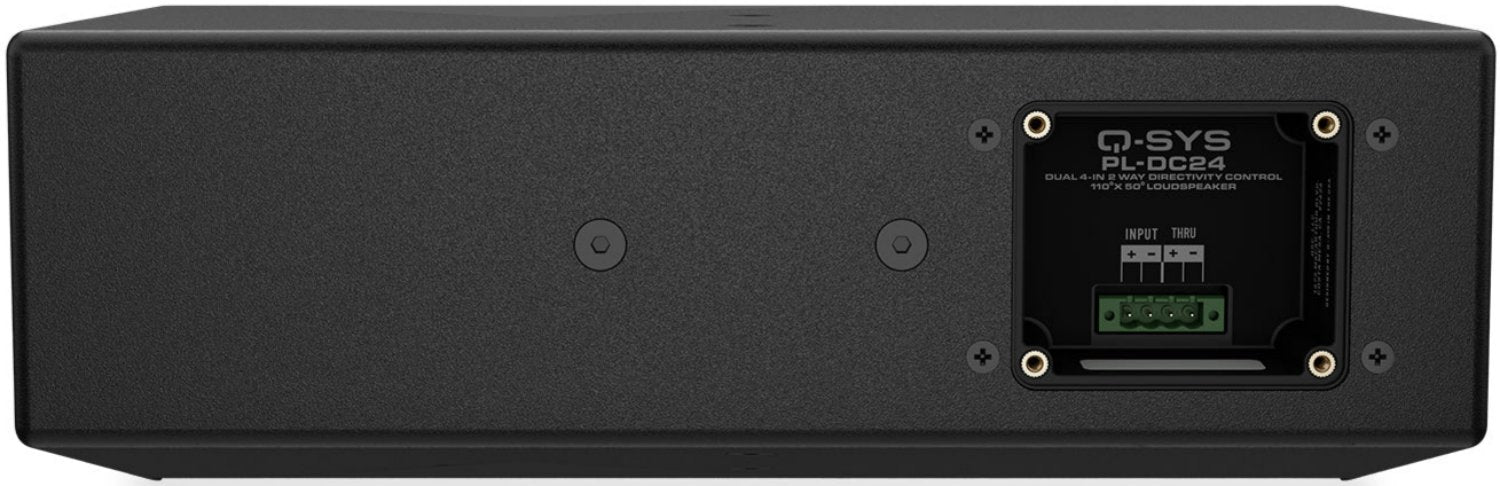

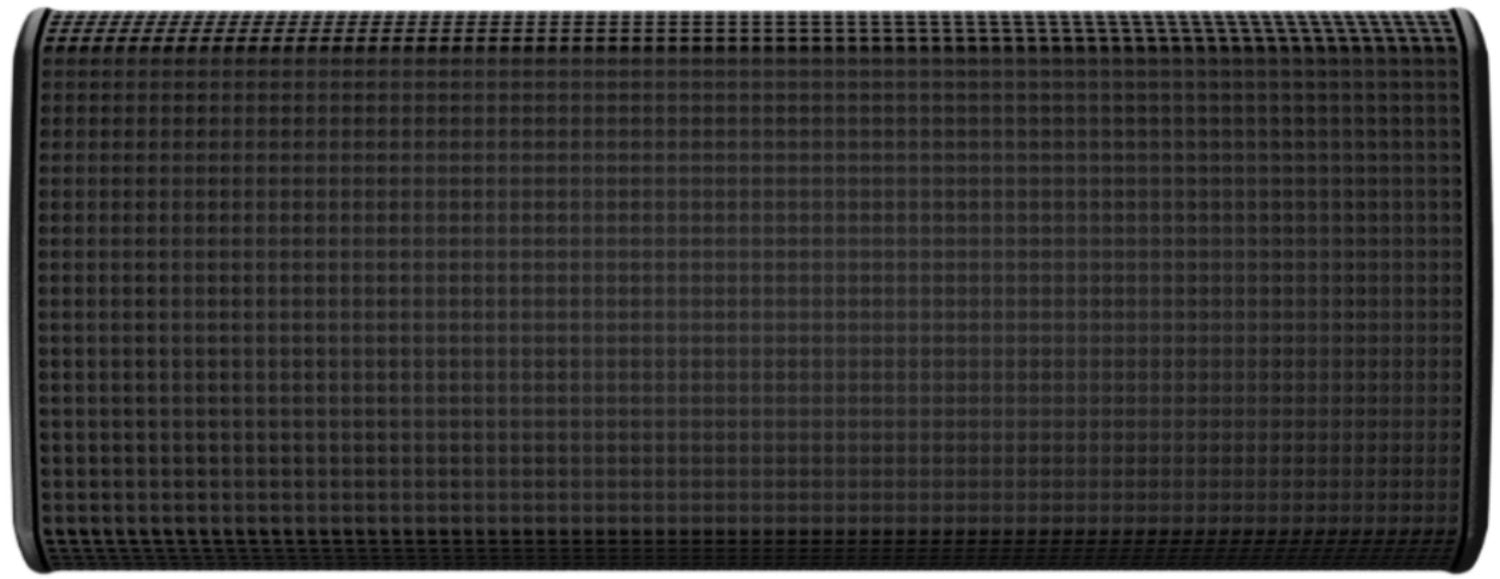

Q-SYS PL-DC24 2-Way Passive Dual 4-Inch Point Source Loudspeaker - Black
The Q-SYS PL-DC24 is an amazing compact, two-way passive point source loudspeaker with directivity control. It's perfect for delivering premium sound in various venue types like entertainment, hospitality, corporate, and higher education applications. • Compact and versatile for different venues. • Offers directivity control for great sound. • Ideal for filling in coverage areas.
Features:
- Dual-4-inch LF transducers + HF compression driver in a bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Fixed horn with 110° (horizontal) x 50° (vertical) coverage
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
- Several mounting options available for a variety of spaces and venue requirements
Specifications:
- Transducers:
- LF: 2x 4 in (102 mm), 1.3 in (33 mm) voice coil, neodymium
- HF: Compression driver, 1 in (25 mm) voice coil
- Enclosure Configuration: Two-way, passive point source loudspeaker in bass reflex enclosure
- Coverage (horizontal x vertical): 110° x 50°
- System Sensitivity: 97.3 dB @ 1 W/1 m
- Max SPL (continuous): 114 dB
- Enclosure Material: Exterior plywood
- Enclosure Color: Black (RAL 9011)
- Weatherization:
- IP54
- External plywood
- Stainless screws
- Treated grille vs. UV and corrosion
- Hydrophobic stainless steel mesh behind grille
- Polyurea Paint
- Input cup (IP65) sealing with gland
- Recommended Amplifiers:
- Q-SYS CX-Q 8K4 (up to 4 per channel)
- Q-SYS CX-Q 4K4 (up to 3 per channel)
- Q-SYS CX-Q 2K4 (up to 2 per channel)
This Q-SYS PL-DC24 loudspeaker is perfect for entertainment, hospitality, corporate, and higher education venues. It's a compact two-way passive point source speaker with great sound quality. The dimensions and weight details are not provided in the given content. It has a fixed horn with 110° (horizontal) x 50° (vertical) coverage, and can be paired with Q-SYS CX-Q 4ch network amplifiers for custom voicings and better sonic performance. There are several mounting options available to fit different spaces and venue requirements.
