Q-SYS JSD-60DN 8-Channel Digital Cinema Audio Processor

Q-SYS JSD-60DN Digital Cinema Audio Processor: Your Gateway to Immersive Sound

Enhance your digital cinema experience with the USL JSD-60 cinema sound processor. Enjoy low noise and low distortion 96 kHz processing for superb performance. The six standard formats, along with user-configurable format buttons, support a variety of existing and future formats. Duplicate formats at different fader levels for easy volume changes between content types. The front panel display shows the current fader level, format name, and audio level on each audio output. The built-in bypass audio circuitry ensures uninterrupted presentations even in case of system failure.

The USL JSD-60 is automation-friendly, featuring a standard DB25 parallel automation interface, an RS-232 (EIA232) interface, and Ethernet. The Ethernet interface accepts 5 simultaneous TCP connections for control by a digital cinema server and other equipment, while being monitored over another TCP connection.

The USL JSD-60 graphical user interface simplifies installation with sound pressure level measurement and automatic equalization. System monitoring, control, and firmware update functions are accessible via a standard web browser.

The USL JSD-60 includes a precision 1/3 octave RTA using ANSI S1.11-1986 filters and sound pressure measurements with the C-weighted filter specified in ANSI S1.4-1983. The RTA and SPL meter can be used for manual or automatic auditorium equalization. The auto-EQ feature uses user-defined microphone calibration files and standard or user-defined equalization curves to automatically adjust the graphic equalizer on each channel.

The USL JSD-60 is diagnostic-friendly, logging the last 15,000 events (format changes, level changes, internal temperature, loss of AES/EBU audio, etc.) to internal flash memory. Review log data on the GUI or web interface. Check the current operational status, including selected format, fader level, and measured audio output levels, on the GUI, web interface, or via SNMP. An optional plug-in module decodes Dolby Digital and DTS encoded content, and an optional crossover card supports bi-amp operation for three screen channels with two LFE outputs.

The USL JSD-60 offers a variety of processing and output options. Processing options include Dolby Digital and DTS decoding or not. Output options include standard 8-channel analog, 8-channel analog with bi-amp for 3 screen channels, AES/EBU, and BLU link. All units have analog HI/VI-N.

Features:

• • 96 kHz digital processing for crystal-clear sound
• • 8 channel AES/EBU input, one coax (SPDIF) and one TOSLINK optical, with optional Dolby Digital and DTS decoding for versatile audio connections
• • Analog formats include six channel balanced input, stereo unbalanced input with matrix decoding, and one microphone input with phantom power for flexible audio sources
• • Outputs include 8 channels of balanced analog audio, plus HI/VI-N balanced outputs for high-quality sound delivery
• • Optional three channel bi-amp digital crossover for enhanced audio performance
• • Seven fully configurable format buttons to handle audio level changes and 5.1, 7.1 switching with ease
• • Audio/Video synchronization delay configurable for each format (0-190ms) plus a surround delay (0-150ms) for precise timing
• • Three automation inputs include one DB25, one RS232 and one RJ45 Ethernet for seamless integration
• • Remote monitoring via 10/100Mbps Ethernet for convenient system oversight
• • SD memory card to backup and store all settings for easy configuration management
• • Bypass supports all inputs for uninterrupted audio
• • Auto EQ included for optimized sound quality
• • Drive-in Support included for added convenience

Specifications:

• General:
• Dimensions (HxWxD): 1.75' (1 RU) x 19' x 10.375' for easy installation
• Line voltage requirements: 100 VAC – 240 VAC, 50/60 Hz, 30 watts for wide compatibility

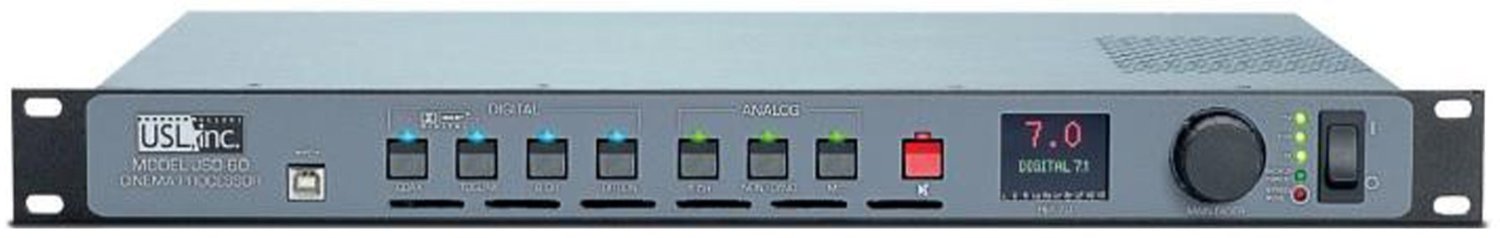

• Front Panel Controls and Indicators:
• Main Fader: Rotary encoder for precise volume control
• Digital Input Select Buttons: Coax, Toslink, Digital 8CH, Option for easy input selection
• Analog Input Select Buttons: Analog 6CH, Non-sync, Mic for diverse analog source selection
• Master Mute: Push button for quick audio muting
• Power On Switch: Rocker Switch for convenient power control
• Power Supply status: Five LED indicators for visual status monitoring
• USB Type B port: Config and management interface for easy device configuration
• Display: Fader level, format, audio output level for clear status visibility
• Rear Panel Connectors:
• PA/Calibration Microphone: XLR / ” phone jack for microphone connection
• Six Channel Analog: DB25F for six-channel analog connections
• Non/Sync: 2 x RCA for non-sync audio connections
• Hearing Impaired and Visually Impaired: Narrative: Phoenix connector, Coaxial: RCA with transformer input, TOSLINK: Optical for inclusive audio options
• 8 Channel Digital AES/EBU: DB25F and RJ45 for digital audio connections
• Removable Memory Card: SD compatible for data storage
• Serial Control: RS-232 on DB9F for serial control
• Pulse Automation: DB25F for pulse automation
• 10/100M Ethernet: RJ-45 for network connectivity
• DC 12V Power Connector: 5mm with 2.5mm pin for power supply
• AC Power: IEC socket, 100-240VAC, 50/60Hz, 18W typ. for reliable power input
• Eight Channel Audio Output: DB25M for eight-channel audio output
• Crossover Audio Output: DB25M for crossover audio output
• BLU link Audio Output: 2 x RJ45 connectors (BLU link option only) for BLU link audio output
• Audio Performance:
• A/D conversion: 96 kHz for high-quality audio processing
• Frequency response: 20 Hz to 20 kHz (+- .5dB) for accurate sound reproduction
• Dynamic Range: 105 dB (typ.) for wide audio range


The Q-SYS JSD-60DN Digital Cinema Audio Processor is designed for digital cinema applications. It has dimensions of 1.75' (1 RU) x 19' x 10.375' and operates on a line voltage of 100 VAC – 240 VAC, 50/60 Hz, with a power consumption of 30 watts. This processor is perfect for theater owners, audio engineers, and anyone looking to enhance the audio experience in a digital cinema setting. It offers a range of features to deliver high-quality sound, such as 96 kHz digital processing, multiple input and output options, and user-configurable format buttons. The built-in bypass circuitry ensures uninterrupted presentations. With its automation-friendly interfaces and diagnostic features, it simplifies system management and monitoring.
