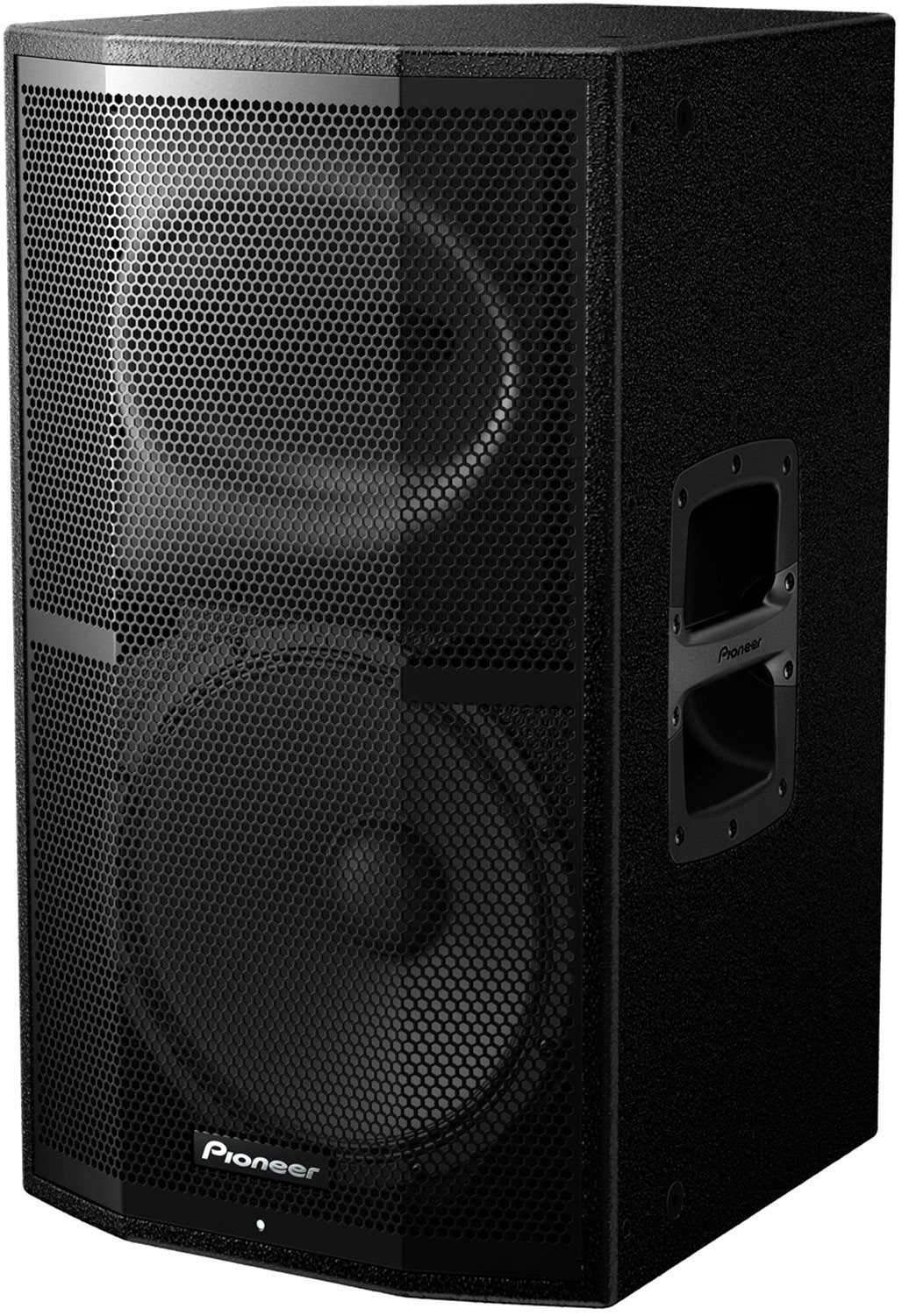

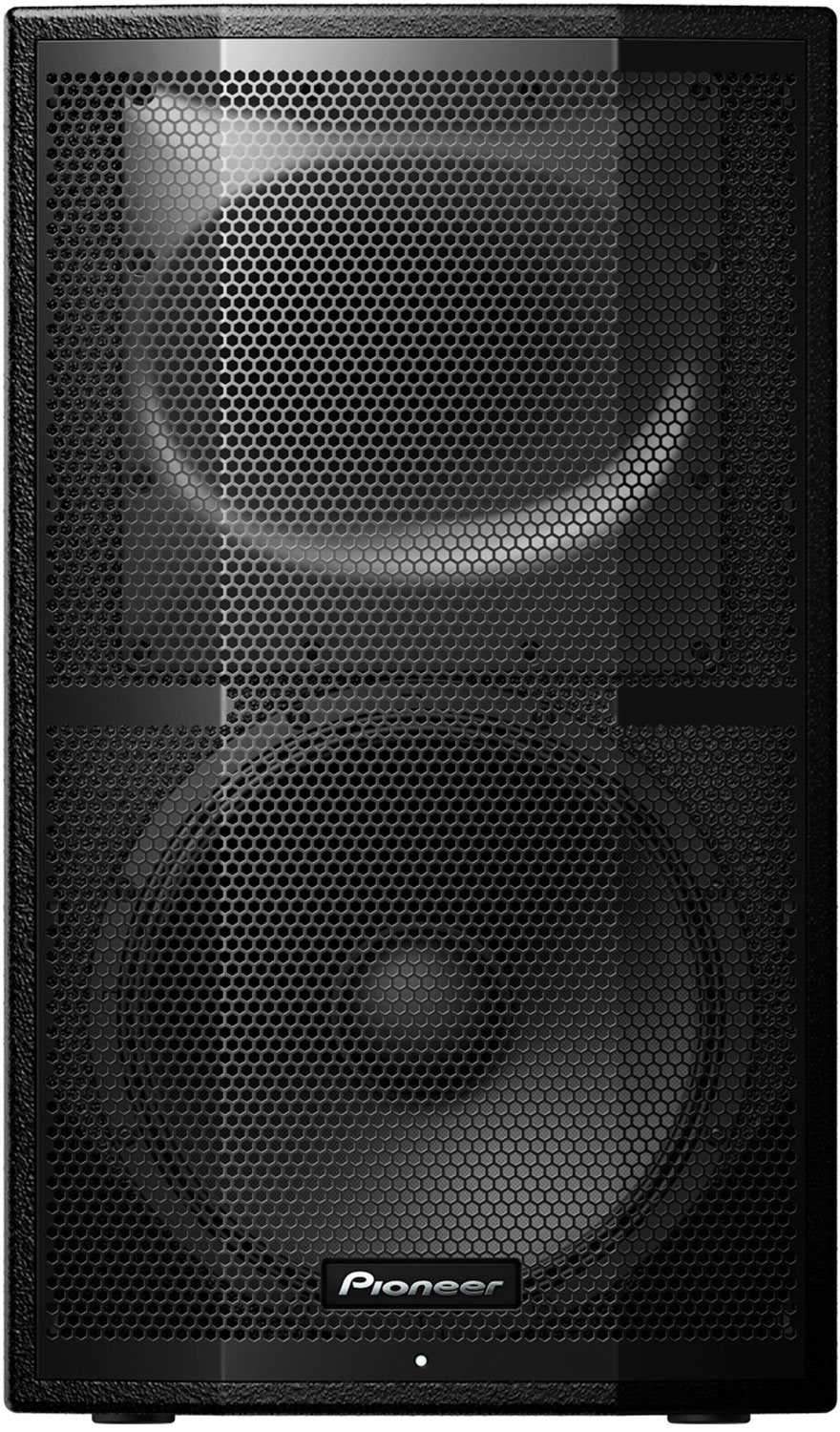

Pioneer DJ XPRS12: The Ultimate 12-Inch 2-Way Powered Speaker
Get the party started with the XPRS Series of high-powered active speakers. This compact, portable, wooden enclosure speaker combines Pioneer DJ's audio expertise with Powersoft's reliable, energy-efficient amps. It's a versatile plug-and-play system that fills the room with natural sound.
Key Features:
- Powerful Amps: Powersoft's Class D amp modules deliver 2400 W (peak) or 1200 W (continuous) output, like larger standalone speaker amps. They have Power Factor Correction (PFC) for reduced power consumption and steady performance anywhere. The auto-ranging power supply means you can use it worldwide, even with generators or temporary power supplies.
- Versatile Connectivity: With two balanced XLR/TRS combo sockets and an unbalanced RCA connection, you can connect a MIC and other external devices simultaneously. Use an AUX cable to connect and play directly from portable audio players, line-level mixers, and tablets/smartphones. Control each input individually or with master controls. Plus, two balanced XLR through output terminals enable easy connection to other speakers and subs.
- Exceptional Sound Quality: Enclosed in 15 mm birch plywood cabinets, the speakers deliver a natural, dynamic sound. Pioneer's patented AFAST technology reduces standing waves for a clearer low to mid range. An acoustic tube absorbs standing waves, enhancing low frequency response. The XPRS12 uses lightweight 12-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.
Additional Features:
- Rotatable Horn: The rotatable horn offers 90 x 60 degrees dispersion and can be rotated by 90 degrees. Mount the speakers vertically or horizontally for flexible coverage.

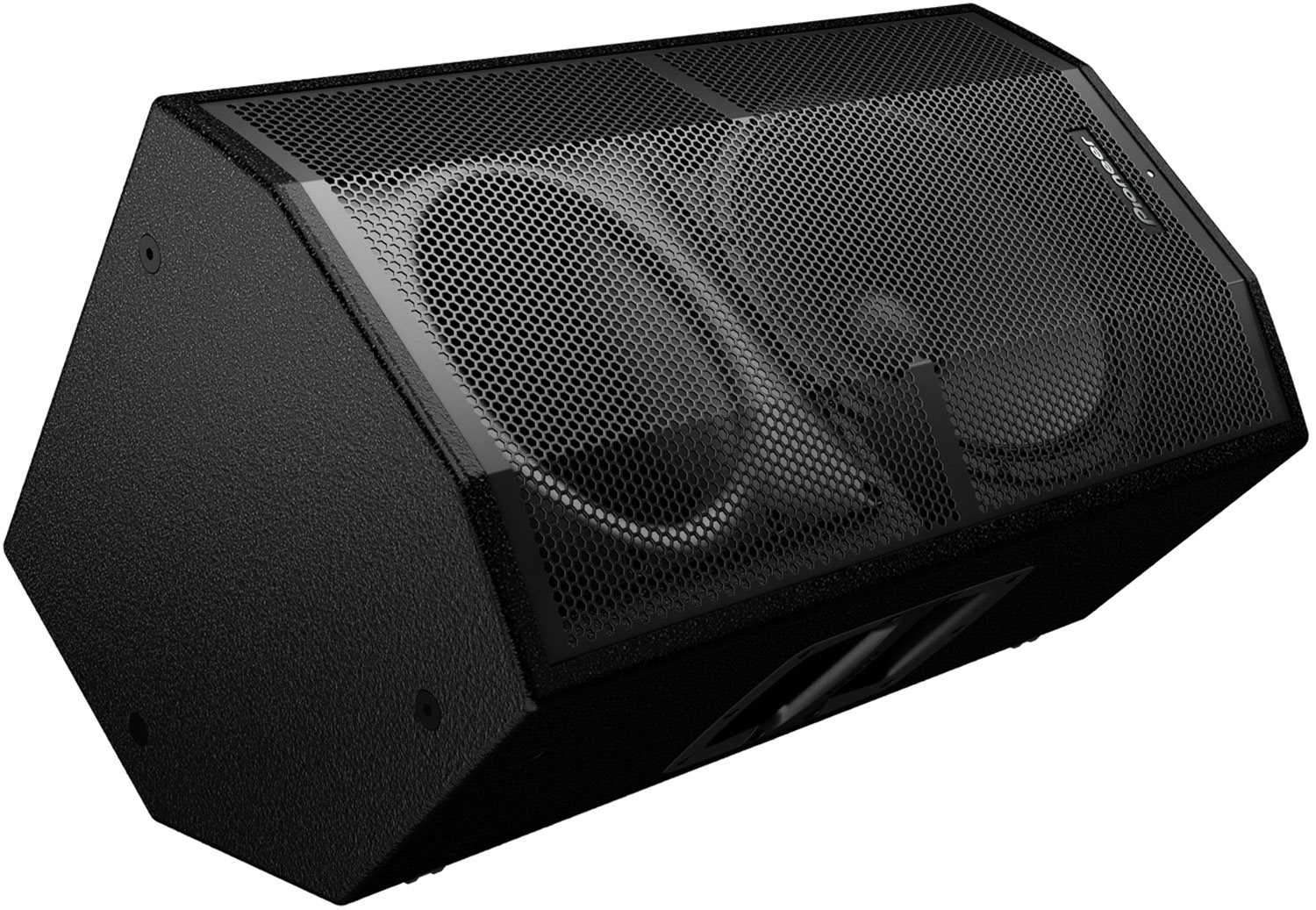

- Wedge Shape: The wedge-shaped design makes it ideal for floor monitors. Or set the polemount socket to straight or tilted 7 degrees to direct the sound where you want it.
- EQ Modes: Choose from four EQ modes for different genres and environments: Flat for neutral sound, Bass + for dance music, Speech for clear vocals, and Wedge for balanced sound as a floor monitor.
- Speaker Protection: Features like DC offset removal, stationary high frequency protection, input and output voltage limiters keep the speaker safe.
- Power Protection: AC mains over-voltage protection safeguards against power surges. The status LED on the front has three settings for visual reference.
Specifications:
- Speaker type: 12' 2-way full range, bass reflex, bi-amp, active speaker
- Frequency response(–10 dB): 50 Hz to 20 kHz
- Dispersion (H x V): 90° x 60° (rotatable)
- Maximum SPL (peak@1m/1w): 135 dB
- Crossover frequency: 2.0 kHz
- Amplifier type: class D
- Power rating: 2400 W peak / 1200 W cont. (LF800 W/HF400 W)

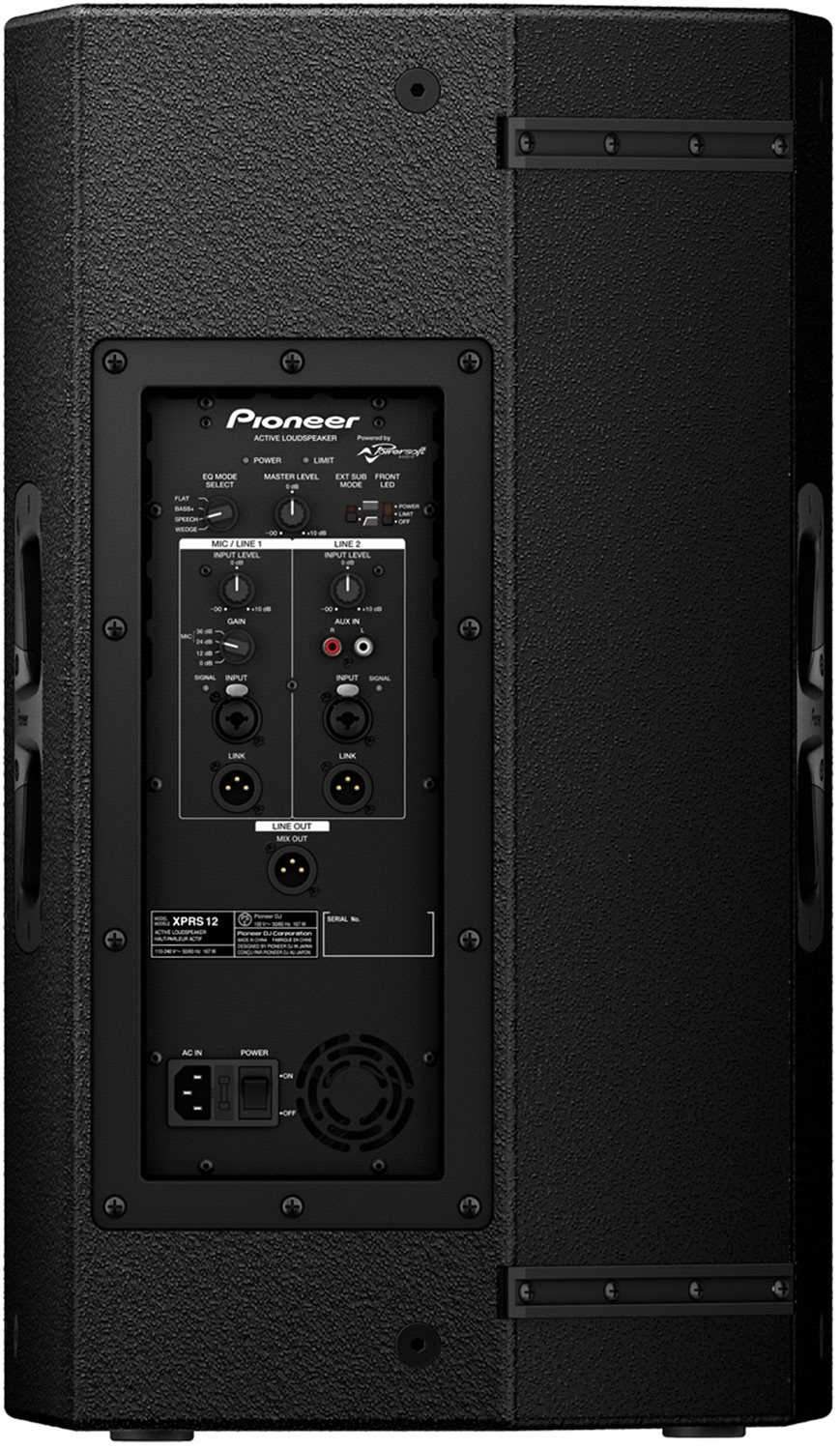

- Input connectors: 2x XLR/TRS combo (balanced), 2x RCA (unbalanced)
- Impedance: 10 kΩ
- Output connectors: 2x Through output XLR (balanced); 1x Mixed output XLR (balanced)
- LF driver: 12-inch ferrite LF cone driver
- HF driver: 1.75-inch titanium diaphragm neodymium compression driver
- Enclosure: 15 mm birch plywood, bass reflex type
- Finish: impact-resistant, black semi-matt textured

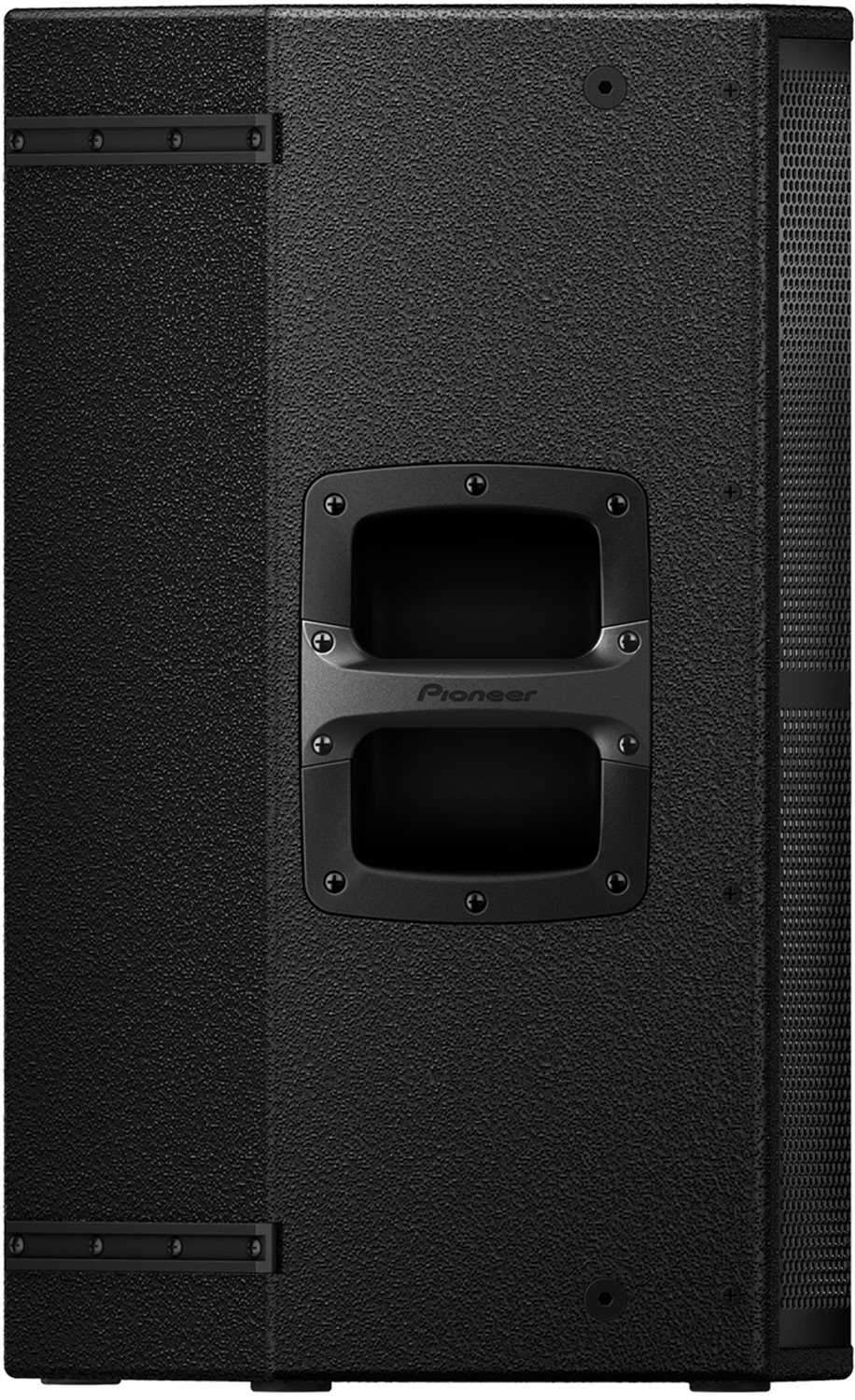

- Handle: 2 (on both sides)
- Pole socket: 35 mm socket (0°/7° multi-angle)
- Rigging point: 12x M10
- Amplifier protection: thermal limiting, over-temperature muting, output overcurrent
- Driver protection: DC offset removal, high frequency stationary loud signals, input voltage limiter (peak/RMS)
- Power unit protection: primary AC mains overvoltage protection, Primary AC mains overcurrent protection
- Supported voltages: 100 V (50 Hz/60 Hz) / 110 V to 240 V (50 Hz/60 Hz)
- Power consumption: 167 W
- Dimensions: 380mm x 647mm x 398mm (W x H x D)
- Weight: 23.1 kg
The Pioneer DJ XPRS12 is a 12-inch 2-way powered speaker designed for DJs, musicians, and event organizers. It's compact and portable, making it perfect for gigs, parties, and small venues. With its powerful amps, versatile connectivity, and exceptional sound quality, it delivers a professional audio experience. The speaker has a frequency response of 50 Hz to 20 kHz, a maximum SPL of 135 dB, and dimensions of 380mm x 647mm x 398mm (W x H x D). It weighs 23.1 kg.
