Midas MIDASDL 442 8 XLR I/O Card for Pro Series

Midas PRO Series' 8 XLR I/O Card - DL442

Unleash your audio potential with the DL442! This modular 8 - analogue line level output card is a must - have for MIDAS PRO Series control centers and modular I/O boxes. • It offers high - performance servo - balanced electronic outputs with strong output current drive, perfect for long cable runs. • The premium low - latency 24 - bit 96 kHz DAC converters minimize distortion and noise, ensuring crystal - clear sound. • And if the audio signal path is muted via the PRO Series control center, the DL442 automatically mutes the output.

Features:

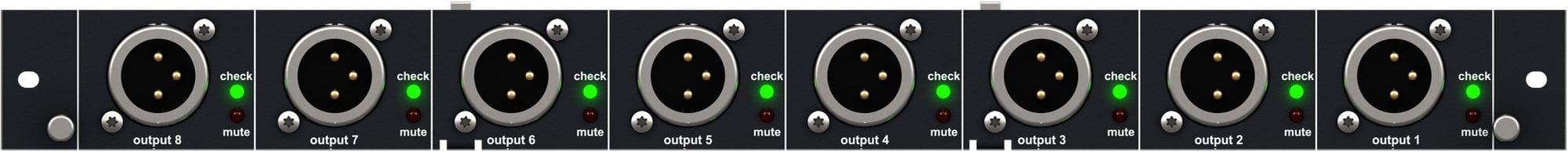

• 8 electronically balanced outputs on Neutrik* XLR connectors
• Low latency 24 bit 96 kHz DAC converters
• High output current drive for long cable runs
• Output mute and channel check LEDs per channel
• Compatible with Midas PRO3, PRO6, PRO9, PRO X, DL351 and DL451
• Designed and engineered in the U.K.

Specifications:

• Sample rate: 96 kHz
• Dynamic range: >110 dB unweighted (20 Hz - 20 kHz)
• Maximum output level: +21 dBu
• Noise (Unity gain): <-89 dBu unweighted (20 Hz - 20 kHz)
• Frequency response: ±0.5 dB (20 Hz - 20 kHz, relative to 1 kHz)
• THD+N (Unity Gain): <0.01%
• Crosstalk @ 1 kHz: <-90 dB
• Output impedance: 50 O
• Connectors: 3 - pin Male XLR Balanced

The DL442 is an 8 - analogue line level output card designed for MIDAS PRO Series control centers and modular I/O boxes. It's perfect for audio professionals who need high - quality sound output. Technical specs include 8 electronically balanced outputs on Neutrik XLR connectors. The card is designed in the UK. It has features like high output current drive for long cable runs, low latency 24 - bit 96 kHz DAC converters, and output mute facility when the audio signal path is muted via the PRO Series control center.
