Lightware MX8X8 DVI HDCP Matrix Switcher - The Ultimate AV Solution
Are you an AV professional or a high - end home theatre enthusiast? Look no further! This amazing matrix switcher is here to revolutionize your audio - visual experience.
Why Choose Our Matrix Switcher?
- • Unmatched Flexibility: With eight inputs and eight outputs, you can switch any input to any output without delay. •
- • High - Tech Compatibility: Supports the latest HDMI 1.3 standard, connecting seamlessly to BluRay players, set - top boxes, AV receivers, or Apple TV. •
- • Advanced Features Galore: Comes with status LED for signal detection, frame detector, and high - power DVI 5V output. •
This router is a game - changer for AV setups. It has 29 pole screw - lockable DVI - I connectors and sophisticated software and hardware features. Whether you're in a professional AV installation or setting up your dream home theatre, this switcher is the perfect choice.
Features:
- Status LED for video signal detection
- Frame Detector (analyze detailed video timings)
- High power DVI 5V output (for fiber adapters, etc)
- PCM audio subsampling by 2x or 4x
- Active fan cooling
- Directly mountable in 19' rack
- Built - in universal power supply
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- Automatic or adjustable color space and color range conversion
- Input cable equalization up to 50m at 1080p60Hz (with 24 AWG high quality DVI/HDMI cable)
- HDCP enable/disable function on input
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
- Uncompressed video up to 6.75 Gbps datarate (225 MHz pixel clock)
- Vista Spyder and Barco Encore compatibility
- Device control via Ethernet (TCP/IP) and RS - 232
- Advanced EDID Management (50 Factory presets, 50 user programmable slots)
- Advanced EDID Management
- Save and reload full crosspoint configurations as preset

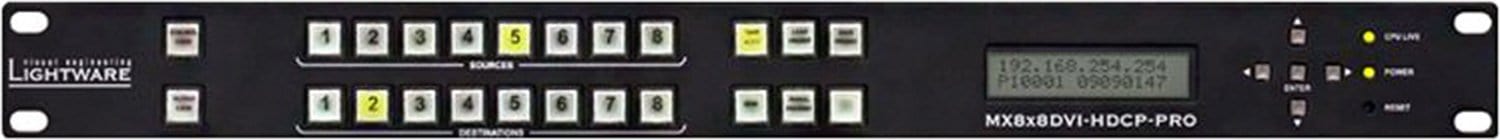

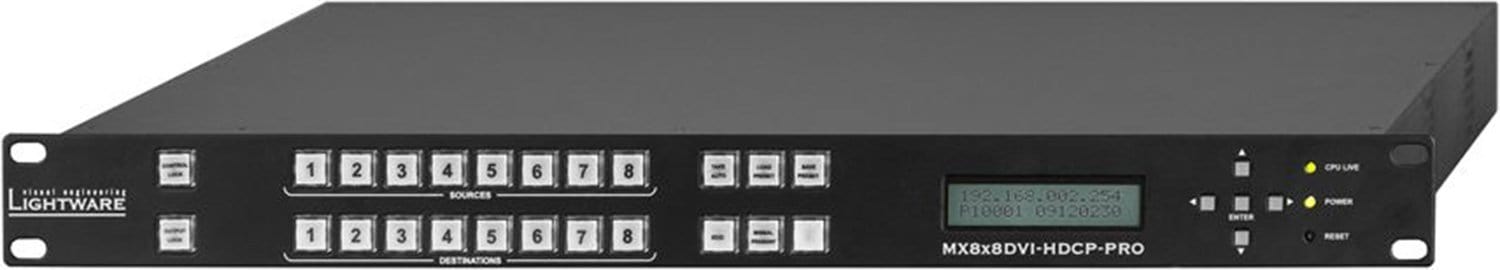

- Front panel LCD menu and buttons for crosspoint control
- Intuitive control software for device configuration
- Front panel buttons for crosspoint control
- Fully non - blocking switching architecture
- Built - in website for device configuration
- Supports deep color signals (24/30/36 - bit RGB/YCbCr 4:4:4)
- Pixel Accurate Reclocking
- No video compression
- HDCP 1.4 compliant
- Firmware upgrade through Ethernet
- Automatic or adjustable video format conversion (DVI, HDMI or HDMI deep color)
- No signal latency, zero frame delay
Specifications:
- Routing
- 8x8 non - blocking: any input(s) to any output(s)
- Bit rate: 2.25 Gbit/s per color
- Resolution: 640x480 to 1920x1200 or 2048x1080 deep color
- EDID memory 50 factory preset, and 50 user programmable
- EDID emulation 256 Byte Extended EDID v1.3

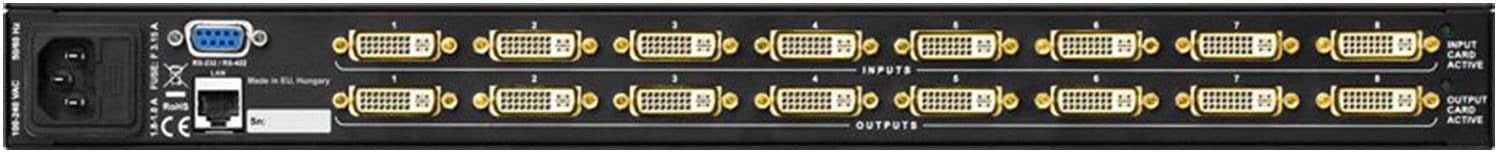

- Connectors
- Power: IEC standard
- Inputs: 29 pole DVI
- Outputs: 29 pole DVI
- Serial control: 9 pole D - sub
- Ethernet: RJ45
- Control
- Front panel buttons: Yes
- RS - 232/422: 9600 Baud Rx; Tx
- LAN: Ethernet 10Base - T or 100Base - TX (Auto - Sensing)
- WEB: built - in website
- Power:
- Power consumption: 72,6W (typ) 94,3W (max)
- Housing: 1U rack mount metal enclosure
- Compliance: CE
- Dimensions: 446 (482)W x 413D x 43,9H mm
- Net weight: 6.52 Kg
This Lightware MX8X8 DVI HDCP Matrix Switcher is perfect for AV professionals in commercial installations and high - end home theatre enthusiasts. It has eight inputs and eight outputs with 29 pole screw - lockable DVI - I connectors. The switcher supports the latest HDMI 1.3 standard, allowing connection to devices like BluRay players, set - top boxes, AV receivers, or Apple TV. It has a 1U rack mount metal enclosure, with dimensions of 446 (482)W x 413D x 43.9H mm and a net weight of 6.52 Kg. It's CE compliant and has an IEC standard power supply. Control options include front - panel buttons, RS - 232/422 (9600 Baud Rx; Tx), LAN (Ethernet 10Base - T or 100Base - TX auto - sensing), and a built - in website.
