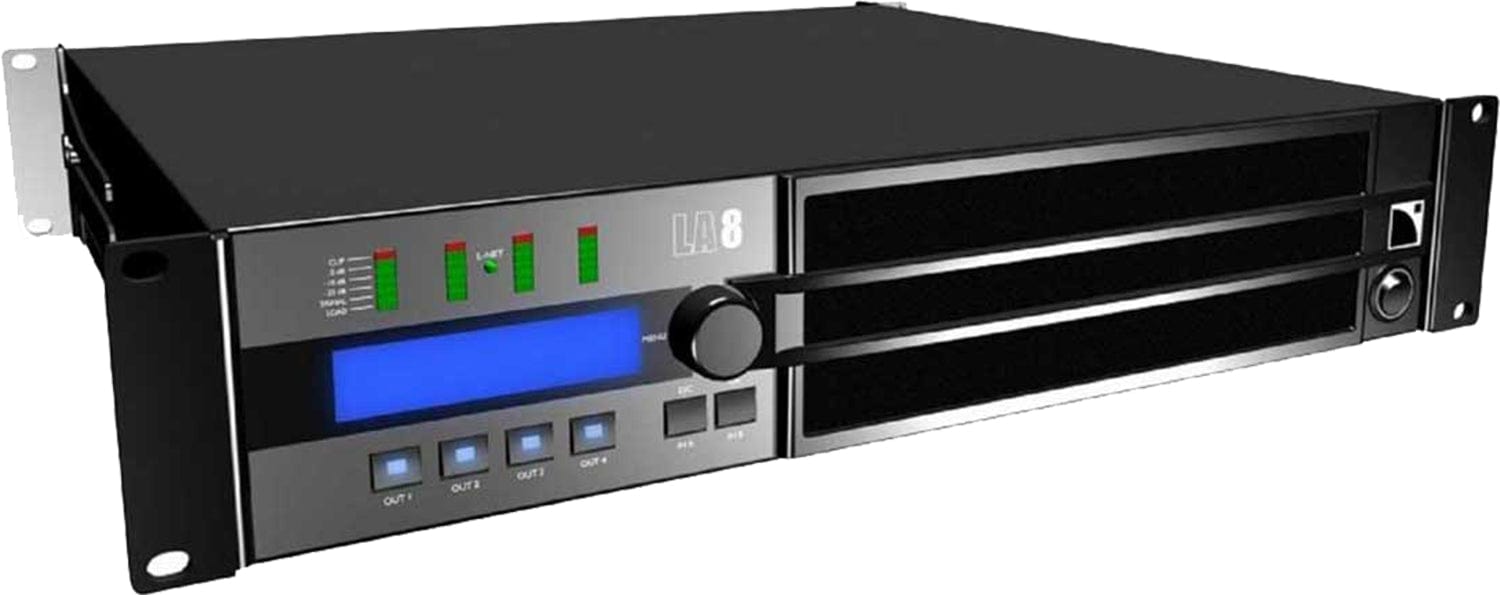

L-Acoustics LA8 US Amplified Controller 4x1800 watt 4-Ohms

Powerful L-Acoustics LA8 US Amplified Controller - 4x1800 watt 4-Ohms

The LA8 amplified controller is a high-end integrated controller for L-ACOUSTICS loudspeaker systems. It combines a 2 x 4 DSP engine, four-channel amplification, presets, and user-friendly interface in a 2U chassis.• Advanced amplification, DSP, and network features• High-grade 24 bit A/D converters with 130 dB dynamic range• 96 kHz/32 bit floating point SHARC DSP

Features:

• Cutting edge loudspeaker amplification, DSP, network
• High-grade 24 bit A/D converters, 130 dB dynamic range
• 96 kHz/32 bit floating point SHARC DSP
• 4 channel high efficiency amplifier section fed by 2 inputs
• LA4: 4X1000W/4 Ohms, LA8 4X1800W/4 Ohms
• Advanced dual IIR/FIR filter algorithms
• Exclusive L-DRIVE system protection
• Complete onboard L-ACOUSTICS preset library
• LA NETWORK MANAGER 2.0 PC software for remote control & monitoring
• AES/EBU Standard on LA8 and LA-RAK

Specifications:

• Dimensions (W x H x D):
  • 483 x 88,1 (2U) x 428 mm
  • 19 x 3.5 (2U) x 16.8 inch
• Weight: 12.7 kg / 27.9 lbs
• Finish: Black and anthracite gray
• Output power:
  • EIA (1% THD, 1 kHz, all channels driven)
  • 4 x 1100 W at 8 (4 x 1300 W peak) / 4 x 1800 W at 4 (4 x 2500 W peak)
• Max output voltage: 150 V (Peak voltage, no load)
• Circuitry: Class D
• Digital Signal Processor (DSP): DSP SHARC 32 bit / floating point, 96 kHz sampling rate
• Frequency range: 10 Hz-20 kHz (±1.5 at 8 )
• Distortion THD+N (typical): < 0.05 % (20 Hz-10 kHz, 8, 11 dB below rated power)
• Output dynamic range: 112 dB (20 Hz-20 kHz, 8, A-weighted)
• Amplification gain: 32 dB
• Noise level: -72 dBV (20 Hz-20 kHz, 8, A-weighted)
• Channel separation: > 85 dB (at 1 kHz)
• Damping factor: > 600 (8, 1 kHz and below)
• Mains ratings: 120/230 V AC (±10 %), 50-60 Hz
• Operating temperature: From -5°C to +50°C (environment) From -5°C to +85°C (internal)
• Circuits protection: Temperature monitoring of transformers and heat-sinks, inrush-current limitation, mains supply failure and over-voltage detection, output DC protection, output over current protection
• Transducers protection: L-DRIVE thermal and over excursion monitoring
• Fans: 2 temperature dependent speed-controlled axial fans
• Indicators: LED for Load, Signal, Level (-25 dB, -10 dB, -5 dB), Clip, L-NET, and Mute
• Output Connectors:
  • 2 x 4-point SpeakON (1/2 and 3/4 output channels)
  • 1 x 8-point CA-COM (all output channels)
• L-NET connectors: 2 x Fast Ethernet RJ45 (in/out)

The L-Acoustics LA8 US Amplified Controller is perfect for professional sound setups. It's designed for sound engineers and event organizers. With dimensions of 483 x 88.1 (2U) x 428 mm (19 x 3.5 (2U) x 16.8 inch) and a weight of 12.7 kg / 27.9 lbs, it's easy to install and transport. Ideal for concerts, theaters, and large events, it delivers high-quality sound with its advanced features.
