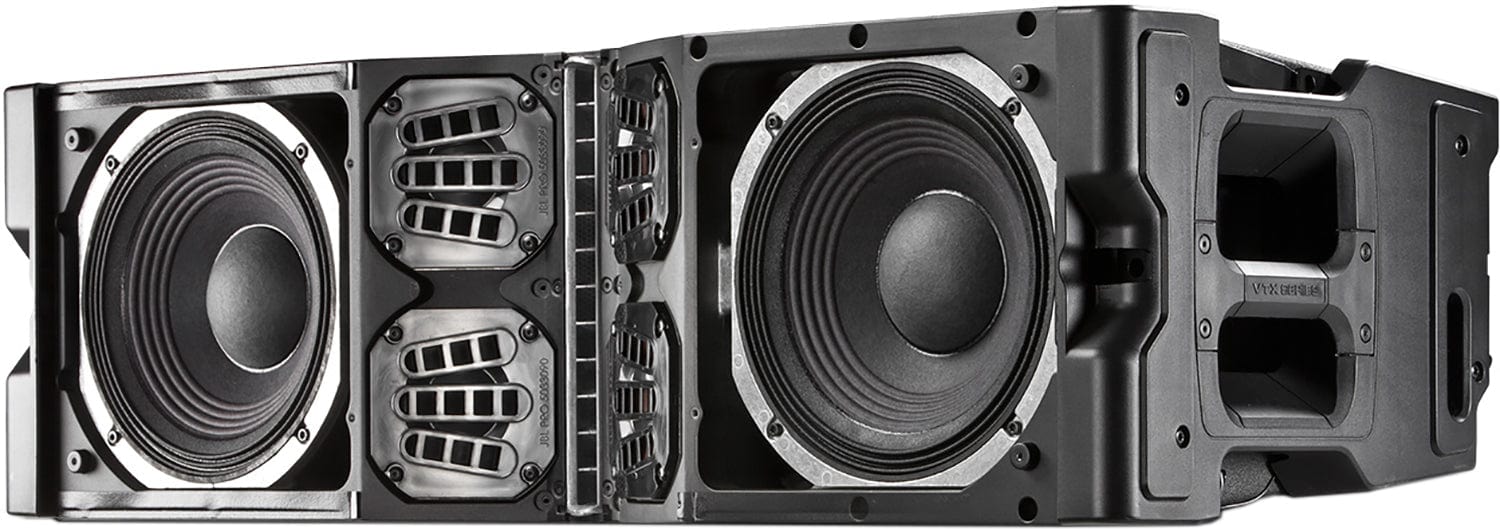

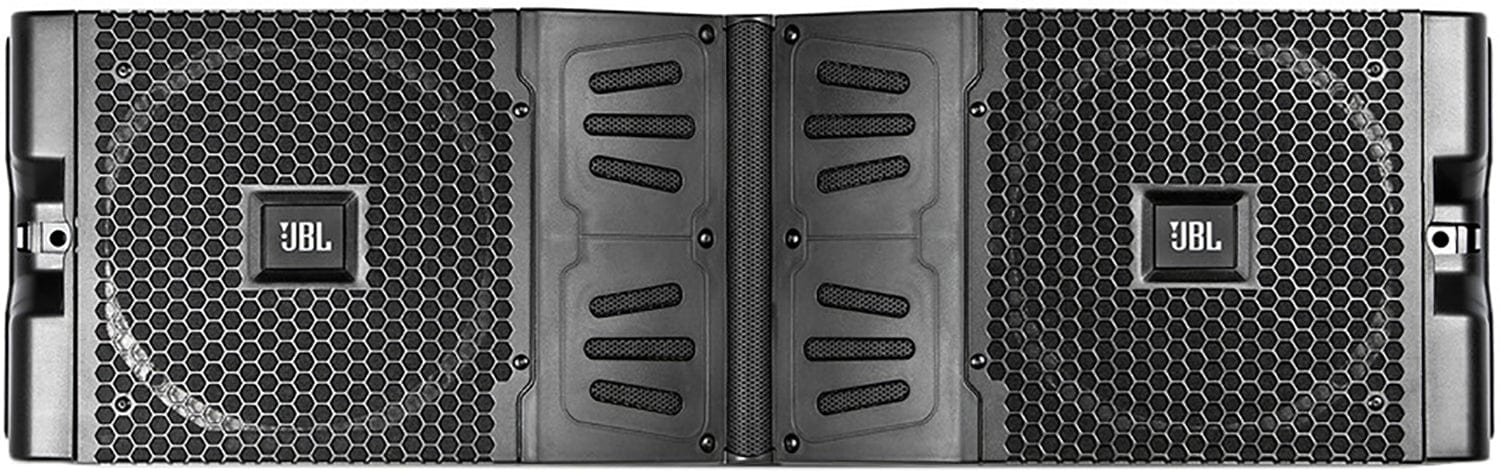

JBL VTX V20 Dual 10-Inch Line Array Speaker - 3-Way 105-Degree - The Ultimate Sound Solution
Get ready to experience unparalleled sound quality with the JBL VTX V20! This compact yet powerful speaker packs a punch with advanced technology and extraordinary performance. It's perfect for live events, concerts, and venues where top-notch audio is a must.
Key Features:
- • Compact Design: Smaller format with high power density for easy transport and setup.
- • Exceptional Coverage: Stable 105 degree horizontal coverage and effective line source array coupling.
- • High-Output Sound: Delivers linear, transparent sound up to surprisingly high levels.
Benefits:
- • Professional-Grade: Ideal for sound engineers and event organizers who demand the best.
- • Versatile: Suitable for a wide range of indoor and outdoor events.
- • Reliable: Built to last with high-quality components.
Technical Specifications:
- • System Type: 3-Way High Directivity Line Array Element with D2 Technology
- • Frequency Range (-10dB): 60 Hz – 20 kHz (Preset: VTX V20)
- • Horizontal Coverage (-6 dB): 105 degrees nominal (300 Hz - 16 kHz)
- • Maximum Peak Output: 139 dB (Preset: VTX V20)
- • System Amplification: Crown Audio I-Tech HD
- • Nominal Impedance: Active (LF: 2x 8 ohms, MF: 8 ohms, HF: 8 ohms); Passive (LF: 16 ohms, MHF: 8 ohms)
- • LF Driver: (2) JBL 2261H 10-inch Neodymium Differential Drive woofer
- • MF Driver: (4) JBL 2164H 5-inch Neodymium mid-range woofer
- • HF Driver: (3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
- • Enclosure: Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex finish, integral recessed handles
- • Inter-enclosure Angle: 0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
- • Dimensions (H x W x D) 280 mm x 911 mm x 402 mm (11 in x 35.9 in x 15.8 in)
- • Net Weight (each): 40 kg (88 lbs)
The JBL VTX V20 is a 3-way 105-degree line array speaker designed for live events, concerts, and venues. It features a compact design with high power density for easy transport and setup. The speaker delivers linear, transparent sound up to high levels with stable 105-degree horizontal coverage. It has a frequency range of 60 Hz - 20 kHz, a horizontal coverage of 105 degrees nominal, and a maximum peak output of 139 dB. The dimensions are 280 mm x 911 mm x 402 mm (11 in x 35.9 in x 15.8 in), and the net weight is 40 kg (88 lbs). Ideal for sound engineers and event organizers seeking high-quality audio solutions.
