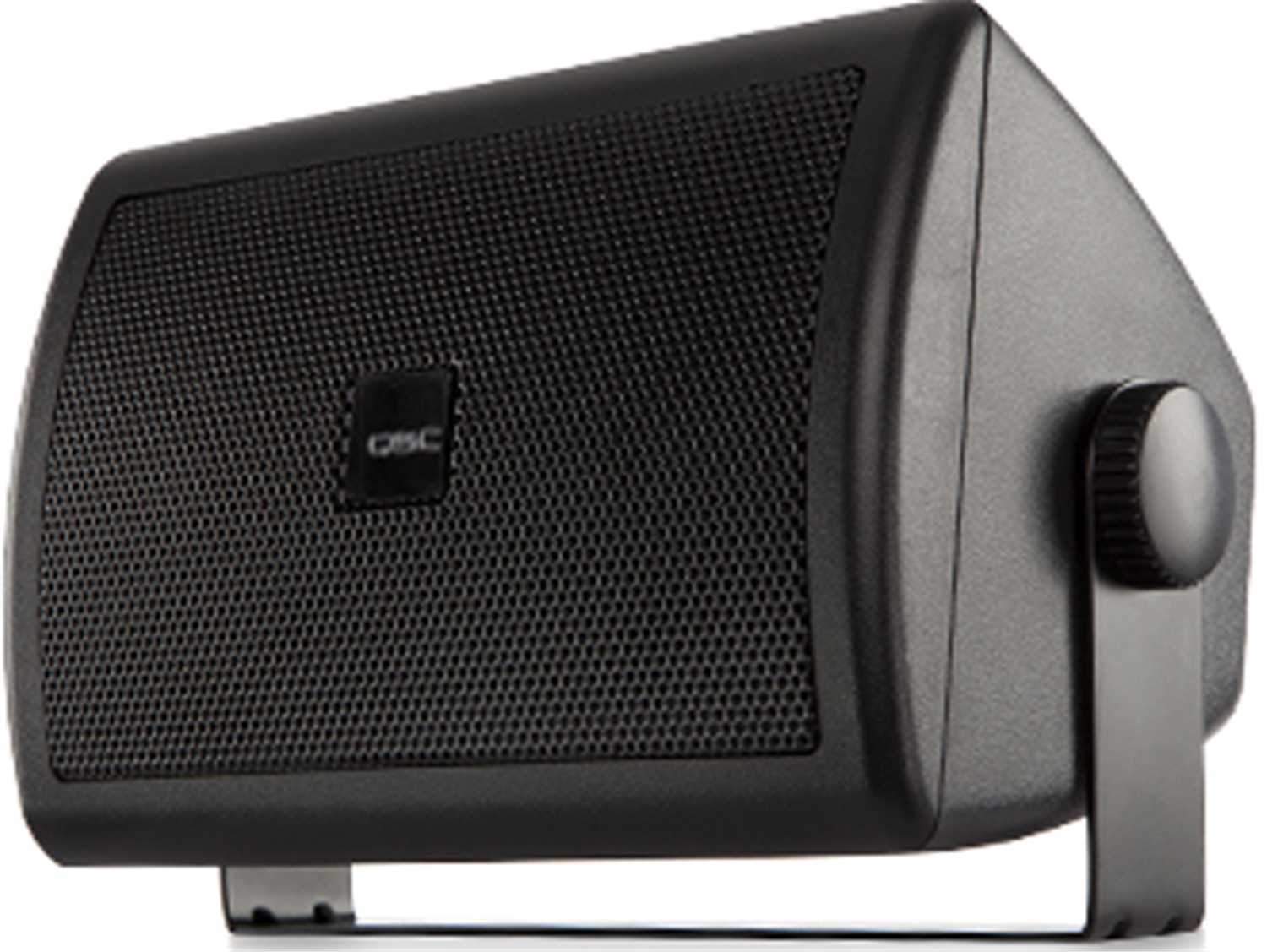

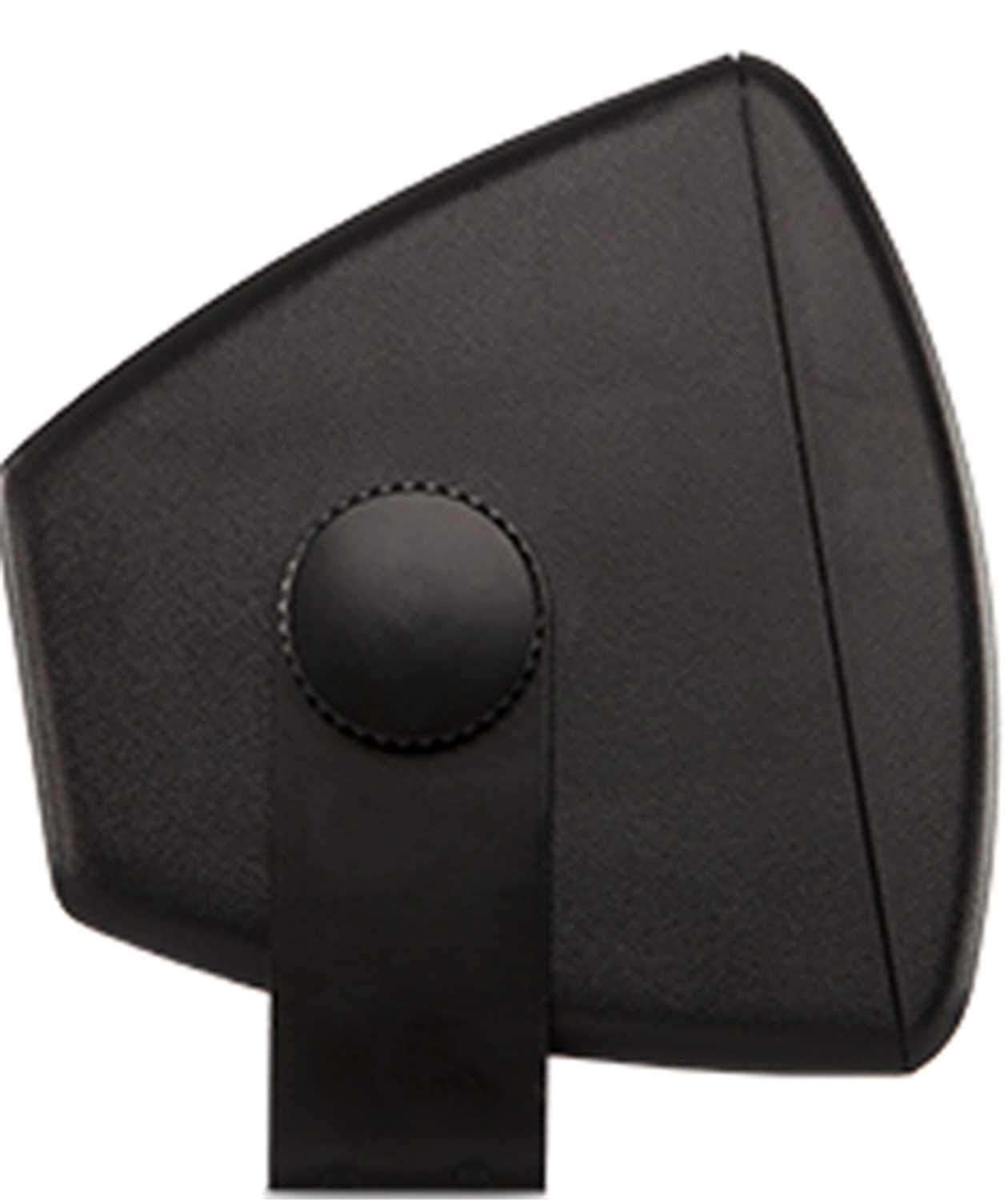

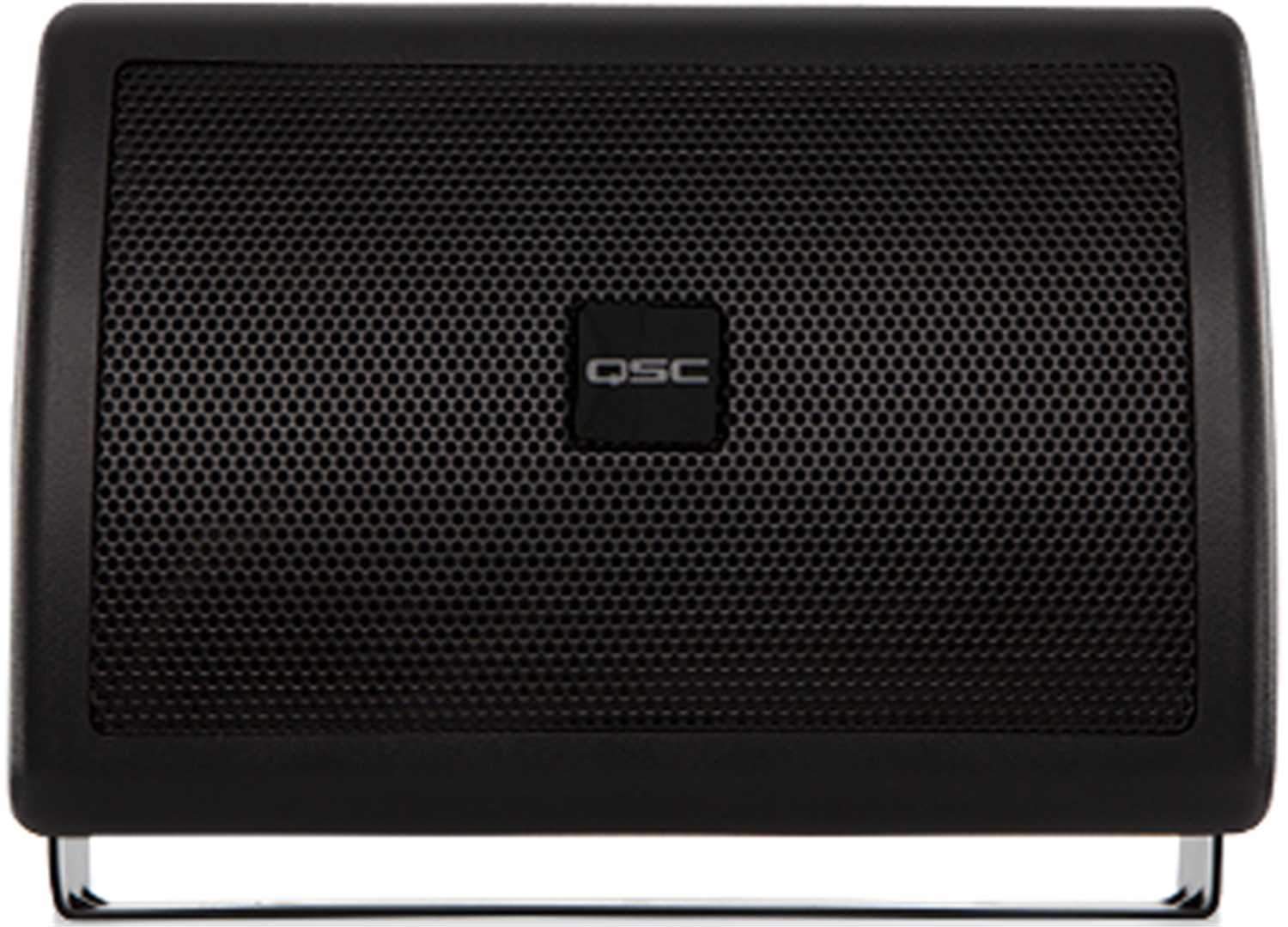

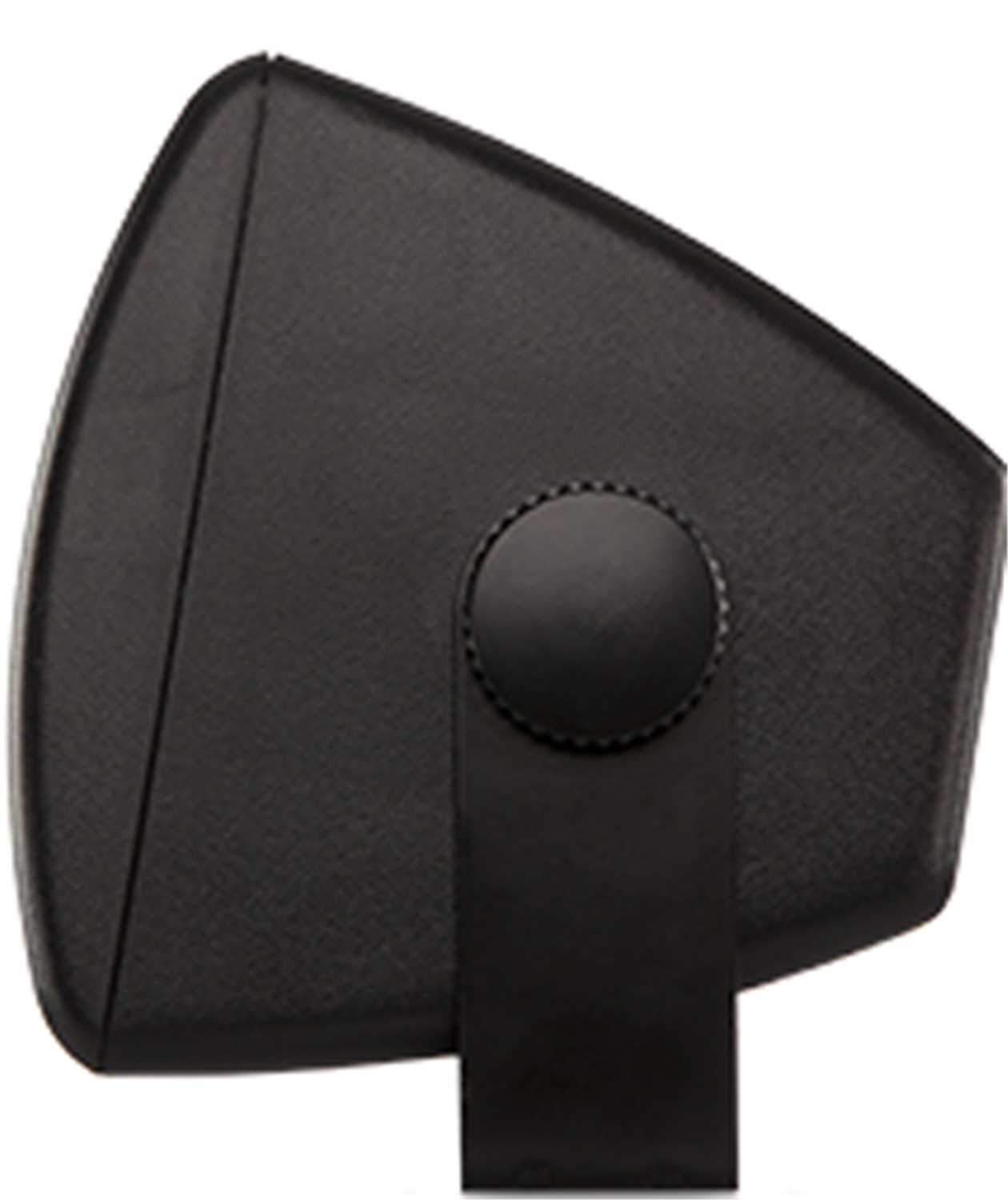

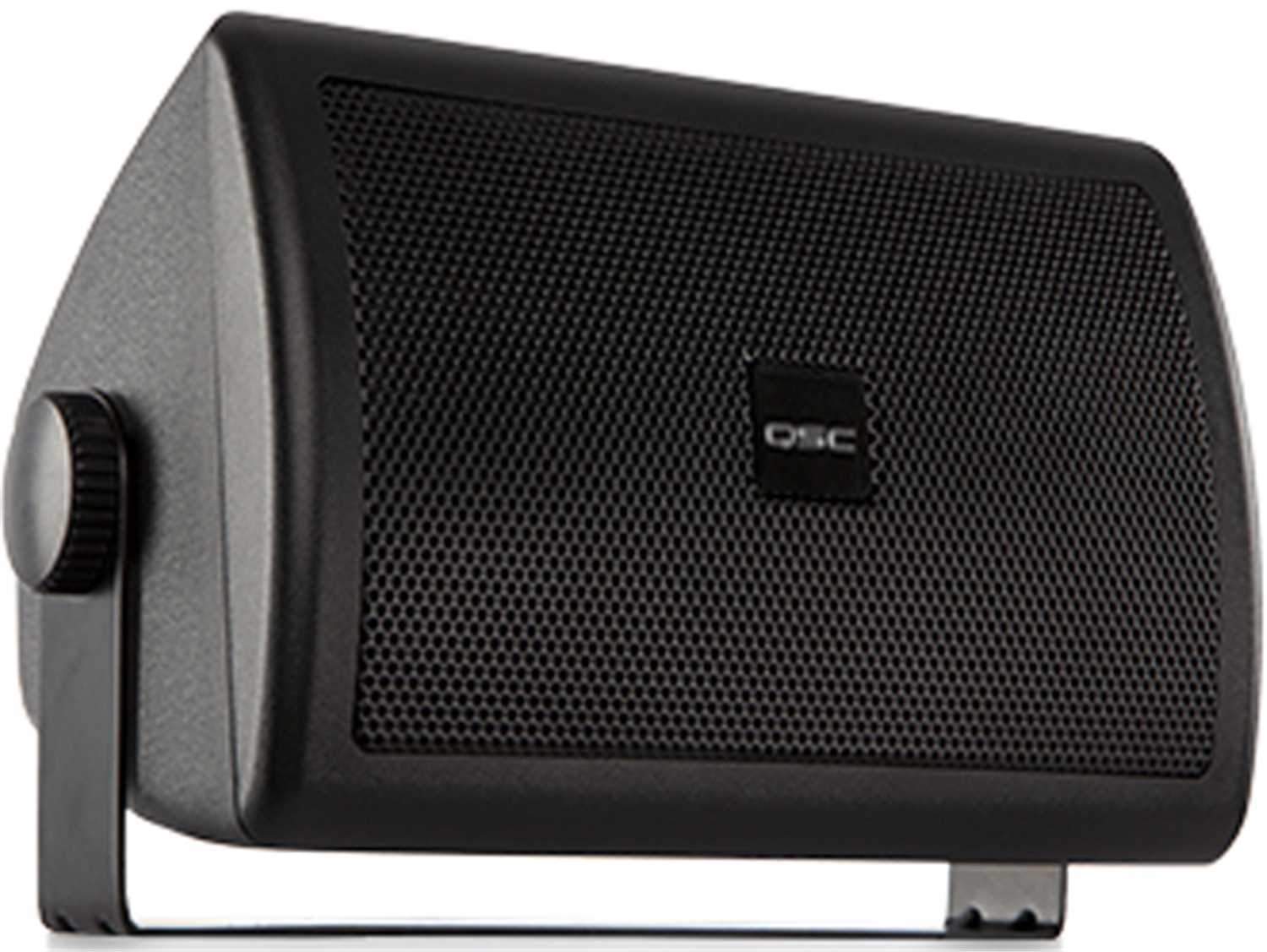

Q-SYS AC-S4T-BK 5-Inch Two-way Surface Speaker

QSC AC-S4T-BK 5-Inch Two-way Surface Speaker

*Must be ordered in pairs

Features

• • ，
• • ，
• • ，70Hz
• • 70/100V，8
• • 4，
• • QSC Intrinsic Correction，Q-SYSCXD
• • （RAL 9011）（RAL 9010）
• • EASECADBIM

Specifications

• Effective frequency range1: 70 Hz 20 kHz
• Rated noise power / voltage2: 16 watts / 11.3 volts rms
• Broad-band sensitivity3: 85 dB SPL
• Coverage angle (-6 dB): 130 conical (500 Hz 5 kHz)
• Directivity factor (Q): 6
• Directivity Index: 8 dB
• Maximum continuous SPL4: 97 dB
• Maximum peak SPL4: 103 dB
• Rated impedance: 8 ohms
• Recommended amplifier power: 32 watts into 8 ohms
• Transformer taps:
• 70V: 16, 8, 4, 2, 1 watts
• 100V: 16, 8, 4, 2 watts
• 8 ohm bypass
• LF transducer: 114 mm (4.5-inch) Polypropylene woofer with 25 mm (1-inch) voice coil
• HF transducer: 25 mm (1-inch) Aluminium dome tweeter with 25 mm (1-inch) voice coil

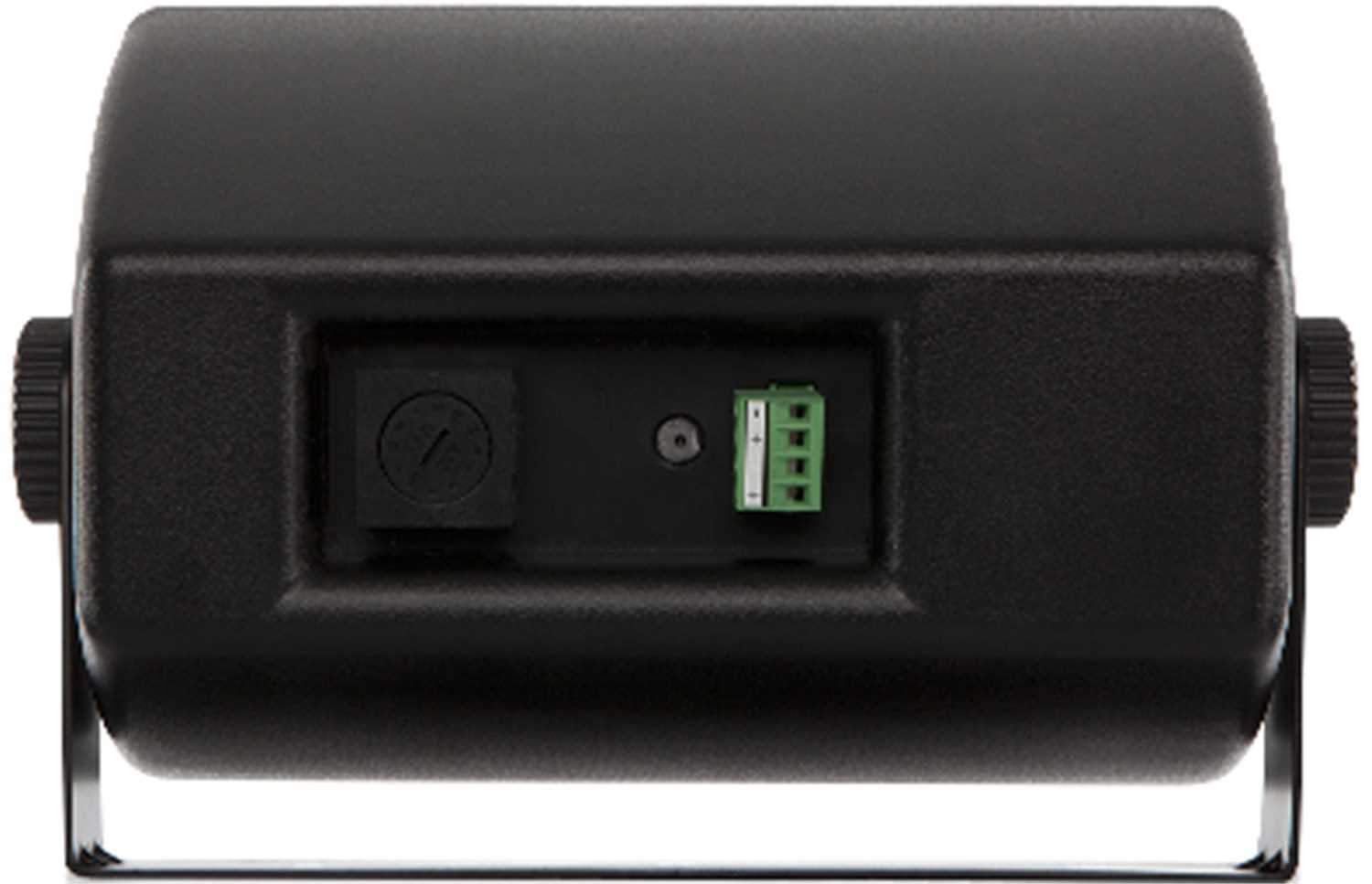

• Input connector type: Euroblock connector with parallel output
• Enclosure material: UV treated, high impact ABS polymer
• Grille material: Powder coated steel
• Yoke material: Powder coated steel with brass inserts
• Enclosure Details:
• Ingress protection: IP-44
• Operating environment: Designed for indoor use
• Operating Temperature Range: -20 to 50 C (-4 to 122 F)
• Product Dimensions (HWD) mm: 230 160 150
• Net Weight: 5.3 lb / 2.4 kg
• Shipping weight: 5.3 kg (11.8 lb) pair packed
• Shipping Dimensions (HWD) inches: 11.5 8.1 14.5 pair packed
• Shipping Dimensions (HWD) mm: 292 x 206 x 368 pair packed
• Included accessories: Yoke mount system, euroblock connector
• 1 Free-field, -10 dB from on-axis sensitivity
• 2 IEC60268-1 noise signal for 2 hours
• 3 On-Axis, free-field sensitivity, 2.83V, 1 m
• 4 Calculated from rated noise voltage and sensitivity
