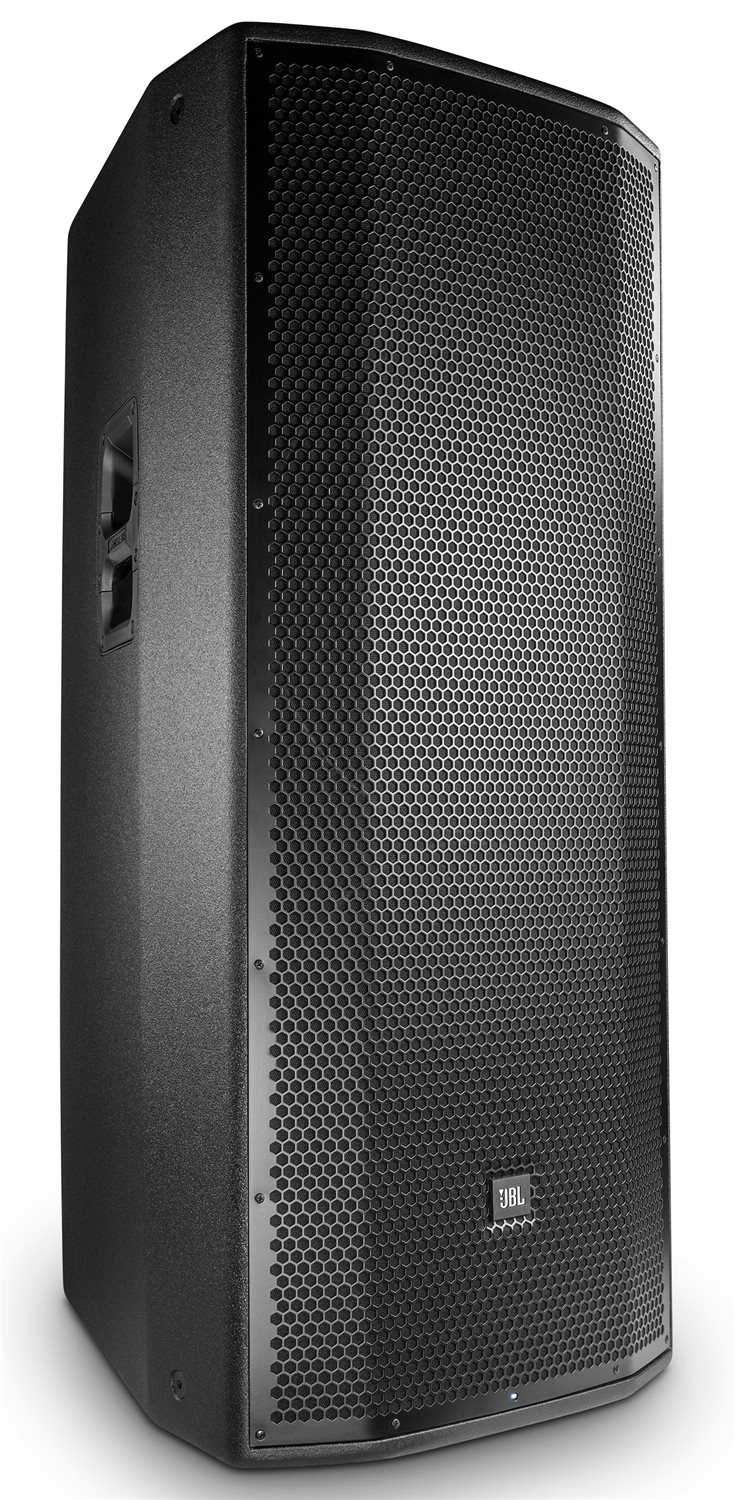

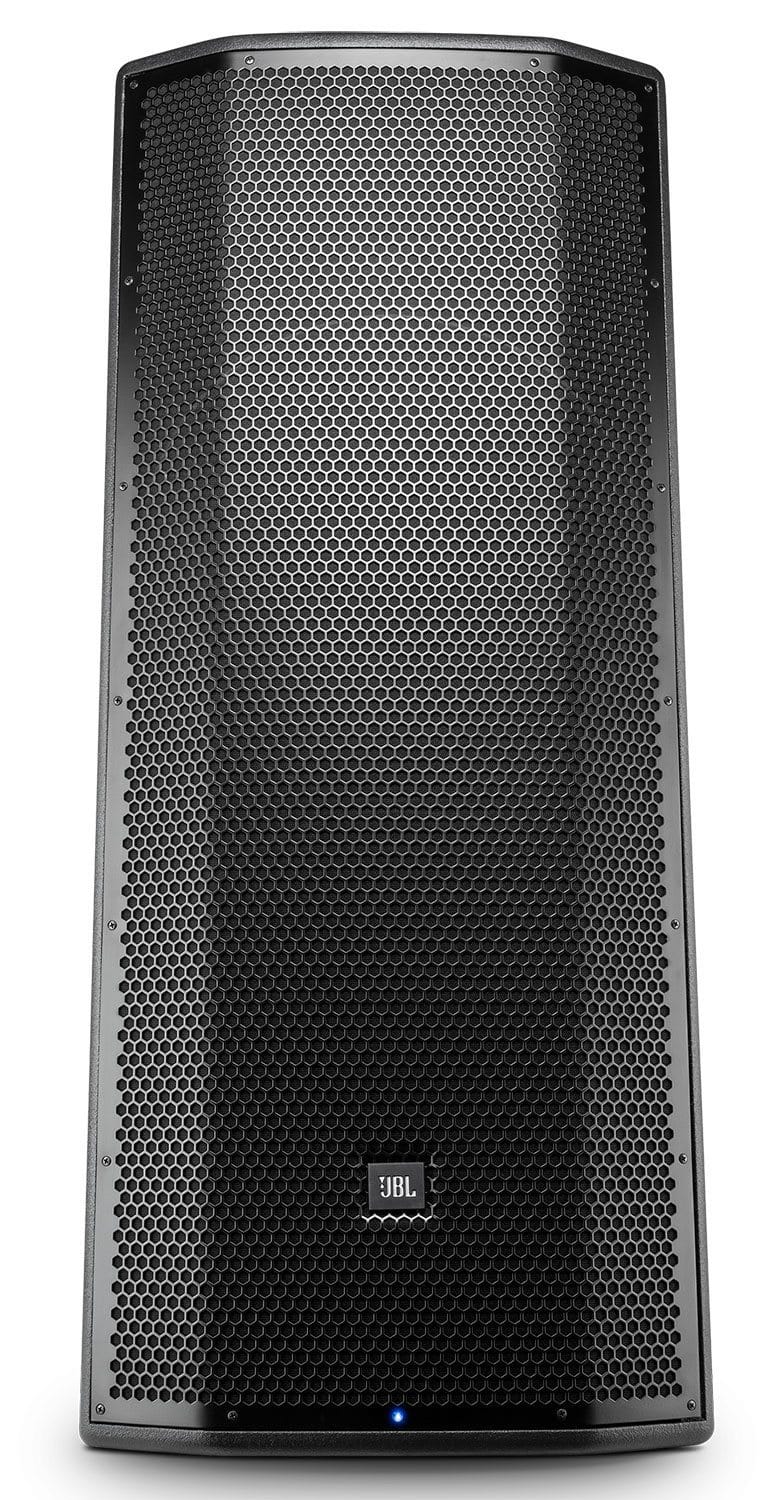

JBL PRX825W Dual 15-Inch Powerhouse Speaker - Fill Your Venue with Sound
The JBL PRX825W is a must-have for main system applications. It packs a punch with its dual 15', 2-way, bass-reflex design and a powerful 1500-watt class-D amplifier, delivering incredible volume in a lightweight and compact form.
Features: - • Wi-Fi Connectivity: Control your system wirelessly from anywhere in the venue
- • Free Mobile App: Adjust volume, EQ, and speaker delay with the PRX Connect app for iOS and Android
- • 1500-Watt Amplifier: Ample power to fill your venue
- • High SPL: JBL Differential Drive transducers for maximum sound output

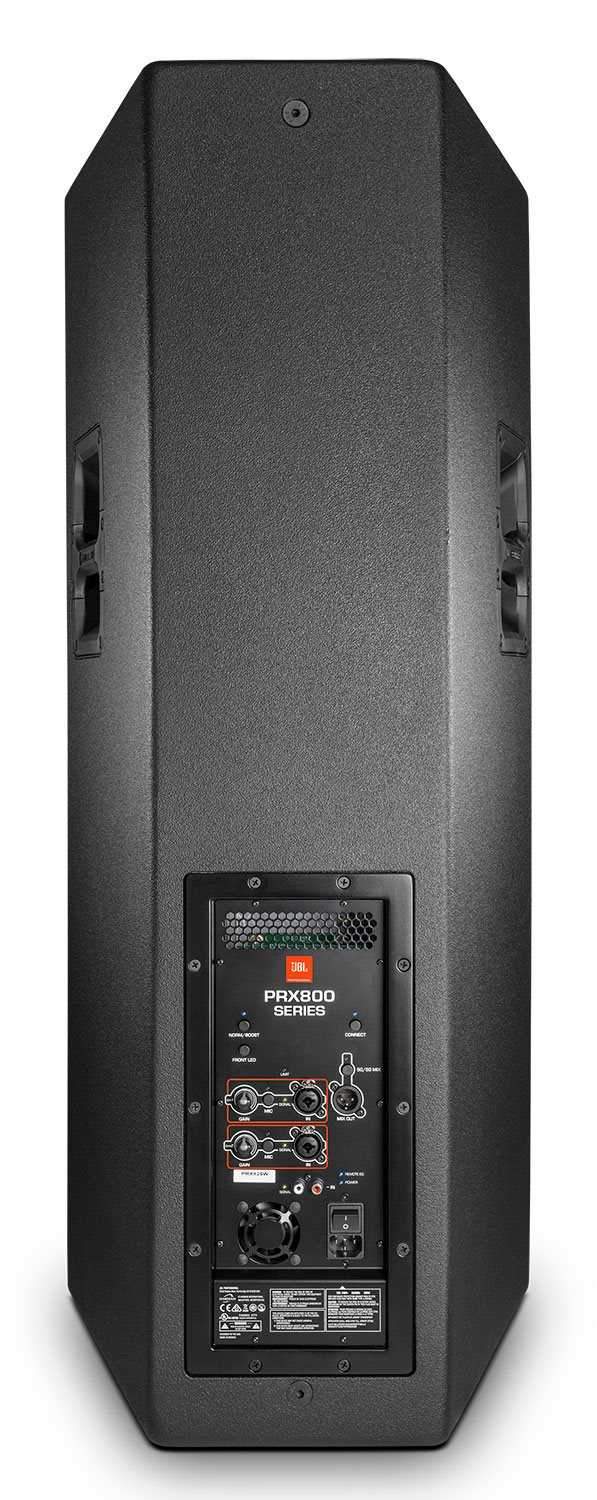

- • Versatile Inputs: Redesigned Crown input technology with XLR, 1/4', and RCA inputs plus XLR loop-through
- • Quiet Operation: Intelligent variable-speed fan activates only when needed
- • Smooth Sound: Updated tuning for flat frequency response and off-axis behavior
- • Durable Build: Wooden cabinets, DuraFlex finish, and dent-resistant grilles
- • Worldwide Compatibility: Universal power supply
- • Clear Sound: dbx Type IV limiting for distortion-free audio
- • Reliable Performance: Brutal testing regimen, including the 100-hour power test
Specifications: - System type: Self-powered Dual 15', 2-way, bass-reflex
- Maximum SPL output: 138 dB peak
- Frequency range (-10 dB): normal: 46.2Hz-16.5 kHz, boost: 46 Hz-18.3 kHz
- Frequency response (±3 dB): normal: 52.6 Hz-17 kHz, boost: 51.8Hz-17.5k
- Input connectors: 2 x balanced XLR / 1/4' input, 2 x unbalanced RCA input
- Input impedance: 20K ohms (balanced), 10K ohms (unbalanced)
- Signal indicators: Limit - yellow LED indicates peak output has been reached and dsp limiter is acting. Signal - green LED indicates signal present. Power - blue indicates system has power and ready to pass audio.
- EQ: user selectable presets for normal or boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
- Dynamic control (input): dbx type IV limiter circuit
- Crossover frequency: 2.4 kHz
- Design: highly efficient Class-D amplifier
- Power rating: 1500W (750W x 2)
- AC power input: 100V - 240V ~ 50/60 Hz
- Low frequency driver: 2 x JBL 15' woofer
- High frequency driver: 1 x JBL 2408H-2 1.5' annular polymer diaphragm, neodymium compression driver
- Coverage pattern: 90° x 50° nominal
- Directivity index (DI): 10.4 dB
- Directivity factor (Q): 11
- Enclosure: trapezoidal, 18mm plywood
- Suspension / mounting: 8 x M10 suspension points, 1 x M10 pull back point
- Transport: 2 x integrated handles with injection molded backing cup
- Finish: obsidian duraflex finish
- Grille: Powder coated, obsidian, 16-gauge perforated steel with acoustical transparent black cloth backing.
- Dimensions: 41.8' x 17.5' x 21.2' (H x W x D)
- Net Weight: 82 lbs.
- Gross Weight: 95 lbs.
The JBL PRX825W is perfect for venues like clubs, theaters, and auditoriums. It's designed for sound engineers, event planners, and anyone who needs high-quality sound. With dimensions of 41.8' x 17.5' x 21.2' (H x W x D) and a net weight of 82 lbs, it's easy to transport and set up.
