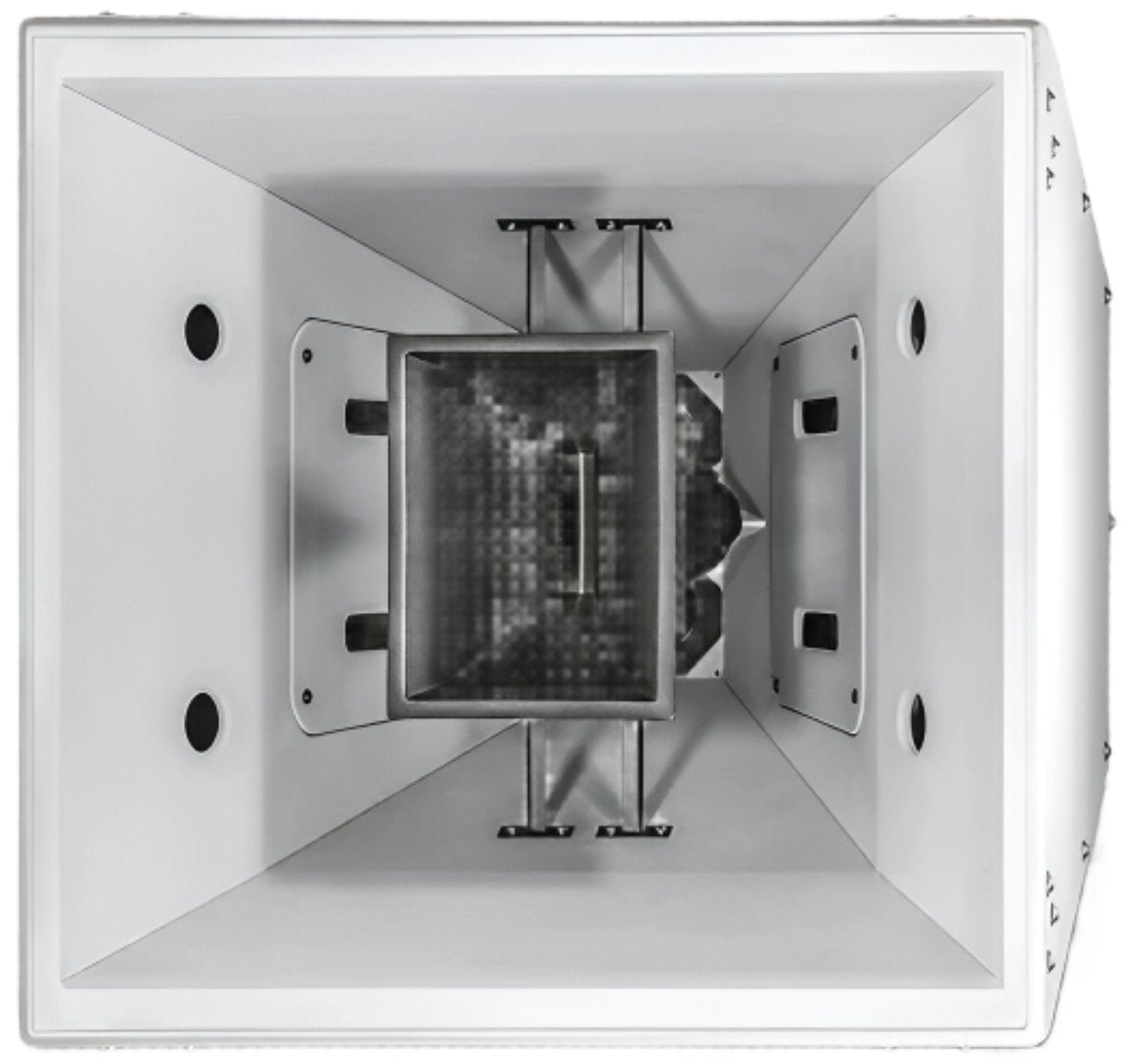

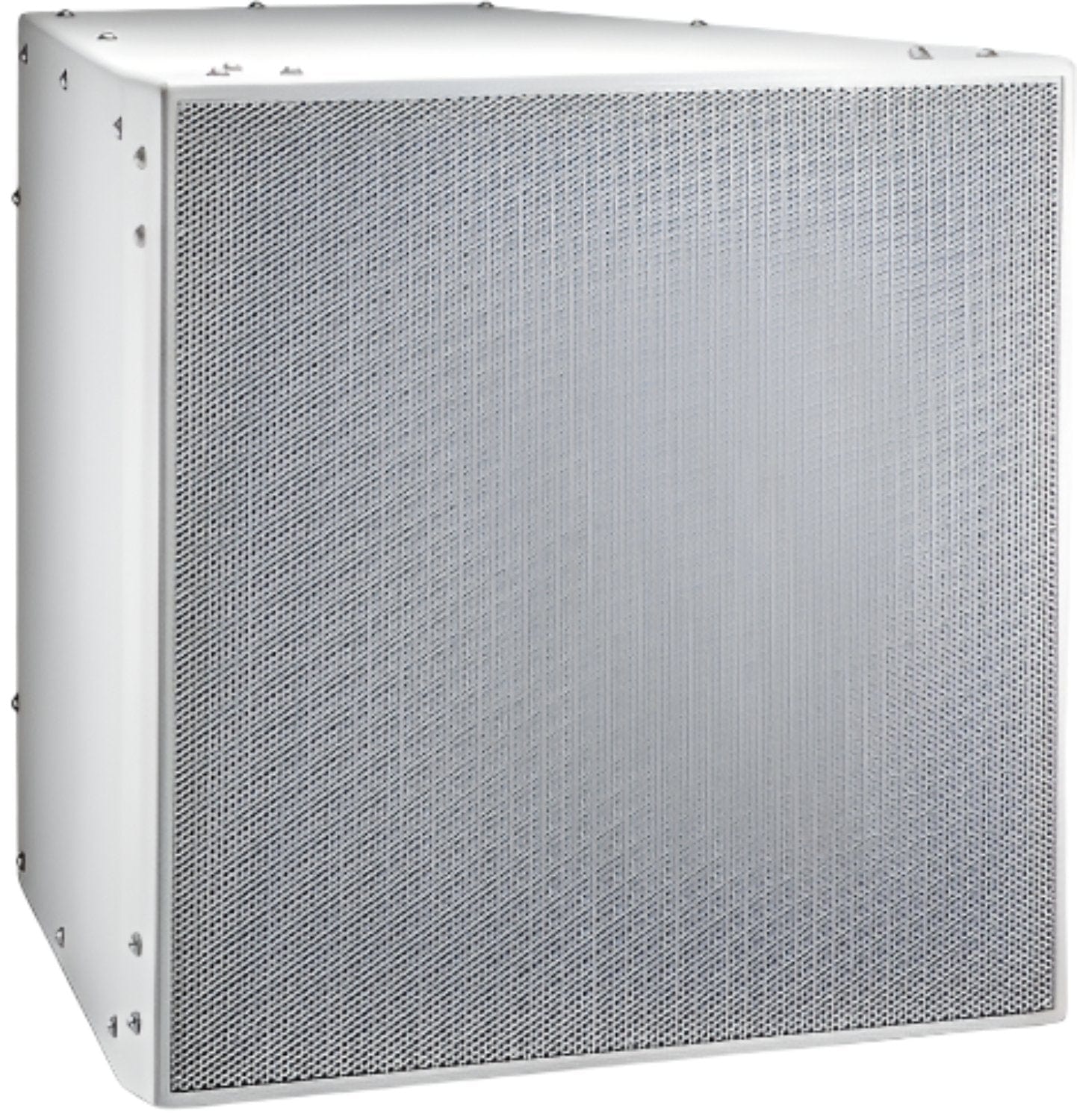

JBL PD764-WH High-Impact White Coaxial Speaker
Get powerful sound reinforcement with the JBL PD764! It delivers high-impact audio beyond single-driver limits. A single module produces over 104 dB SPL continuously at 50 m. Use it in clusters or as part of a distributed system. Add PD100 series low-frequency elements for extended bandwidth.
Features:
- • 60° by 40° Coverage Pattern - Versatile orientation for arrays.
- • IFS technology for 6 dB more output with no interference.
- • Dual 8 in horn loaded cone mid frequency drivers for 6 dB greater output.
Specifications:
- Product Type: Speaker
- Enclosure Color: Black
- Enclosure Material: Birch plywood
- Design Features: DuraFlex finish, trapezoidal design
- Speaker Type: Surface Mount
- Configuration: Full Range
- Speaker Size: 15'
- Total power (W): 500
- Cab Material: Birch plywood
- Number of Speakers: 1 Speaker
- Dimensions: Width 30.8 in, Depth 26.4 in, Height 30.8 in, Weight 152.12 lbs
- Impedance: 8, 4, 16-ohm
- Color: White
- Indoor/Outdoor: Indoor
- Active/Passive: Passive
- Speaker System:
- Speaker Type: 2-way – passive
- Nominal Output Power: 300 Watt
- Max (RMS) Output Power: 500 Watt
- Frequency Response: 50 – 20000 Hz
- Nominal Impedance: 8 Ohm
- Max Output Level (Max SPL): 139 dB
- Sensitivity: 105 dB
- Crossover Frequency: 1200 Hz
- Coverage: 60° x 40°
- Speaker Driver
- Woofer driver: 15″ – Horn
- Tweeter driver: 1.5″ – neodymium – aluminum – Horn Loaded Compression Driver (HLCD)
The JBL PD764-WH High-Impact White Coaxial Speaker is perfect for indoor sound reinforcement needs. Ideal for venues like auditoriums, clubs, or small theaters. It features a 60° by 40° coverage pattern for flexible array setup. With dimensions of Width 30.8 in, Depth 26.4 in, Height 30.8 in and weighing 152.12 lbs, it offers a good balance of size and power. The speaker can be used in clusters or as part of a distributed system, providing high-impact sound at throw distances beyond single-driver designs.
