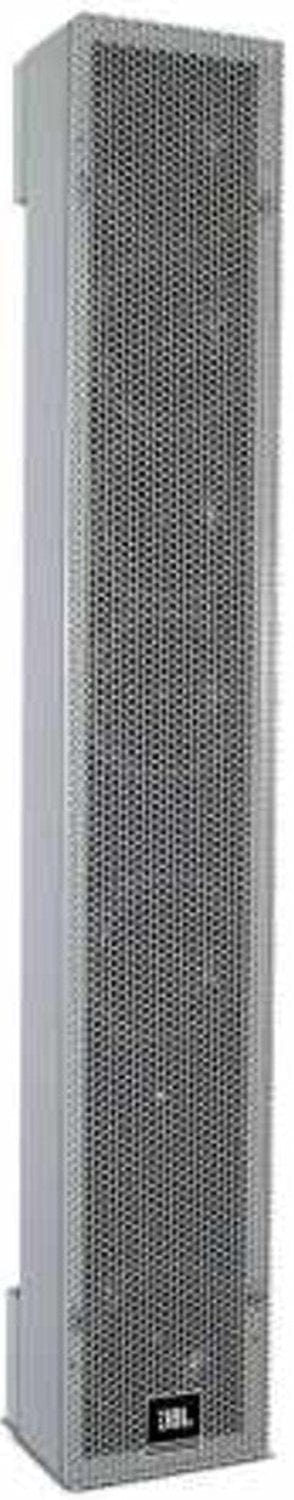

JBL Intellivox DS500 Column Speaker - The Ultimate Sound Solution
The JBL Intellivox DS500 is the star of the slim line Intellivox DDS range, trusted in high-profile projects globally. It's a must-have for venues craving top-notch speech clarity in reverberant spaces. With over 4 m of acoustic length, it offers long throw and great low-frequency control. One unit can cover up to 70 m² with an even sound pressure level.
Thirty-two custom 4” loudspeakers, powered by a 16-channel class-D amplifier with a switched mode power supply, ensure years of reliable use. The speakers are arranged per our patented algorithm. Surveillance functions meet Voice Alarm needs. Control with user-friendly Win Control software for beam steering, audio processing, and surveillance.
Features:
- • Exceptional Speech Intelligibility
- • Sleek, Unobtrusive Design
- • Extended Frequency Response
- • Wide Horizontal Dispersion
- • Vertical Beam Shaping (DDS Technology)
- • 32-bit floating point DSP
- • Control of Vertical Beam Shaping
- • Dual Line Inputs
- • Volume Control
- • Delay (up to 20 seconds)
Specifications:
- • Maximum SPL (30m): Continuous: 97 dB SPL, Peak: 100 dB SPL
- • Typical Maximum Throw: 50 - 70 m / 164 - 230 ft
- • Drivers: 32 x 4” full range
- • Dimensions: Height - 4930mm x Width - 134mm x Depth - 92mm
- • Weight : 44kg / 97lb
- • Enclosure: Stainless steel (AISI 304) with epoxy coating
- • Color: Enclosure and Grill: RAL 9010 (white), Speaker Baffle: RAL 9011 (black)
- • Optional Accessories: Multiple options available.
- • Coverage Angle: Vertical complex beam shaping, wide horizontal dispersion
Use it in large venues like auditoriums, conference halls, and stadiums. Ideal for event organizers, venue managers, and sound engineers. Dimensions: Height 4930mm x Width 134mm x Depth 92mm, Weight 44kg. Delivers great sound quality and coverage in reverberant spaces.
